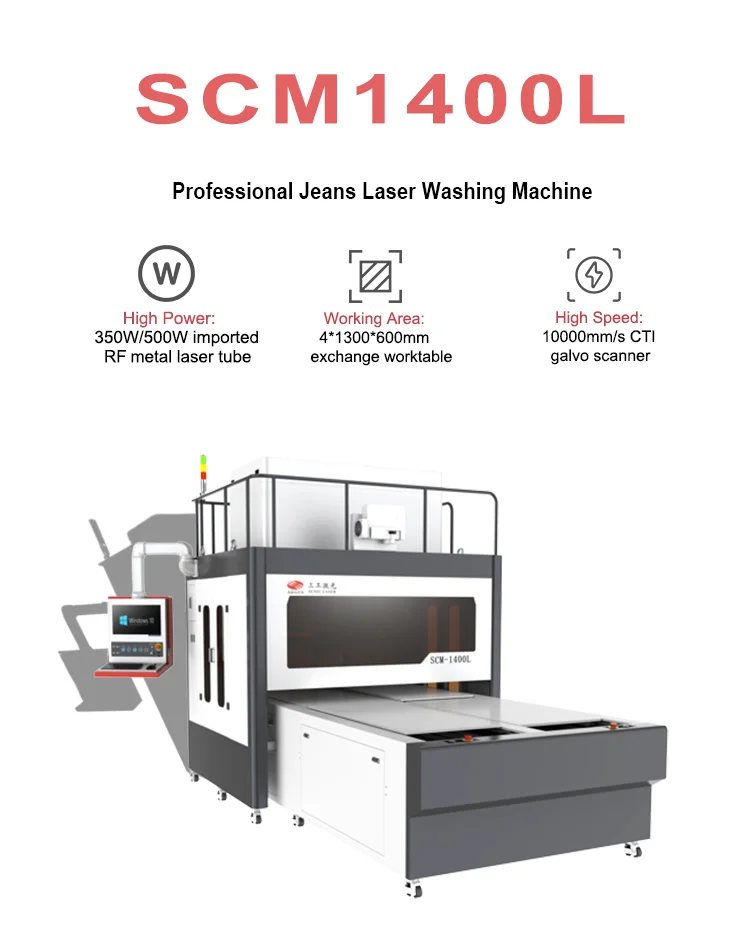

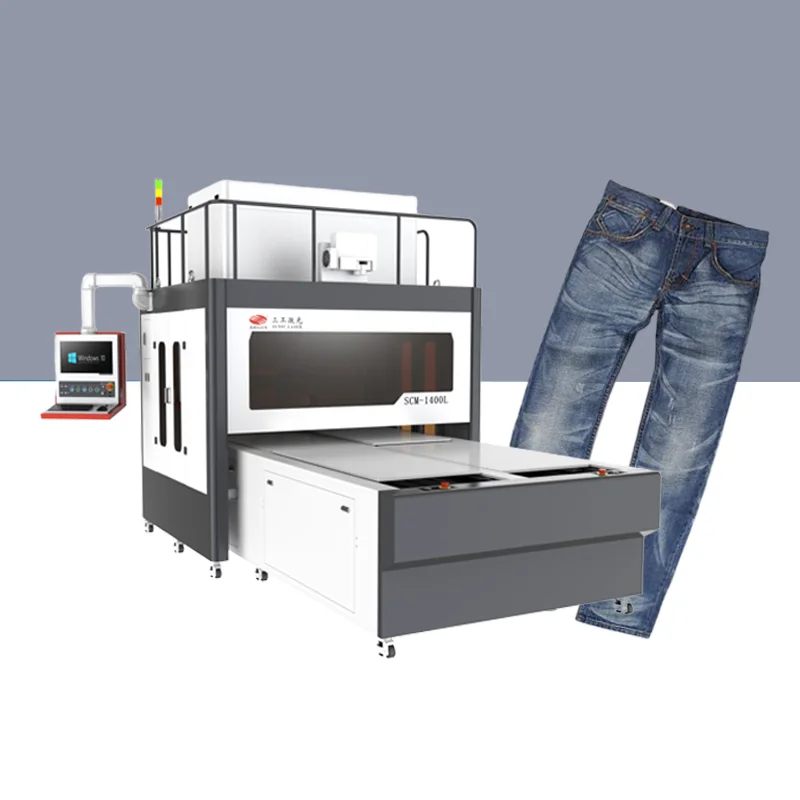

ARGUS automatic big area CO2 Laser Engraving Machine for Jeans 4 switch table laser printing Denim Fabric
- Category: >>>
- Supplier: Wuhan Sunic International Trading Co. Ltd.
Share on (1601174356049):
Product Overview
Description
Main Features
1.This machine adopts original imported 350W metal RF laser tube, excellent laser spot, stable laser generation and lifetime of more than 20000hrs.
2. 4 independent exchange sliding worktable, increase the production speed, keep the operator’s safety, and give more space to operator change the raw materials.
3.Equipment with projector positioning system, easy for operator to load the jeans in right position.
4. Fully enclosed laser optical system,no adjustment or maintenance needed,can be used directly after installation.
5.3D dynamic galvo control system and automatic up&down Z axis ensure the best processing results.
6. Equipped exhaust fans ensure good exhaust suction effects and environment friendly processing.
7. Comprehensive software support for capturing and creating a variety of labels, as well as non-contact processing.
8. High precision and speed performance with jeans washing working, 20% higher efficiency than the similar models in the market.
3.Equipment with projector positioning system, easy for operator to load the jeans in right position.
4. Fully enclosed laser optical system,no adjustment or maintenance needed,can be used directly after installation.
5.3D dynamic galvo control system and automatic up&down Z axis ensure the best processing results.
6. Equipped exhaust fans ensure good exhaust suction effects and environment friendly processing.
7. Comprehensive software support for capturing and creating a variety of labels, as well as non-contact processing.
8. High precision and speed performance with jeans washing working, 20% higher efficiency than the similar models in the market.
Product Parameter
Model | SCM1400L | |||
Max working Area | 1300*600mm*4 | |||
Laser power | 150W/250W/350W/500W | |||
Power Consumption | ≤ 5-7kWh | |||
Life Span | Over 20000 Hours | |||
Marking Speed | ≤10000mm/s | |||
Worktable | MDF/Strip/Honeycomb Worktable | |||
Laser Source | US Coherent RF Metal Laser Source | |||
Laser Wavelength | 10.64μm | |||
Laser Frequency | 20kHz~200kHz | |||
Focusing method | 3D Dynamic Focusing System | |||
Positioning | Projector Positioning | |||
Repetition Precision | 0.01mm | |||
System Support | Windows | |||
Output Compatibility | Auto CAD, Photoshop, CorelDRAW etc | |||
File Formats | PLT, DXP, BMP, JPG, AI etc | |||
Software Character | Integrated Function of Dotting Design, Vector Drawing, Marking, Scribing and Cutting | |||
Power Supply | 110V~380V/50Hz~60Hz | |||
Cooling Way | Circulation of Water Cooling |

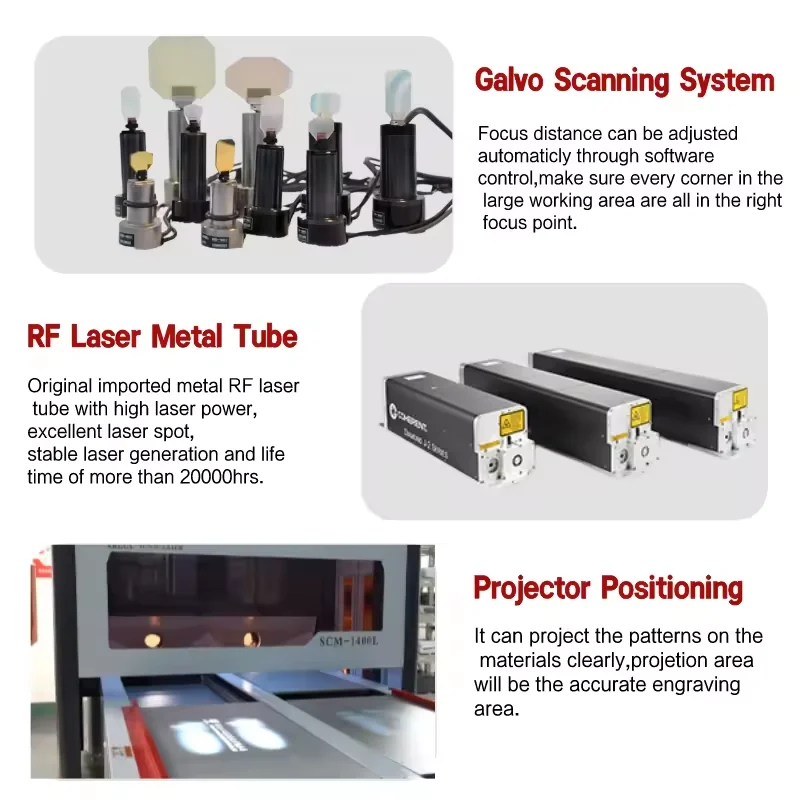

Use 3D dynamic focusing
scanning system , focus distance can be adjusted automatically through software control, make sure every corner in the large working area.
scanning system , focus distance can be adjusted automatically through software control, make sure every corner in the large working area.
RF Laser Metal Tube
USA famous R.F metal tube
from the Coherent.
Good laser beam quality,
Good laser beam quality,
long lifespan and clear and
full printing.
Projector positioning system, easy to observe.
It can project the patterns on
the materials clearly will be
the accurate printing area.

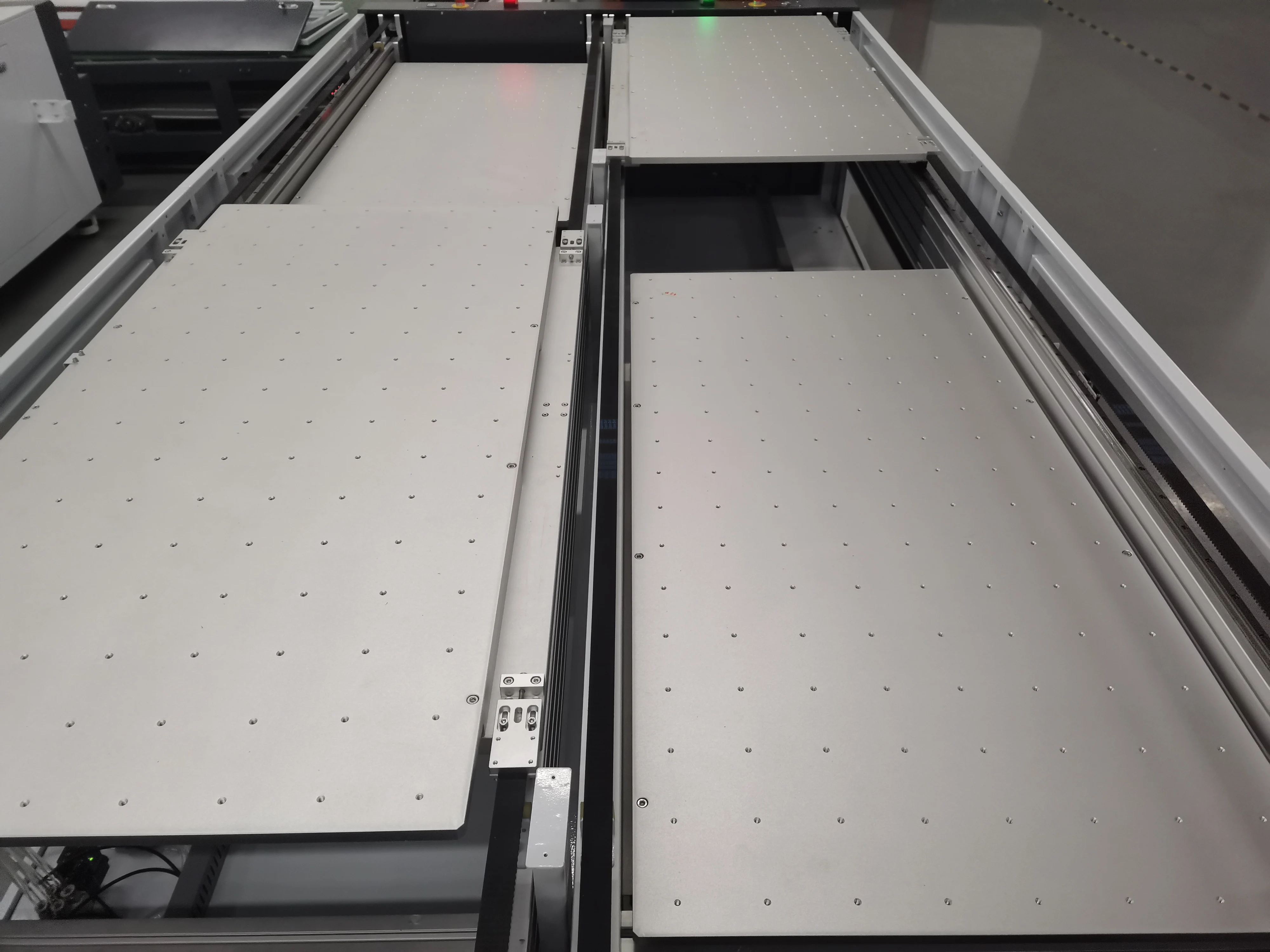

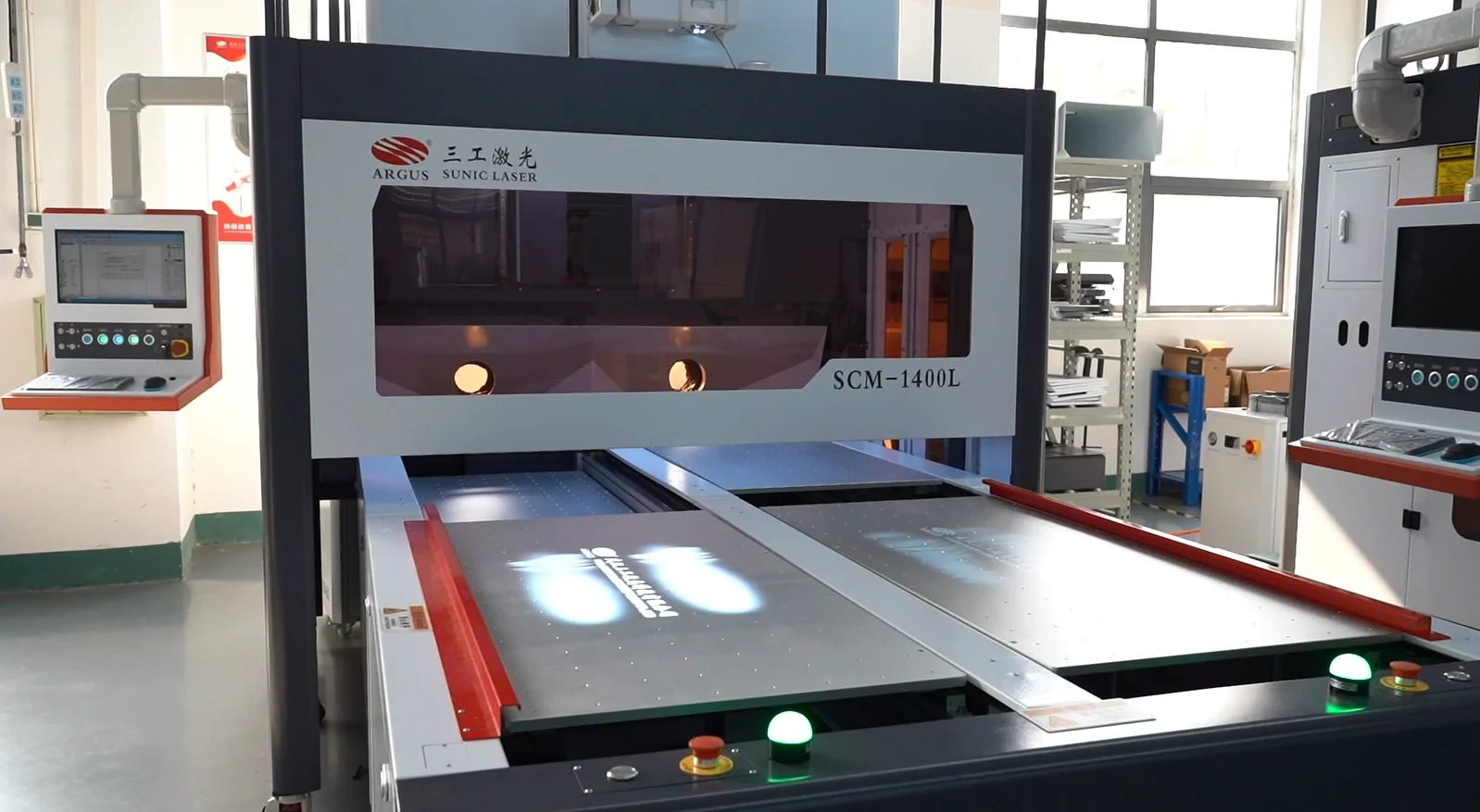

Automatic Worktable
4 exchange worktable and
single table working area
1300*600mm. Have safety
isolation protection between
loading & unloading area
and laser processing area.
isolation protection between
loading & unloading area
and laser processing area.

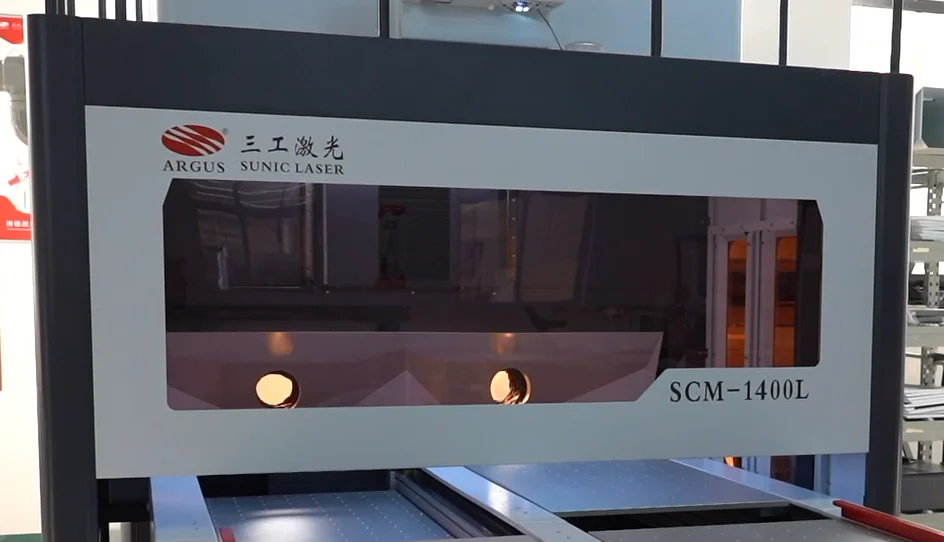

Fully Enclosed Area
The marking process can be
easily observed by glass
window.
Safe and hygienic, prevent the
spread of smoke and dust by
adopt exhaust system.
window.
Safe and hygienic, prevent the
spread of smoke and dust by
adopt exhaust system.

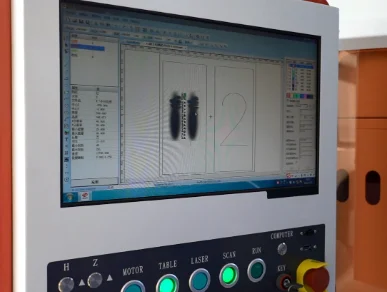

Computer Operate Station
You can freely design and
engrave the patterns as you
wish.
Sunic self - developed control
wish.
Sunic self - developed control
software, powerful function,
strong compatibility.

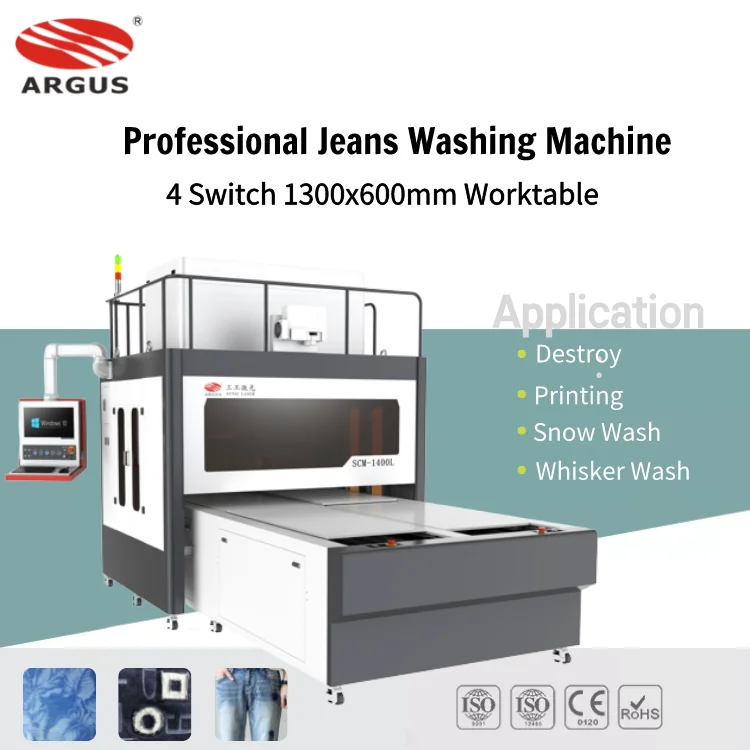

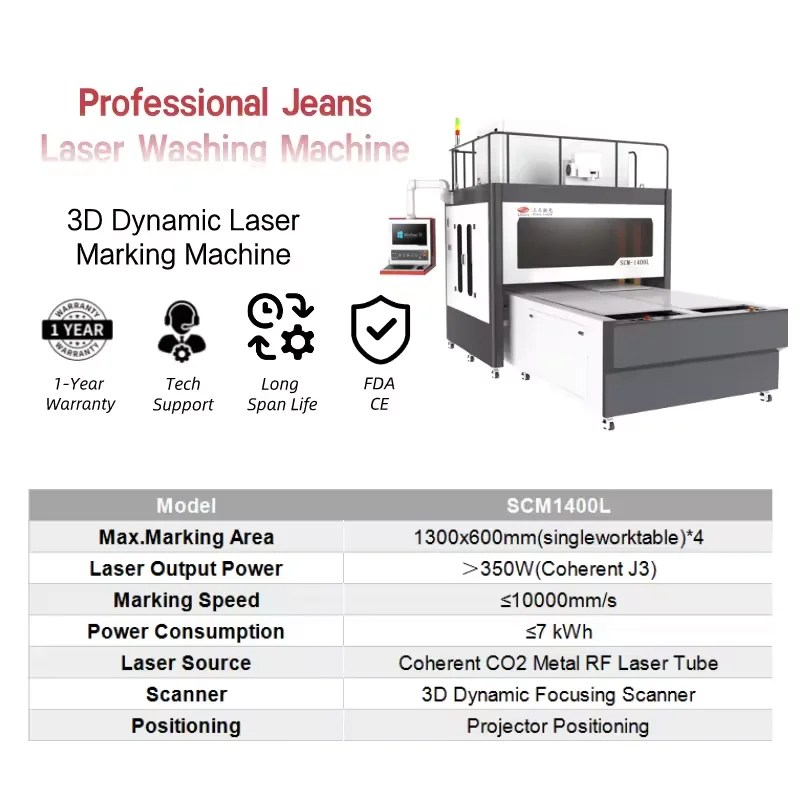

Top 1 Jeans Denim Laser Washing Machine SCM1400L Model
1.Permanent：Mark will not subside because of environmental reasons (touch,acidic or reducing gas,high or low temperature etc), 20% higher efficiency than the similar models in the market.
2.Non-contact：Laser marking is a non-mechanical “light knife” for processing, the work piece will not produce stress after marking.The working surface will not produce corrosion, non-toxic, non-polluting.
3.High precision for engraving & marking：CO2 Dynamic laser marking machine can engrave fine pattern, the minimum line width can reach to 0.2mm. Engraving&Marking result is clear, durable and beautiful.
4.Low operating costs：Low energy consumption, no consumptive materials, and therefore lower operating costs.
5.High efficiency：CO2 Dynamic Laser Marking Machine’s Engraving & Marking speed can reach to
7-10m/s, three times than that of traditional laser marking machine, marking process can be completed
in seconds.
6.Large marking area：With the high power laser tube and the 3D Scanner technology, the CO2 Dynamic Laser Marking Machine can work on large size materials such as the clothes/leather/LGP processing.
About Sunic Group
Wuhan Sunic Group are a professional laser machines and solar panel products lines equipment manufacturer since 1998.We are specialized in design, research, manufacture, sales and service for laser machines. Sunic Group would like to be customer's technical consultant, support in laser&solar equipment to make further development and progress together.
We supply customized solution for different materials processing , such as invitation cards, wedding cards, pop up cards, Pop up books,candy box,paper products,acrylic, PMMA, LGP, jeans wash,leather, Fabric,textiles,wood,MDF,laminate materials,marble, package film, metalp, plastic products and so on.
What kind of laser machine and model should I choose?
You can tell us your processing material, working size and detail requirement, detail work by picture or video so that we can judge whether our machine can meet your need.
What kind of materials does the laser machine can process?
We have different laser machines, such as Fiber laser, CO2 Laser, UV Laser, Green Laser. Normally fiber laser can process metal and plastic. CO2 laser is for processing non-metallic materials, such as Acrylic, PMMA, Wood, Glass, Leather, Jeans, Paper, Textiles Garments and so on. UV laser and green laser are also called cold laser source, they are usually used for plastic, glass, crystal and some special processing job.
Is it easy to operate?
We will send you manual and guide video in English, I can teach you how to operate the machine. lf you still can not learn how to use it, we can help you by Team viewer online help software. Or we can talk by phone email or other contact ways.
What s your guarantee. in case the machine breaks down?
The machine has one year guarantee. If it breaks down, generally speaking our technician will figure out what the problem may be, according to client's feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality fault.
How will you do the after- sale service?
We will firstly check your problems online through Teamviewer, E-mail, Whatsapp or other contact way, if it is easy to handle it, we will guide you onlinet to fix it or send you the spare parts for replacement.
What is your equipment lead time?
Fiber laser marking machine lead time is around 7 working days.CO2 laser engraving&cutting machine lead time is around 2-3 weeks. 3D dynamic CO2 laser marking machine lead time is around 10 working days.
How will you do the package and shipping?
All of our equipment are packed in export standard cases. Express, air shipping, sea shipping are all available.
