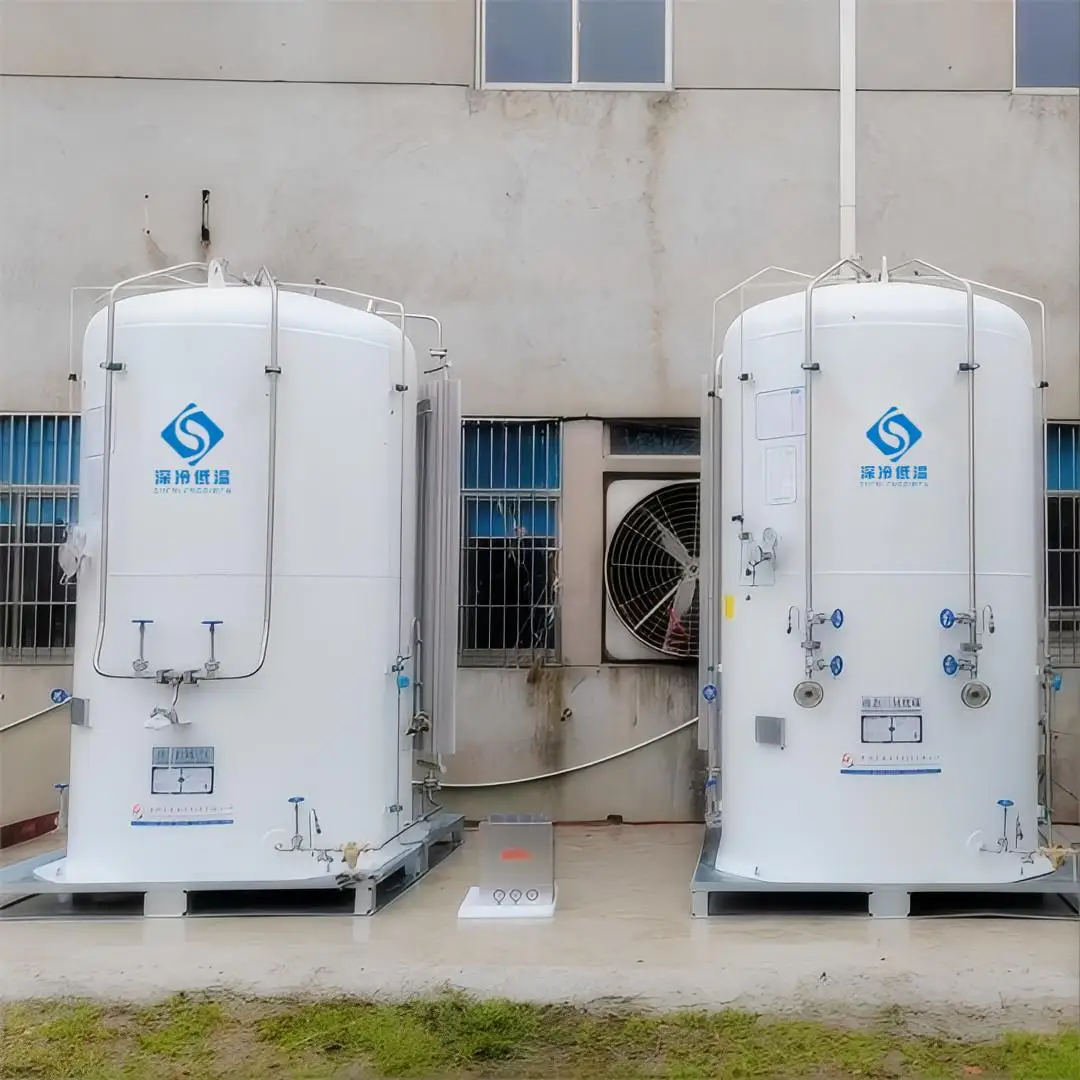

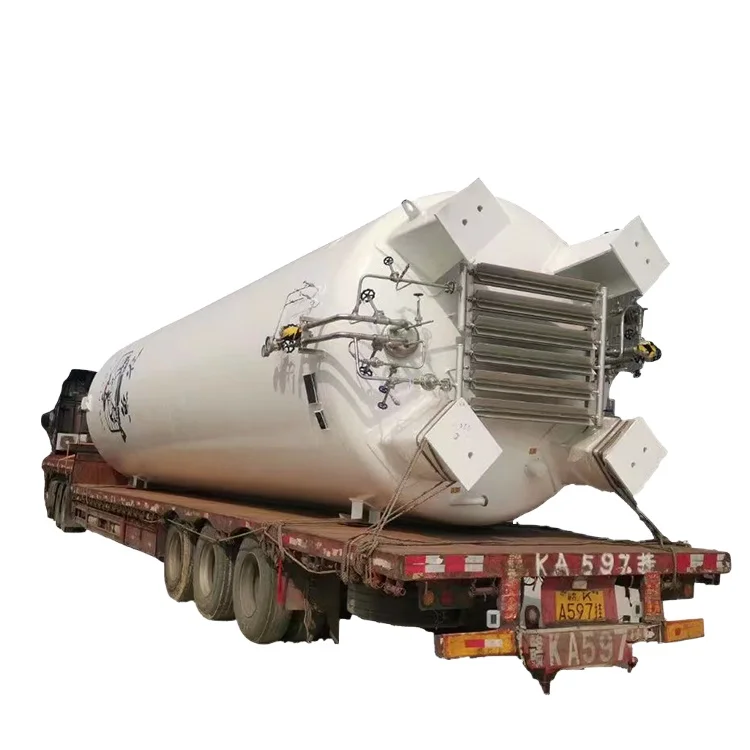

MT3000 HP High Pressure Vertical Steel Vessel Liquid Argon Nitrogen LCO2 LNG Liquid Oxygen Cryogenic Storage Gas Cylinders
- Category: >>>
- Supplier: Gansu Shenleng Cryogenic Equipment Co. Ltd.
Share on (1601174374093):
Product Overview
Description
We have 30 years of experience in one-stop solutions for gas storage and transportation, with many specifications and models. The prices of each model vary, and you can send us an inquiry for specific information！
How To Order?
1. Send Inquiry Or Contact Supplier!
2. In stock! Send out in 7 day, click "Start Order" and pay directly!
(Input quantity, choose your country, then you can see total price)
3. Please do write your Name, Address, Zip code and Phone number for delivery!
1. Send Inquiry Or Contact Supplier!
2. In stock! Send out in 7 day, click "Start Order" and pay directly!
(Input quantity, choose your country, then you can see total price)
3. Please do write your Name, Address, Zip code and Phone number for delivery!
Products Description

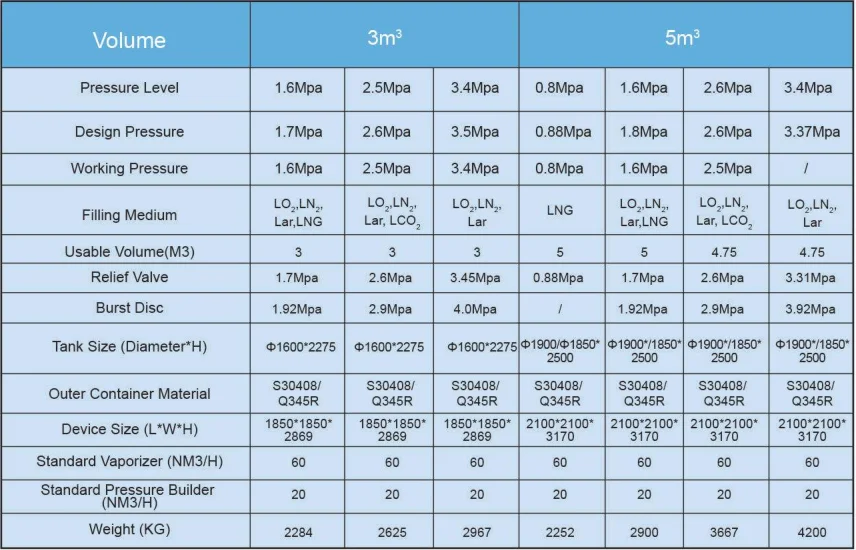

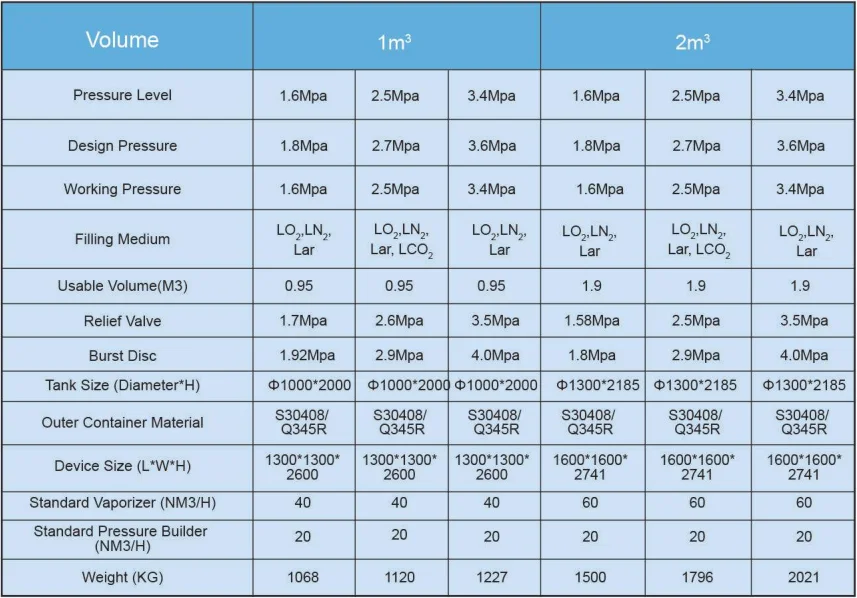

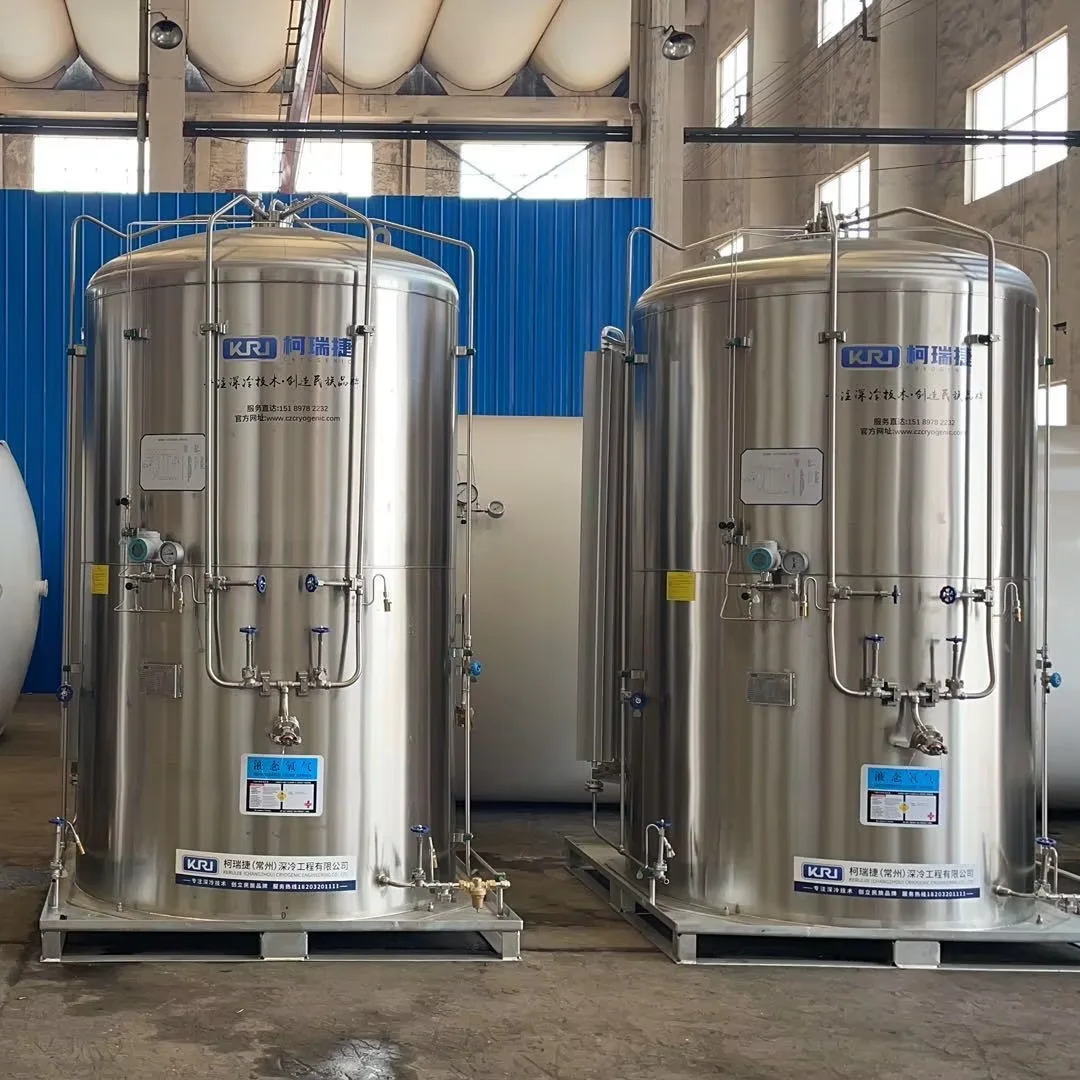

Micro tank is a pressure vessel which is used for filling and storing dangerous chemicals such as LO2, LAr, LN2, LCO2 and LNG. The maximum working pressures available are 0.8Mpa, 1.6Mpa, 2.4Mpa and 3.4Mpa; the nominal volumes available are 1M3, 2M3, 3M3 5M3,7.5M3.
Micro tanks are pressure vessels with inner and outer container dual structure. The inner container is made of S30408 stainless steel, suspended in the Q345R outer container with supporting devices.
The space between the inner and outer container is wrapped by high vacuum heat-insulated Aluminum foil fiber glass material.Micro tank is suitable for transporting vaporized gases when it''s connected with a vaporizer.It has been widely used in different field.
Dimension(L*W*H) | 1550*2900mm |
Weight | 2220 |
Warranty | 3 years |
Key Selling Points | Safe, easy to operate, economical and large in storage |
Showroom Location | None |
Full volume after strengthening | 3.16 |
Effective volume after strengthening | 3 |
Pressure | 2.35 Mpa |
diameter | 1550MM |
height | 2900MM |
Evaporation rate (liquid oxygen) | 0.40%/day |
Air supply | 60 m/H |
Metal Sheet Rolling
S30408 Inner Tank Welding
Sea-Climate Withstands Painting
Nozzles Assembling
Pipeline Testing
Finish product Inspection
Recommend Products

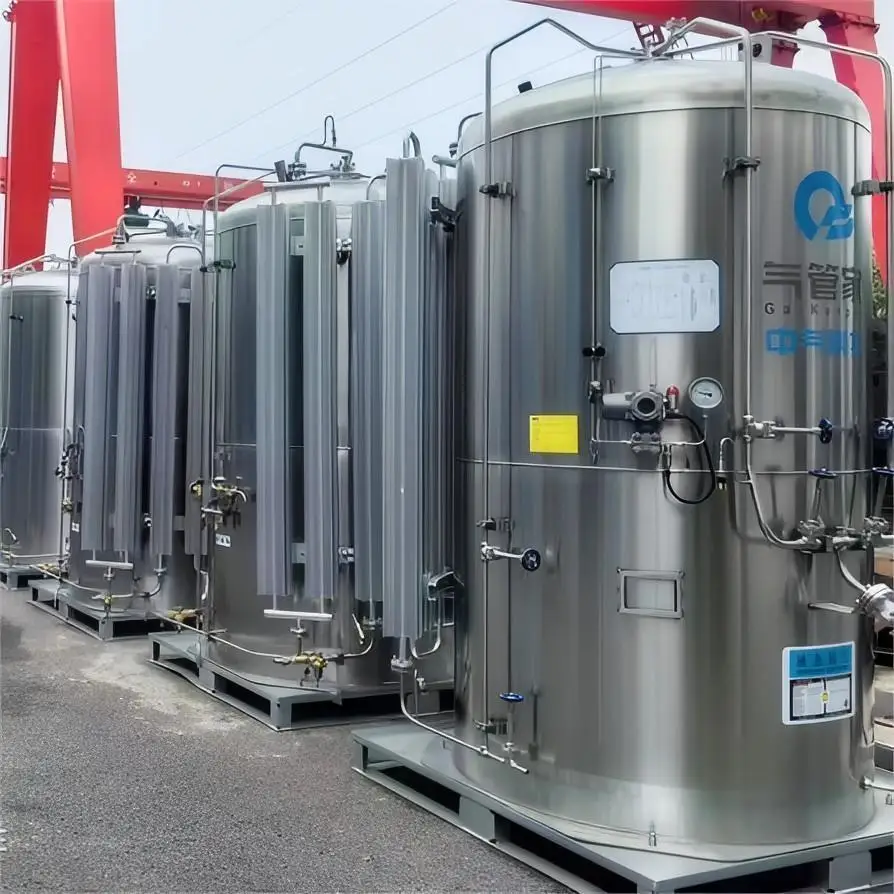

FACTORY SHOOT

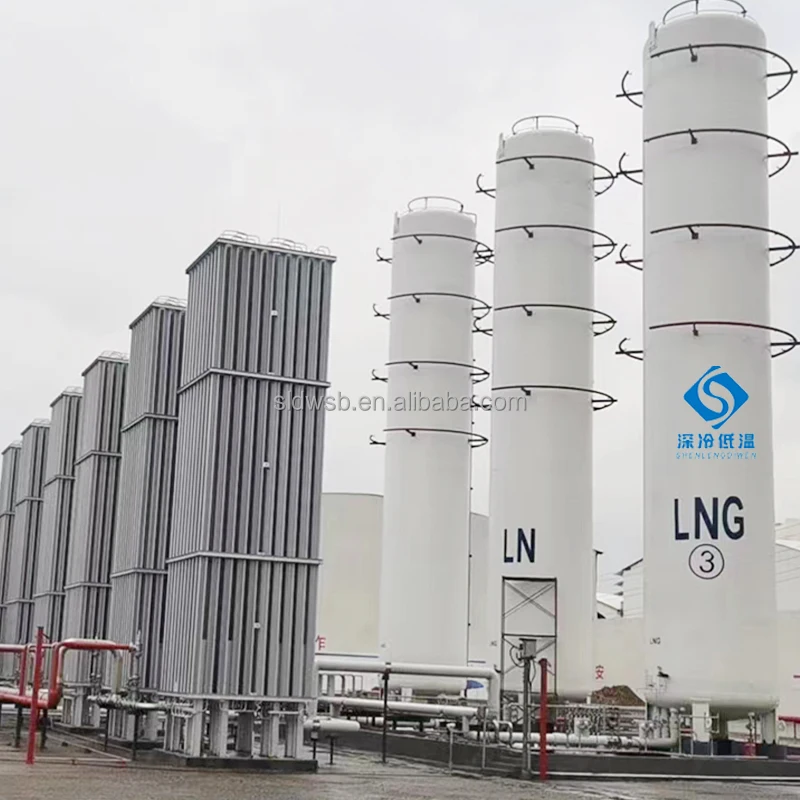

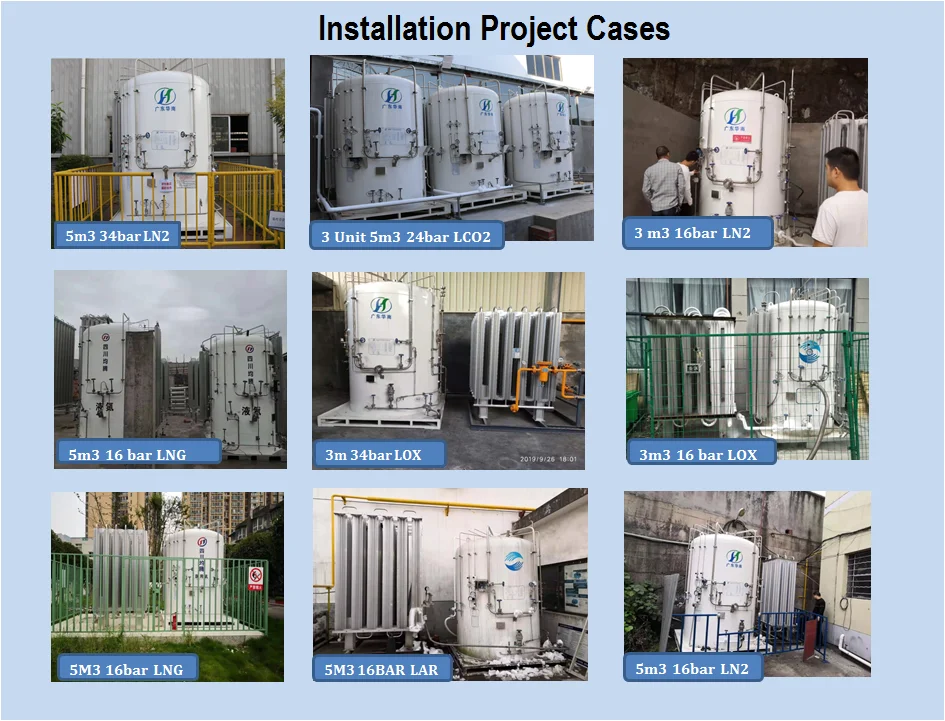

Application Area
Company Profile
About us
Gansu Shenleng Cryogenic Equipment Co., Ltd. covers a limited area of 176,000 square meters, and has built a factory building of 100,000 square meters. The office area covers an area of more than 9,000 square meters. It is one of the production bases of automobile gas cylinders and various gas cylinders in Asia.At present it is an enter prise specializing in liquid nitrogen containers for cryogenic equipment.
Main products: All kinds of industrial Dewar car compressed natural gas cylinders (CNG-1&CNG-2) car low-temperature liquefied natural gas cylinders (LNG) civil liquefied petro-leum gas cylinders (LPG) and long pipe trailers and other products. At the same time,we are engaged in the maintenance service of tank vacuuming, tank car vacuuming,Dewar bottle vacuuming, vehicle bottle vacuuming and vehicle bottle vacuuming.
With professional design and production rich engineering and technical team,strong technical force and advanced production technology. The cryogenic laboratory has been established jointly with many scientific research institutions in universities,and there are many successful cases of large-scale cryogenic engineering applications. Focus on the research and development of cryogenic biological storage vacuum insu-lation cryogenic application and system integration to provide users with profession-aland complete technical solutions.
We have numerous qualification system,had obtained ISO9001-2008, ISO/TS149 system products through ISO11439 and EU ECE R110 factory qualification Productsstrictly implement IS09001 and industry standards and carry out production and manufacturing.Products are widely used in universities, research institutes, medical,bioengineering, superconducting food, refrigeration, cold chain, industrial cryogenic application, new materials, industrial and mining enterprises and other fields.
Main products: All kinds of industrial Dewar car compressed natural gas cylinders (CNG-1&CNG-2) car low-temperature liquefied natural gas cylinders (LNG) civil liquefied petro-leum gas cylinders (LPG) and long pipe trailers and other products. At the same time,we are engaged in the maintenance service of tank vacuuming, tank car vacuuming,Dewar bottle vacuuming, vehicle bottle vacuuming and vehicle bottle vacuuming.
With professional design and production rich engineering and technical team,strong technical force and advanced production technology. The cryogenic laboratory has been established jointly with many scientific research institutions in universities,and there are many successful cases of large-scale cryogenic engineering applications. Focus on the research and development of cryogenic biological storage vacuum insu-lation cryogenic application and system integration to provide users with profession-aland complete technical solutions.
We have numerous qualification system,had obtained ISO9001-2008, ISO/TS149 system products through ISO11439 and EU ECE R110 factory qualification Productsstrictly implement IS09001 and industry standards and carry out production and manufacturing.Products are widely used in universities, research institutes, medical,bioengineering, superconducting food, refrigeration, cold chain, industrial cryogenic application, new materials, industrial and mining enterprises and other fields.
Why Choose Us
Packaging and Shipping
FAQ
Q1.Are you manufacturer or trading company?
A1:We are professional manufacturer in cryogenic equipment filed.
Q2.What's your advantage?
A2:We provide you not only techology-leading,stable and reliable,cost-efficient equipment,but also solutionsand after-sales service.
Q3.Have your engineers participated in any foreign projects?
A3:Yes,our engineers have more than 30 years experience in this filed and have participated in the design,manufacurer,installation and comissioning of the equipment in Asia.
Q4.How can i get the exact price of the product?
A4:Please tell us your specific requirements and environmental data,so we can provide the most suitable products and solutions for you.
A1:We are professional manufacturer in cryogenic equipment filed.
Q2.What's your advantage?
A2:We provide you not only techology-leading,stable and reliable,cost-efficient equipment,but also solutionsand after-sales service.
Q3.Have your engineers participated in any foreign projects?
A3:Yes,our engineers have more than 30 years experience in this filed and have participated in the design,manufacurer,installation and comissioning of the equipment in Asia.
Q4.How can i get the exact price of the product?
A4:Please tell us your specific requirements and environmental data,so we can provide the most suitable products and solutions for you.
Q5: Why do I trust you?
A: We are "Alibaba" verified supplier and we have high quality goods and service.
Q6: May I visit your factory and office?
A: Sure, you are always welcomed! We will pick you up at the airport and station.
A: We are "Alibaba" verified supplier and we have high quality goods and service.
Q6: May I visit your factory and office?
A: Sure, you are always welcomed! We will pick you up at the airport and station.
