Inverter Model | LA5548JMH | LA11048JMH | ||
Rated power | 5500VA/5500W | 11000VA/11000W | ||
Input | ||||
Voltage | 230VAC | |||
Voltage range | 170-280VAC(UPSmodel)90-280VAC(Inverter Mode) | |||
Frequency Range | 50Hz/60Hz(Automatic adaptation) | |||
Output | ||||
Output voltage | 230VAC±5% | |||
Peak Power | 11000VA | 22000VA | ||
Conversion efficiency (maximum) | 94% | |||
Output frequency | 50/60Hz±0.1% | |||
Switching time | 10ms (computer equipment), 30ms (home appliances) | |||
Output waveform | Pure Sine Wave | |||
Load loss | <55W | <80W | ||
Solar charging and mains charging | ||||
Solar charging method | MPPT | |||
PV maximum input power | 5500W | 2×5500W | ||
MPPT input voltage range | 90-500Vdc | |||
Maximum PV charging current | 100A | 150A | ||
Maximum AC charging current | 80A | 120A | ||
Maximum charging current | 100A | 150A | ||
Battery model | LD100AH/51.2V/100E | LD230AH/51.2V/200E | |
Battery capacity | 5120WH | 11776WH | |
Battery voltage | 51.2VDC | 51.2VDC | |

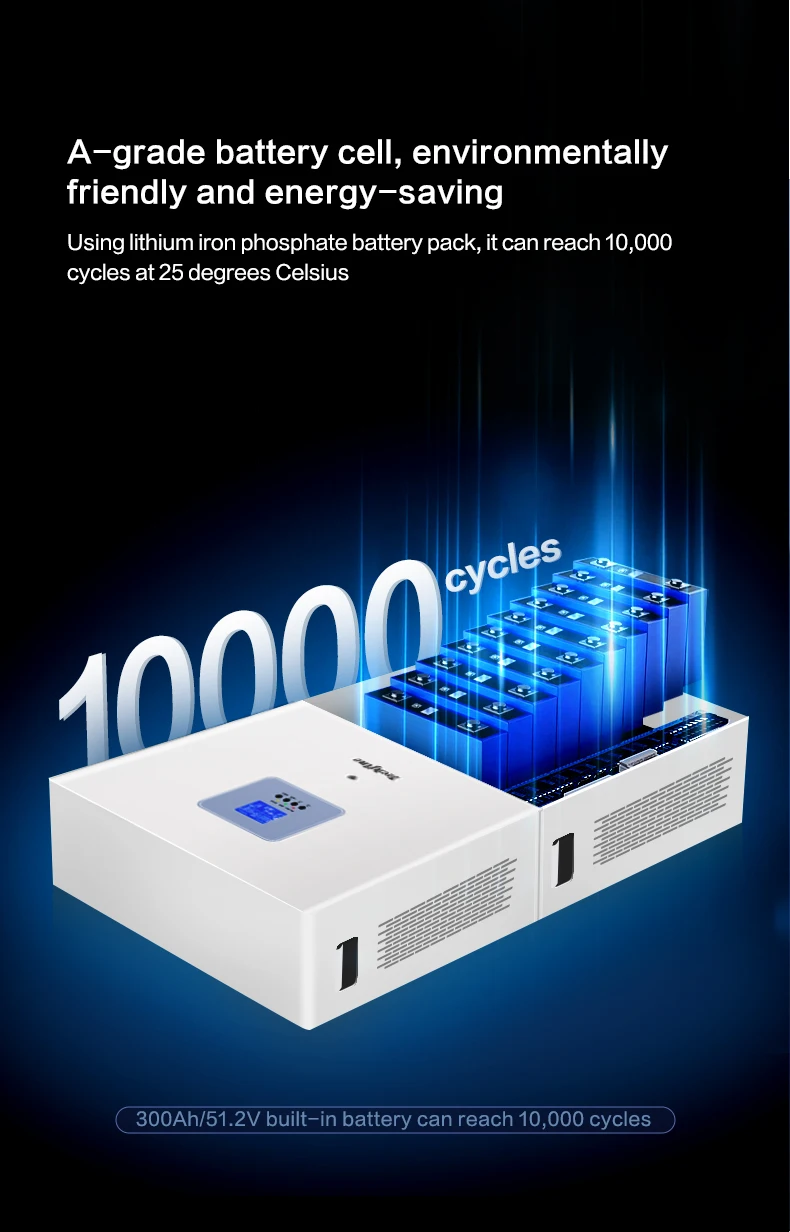

Battery Type | Lithium Iron Phosphate (LiFePo4) | ||
Full charge voltage (FC) | 56V | ||
Full discharge voltage (FD) | 42V | ||
Maximum continuous discharge current | 100A | 200A | |
Maximum discharge current | 120A(1 minute) | 230A(1 minute) | |
Protect | BMS, Circuit Breaker | ||
Charging voltage | 56V | ||
Charging current (recommended) | 50A(0.5C) | 115A(0.5C) | |
Charging current (maximum) | 100A | 200A | |
