3D 7 Color Dual DX7 Print Heads UV Wall Printer Machine for Cement Brick Tiles Wood Metal Paper Cloth Walls
- Category: >>>
- Supplier: Wuhan Baike Intelligent Technology Co. LtdWuhan Ltd
Share on (1601174404953):
Product Overview
Description
Product Description

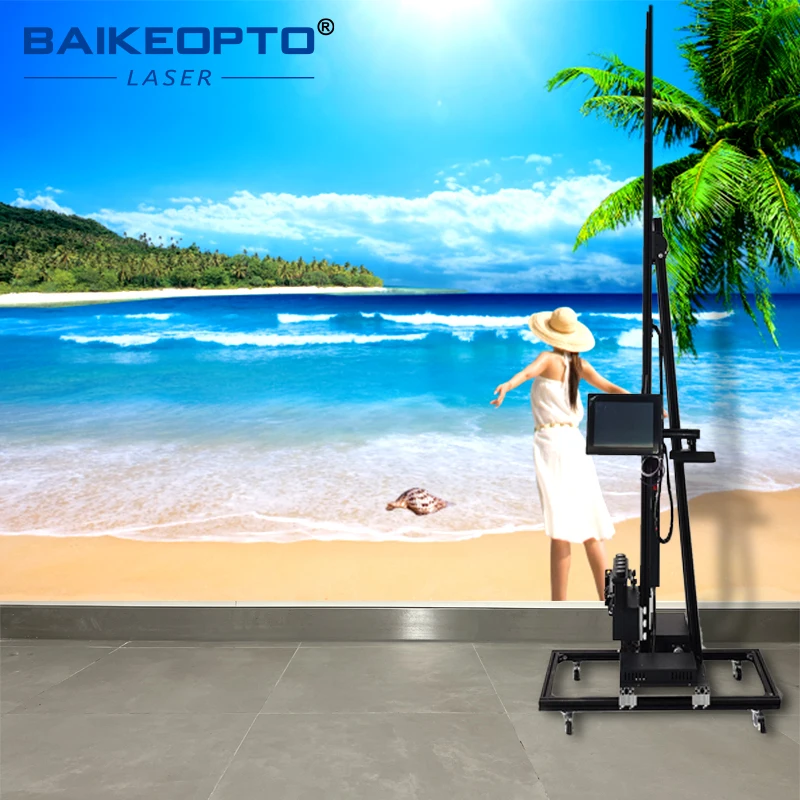

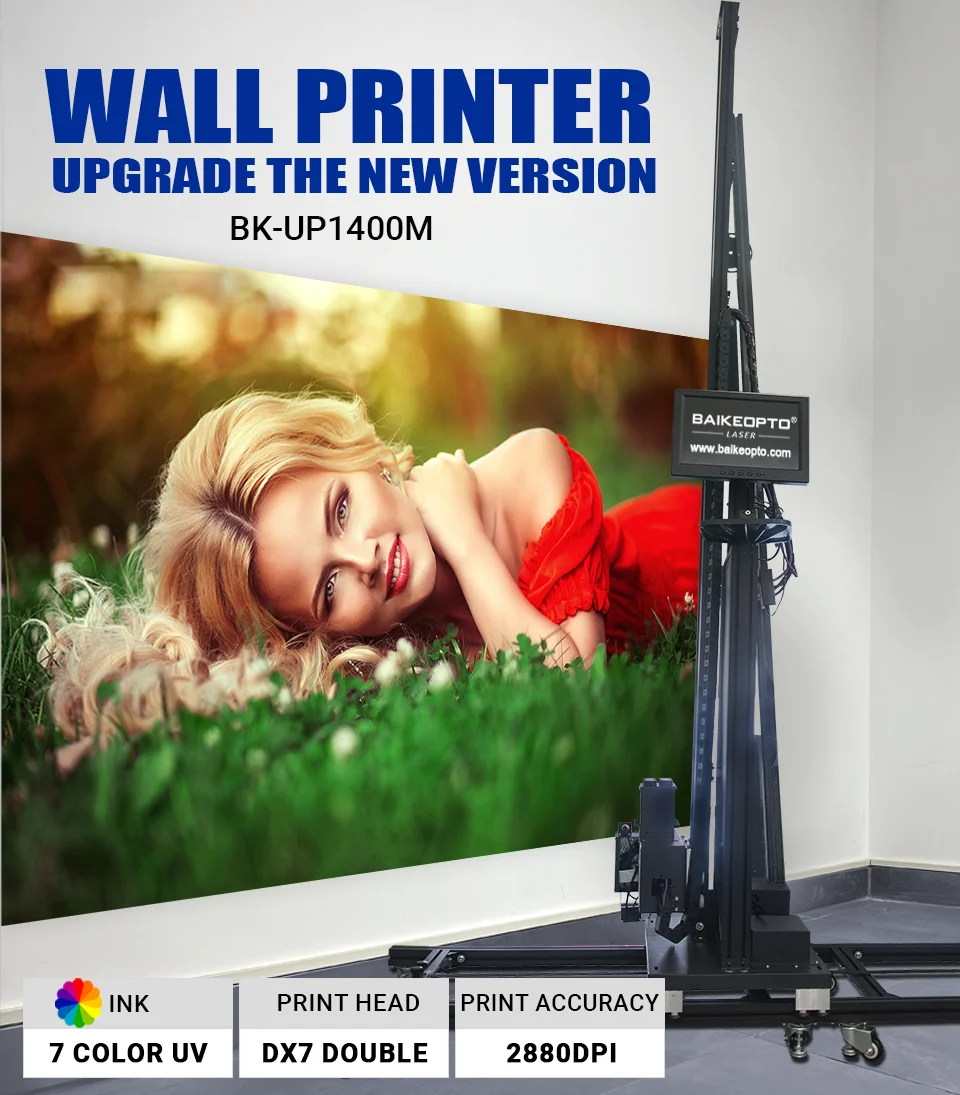

DX7 dual head 7 color UV Inject Wall Printer
3D Wall Printer using the original Japanese import printer head, it is can print about 20-24 ㎡/h and directly sprayed on the wall to print a variety of patterns, suitable for outdoor advertising culture publicity, indoor background wall 3D spray printing, with automatic probe, can automatically adjust the printing height according to the uneven surface of the wall to avoid touching the sprinkler. Printing ink cost per square meter can be controlled at $0.16 per square meter, low cost, high income!

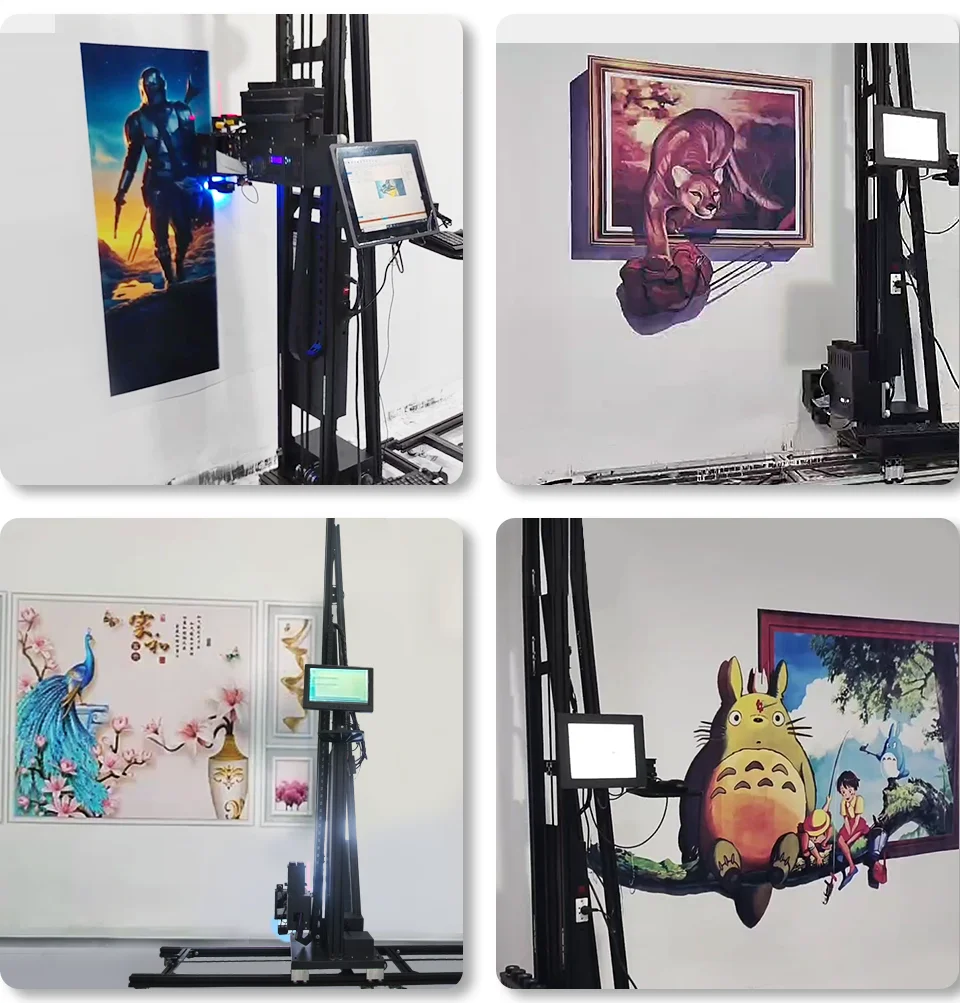

Application
Product Paramenters
Machine name | Portable wall machine |
Print size | 2.3m high, no limited in length |
Nozzle model | Epson, Japan DX7 dual print heads |
Nozzle selection | DX7 print head |
Machine power | 350W |
Voltage | 110V-220V(mobile power can be used) |
accuracy | 360*720*1440*2880dpi |
Ink color | C-M-Y-K-W-LC-LM |
speed | 20-24 m2 / h |
Picture format | PSD, JPG, JPEG, PNG, TIF, AI-PDF |
Machine weight | Main machine 15kg, guide rail 4 * 8kg, base shaft 15kg |
Output mode | Wired transmission, printing controlled by computer |

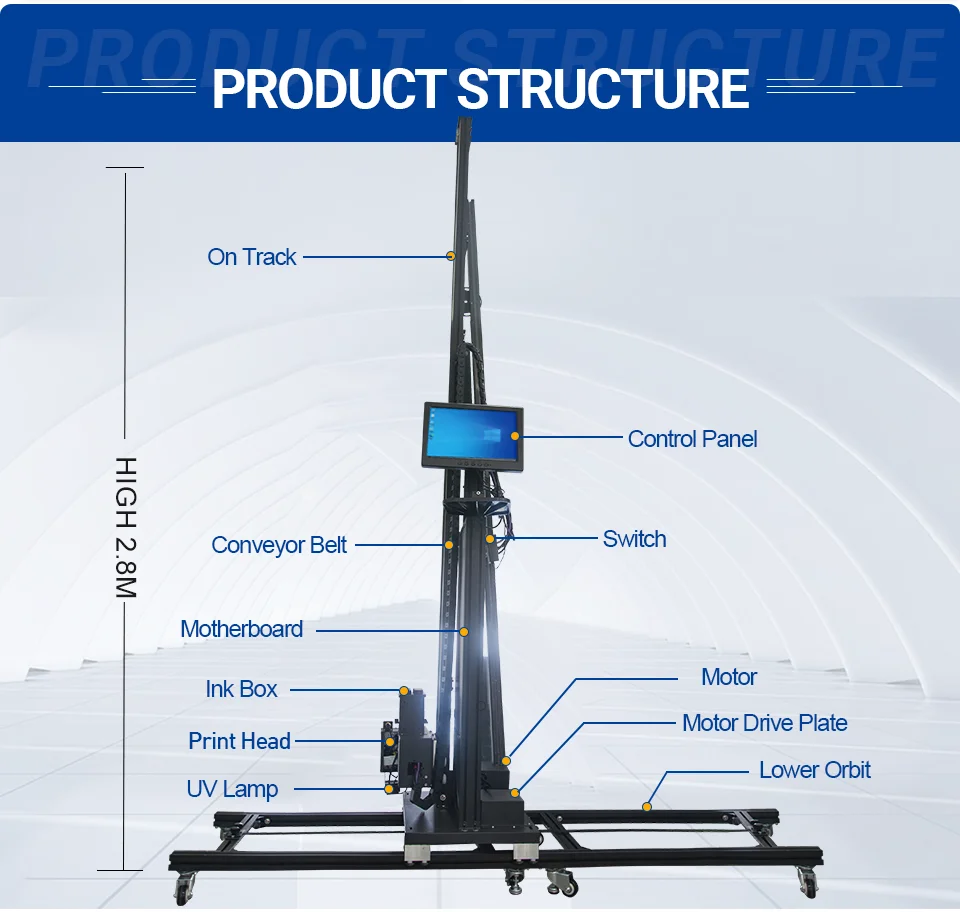

Key components | 6 sections of 1m track, 2 ultrasonic probes, 3 motors and 1 reducer |
apply | Lime wall, emulsion paint wall, putty powder wall, ceramic tile, metal, wallpaper |
3D/5D | Yes (can simulate printing) |
Detection function | Up and down two-way detection of concave convex, with an accuracy of 1mm |
Power failure recovery | There is software to store data in real time |
Nozzle inspection | Yes (software detects nozzle condition) |
Color calibration | Yes (software color correction) |
Distance adjustment | Yes (print size and distance can be adjusted by software) |
Power failure endurance | Yes (self provided UPS mobile power supply is required) |
Print positioning | Yes (the laser cross locator makes the picture print to the specified position) |
Horizontal adjustment | Yes (equipment track has horizontal adjustment function) |
Stack disassembly | One meter after folding, it can be disassembled into three parts for convenient handling |
Picture splicing | Yes (seamless splicing of pictures can be realized) Subject to actual conditions |
Detail Images
Adopt Japanese DX10 Print Head
The fastest printing speed up to 14 square meter per hour, professional printer head, longer life time.
12 Inch Screen Easy Control
Easy to control the printer by equipped industry computer, control speed and picture size via keyboard and mouse, achieve easy control.

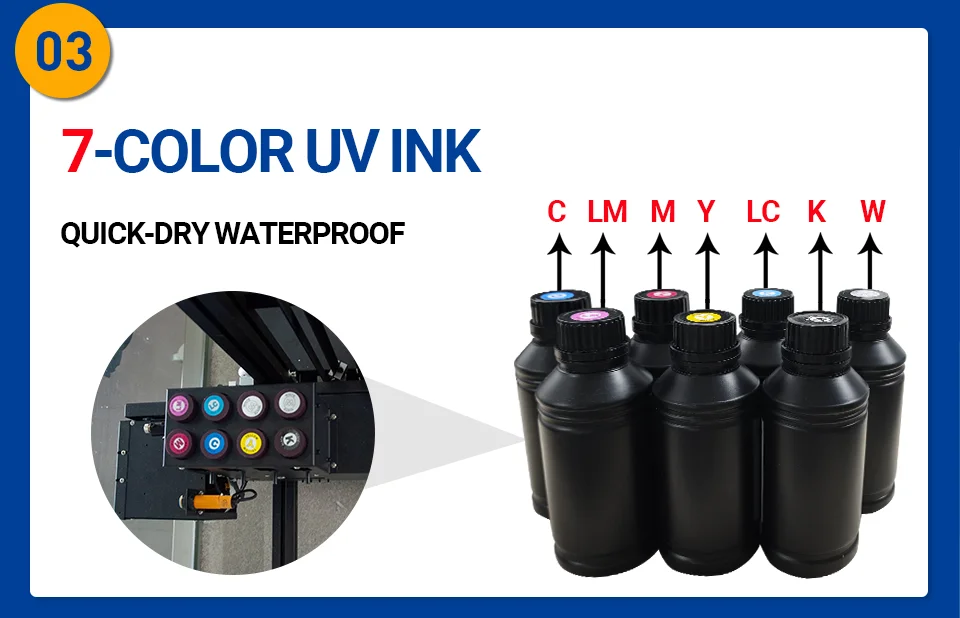

7 color UV ink
UV inks are cured by ultraviolet light after printing, enhancing durability, speeding up drying time, and enabling printing on a
wider range of media, including complex surfaces.
wider range of media, including complex surfaces.

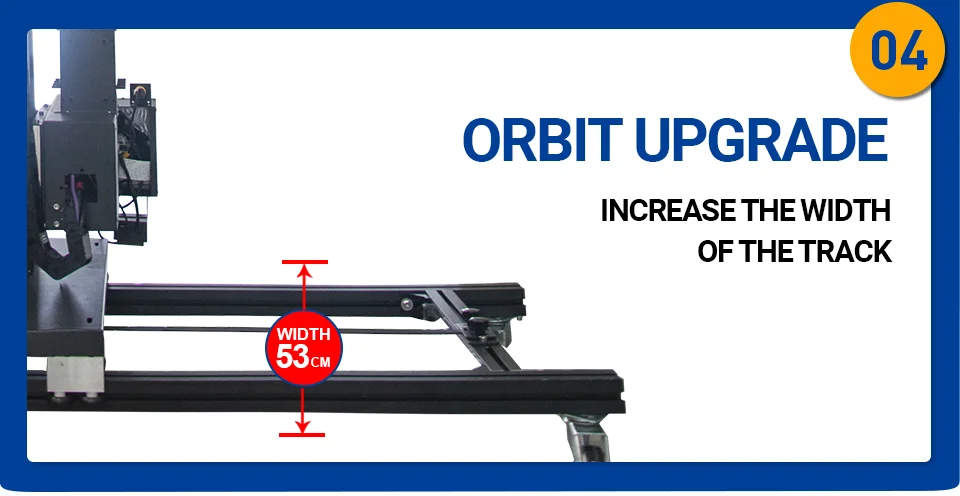

Orbit Upgrade
Increase the width of the track, make the printing work more stable.
Highlight

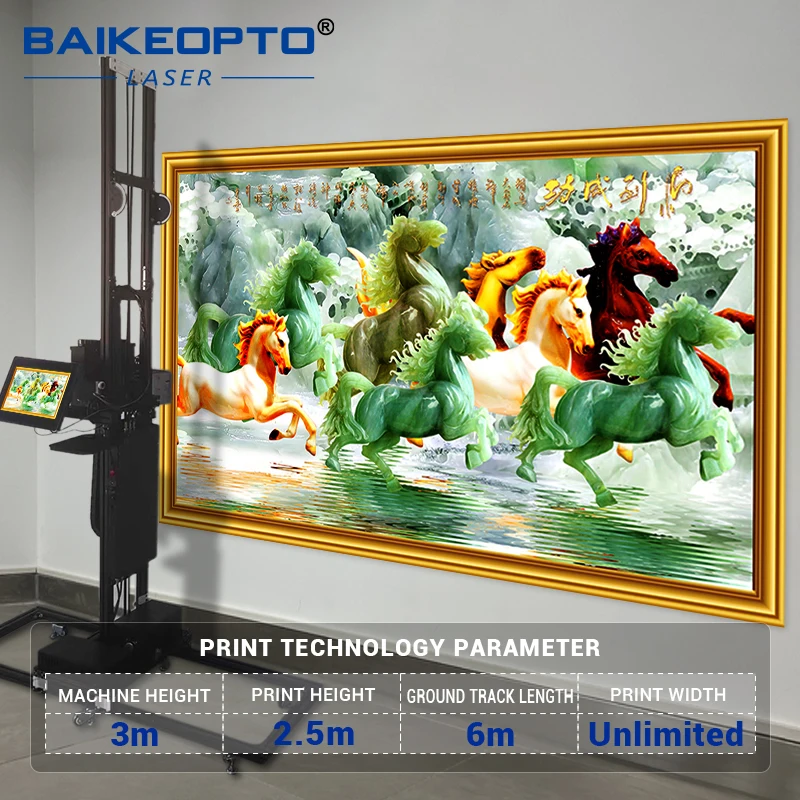

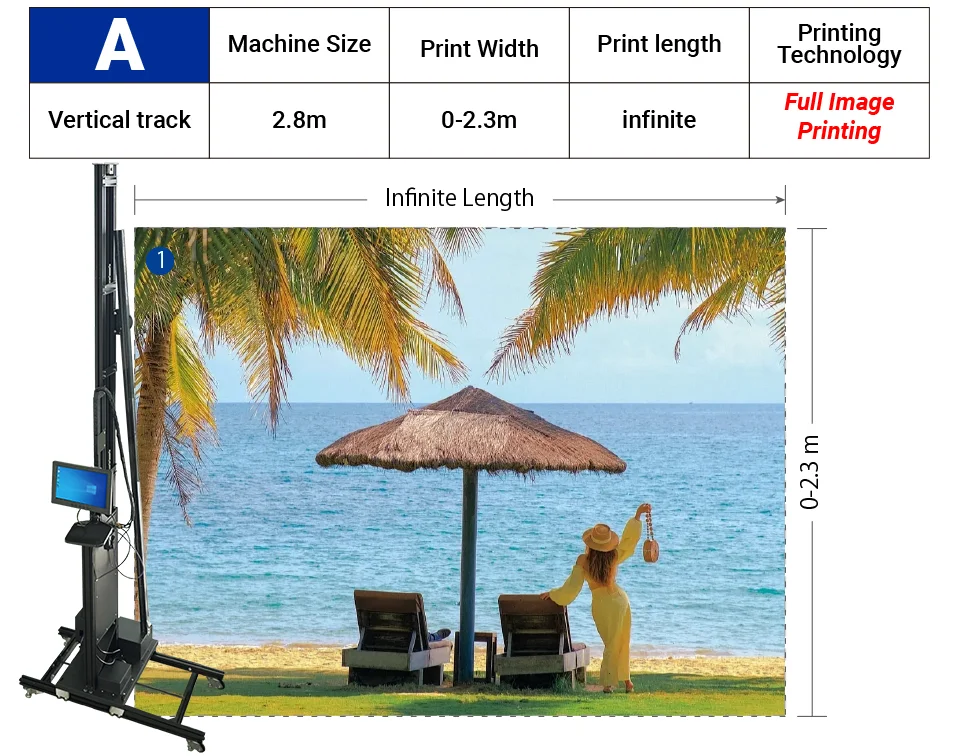

2.3M*3M picture printing

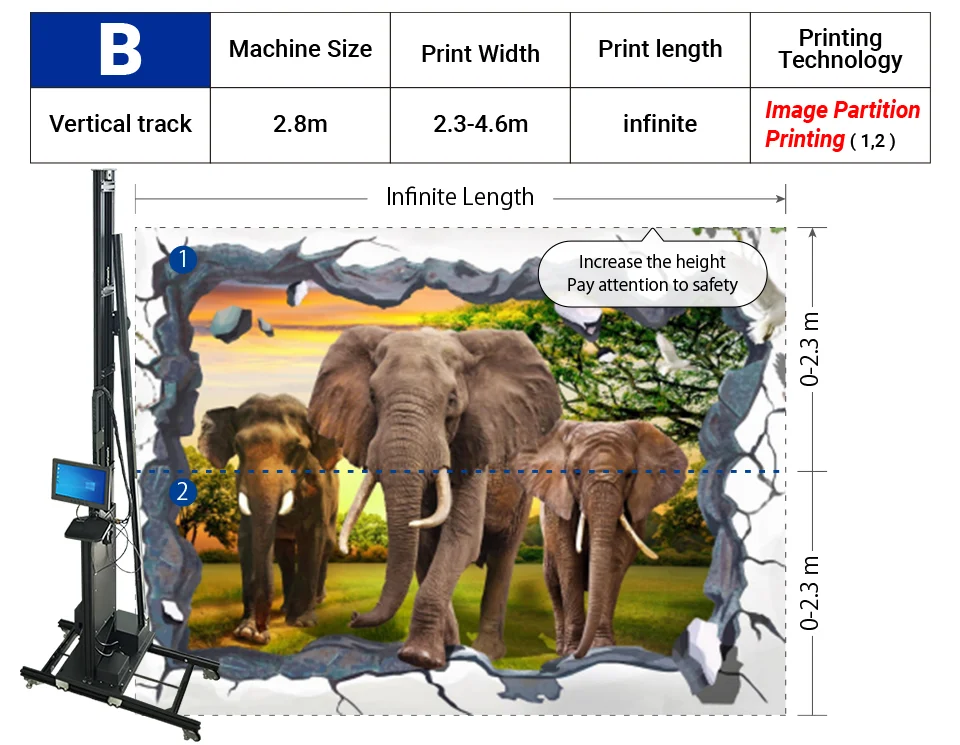

A. When the height of the frame is no more than 3 meters, the print length can be extended indefinitely(Infinite extension through the ground rail cycle splicing), the baiketech printer does not require partition printing, create the perfect picture at once.
2.3m*3m picture printing

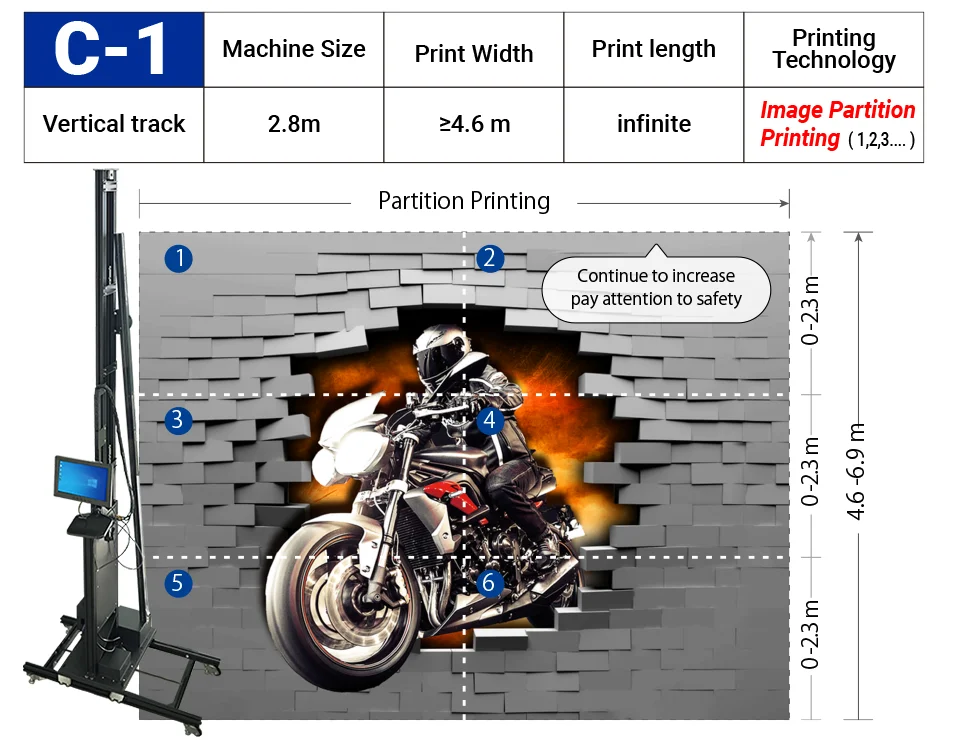

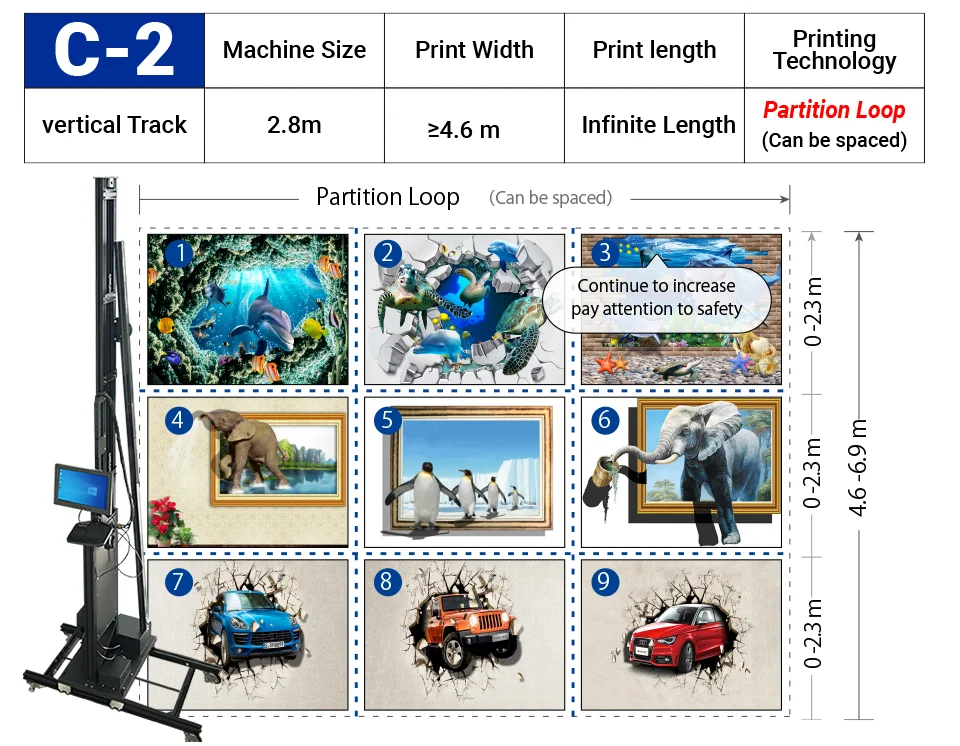

B. When the height of the frame exceeds 3 meters, using scaffolding to raise the machine, the print length can be extended indefinitely(Infinite extension through the ground rail cycle splicing), then partition print.
4.6m*3m picture
UV inks are cured by ultraviolet light after printing, enhancing durability, speeding up drying time, and enabling printing on a
wider range of media, including complex surfaces.
wider range of media, including complex surfaces.
Packing

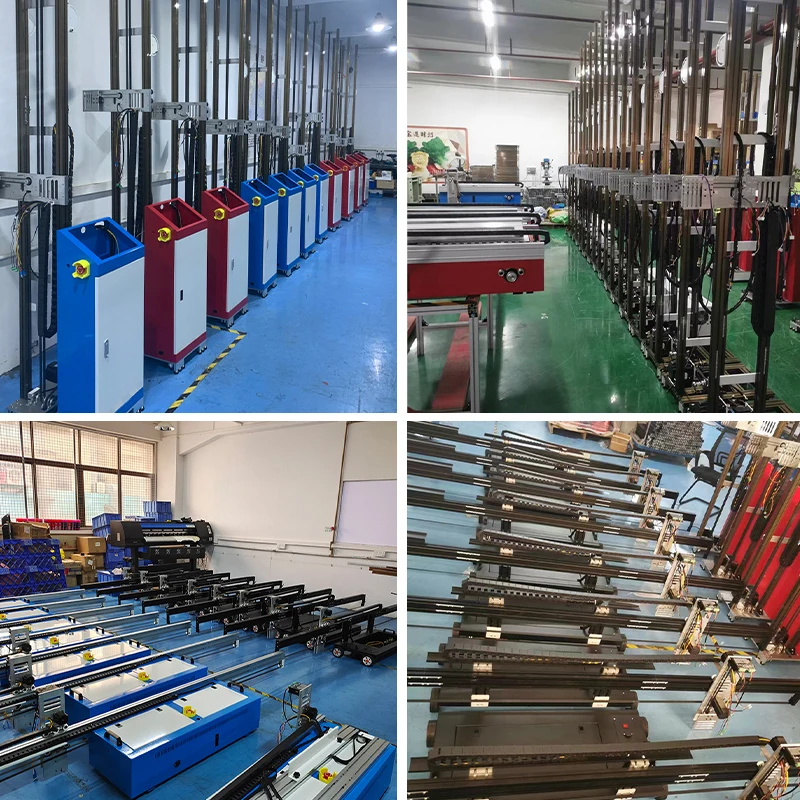

Company Profile
FAQ
1. Are you a factory or a trading company?
Answer: We are a factory. Our company was established in 2018, and our factory is located in Wuhan, Hubei, China. You are welcome to visit us anytime.
2. How long is the warranty period after purchasing the machine?
Answer: Our machines come with a free one-year warranty, as long as the damage is not caused by human factors.
3. How soon can the delivery be made after payment?
Answer: After payment, we will ship the machine within 7-14 days.
4. How long can the printed patterns remain on the wall?
Answer: The printed patterns can last for up to three years outdoors and over ten years indoors.
5. How much ink is consumed for printing patterns?
Answer: Approximately 500ml (one bottle) of ink can print around 100 square meters, while 500ml of white ink can print approximately 50 square meters.
6. What should I do if I no longer want the printed pattern on the wall?
Answer: You have a couple of options. One option is to directly cover the unwanted pattern with white ink and then replace it with a new design. Alternatively, you can cover the wall with a suitable material based on its original surface. For example, if it's a latex paint wall, you can use latex paint to cover and overwrite the existing pattern.
7. What language settings are available on the machine?
Answer: Typically, the machine supports English and Chinese. If you require other languages, we provide free translation services.
8. How do you handle uneven ground during printing?
Answer: The machine is equipped with adjustable feet that allow you to adjust the track according to the unevenness of the ground. This ensures stable and precise printing even on uneven surfaces.
9. How is the quality of the machine? Are there any components that are prone to damage?
Answer: Our machines have excellent quality, and each machine undergoes comprehensive quality inspection before leaving the factory. The print head is a component that may be more susceptible to issues. We recommend having spare print heads on hand in case of any malfunction.
10. Can one print head be used for printing four colors, while another print head is dedicated to printing white?
Answer: Yes, our machine can be configured to have one print head for printing four colors and another print head dedicated to printing white. This allows for efficient and precise printing of both color and white elements in your designs.
Answer: We are a factory. Our company was established in 2018, and our factory is located in Wuhan, Hubei, China. You are welcome to visit us anytime.
2. How long is the warranty period after purchasing the machine?
Answer: Our machines come with a free one-year warranty, as long as the damage is not caused by human factors.
3. How soon can the delivery be made after payment?
Answer: After payment, we will ship the machine within 7-14 days.
4. How long can the printed patterns remain on the wall?
Answer: The printed patterns can last for up to three years outdoors and over ten years indoors.
5. How much ink is consumed for printing patterns?
Answer: Approximately 500ml (one bottle) of ink can print around 100 square meters, while 500ml of white ink can print approximately 50 square meters.
6. What should I do if I no longer want the printed pattern on the wall?
Answer: You have a couple of options. One option is to directly cover the unwanted pattern with white ink and then replace it with a new design. Alternatively, you can cover the wall with a suitable material based on its original surface. For example, if it's a latex paint wall, you can use latex paint to cover and overwrite the existing pattern.
7. What language settings are available on the machine?
Answer: Typically, the machine supports English and Chinese. If you require other languages, we provide free translation services.
8. How do you handle uneven ground during printing?
Answer: The machine is equipped with adjustable feet that allow you to adjust the track according to the unevenness of the ground. This ensures stable and precise printing even on uneven surfaces.
9. How is the quality of the machine? Are there any components that are prone to damage?
Answer: Our machines have excellent quality, and each machine undergoes comprehensive quality inspection before leaving the factory. The print head is a component that may be more susceptible to issues. We recommend having spare print heads on hand in case of any malfunction.
10. Can one print head be used for printing four colors, while another print head is dedicated to printing white?
Answer: Yes, our machine can be configured to have one print head for printing four colors and another print head dedicated to printing white. This allows for efficient and precise printing of both color and white elements in your designs.
