Product Overview
Description
Product Description
1.Product Parameters
Name | End mill | ||||||
Hardness | HRC45/HRC55/HRC60/HRC65/HRC70 | ||||||
Type | Flat/Ball Nose/Corner Radius/Rough | ||||||
Flutes | 1/2/3/4/5/6 Flutes | ||||||
Size | Our standard size or as request | ||||||
Coating | Altin, Tialn, Tisin, Tin, DLC,Nano, Diamond | ||||||
Public errand | 0-0.5um | ||||||
Suitable to process | Copper,cast iron,carbon steel,mould Steel, Stainless Steel, , tool Steel, etc. | ||||||
OEM | OEM/ODM highly welcome | ||||||
2.Super Raw Material
Item Grade | HRC45 | HRC55 | HRC60 | HRC65 |
Details | Grain size 0.7um Co10% Flexural strength 3320N/mm2 | Grain size 0.6um Co10% Flexural strength 4000N/mm2 | Grain size 0.5um Co12% Flexural strength 4300N/mm2 | Grain size 0.5um Co10% Flexural strength 4300N/mm2 |
3.Super Coating
Details | TiN | TiAlN | AlTiN | TISIN | Nano Blue | DLC |
Color | Golden | Purple | Black | antique brass | Dazzle blue | Dazzle black |
HV | 2300 | 3200 | 3400 | 3600 | 42(GPA) | 1000~4000 |
Thickness/µm | 0.4 | 0.5 | 0.5 | 0.4 | 0.4 | 0.5-2.0 |
Friction coefficient | 0.4 | 0.35 | 0.4 | 0.45 | 0.4 | 0.05 |
MAX Temperature | 500 | 800 | 900 | 1000 | 1200 | 400 |
Description | cost-effective | General | High speed Hige HRC | Processing copper, titanium, mold Steel | General High Speed Cutting | non-ferrous metals graphite and plastics |

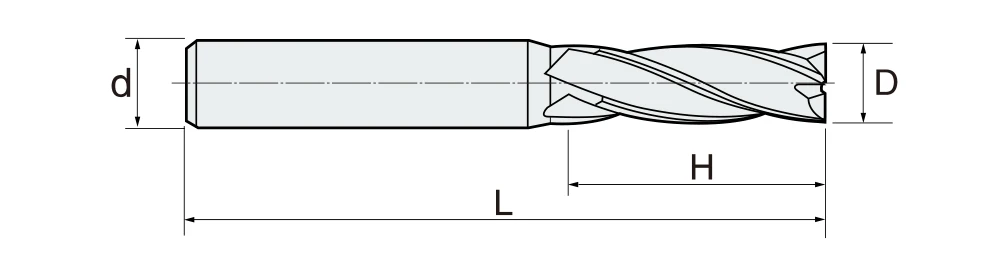

Size list | ||||||
Blade Dia | Blade Length | Shank Dia(D) | Overall Length(L) | |||
1/8(3.175) | 9.525 | 1/8(3.175) | 50 | |||
3/16(4.76) | 14.28 | 3/16(4.76) | 50 | |||
1/4(6.35) | 19.05 | 1/4(6.35) | 60 | |||
5/16(7.938) | 23.814 | 5/16(7.938) | 60 | |||
3/8(9.525) | 28.575 | 3/8(9.525) | 75 | |||
1/2(12.7) | 38.1 | 1/2(12.7) | 75 | |||
5/8(15.875) | 47.625 | 5/8(15.875) | 100 | |||
3/4(19.05) | 57.15 | 3/4(19.05) | 110 | |||
1"(25.4) | 76.2 | 1"(25.4) | 130 | |||
if need other size, pls feel free to contact us! | ||||||
Company Profile
Changzhou Zhengheyuan Cnc Tool Ltd was established in 2005, specializing in CNC tool cutters.We are leading enterprise in China. Our main products are milling cutter, drill bits, tool holder, inserts and other cnc accessories. We have many advanced CNC equipments machines, such as WALTER, ANCA and DECKEL. Our high quality CNC end mills and CNC tool holders are very popular with the majority of users, with high quality products, competitive prices and good our efficient service, we are confident to meet your needs.

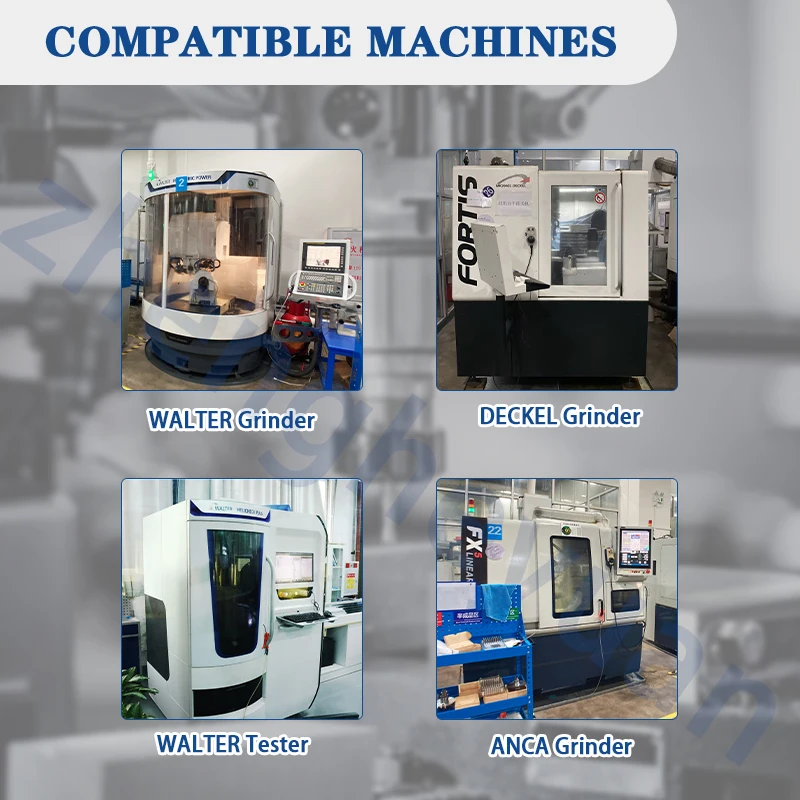

ANCA Machines WALTER Machines DECKEL Machines
Quality Inspection Equipments
Workshop
VR
Certifications
ISO CE R&D patent
Cooperation Brand
Exhibition
FAQ
Q: Are you trading company or manufacturer ?
We are factory. (We produce, we sell)
Q: Do you accept trial order?
Sure we can. And we would like to quote our most favorable price if your order is big enough.
Q: Will you attend International Exhibition?
Yes, we had attended exhibitions in many countries such as America.
Q: What is your MOQ?
MOQ is 10 pieces of all items of product.
Q: Shall we visit your Company and Factory?
Welcome, we can show you if you are interested in.
We are factory. (We produce, we sell)
Q: Do you accept trial order?
Sure we can. And we would like to quote our most favorable price if your order is big enough.
Q: Will you attend International Exhibition?
Yes, we had attended exhibitions in many countries such as America.
Q: What is your MOQ?
MOQ is 10 pieces of all items of product.
Q: Shall we visit your Company and Factory?
Welcome, we can show you if you are interested in.
