Product Overview
Description
Product Description

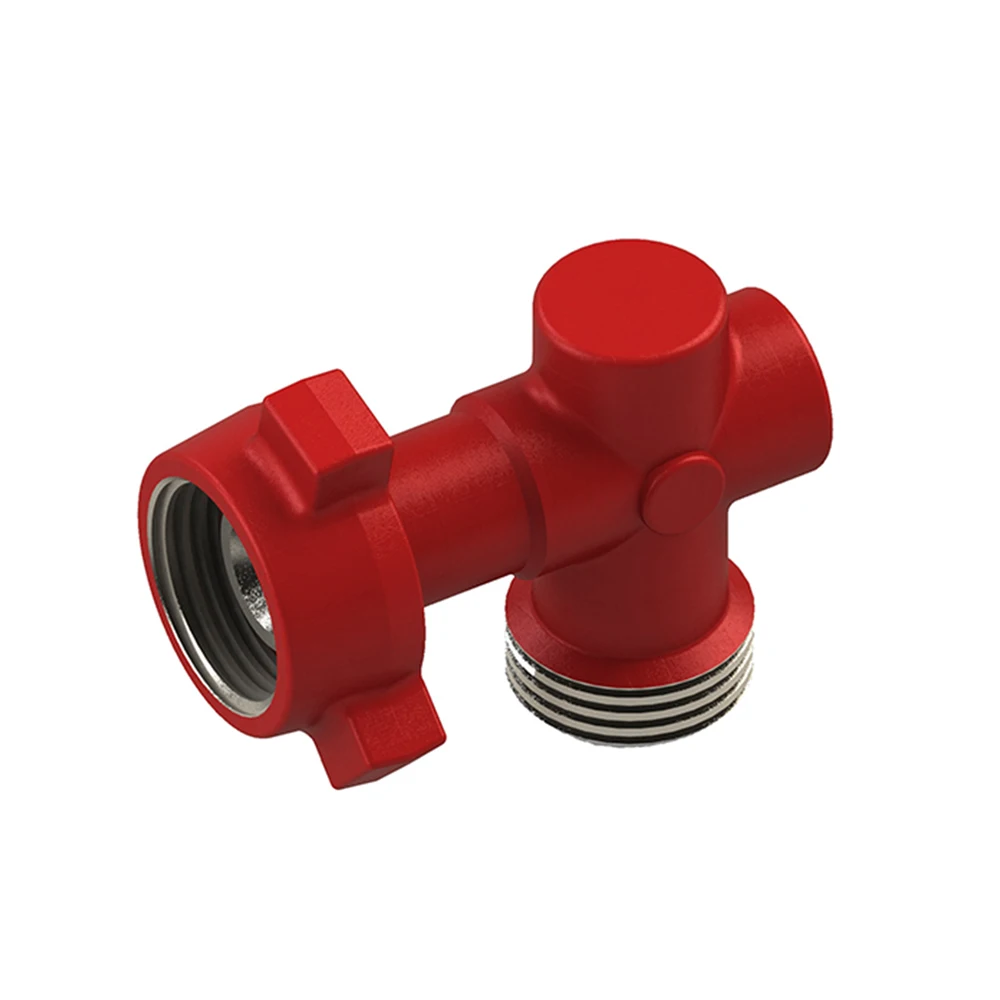

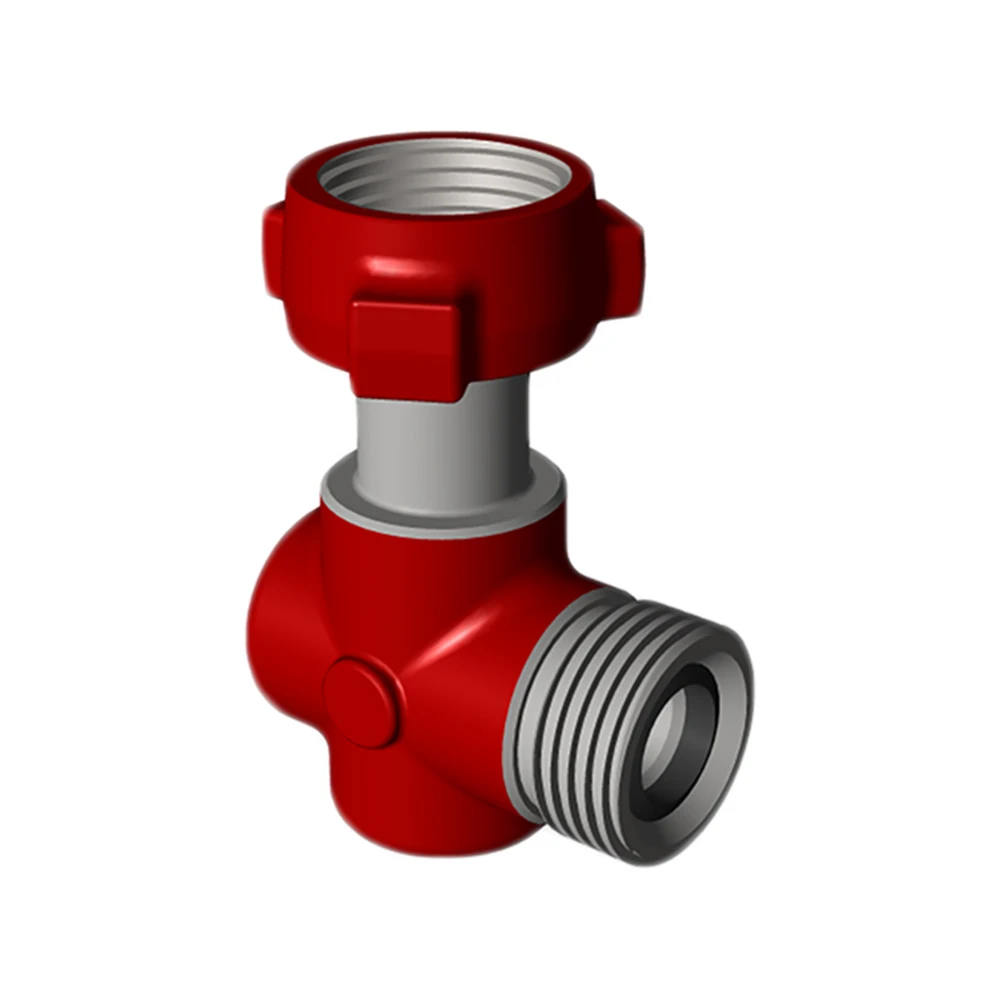

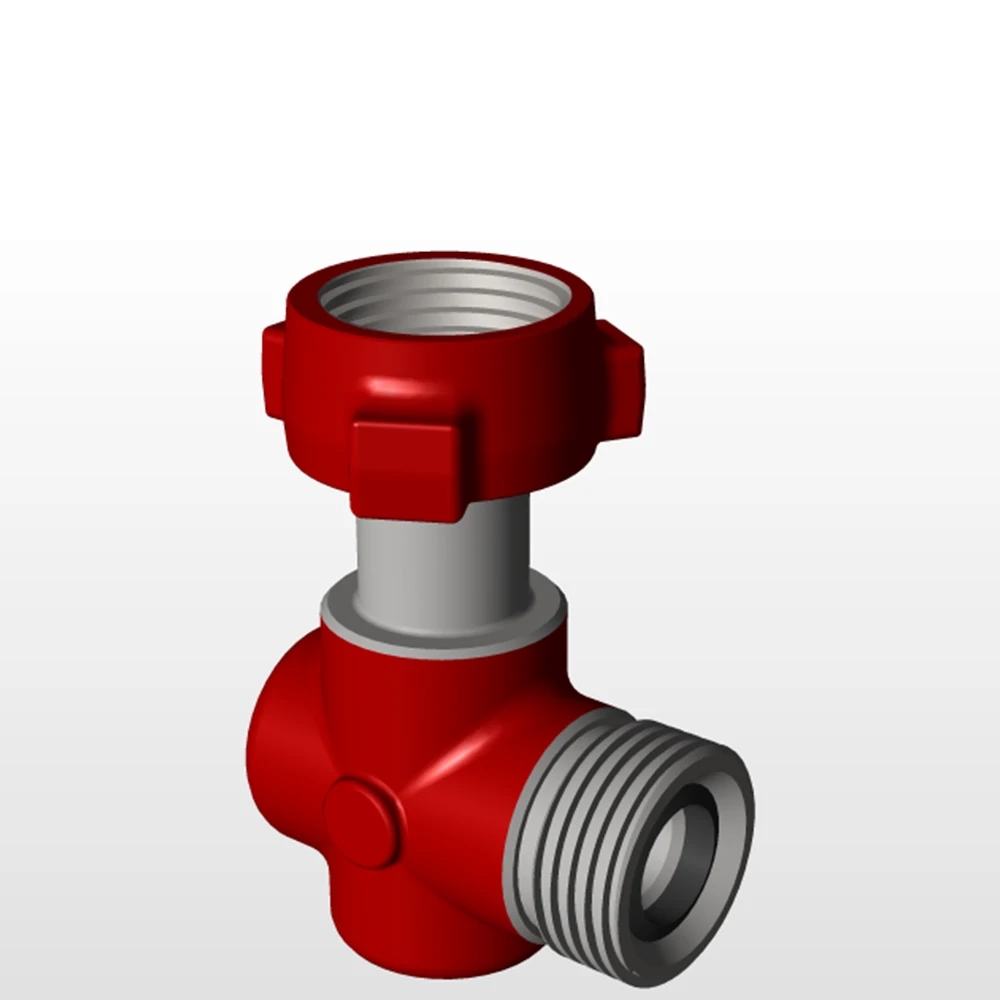

integral fittings cushion elbow fig 1502/90s cushion elbow fig 1502
size | 2''/3'' |
Pressure | 10000PSI/15000PSI |
Material | 4130 forging |
end connection | hammer union M x F |
Use environment | common/H2S |
color | customized |
standard | API16C / NACE-0175 |
Direction for use
Forged alloy steel body precision machined with integral 2”, 3” Figure 1502 hammer union ends available for standard service
(15,000-psi CWP) or sour gas service (10,000-psi CWP). Also available in Figure 602 or 1002 union connections.
Both Tees and Ells are supplied with seals and detachable hammer lug nuts. Cushion Ells can be ordered for flowback service from
the factory. All supporting documentation, including MTRs and Hydrostatic test reports, are available at time of order for no
additional cost.
(15,000-psi CWP) or sour gas service (10,000-psi CWP). Also available in Figure 602 or 1002 union connections.
Both Tees and Ells are supplied with seals and detachable hammer lug nuts. Cushion Ells can be ordered for flowback service from
the factory. All supporting documentation, including MTRs and Hydrostatic test reports, are available at time of order for no
additional cost.
DESIGN SPECIFICATIONS:
Oil and gas lines
Acidizing & fracturing lines,well testing lines
Manifold and pipelines
cementing and well stimulation applications
Circulating lines,and other well service
Production and flushing lines
High pressure well service lines
Frac truck
Production process
Related Products
Packing&Shipping
All of our products are package by ply wood for easy export to our clients
Company Introduction
jiangsu hongxun oil equipment co,.ltd is a professional upstream oilfield equipment manufacturer,have been approved to use API6A 16A 16C 16D monogram by american petroleum institude.
we have 16 years manufacture and export experience.
Our major products include：wellhead，X-mass tree，BOP（Annular，single ram，double ram），high pressure gate valve，chokes，lower torque plug valve，manifold，flow iron，BOP control unit etc
We always adhere to the basic principle of quality first, customer first, and provide the best service for customers around the world We insist on continuous innovation, constantly improving our processes and products, in order to strive to provide better quality, more cost-effective, and more satisfying customers
Our testing equipment
UT，PT，MT test，PSL3G gas seal test，PR2 test，Hardness test
FAQ
1：Are you trading company or factory?
We are factory have 16 years experience
2：How to test your products？
It will be tested according to API6A，16A 16C& 16D requirement,different products need different test
3：How long for your quality guarantee？
Normally 18 month
Any question，please let us know and contact us！
