Small Mini Oilless 15L/Min Lab Vacuum Pump 220V/230V/240V
- Category: >>>
- Supplier: Tianjin Jinteng Experiment Equipment Co. Ltd.
Share on (1601174528206):
Product Overview
Description
Product Introduction

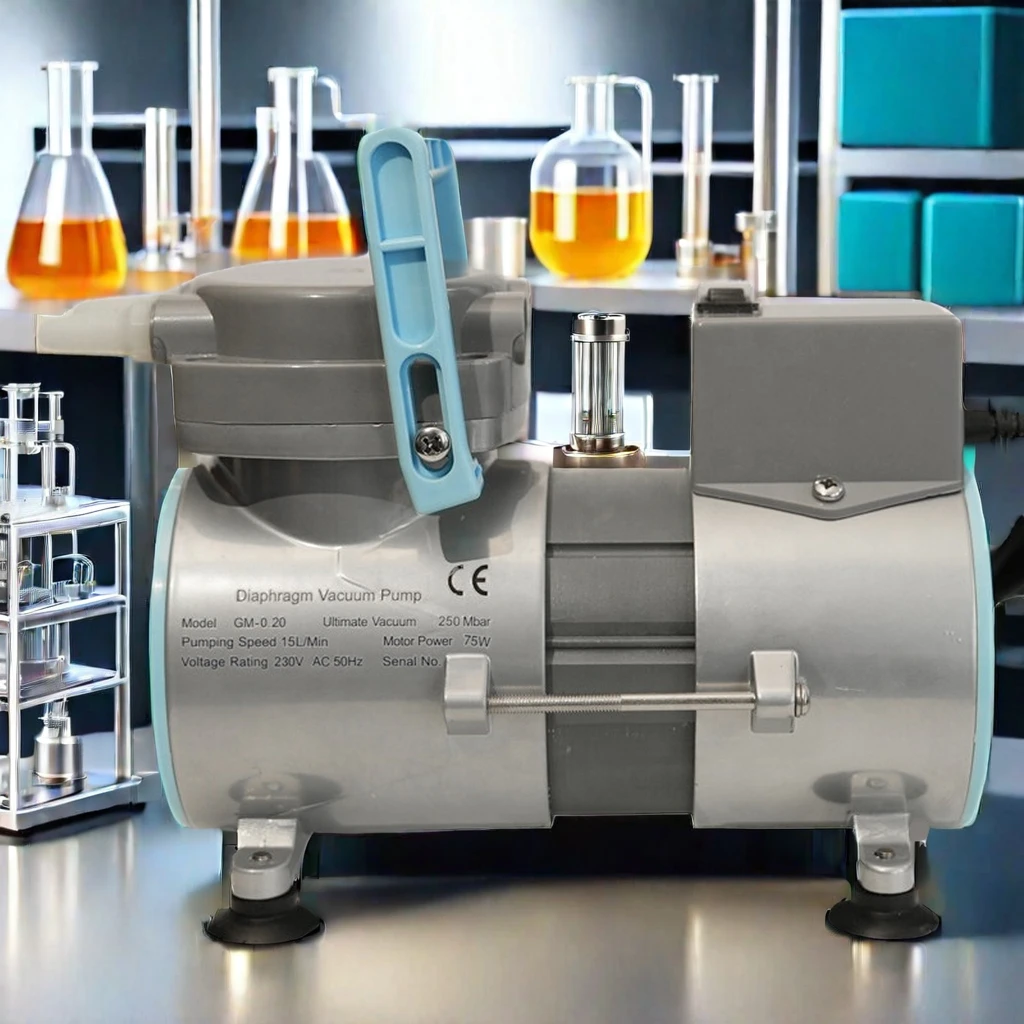

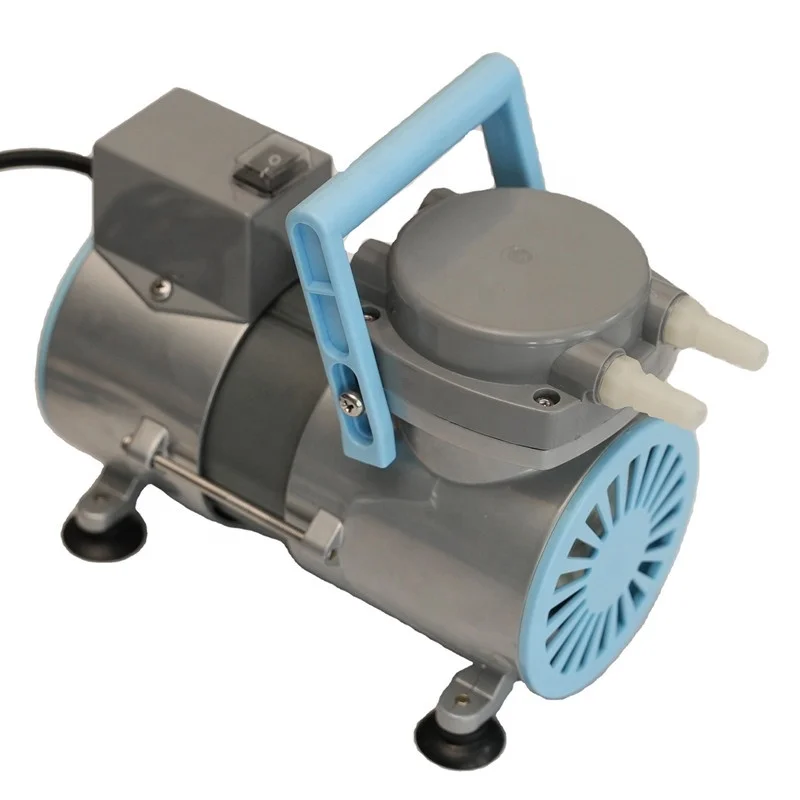

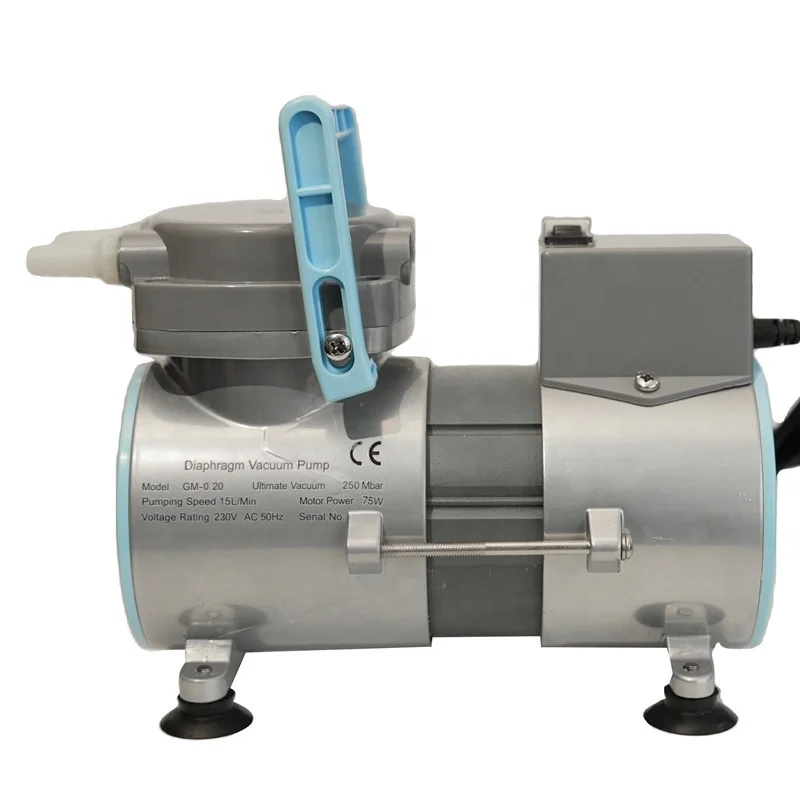

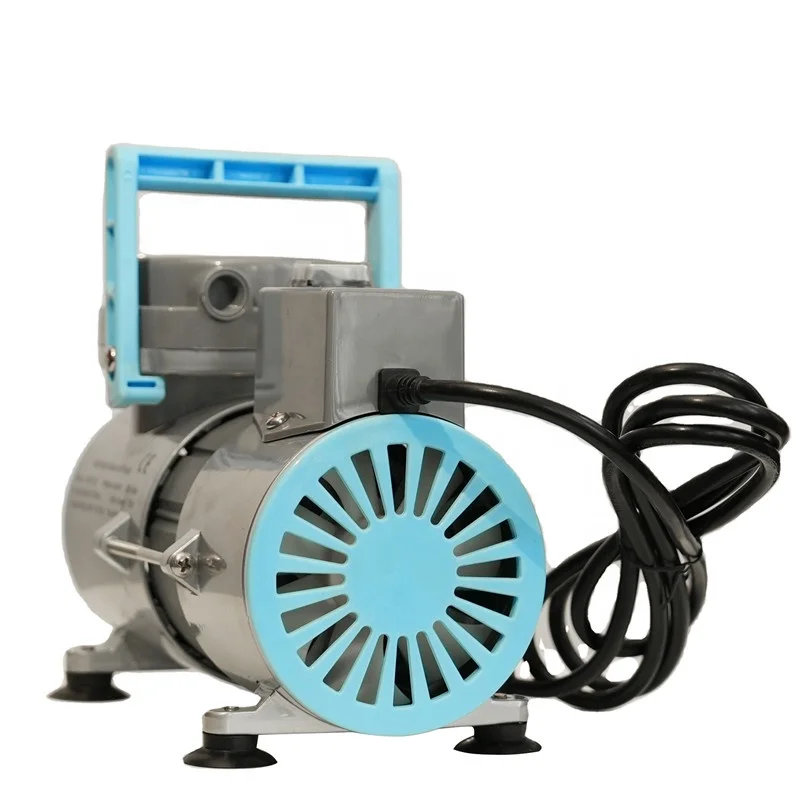

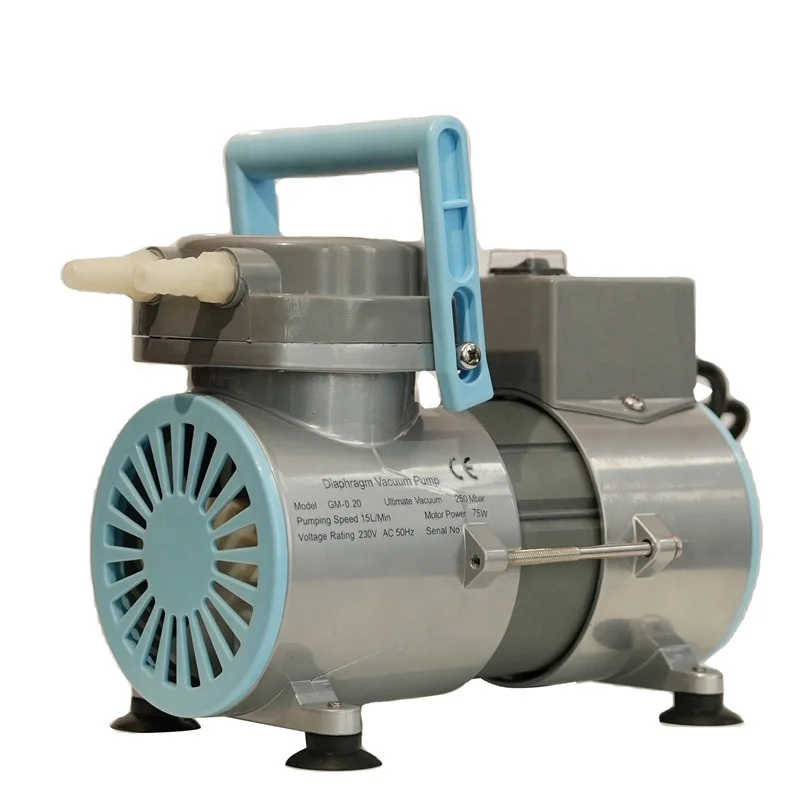

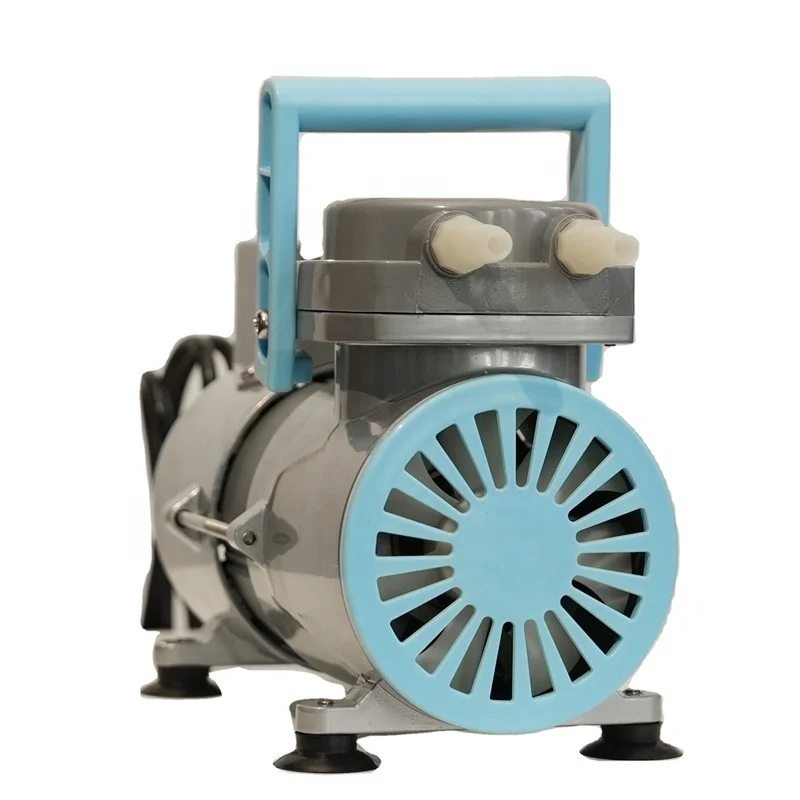

Tianjin Jinteng 15L/Min Pumping Speed Small Diaphragm Vacuum Pump GM-0.20
"Jinteng" series Diaphragm Vacuum Pump has the features of continuous oil free pumping, low noise level, higher efficiency, long lifetime. It is mainly used in medicinal products analysis, industry of fine chemicals, biochemical pharmacy, food examination, The criminal investigation technology, etc . It is used with the precision chromatography instrument, the necessary of laboratory. This product is specially designed for laboratory, reliable and easy to use. These series of products have obtained the national patent.
Product Features
1.The product could work without any medium and does not produce pollution.The gas exchange room is placed with filtering material, to ensure that the air is clean.
2.New material and new technology are adopted in production. It is convenient to move, and work smoothly, thus ensuring the ideal vacuum degree and higher air velocity.
3.Using frictionless membrane body movement, does not produce heat, no friction consumption. Imported rubber diaphragm has corrosion resistance and long service life.
4.Automatic cooling exhaust system is designed in the body, ensures continuous operation 24 hours a day.
5.The pressure adjustable design can satisfy a certain range of vacuum and gas velocity.
6.Bearing imported classic bearing, smooth operation, low noise, high efficiency.
7.The parts in contact with the gas of anticorrosive pump is with TEFLON surface treatment, which have complete ability of resistance to chemical corrosion.
8.Special motor is ODM provided by the export of professional motor manufacturer and has got the European CE certification. It has the reasonable rotation design, equipped with a power overheat protector, when the pump body temperature reached 130 degrees, it will automatically power off, to protect the motor from being damaged in the long running work.
9.Small volume and light weight, easy to move, save space, convenient repair and maintenance.
Application
Vacuum Adsorption
Solvent Filtration
Vacuum Disillation
Vacuum Drying
Compressing And Converting Gas
SPE (Solid Phase Extraction)
Deaeration
Technological Competitiveness

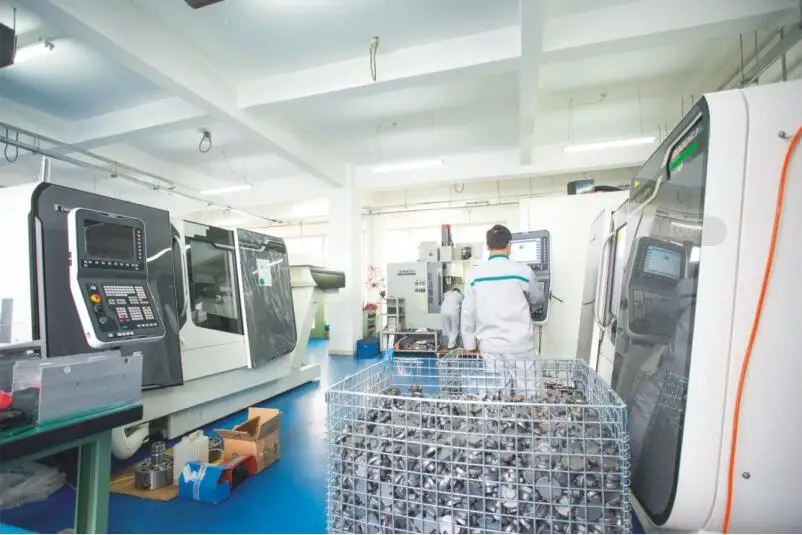

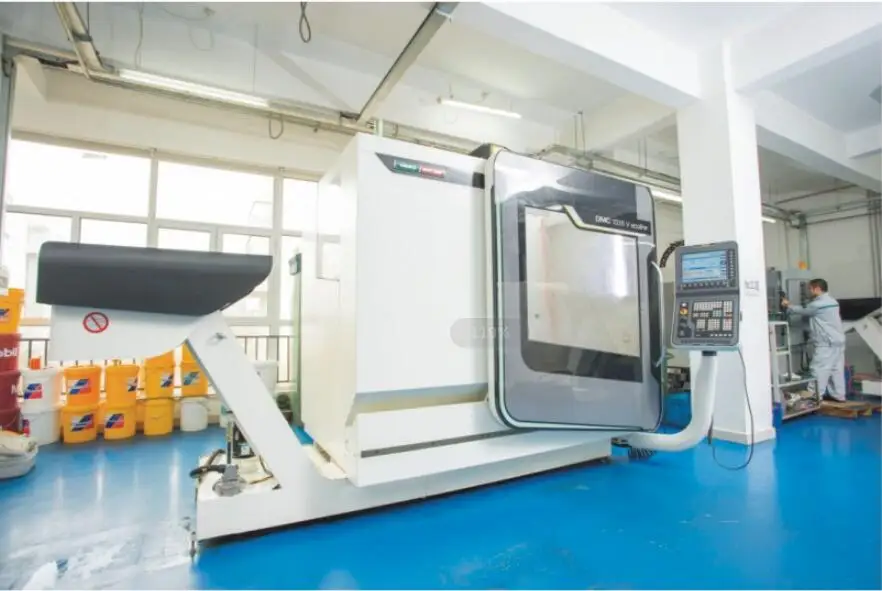

The internal components of Jinteng diaphragm vacuum pump series are produced by numerical control equipments which imported from Germany DMG and Korea kia. This is our unique technology competitiveness that all the same type of products made by other companies could not match. With the good appearance, stable quality, excellent performance of our products, and high quality service of our company, we believe that Jinteng's diaphragm vacuum pump is the best choice for your laboratory.
Product Parameters
Speed of Evacuation(l/m) | 12 | Temp of the body(ºC) | <55 |
Ultimate pressure vacuum | ≥0.075mpa 250 mbar | Function | Vacuum & Pressure |
Inlet(mm) | φ6 | Weight(kg) | 4.0 |
Outlet(mm) | φ6 | Pump head | Nylon |
Temperature of working environment(ºC) | 7-40 | Dimensions (mm) length×Width×Height | 245×120×160 |
Voltage rating | 220Vac, 50Hz | Noise level(DB) | <60 |
Motor power | 75W | Pressure | ≥30Psi |
Why Choose Us
About us
1, the company professional to do Diaphragm Vacuum Pump.
Equipment & technology
2, the quality of production is the biggest factory in China.
Service
3, stable product quality, supply, the good faith management
Product Processing

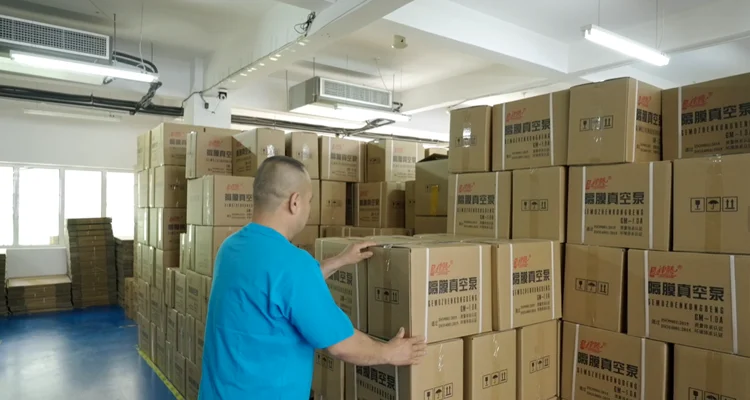

Product Packing
