Electric High Efficiency Energy Saving YCB Circular Gear Oil Pump Stainless Steel Magnetic Gear Oil Pump
Electric High Efficiency Energy Saving YCB Circular Gear Oil Pump Stainless Steel Magnetic Gear Oil Pump
Electric High Efficiency Energy Saving YCB Circular Gear Oil Pump Stainless Steel Magnetic Gear Oil Pump
Electric High Efficiency Energy Saving YCB Circular Gear Oil Pump Stainless Steel Magnetic Gear Oil Pump
Electric High Efficiency Energy Saving YCB Circular Gear Oil Pump Stainless Steel Magnetic Gear Oil Pump
Electric High Efficiency Energy Saving YCB Circular Gear Oil Pump Stainless Steel Magnetic Gear Oil Pump
Electric High Efficiency Energy Saving YCB Circular Gear Oil Pump Stainless Steel Magnetic Gear Oil Pump

Electric High Efficiency Energy Saving YCB Circular Gear Oil Pump Stainless Steel Magnetic Gear Oil Pump

Share on (1601174581524):


Price:$180.00 - $199.00

Quantity:


Product Overview

Description





Product Description

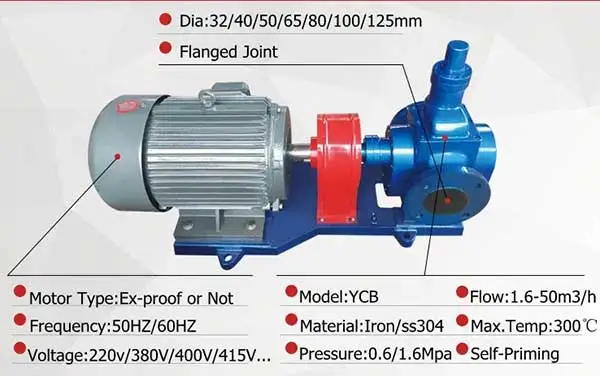

Electric stainless steel gear pump fuel transfer pump chemical liquid gear pump

YCB arc gear pump is suitable for conveying solid particles and fibers without corrosion. The temperature is not higher than 200°C. (If you need to transport 200-300 °C high temperature medium, you need to change the process.) The viscosity is 5-1500cst lubricating oil or other liquids similar in nature to lubricating oil (if the high viscosity medium is to be transported, the process needs to be changed) and used in the hydraulic transmission system.

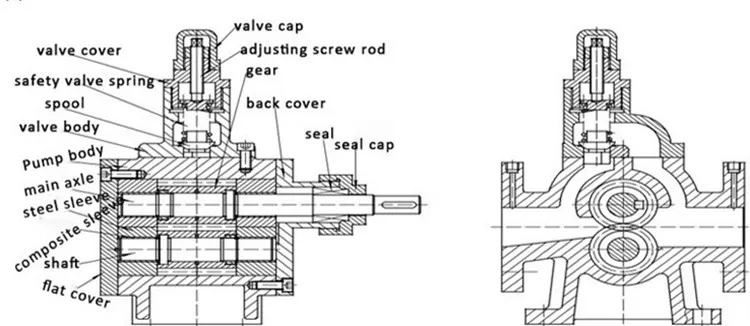

YCB arc gear pump shaft end seal is designed in two forms, one is a mechanical seal and the other is a packing seal, which can be determined according to the specific use and user requirements.




YCB0.6-YCB1.6
Flow:0.6-1.6m3/h
Pressure: 0.6/1.6Mpa
Power: 0.75-4kw

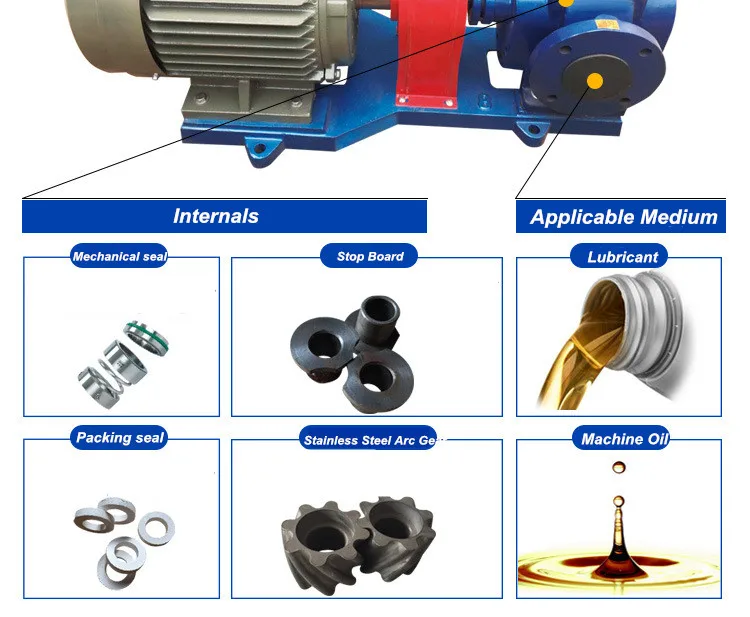

The rotary gear pump adopts mechanical seal or packing seal.
Gear material is 40Cr 2Cr13
YCB3.3-YCB4
Flow:3.3-4m3/h
Pressure: 0.6/1.6Mpa
Power: 1.5-7.5kw
The gear pump adopts mechanical seal or packing seal.
Gear material is 40Cr 2Cr13
YCB8-YCB15
Flow: 8-15m3/h
Pressure: 0.6/1.6mpa
Power: 3-18.5kw
The gear pump adopts mechanical seal or packing seal.
Gear material is 40Cr 2Cr13


YCB20-YCB25
Flow : 20-25m3/h
Pressure : 0.6mpa
Rotary speed: 970-1450rpm
The gear pump adopts mechanical seal or packing seal.
Gear material is 40Cr 2Cr13
YCB30-YCB35
Flow : 30-35m3/h
Pressure : 0.6mpa
Rotary speed: 970-1450rpm
The gear Pump adopts mechanical seal or packing seal.
Gear material is 40Cr 2Cr13
YCB40-YCB80
Flow : 40-80m3/h
Pressure : 0.6mpa
Power: 15-37kw
The gear Pump adopts mechanical seal or packing seal.
Gear material is 40Cr 2Cr13




Product Paramenters




Model
Flow (m3/h)
Presure (Mpa)
Rev (r/min)
Npshr (m)
Frequency (hz)



YCB0.6-0.6
0.6



0.6
910



5.5
50
1
1390
50
0.7
1130
60
1.2
1710
60



YCB0.6-1.6
0.6



1.6
910



7
50
1
1400
50
0.7
1130
60
1.2
1710
60



YCB1.6-0.6
1.6



0.6
910



5.5
50
2.5
1400
50
1.9
1130
60
3
1710
60



YCB1.6-1.6
1.6



1.6
940



7
50
2.5
1440
50
1.9
1150
60
3
1750
60



YCB3.3-0.6
3.3



0.6
940



5
50
5
1420
50
4
1150
60
6
1730
60



YCB3.3-1.6
3.3



1.6
960



7
50
5
1440
50
4
1170
60
6
1750
60



YCB4-0.6
4



0.6
940



5
50
6
1420
50
4.8
1150
60
6
1730
60



YCB4-1.6
4



1.6
960



7
50
6
1440
50
4.8
1170
60
7.2
1750
60



YCB8-0.6
8



0.6
960



5
50
12
1440
50
9.6
1170
60
14.4
1750
60



YCB8-1.6
8



1.6
970



7
50
12
1460
50
9.6
1170
60
14.4
1760
60



YCB10-0.6
10



0.6
960



5
50
15
1440
50
12
1170
60
18
1750
60



YCB10-1.6
10



.1.6
970



7
50
15
1470
50
12
1170
60
18
1770
60

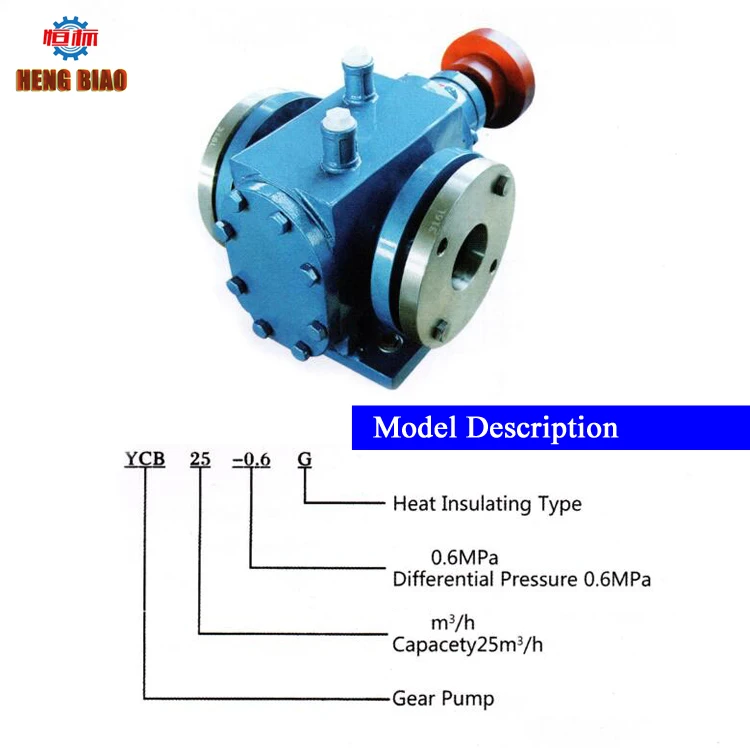

Details Images

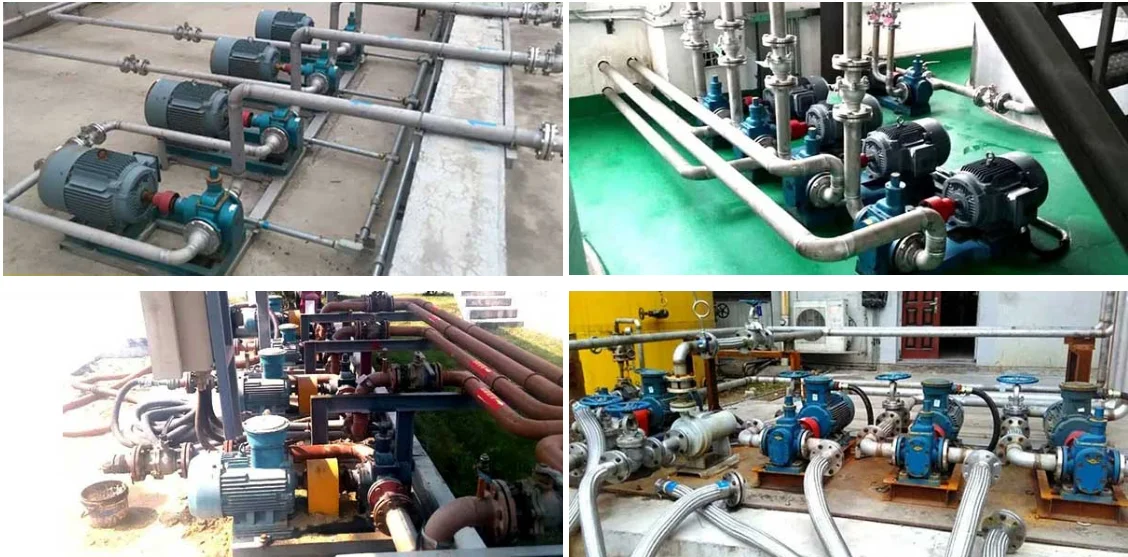

Application



Generally used in:
1. It can give performance as transfer pump or booster in oil deliver system.
2. It can be also applied as fuel pump for delivery system, pressurization and injection in fuel supply system.
3. It can be also hydraulic pump supplying hydraulic power in hydraulic system;
4. In all industry fields it can be as lubricating pump.

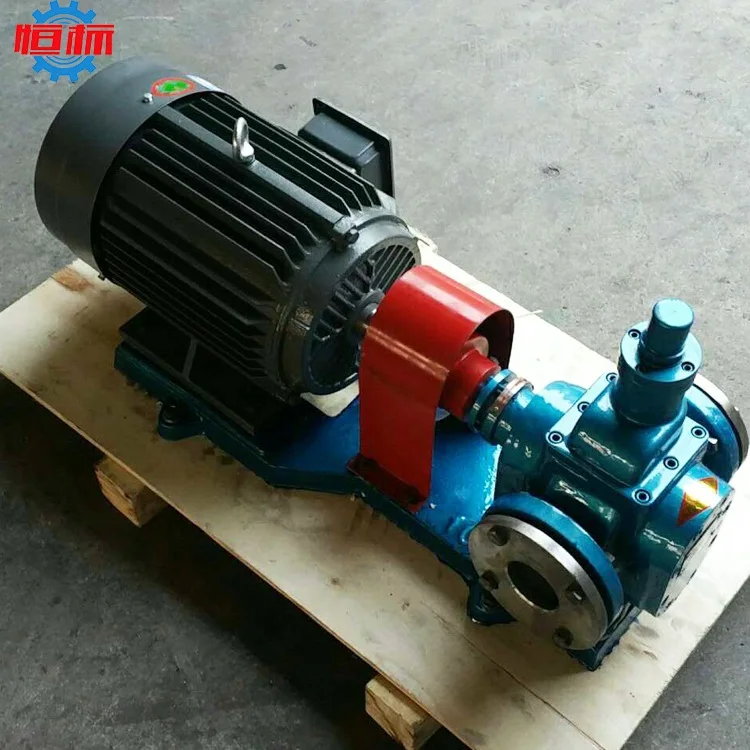

Packaging&Shipping






Comanpy information




Our products are consist of gear pump, screw pump, centrifugal pump, high viscosity rotator pump series, and the main products are RY hot oil pump, KCB gear pump, YCB arc gear pump, 2CY gear pump, 3RP cam follower rotator pump, SHGB cam follower rotator pump, 3G, SN, SM three screw pump, 3GCL vertical screw pump, 3GB heat preservation pitch three screw pump, 2W.W sealing twin screw pump, G single screw pump, NYP, GNB inner ring high viscosity pump, LYB vertical arc gear pump, JQB turbine shear pump, CYZ self-suction centrifugal oil pump, KCG,2CG high temperature gear pump, LC, LCW roots pump, LCB pitch heat preservation pump, TSB chemical decoloration pump, LB refrigerating pump, ZYB, ZYB-B coke oil pump, oil pump, RJB solvent pump, CBN thickened oil pump, AH, H, M slurry pump, vertical slurry pump, YHCB circular gear pump, FXA-FXB stainless outer lubrication gear pump, ZA, ZE petrochemical process pump, IH single suction centrifugal pump, IHF fluoroplastic centrifugal pump, pneumatic and electric diaphragm pump, water ring and rotary vacuum pump, FB, AFB stainless corrosion resisting centrifugal pump ect. Totally more than 1200 types of products and some of them have received domestic initiate patent and reach the international advanced level.






FAQ


1. Who are we?
We are based in Hebei, China, start from 2010,sell to Mid East(20.00%),Southeast Asia(15.00%),Western Europe(10.00%),Central America(10.00%),Eastern Europe(10.00%),South Asia(5.00%),North America(5.00%),South America(5.00%),Southern Europe(5.00%),Northern Europe(5.00%),Africa(5.00%),Domestic Market(5.00%). There are total about 11-50 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.What can you buy from us?
Lobe Pump/Gear Pump/Screw Pump/Centrifugal Pump/High Viscosity Liquid Rotor Pump

4. Why should you buy from us not from other suppliers?
Hebei Shenghui Pump Co., Ltd is a professional pump manufacturing base with research,developing,manufacturing and operating enterprise. And it has rich manufacturing experience and technology.

5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean, Hindi,Italian
