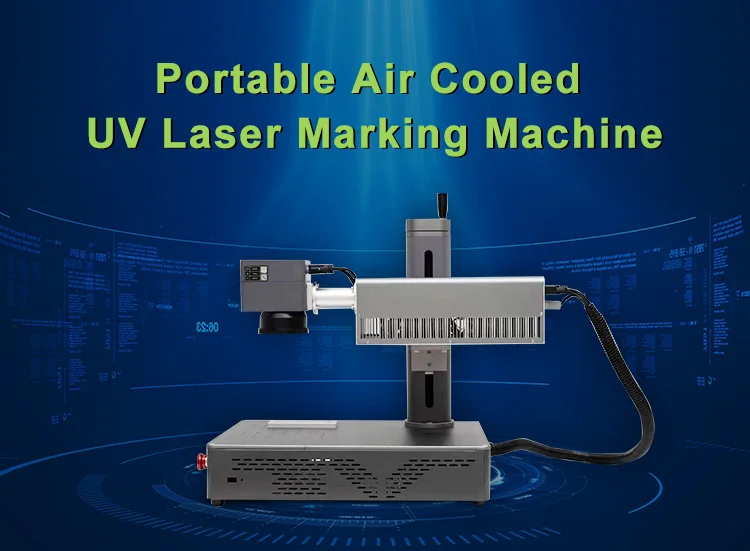

Laser Logo Printer Uv Laser Marking Machine For Glass Bottle 3w 5w Portable Laser Marker
- Category: >>>
- Supplier: Laser Delta Co. Ltd.
Share on (1601174604522):
Product Overview
Description
 |
Product Description
| Laser System | DT-UV-P |
| Laser Source | 355nm UV |
| Nominal Laser Power | 3/5W |
| Beam Quality M² | M2<1.3 |
| Beam Diameter | 0.6±0.1mm |
| Pulse Width | <20ns@30KHz |
| Frequency | 20~120KHz |
| Peak Power | 7.4KW |
| Long-term Power Instability | 5% |

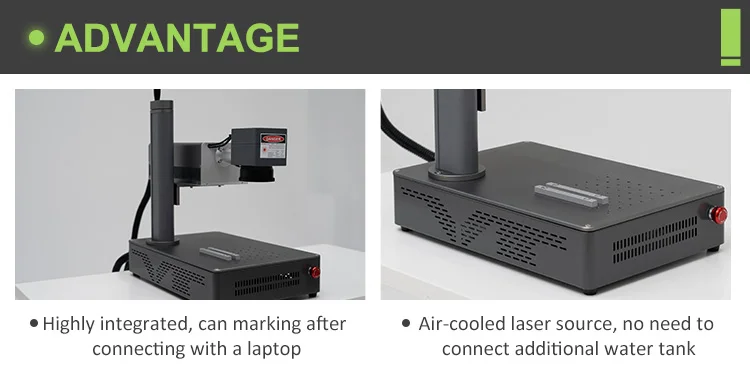

| Cooling System | Air Cooled |
| Aiming Diode | Intergrated Visible Red Laser Diode, λ=635nm, 10-50mW |
| General Information | |
| Machine Net Weight | 20KG |
| Machine Gross Weight | 55KG |
| Packing Dimention | 820*780*390mm |
| Electrical Connection Values | 115V-230VAC 50-60Hz |
| Operating Temperature | +10 to +35 °C (46 to 95°F) |
| Humidity | < 90% non-condensing |
| Scan Head | |
| F-Theta Lens | FL 160 (Standard) |
| Marking Area | 100*100mm |
| Spot Size in Focus | 0.15mm |
| Min. Line Width | 0.01mm |
| Min. Character | 0.15mm |
| Working Distance (to Lens) | 112±1mm |
| CCD Function | Optional |
| Scan Speed | Up to 4000 mm/s (Optional: 8000mm/s) |
| Communication Interface | |
| PC Interface | USB 2.0 |
| Digtial Output | Rotary axis and pedal are available |
| Marking Software | EZCAD |
| Marking Software | |
| Min. Hardware Requirements | 1GHz or equal, USB 2.0 |
| Operating System | Windows XP, Win 7, Win 8, Win 10 |
| Min. Memory | RAM as recommended by OS, 100MB on HDD for Marking Software |
| Display | SVGA Color |
| Text | |
| Fonts | True-Type ( filled/unfilled), Single-Line Fonts |
| Orientation | User Defined |
| Letter Spacing | User Defined |
| Arc Text | Scalable and adjustable |
| Graphic | |
| Elements | Line, Rectangle, Circle, Ellipse (filled/ unfilled) |
| Formats | Vector: *.plt, *.dxf, *.ai, *.svg; BMP: *.bmp, *.jpg, *.jpeg, *.gif, *.png; |
| Options | |
| Wide Range of Laser Workstations / Work Area Enclosures | |
| Rotary-Axis | |
| Vacuum System | |
