Product Overview
Description

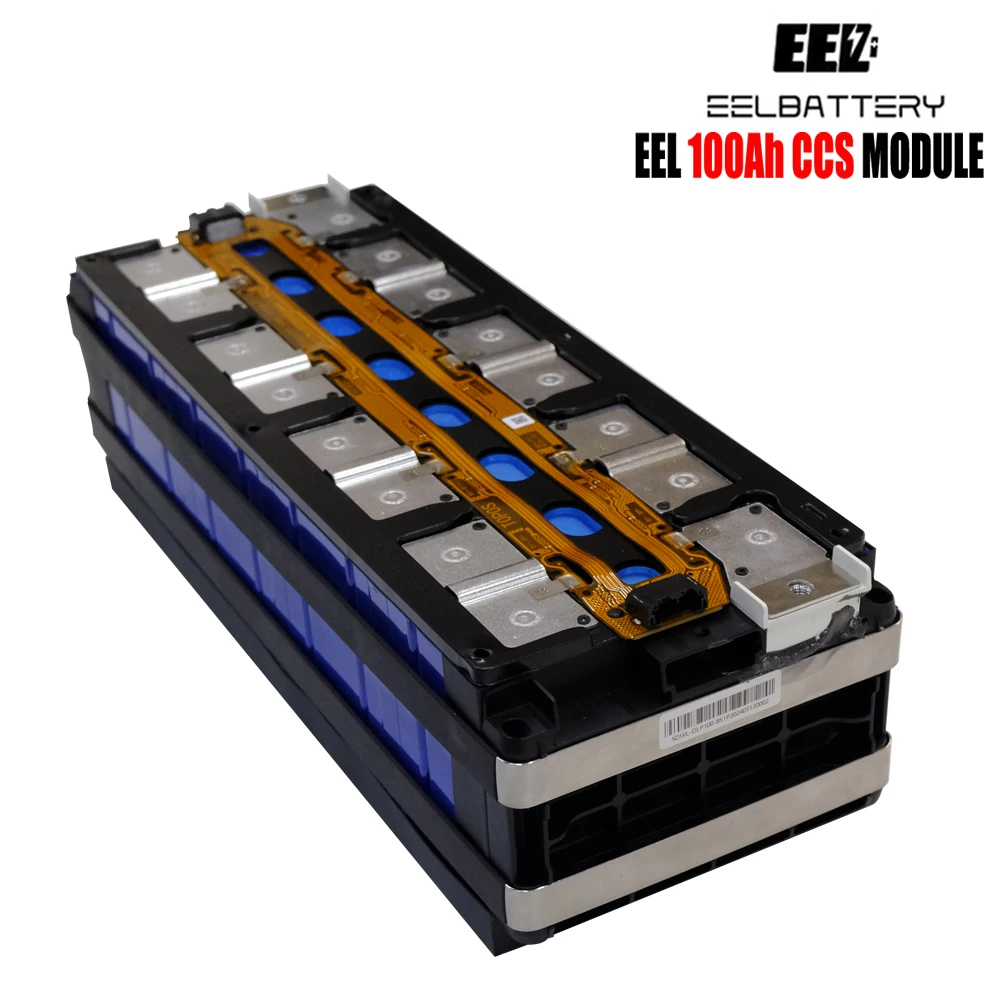

EEL 100AH CCS module
EEL Battery is the first company to bring CCS technology from EV-car batteries into home energy storage,we are also the first
company to open modules for customers to customize their own products.Our customers can customize any appearance and function they want, and we want to market ourselves as a solution provider and core accessories supplier.
company to open modules for customers to customize their own products.Our customers can customize any appearance and function they want, and we want to market ourselves as a solution provider and core accessories supplier.

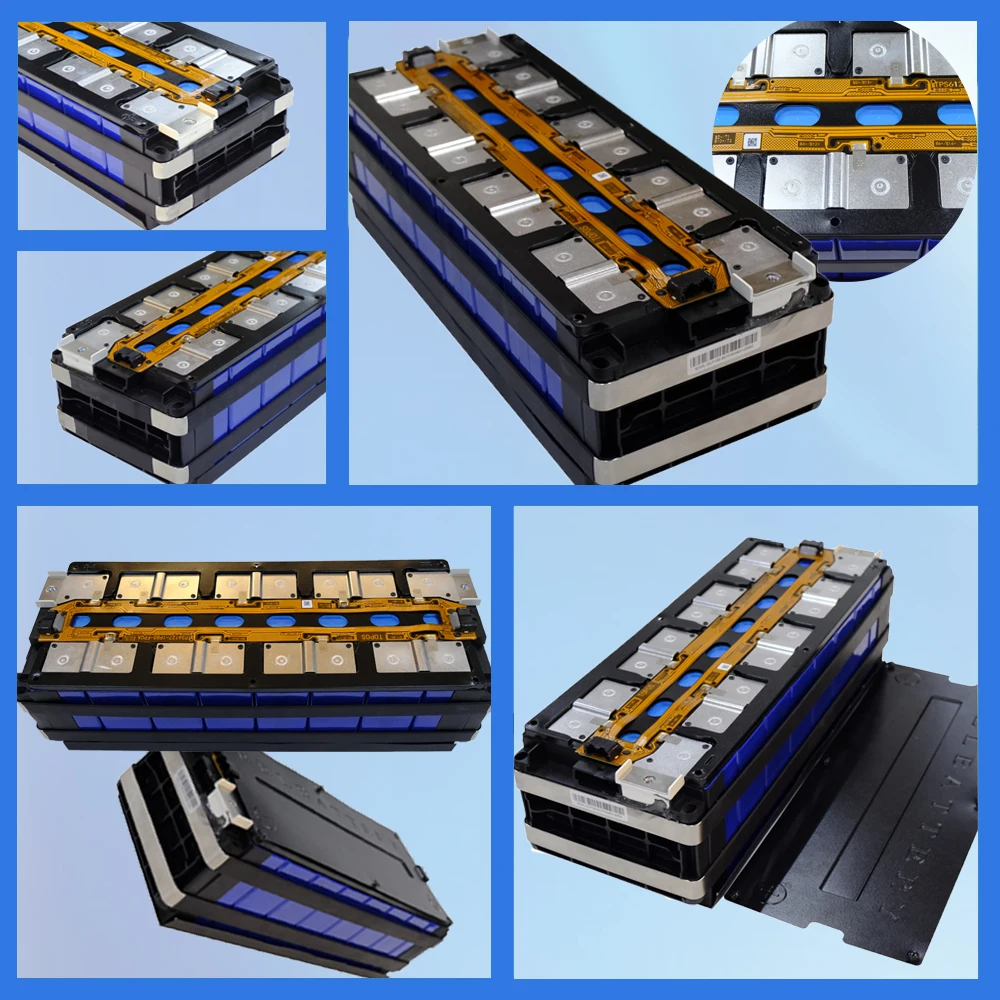

CCS (Cells Contact System) is mainly composed of signal acquisition
components (FPC, PCB, FFC, etc.), plastic/metal structural parts,integrated copper and aluminum bars, etc.,it replaces the
traditional wire harness connection and is connected into a whole through processes such as heat pressing or riveting to achieve
electrical The core high-voltage series and parallel connection, as well as the battery temperature sampling and cell voltage
sampling functions, provide temperature and voltage to the BMS system through FPC/PCB and connector components, it is also a part
of the BMS system.
components (FPC, PCB, FFC, etc.), plastic/metal structural parts,integrated copper and aluminum bars, etc.,it replaces the
traditional wire harness connection and is connected into a whole through processes such as heat pressing or riveting to achieve
electrical The core high-voltage series and parallel connection, as well as the battery temperature sampling and cell voltage
sampling functions, provide temperature and voltage to the BMS system through FPC/PCB and connector components, it is also a part
of the BMS system.

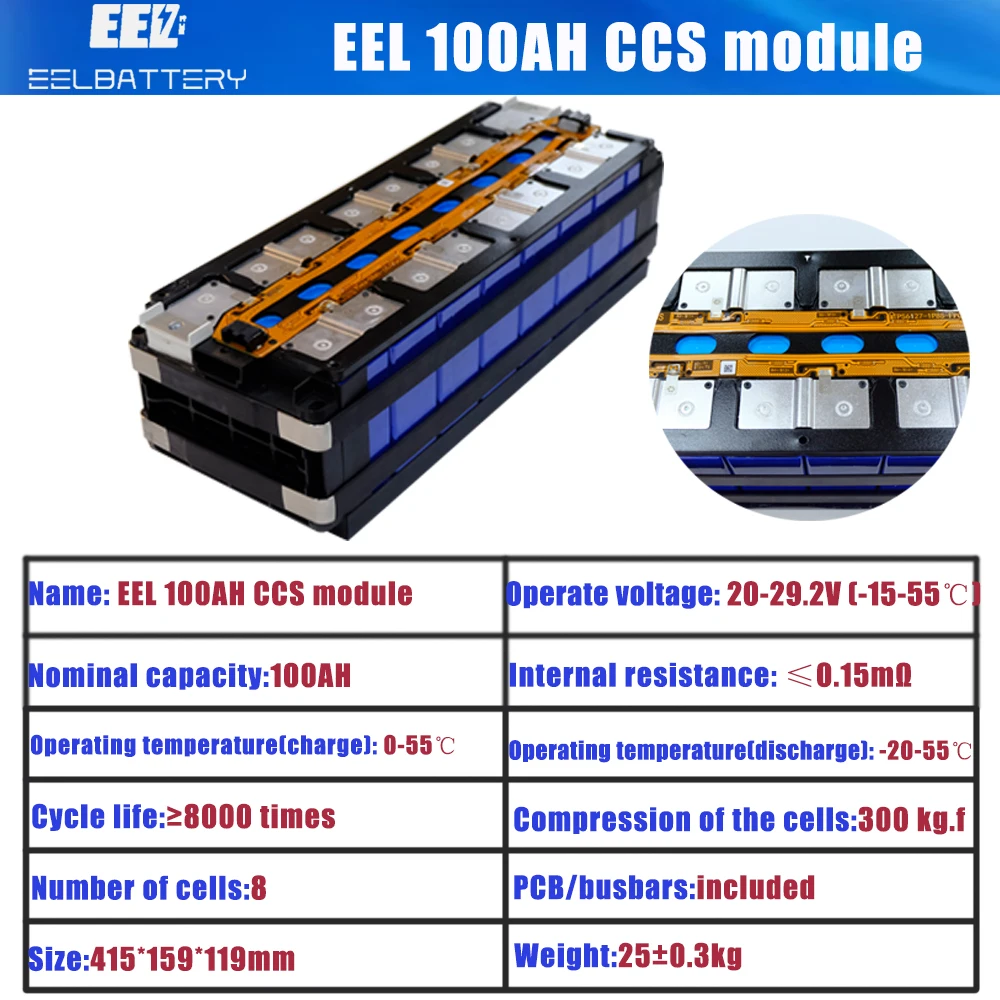

Specification
item | value |
Brand Name | EEL CCS module |
Model Number | EEL-A01 |
Battery Size | EEL 25.6V 100Ah CCS module |
Place of Origin | China |
Guangdong | |
Weight | 50KG |
Anode Material | LFP |
Application | Home Appliances, Golf Carts, Electric Bicycles/Scooters, Solar Energy Storage Systems, Uninterruptible Power Supplies |
Electric Energy | 2560Wh |
Brand Name | EEL BATTERY |
Product name | lithium battery charger module |
Size | 415*159*119mm |
Weight | 25 +0.3kg |
Compression of the cells | 300 kg.f |
Number of cells | 8 |
Operating temperature(charge) | 0-55℃ |
Operating temperature(discharge) | -20~55℃ |
Intemal resistance | 100Ah |
