Common anode 1.2 inch 4 digits ice blue 7 segment led digital display 1.2'
- Category: >>>
- Supplier: Dongguan Houke Electronic Co. Ltd.
Share on (1601174698399):
Product Overview
Description
Product Describtion

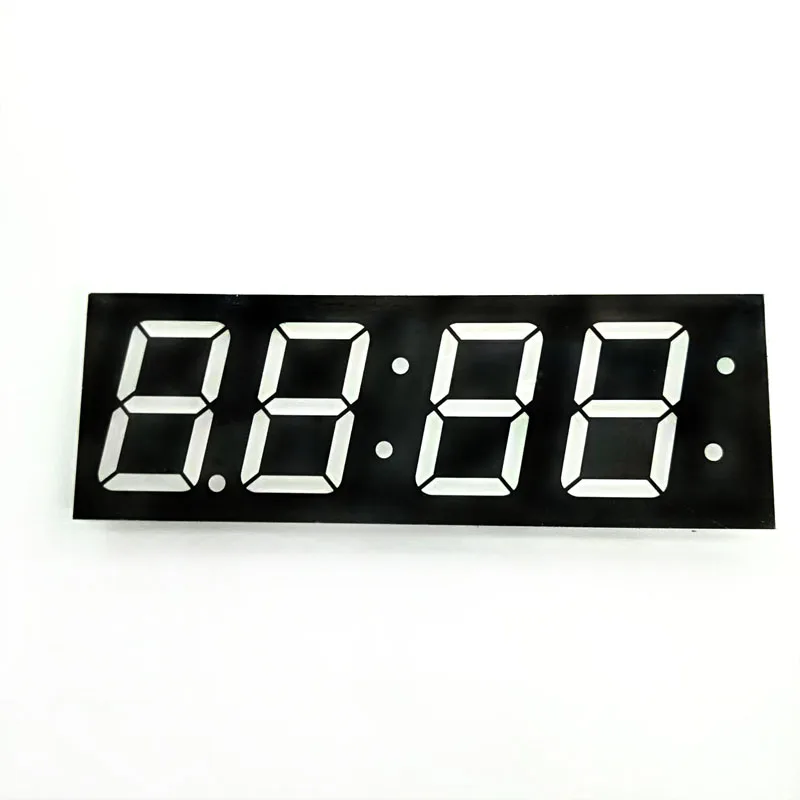

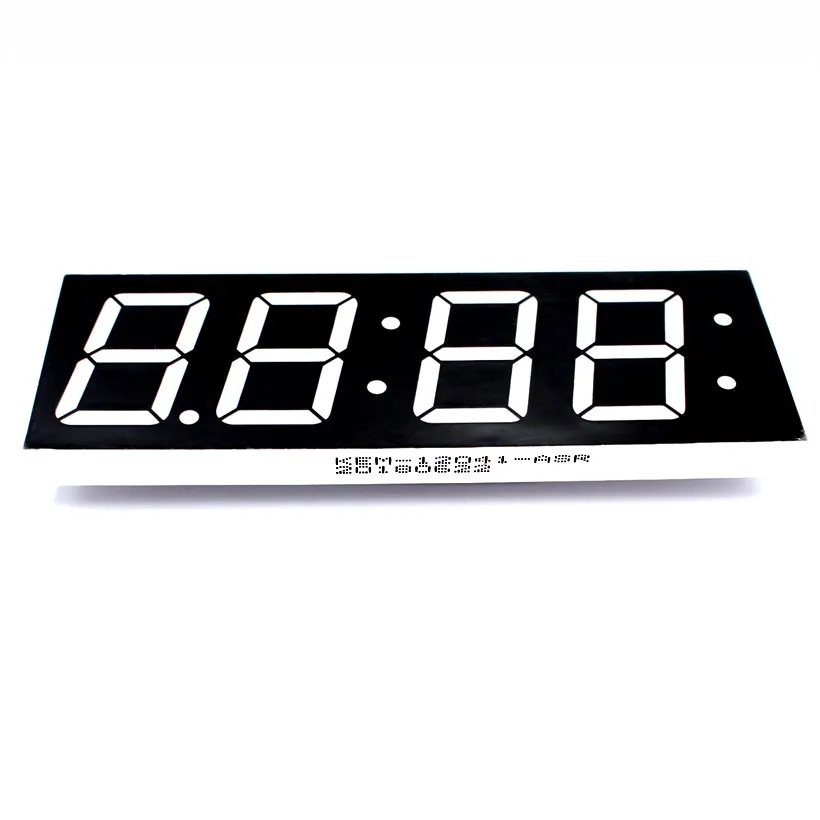

CA 1.2'' 4 digit 7 segment display ice blue color
1,Low consumption
2, High brightness
3, High intensity and reliability
4, Easy assembly
| Item No. | HOUKEM-12041-BICE |
| Dimension | 120*40.8*9.5mm |
| Surface color | Black / Grey |
| epoxy color | white |
| Emitting color | ice blue |

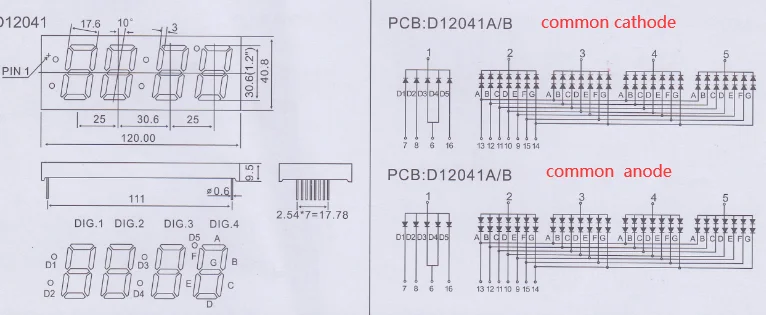

Package dimension & Internal circuit diagram
Note: If this PCB layout don't meet your requirements, please contact me for other choices.
Two years quality warranty
Color Code & Chip characteristic PER CHIP: (Test Condition: IF=15Ma)
Emitting Color |
Test Condition | Wavelength(nm) | Forward Voltage(V) | Luminous Intensity (mcd) | |||
(λp) | λ | Typ | Max | Typ | Max | ||
Amber | IF=15mA | 600-605 | 30 | 1.9 | 2.0 | 100 | 100 |
Super green | IF=15mA | 565-575 | 30 | 1.9 | 2.0 | 48 | 55 |
Super red | IF=15mA | 620-625 | 20 | 1.8 | 2.0 | 110 | 130 |
Ultra red | IF=15mA | 620-625 | 20 | 2 | 2.1 | 300 | 350 |
High red | IF=15mA | 638-660 | 20 | 1.8 | 1.9 | 15 | 20 |
Yellow green | IF=15mA | 570-580 | 30 | 1.9 | 2.0 | 43 | 50 |
Yellow | IF=15mA | 580-600 | 35 | 1.9 | 2.0 | 70 | 80 |
Blue | IF=15mA | 465-475 | 40 | 2.9 | 3.0 | 150 | 200 |
Ice blue | IF=15mA | 480-485 | 40 | 2.9 | 3.0 | 435 | 440 |
Pure green | IF=15mA | 515-525 | 40 | 2.9 | 3.0 | 600 | 640 |
White | IF=15mA | - | - | 2.8 | 3.0 | 200 | 220 |
Our Services
Our service:
Sample are available
In order to let you have an enjoyable experience on our best quality product and satisfied service,
we can offer---- SAMPLES for your test within 3-5 days.

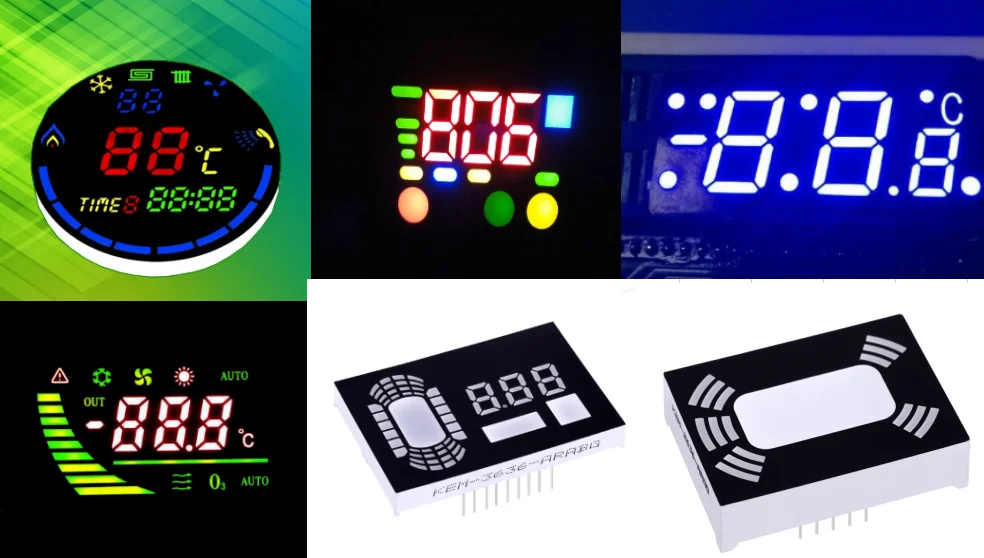

Custom service:
1. We can supply you all kinds of 7 segment LED display
---Digit size: from 0.25" to 20"
---Digit Numer: 1, 2, 3, 4, 5 and 6 digits
2. Segment : 7 segment and 14 segment both available
3. Various colors: super red, ultra red, high red, yellow green, pure green,
super green, pure green, blue, yellow, white, amber, Bi-color, RGB.
Customized product are available
Application
Contact us
Dongguan Houke Electronic Co.,Ltd
Established in 2003,our factory is specialized in LED products, including 7 segment
LED/SMD displays,Alphanumeric displays,SMD LEDs,dot-matrix Led displays,bar graph
arrays and LED directon indicator displays.etc.
