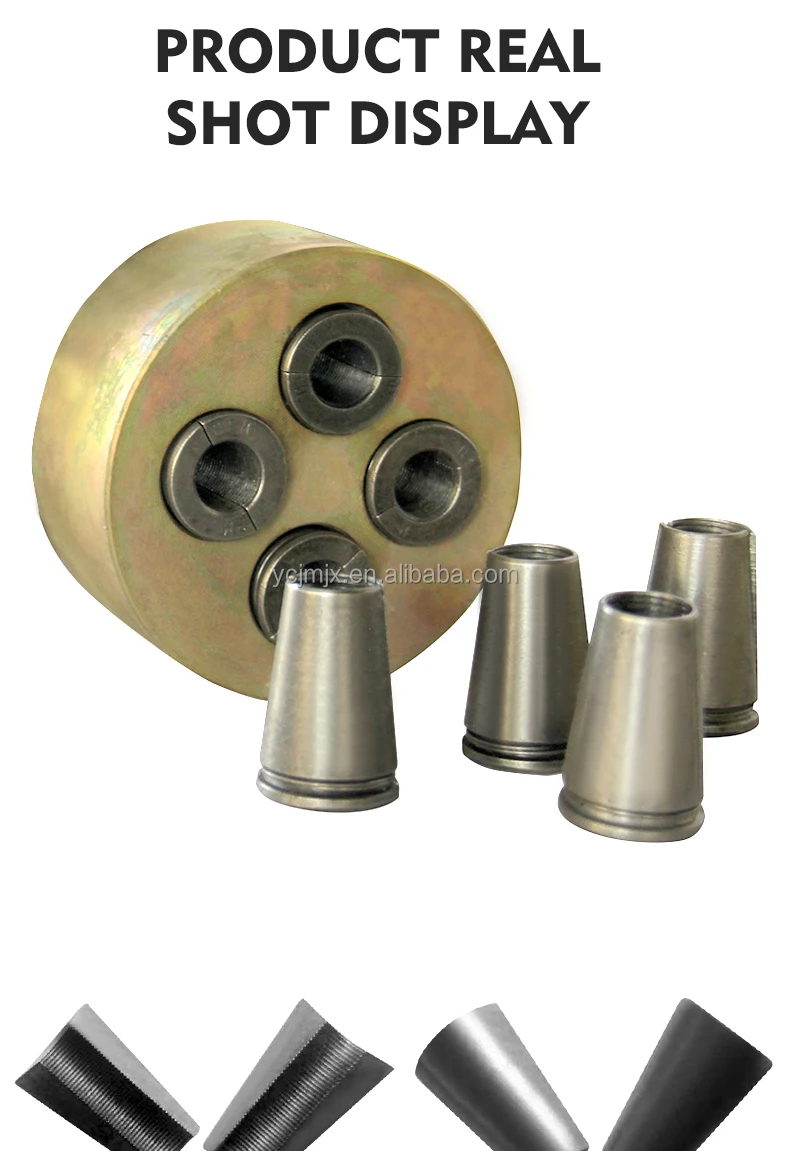

Concrete grip anchoring wedge clamp 1/2 inch post tension 3 piece wedge for 12.7mm 15.2mm pc strand
- Category: >>>
- Supplier: Kaifeng Yucheng Precision Machinery Co. Ltd.
Share on (1601175044378):
Product Overview
Description
Prestressed anchor wedges are critical components used in prestressed concrete structures to anchor and secure the prestressing tendons (such as steel strands or wires). These wedges play a vital role in transferring the prestress force from the tendons to the concrete, ensuring the structural integrity and performance of the prestressed system.
### Key Features and Components of Prestressed Anchor Wedges
1. **Material**:
- Typically made from high-strength alloy steel to ensure durability, strength, and resistance to wear and corrosion.
2. **Design**:

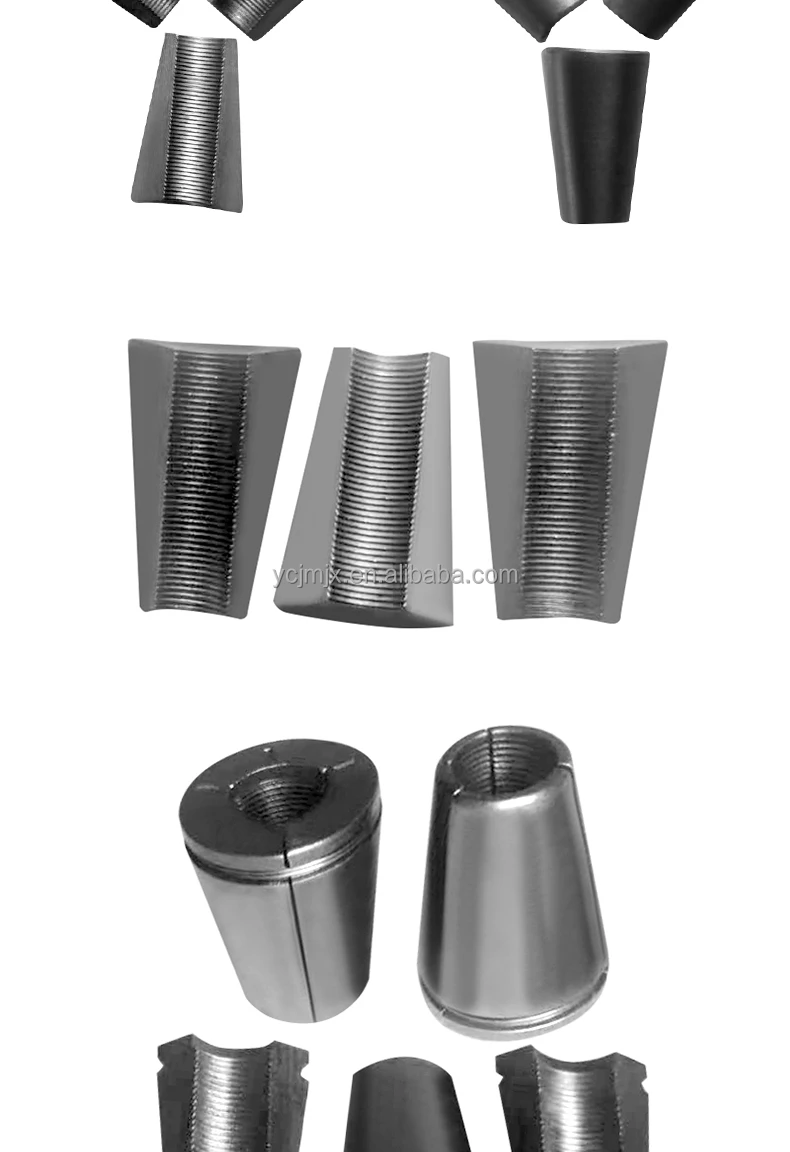

- **Tapered Shape**: The wedges are usually designed with a conical or tapered shape that allows them to grip the tendons securely when inserted into a matching tapered anchor head or barrel.
- **Serrated or Grooved Surface**: The inner surfaces of the wedges often have serrations or grooves to increase the friction and grip on the prestressing tendons, preventing slippage.
3. **Multi-Piece Configuration**:
- Commonly, anchor wedges come in sets of multiple pieces (typically three) that surround the tendon. This multi-piece configuration ensures even distribution of forces and minimizes the risk of damaging the tendon.
### Function and Application
- **Stress Transfer**: Prestressed anchor wedges ensure the effective transfer of prestressing force from the tendons to the concrete structure.
- **Safety and Stability**: High-quality wedges maintain the tension in the tendons over the lifespan of the structure, preventing loosening and ensuring the safety and stability of the structure.
- **Versatility**: Suitable for various types of prestressing tendons, including steel strands, wires, and carbon fiber tendons.
### Installation Process
1. **Preparation**:
- Verify that the wedges and tendons are compatible in terms of size and specifications. Clean the tendons and wedges to remove any dirt or grease that could affect the grip.
2. **Pre-Assembly**:

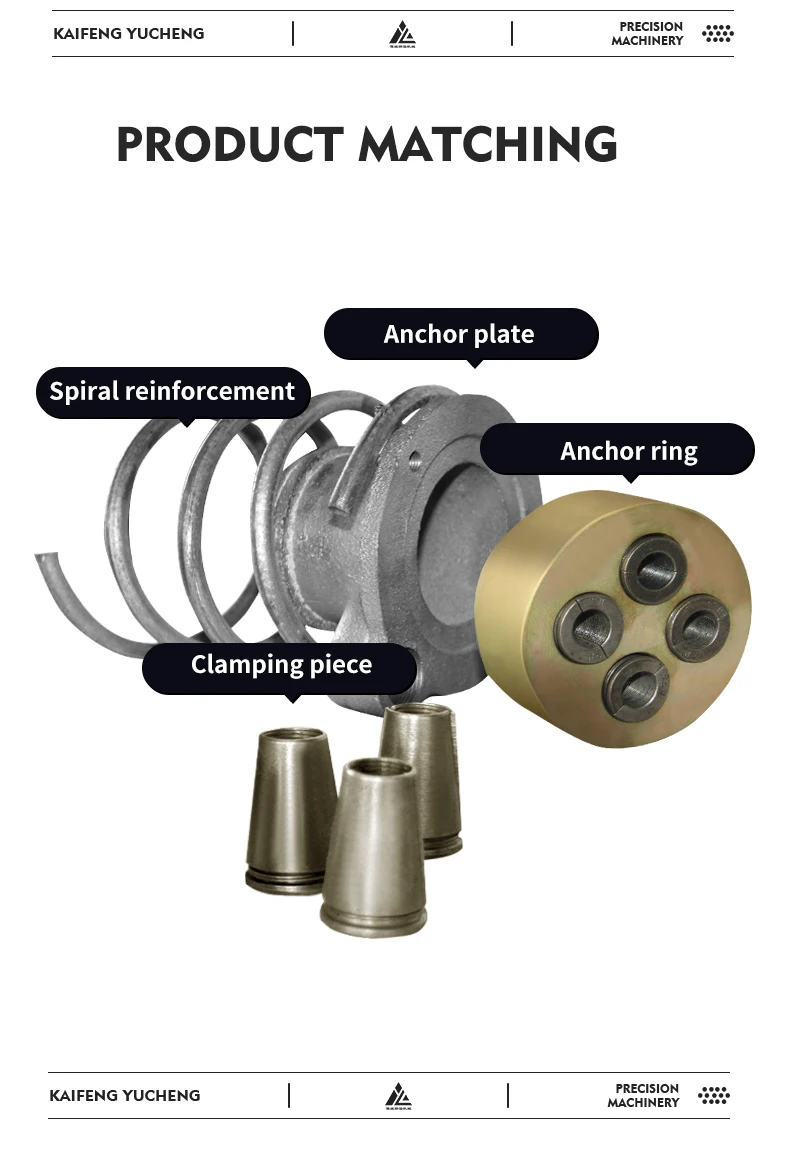

- Insert the tendons through the anchor head or barrel, and place the wedges around the tendon within the tapered section of the anchor head.
3. **Tensioning**:
- Use a hydraulic jack or tensioning device to apply tension to the tendons. As tension is applied, the wedges are pulled into the tapered section, gripping the tendon tightly.
4. **Locking and Cutting**:
- Once the desired tension is reached, the wedges lock into place, securing the tendon. Excess tendon length beyond the wedges can then be cut off if necessary.
5. **Inspection**:
- Ensure that the wedges are properly seated and the tension is uniformly distributed. Perform any necessary adjustments to achieve the desired tension and alignment.
### Advantages
- **High Tensile Strength**: Capable of handling substantial loads, making them suitable for high-stress applications.
- **Durability**: Made from high-quality materials that resist corrosion and wear, ensuring long-term performance.
- **Ease of Installation**: Designed for straightforward installation and reliable performance, reducing construction time and labor costs.
### Considerations
- **Quality Assurance**: Use wedges that meet industry standards and specifications to ensure safety and reliability.
- **Proper Installation**: Follow the manufacturer’s guidelines and industry best practices to avoid issues such as improper seating or tendon damage.
- **Compatibility**: Ensure that the wedges are compatible with the specific type and size of prestressing tendon being used.
By selecting and installing prestressed anchor wedges correctly, engineers and construction professionals can significantly enhance the performance, safety, and longevity of prestressed concrete structures.
### Key Features and Components of Prestressed Anchor Wedges
1. **Material**:
- Typically made from high-strength alloy steel to ensure durability, strength, and resistance to wear and corrosion.
2. **Design**:
- **Tapered Shape**: The wedges are usually designed with a conical or tapered shape that allows them to grip the tendons securely when inserted into a matching tapered anchor head or barrel.
- **Serrated or Grooved Surface**: The inner surfaces of the wedges often have serrations or grooves to increase the friction and grip on the prestressing tendons, preventing slippage.
3. **Multi-Piece Configuration**:
- Commonly, anchor wedges come in sets of multiple pieces (typically three) that surround the tendon. This multi-piece configuration ensures even distribution of forces and minimizes the risk of damaging the tendon.
### Function and Application
- **Stress Transfer**: Prestressed anchor wedges ensure the effective transfer of prestressing force from the tendons to the concrete structure.
- **Safety and Stability**: High-quality wedges maintain the tension in the tendons over the lifespan of the structure, preventing loosening and ensuring the safety and stability of the structure.
- **Versatility**: Suitable for various types of prestressing tendons, including steel strands, wires, and carbon fiber tendons.
### Installation Process
1. **Preparation**:
- Verify that the wedges and tendons are compatible in terms of size and specifications. Clean the tendons and wedges to remove any dirt or grease that could affect the grip.
2. **Pre-Assembly**:
- Insert the tendons through the anchor head or barrel, and place the wedges around the tendon within the tapered section of the anchor head.
3. **Tensioning**:
- Use a hydraulic jack or tensioning device to apply tension to the tendons. As tension is applied, the wedges are pulled into the tapered section, gripping the tendon tightly.
4. **Locking and Cutting**:
- Once the desired tension is reached, the wedges lock into place, securing the tendon. Excess tendon length beyond the wedges can then be cut off if necessary.
5. **Inspection**:
- Ensure that the wedges are properly seated and the tension is uniformly distributed. Perform any necessary adjustments to achieve the desired tension and alignment.
### Advantages
- **High Tensile Strength**: Capable of handling substantial loads, making them suitable for high-stress applications.
- **Durability**: Made from high-quality materials that resist corrosion and wear, ensuring long-term performance.
- **Ease of Installation**: Designed for straightforward installation and reliable performance, reducing construction time and labor costs.
### Considerations
- **Quality Assurance**: Use wedges that meet industry standards and specifications to ensure safety and reliability.
- **Proper Installation**: Follow the manufacturer’s guidelines and industry best practices to avoid issues such as improper seating or tendon damage.
- **Compatibility**: Ensure that the wedges are compatible with the specific type and size of prestressing tendon being used.
By selecting and installing prestressed anchor wedges correctly, engineers and construction professionals can significantly enhance the performance, safety, and longevity of prestressed concrete structures.
