Widely Used Js1000 1000 Liter Heavy Duty Concrete Mixer Lift Machine Price Js Concrete Mixer Lift Machine Price
- Category: >>>
- Supplier: Henan Spark Machinery Co. ltd
Share on (1601175123558):
Product Overview
Description
Product Overview
Widely Used Js1000 1000 Liter Heavy Duty Concrete Mixer Lift Machine Price Js Concrete Mixer Lift Machine Price

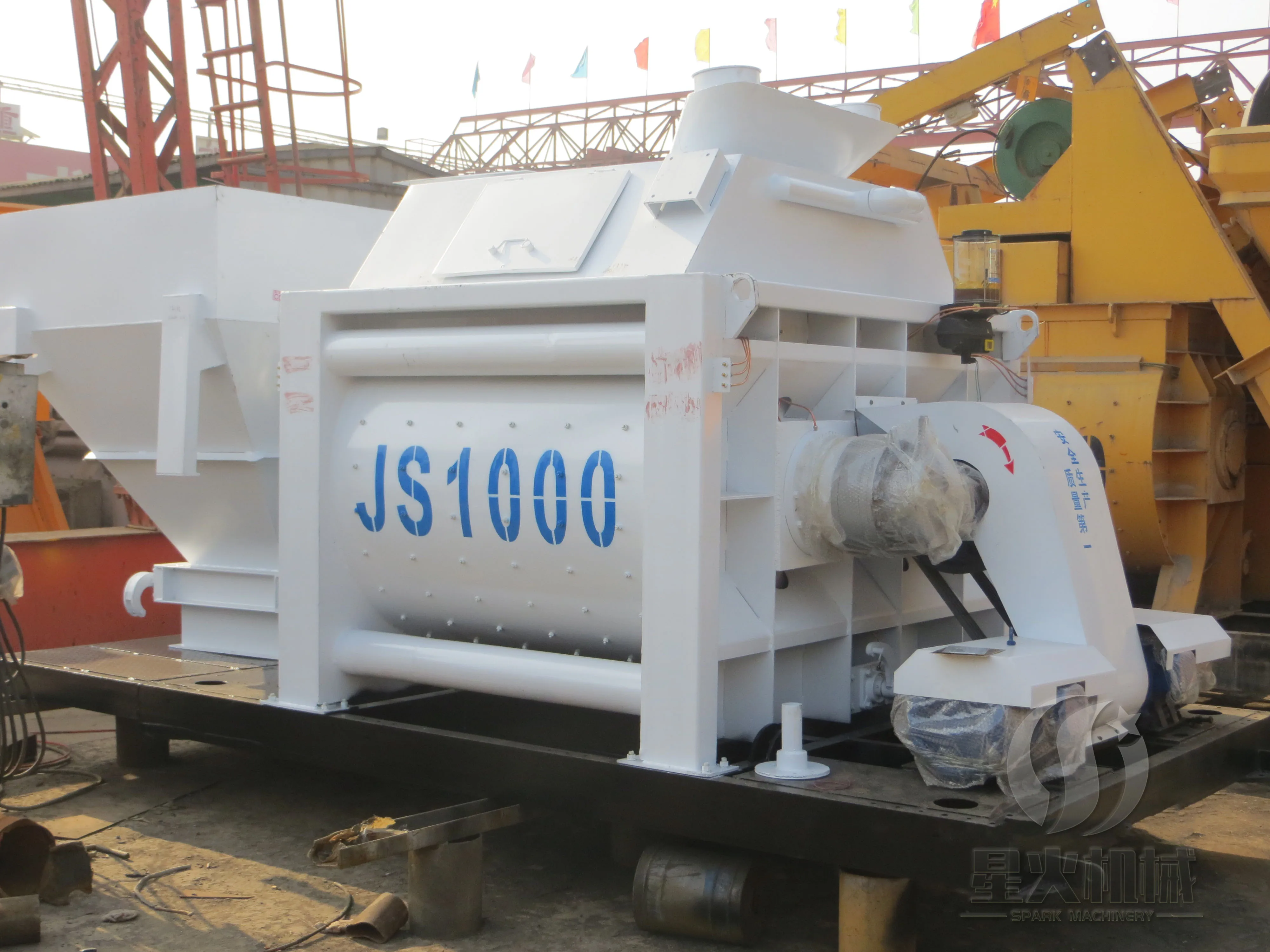

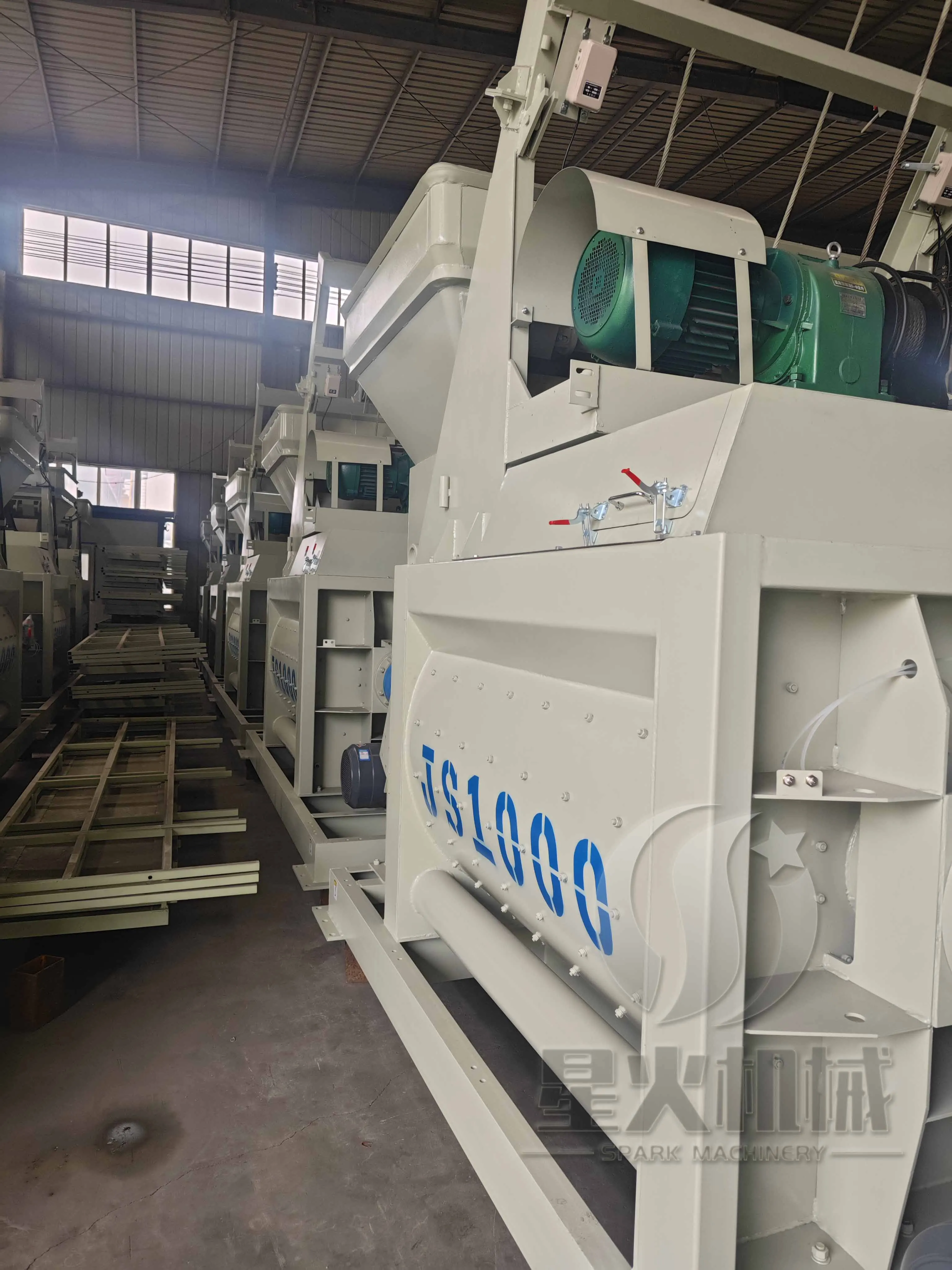

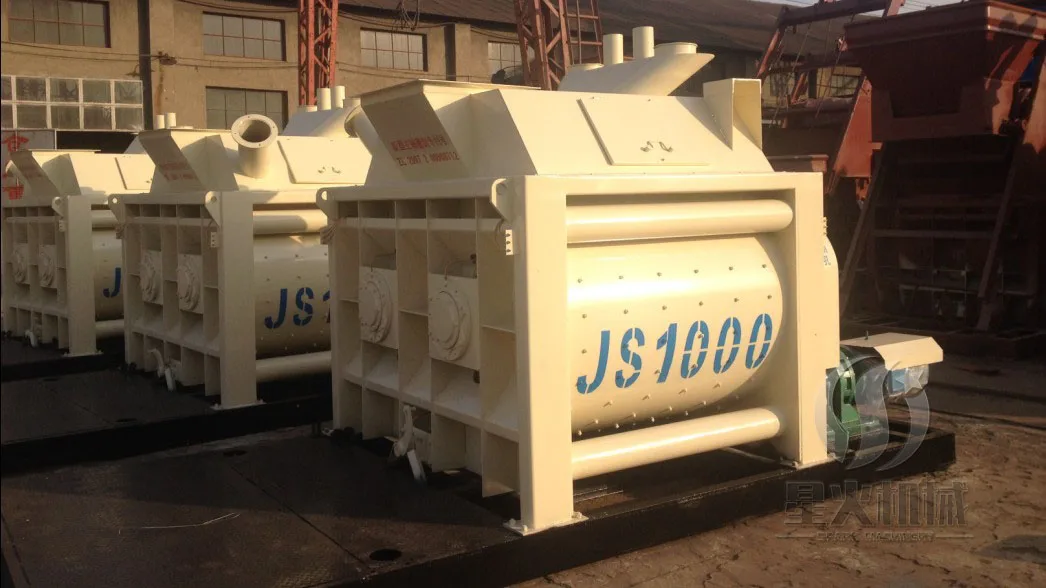

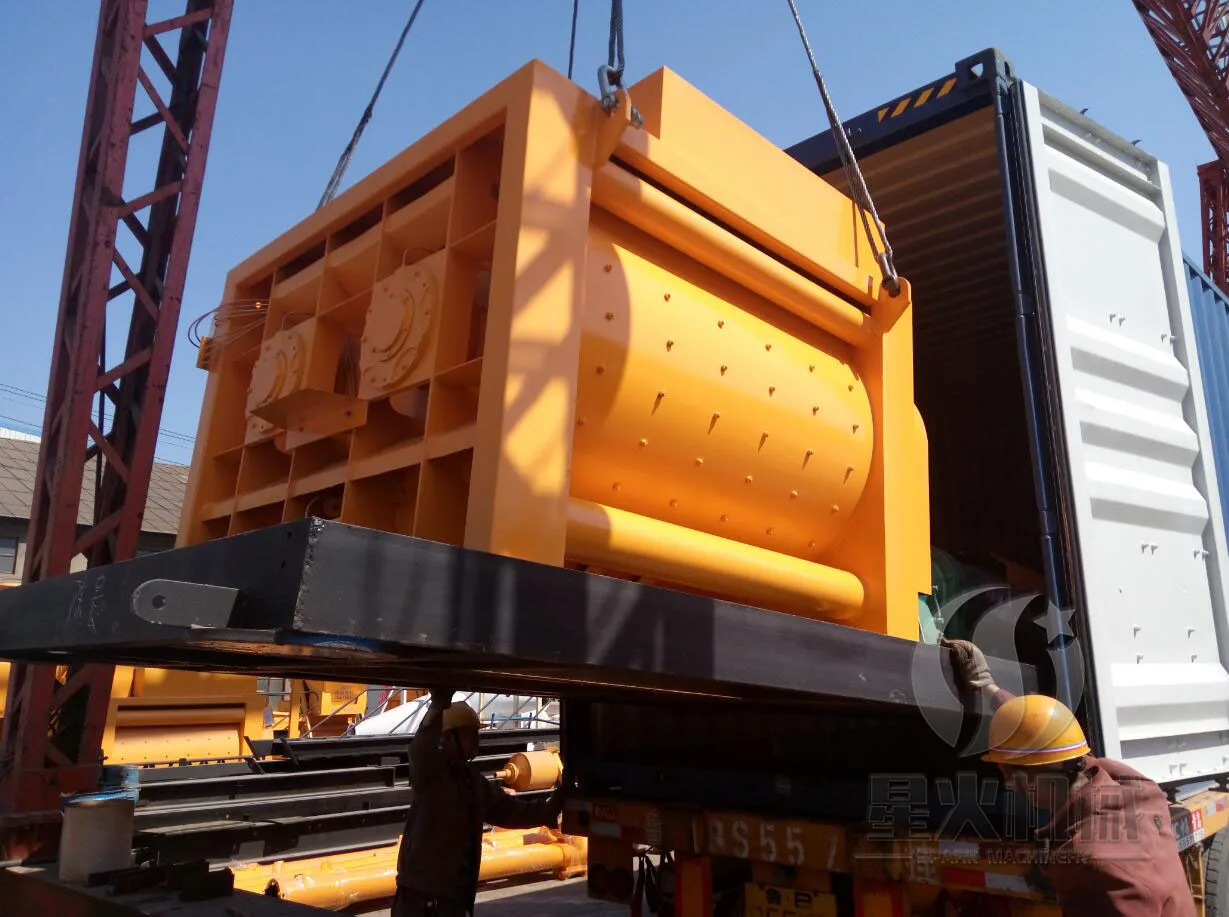

COMPULSORY TWIN SHAFT JS1000 CONCRETE MIXER includes automatic lubrication pump, two motors and two reducers, 4 advanced seal sets, wear-resistant liner, 14 pieces mixing blades and pneumatic control discharging. It is widely used in HZS50 and HZS60 concrete batching plant for commercial concrete factory, construction sites. The twin shaft structure can make sure the concrete mixing uniformly in 60s, the productivity is 60m3/h concrete per hour.
JS series double-shaft forced concrete mixer feature
1. JS series double-shaft forced concrete mixer is based on years of experience in the industry, learning Italian and German advanced technology, and has a stable operation, low noise, good mixing quality, high production efficiency, simple operation and convenient maintenance.
2.Concrete mixer has the advantages of low energy consumption, long life and low cost of use. It can be used alone or as a supporting host for concrete batching plant.
3.It is suitable for roads, railways, bridges, water conservancy and hydro power, prefabricated fields, commercial concrete
companies, etc.
2.Concrete mixer has the advantages of low energy consumption, long life and low cost of use. It can be used alone or as a supporting host for concrete batching plant.
3.It is suitable for roads, railways, bridges, water conservancy and hydro power, prefabricated fields, commercial concrete
companies, etc.
PRODUCT SPECIFICATIONS
Product Model | JS500 | JS750 | JS1000 | JS1500 | JS2000 |
Loading volume | 800L | 1200L | 1600L | 2400L | 3200L |
Unloading volume | 500L | 750L | 1000L | 1500L | 2000L |
Productivity | 25m3/h | 35m3/h | 50-60m3/h | 75-90m3/h | 120m3/h |
Max. aggregate size | 60/80mm | 60/80mm | 60/80mm | 60/80mm | 60/80mm |
Mixing speed | 35r/min | 30.5r/min | 25.5r/min | 25.5r/min | 23r/min |
Mixing power | 18.5kw | 30kw | 2*18.5kw | 2*30kw | 2*37kw |
Hopper lifting speed | 18m/min | 19.2m/min | 21.9m/min | 23m/min | / |
Water weighing | Time replay | Time replay | Time replay | Time replay | Time replay |
JS1000 Concrete mixer adopt advanced hydraulic system to open and shut the discharging door, under the circumstance of sudden power failure, the manual pup is used to open the discharging valve to make a urgent discharge, to prevent the agglomeration of concrete in the mixer
JS 1000 twin shaft concrete mixer adopt advanced hydraulic system to open and shut the discharging door. it can fully open and half open of the twin shaft concrete mixer, decrease the shaking of the mixer, can protect the machine when working
The JS1000 twin shaft concrete mixer can working separately also can working with the whole concrete batching plant together, when it working singe, we will match the control system of the main mixer, the operator can using the machine easily

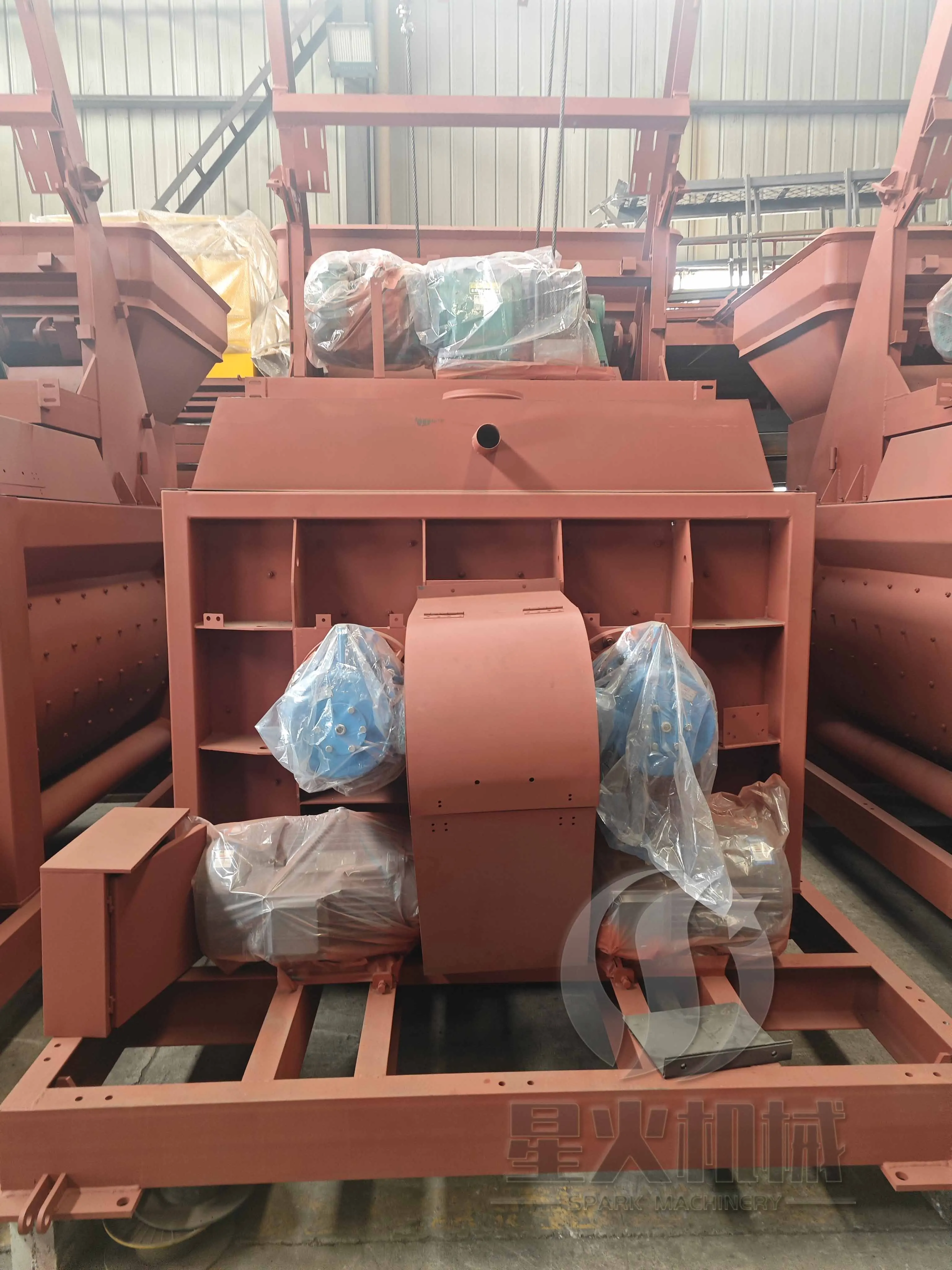

For the motor and reducer of the JS1000 twin shaft concrete mixer, we have two type, this is planetary type reducer, working performance is very stable,quality is gooad and have a very long life time, it can also match HZS60 concrete batching plant
JS1000 twin shaft concrete mixer, Mixing system adopts the design of multi mixing blades, no dead space,which enables to have the perfect uniform mixing efficiency on a short time
The JS1000 Twin shaft mixer moving by belt ,that mode is better than Gear transmission .Our belt is made by five nylon ,more wearable, more stable operation.

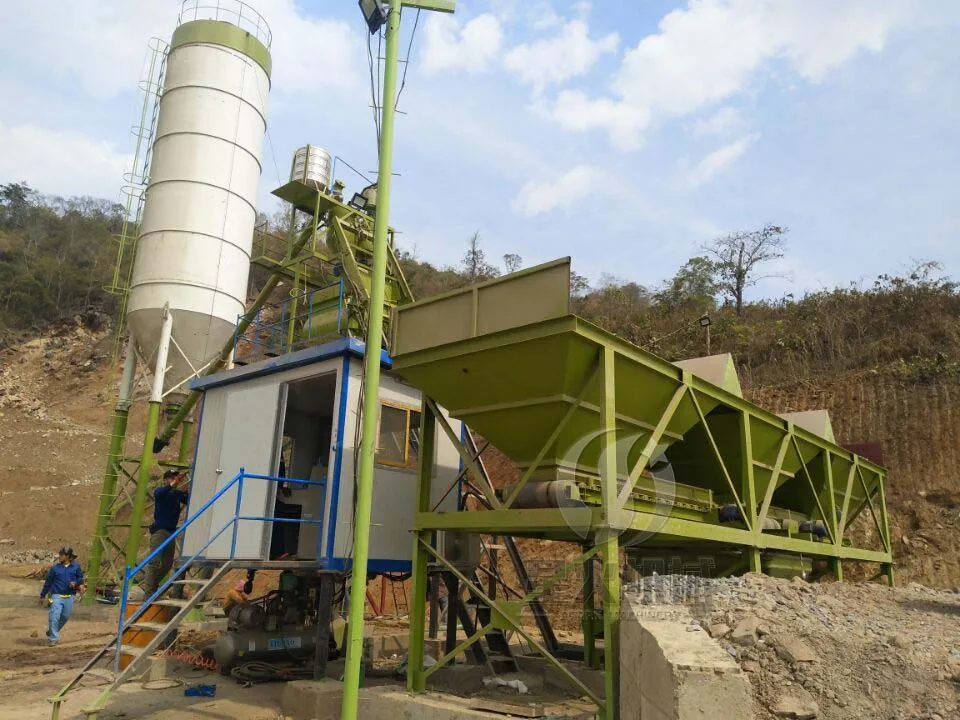

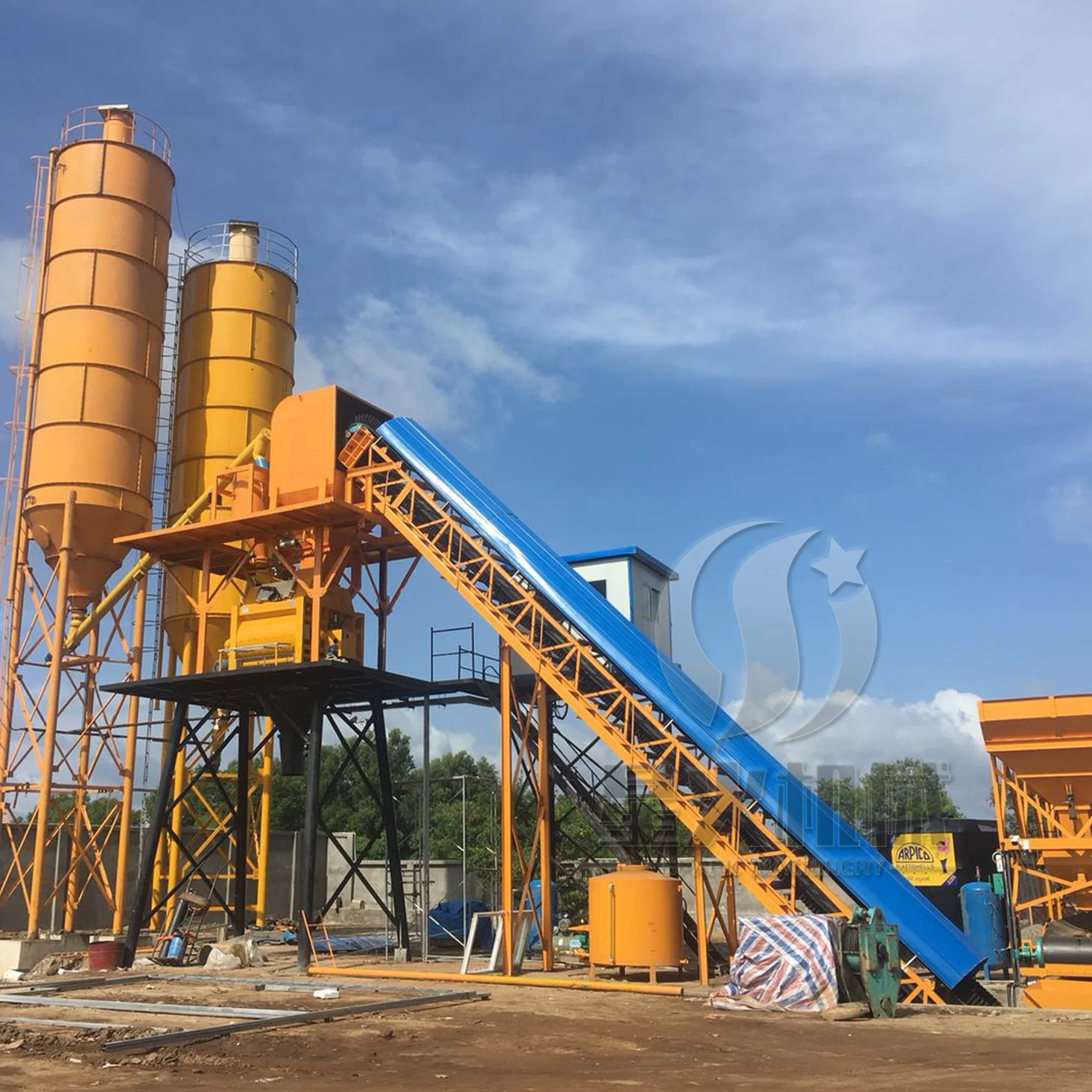

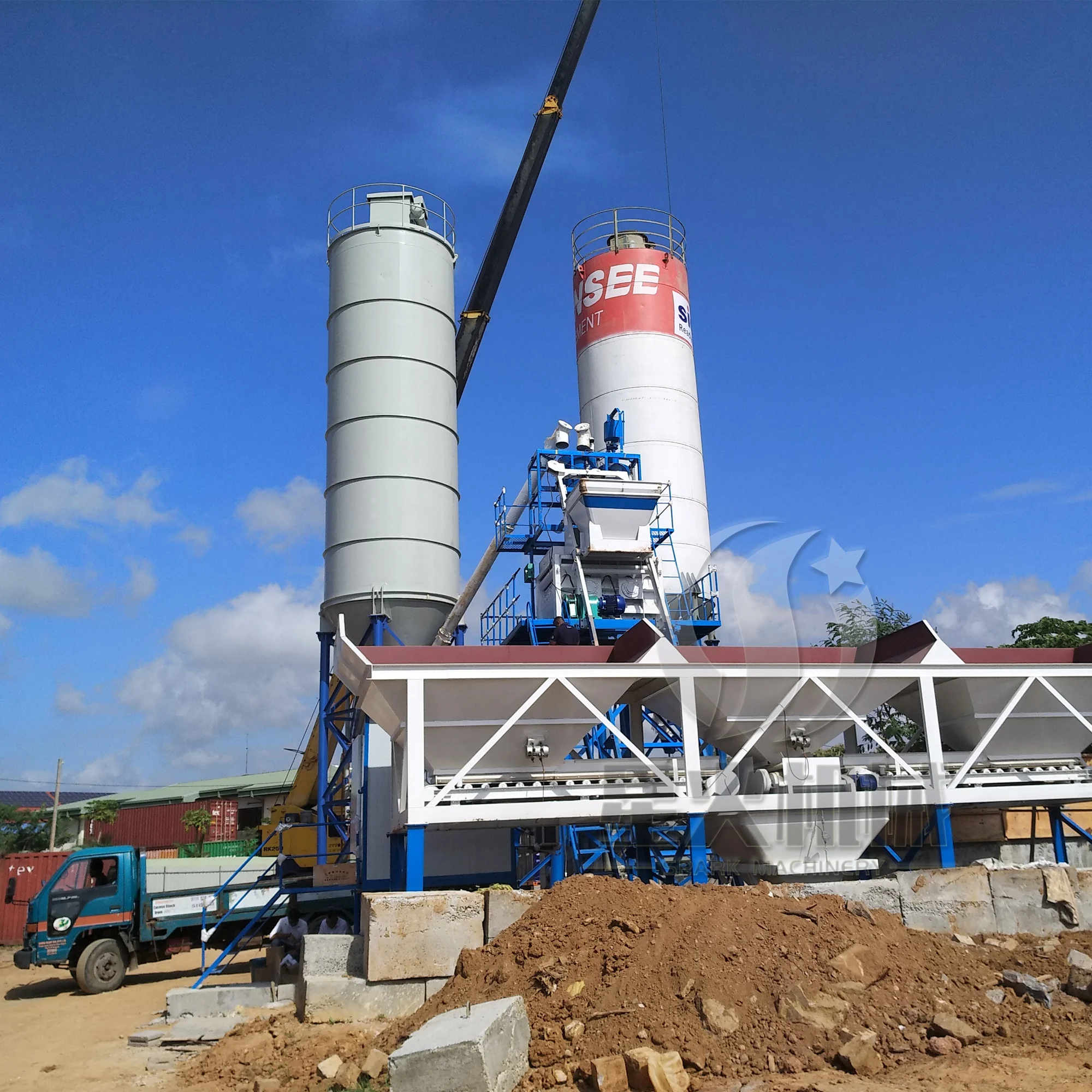

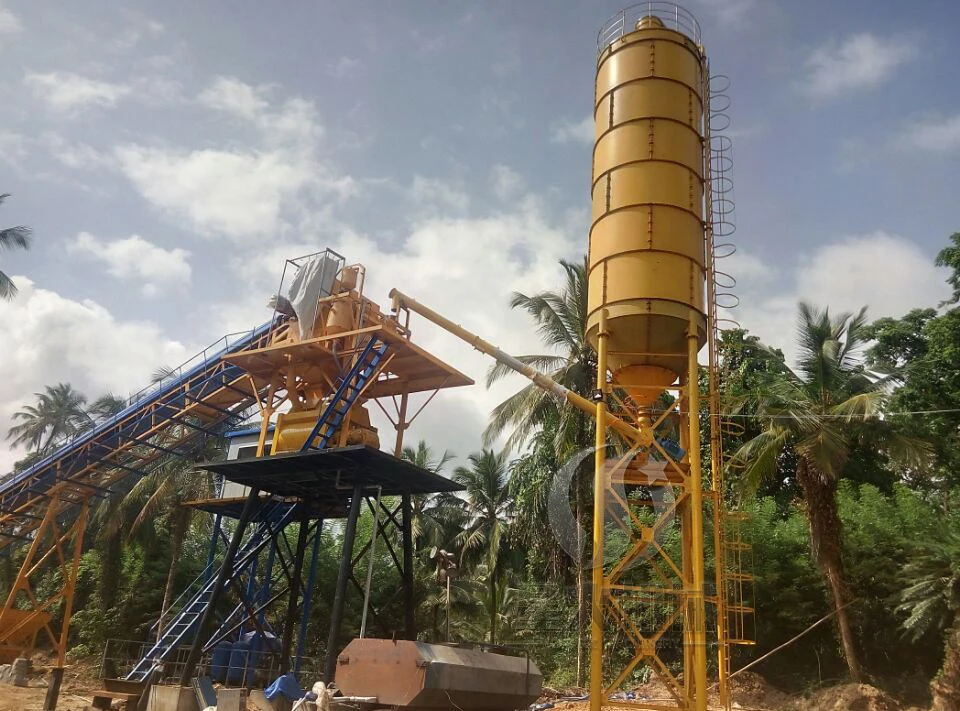

Successful Project

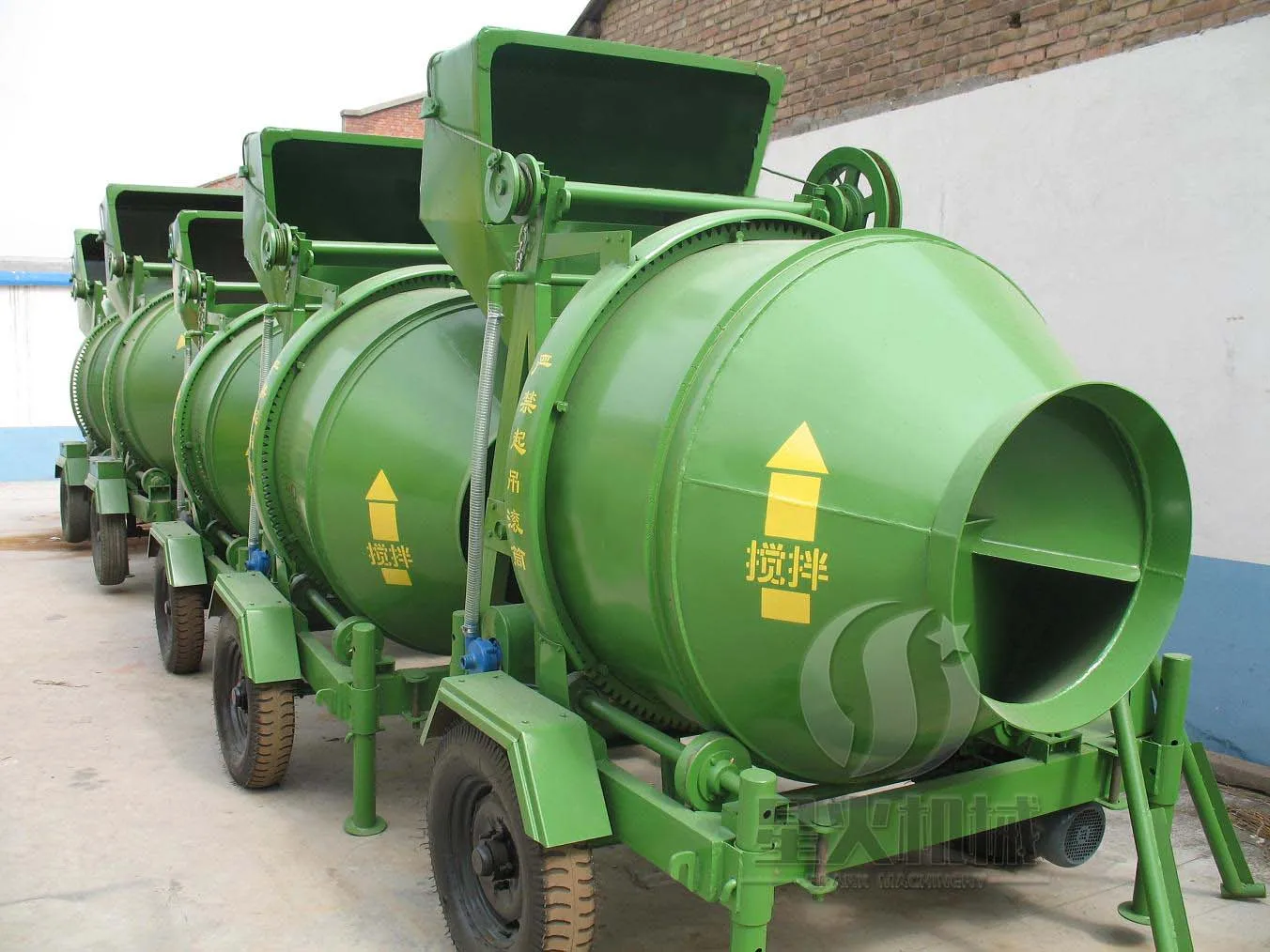

SIMILAR PRODUCTS
FAQ
1.Are you original manufacturer?
A: Yes. We Henan Spark Machinery are factory in construction machinery in China with whole concrete mixing / silo storage convey products you need.
2.What kind terms of payment can be accepted?
A: Normally we can work on T/T term or L/C term.
3.Which incoterm 2010 terms can we work?
A: Normally we work on EXW, FOB, CFR, CIF, DAP
4.What about the delivery time?
A: 7-30 days after receiving the deposit.
5.What about the warranty time?
A: 12 months after delivery generally.
6.What about the MOQ?
A: MOQ 1 unit
A: Yes. We Henan Spark Machinery are factory in construction machinery in China with whole concrete mixing / silo storage convey products you need.
2.What kind terms of payment can be accepted?
A: Normally we can work on T/T term or L/C term.
3.Which incoterm 2010 terms can we work?
A: Normally we work on EXW, FOB, CFR, CIF, DAP
4.What about the delivery time?
A: 7-30 days after receiving the deposit.
5.What about the warranty time?
A: 12 months after delivery generally.
6.What about the MOQ?
A: MOQ 1 unit
