Organic manure granulator with screw tooth High grade humic acid organic fertilizer making machines fertilizer granulator
- Category: >>>
- Supplier: Henan Zhongbangweiye Technologies Co. Ltd.
Share on (1601175245012):
Product Overview
Description

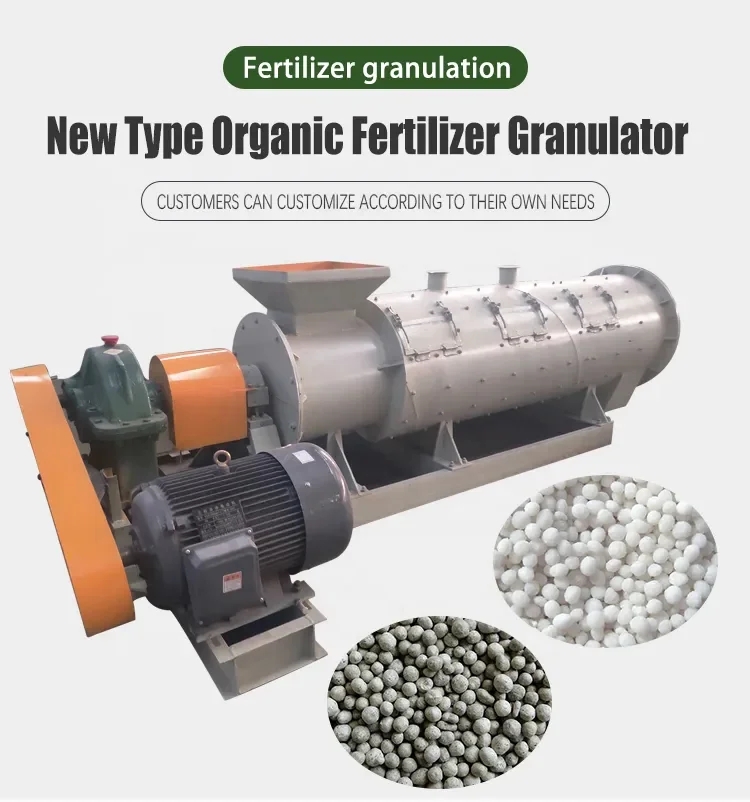

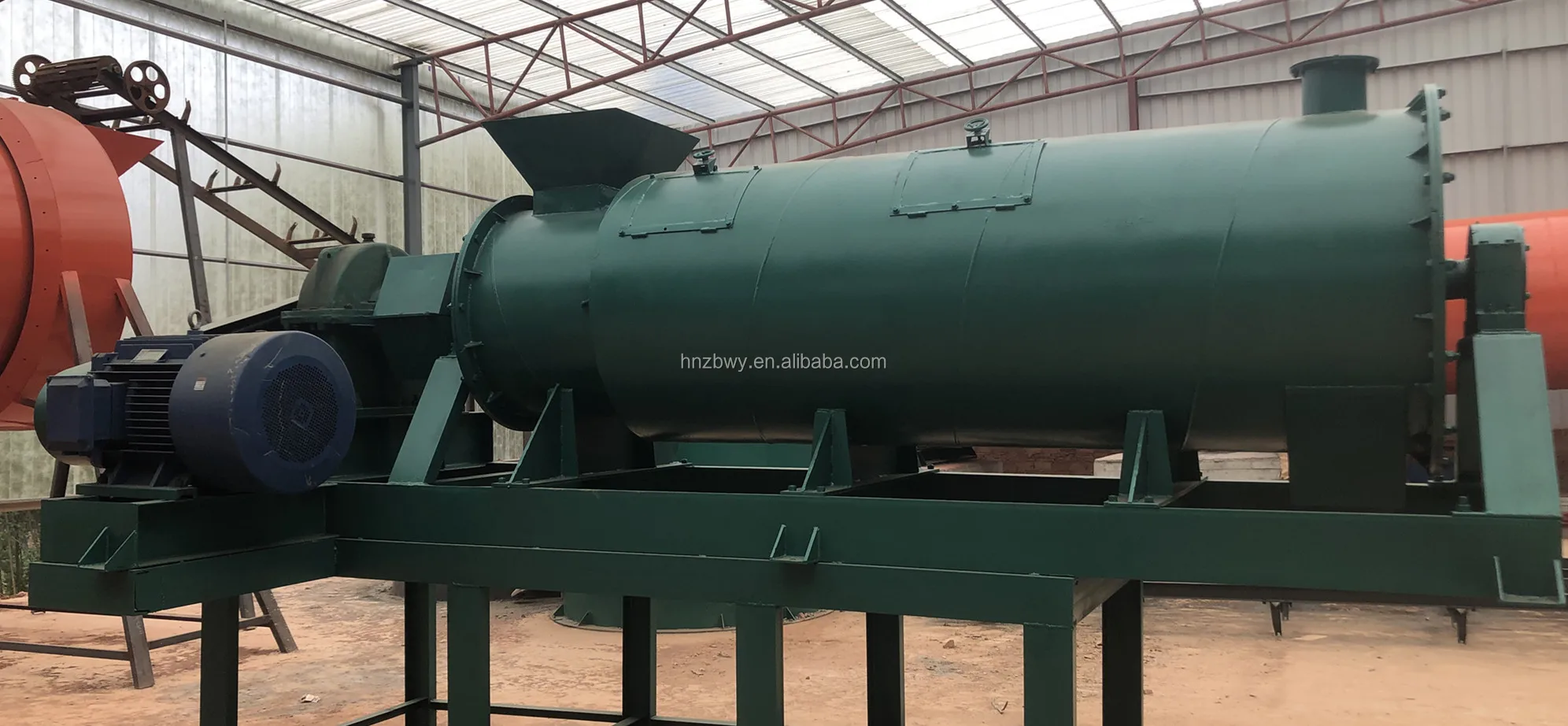

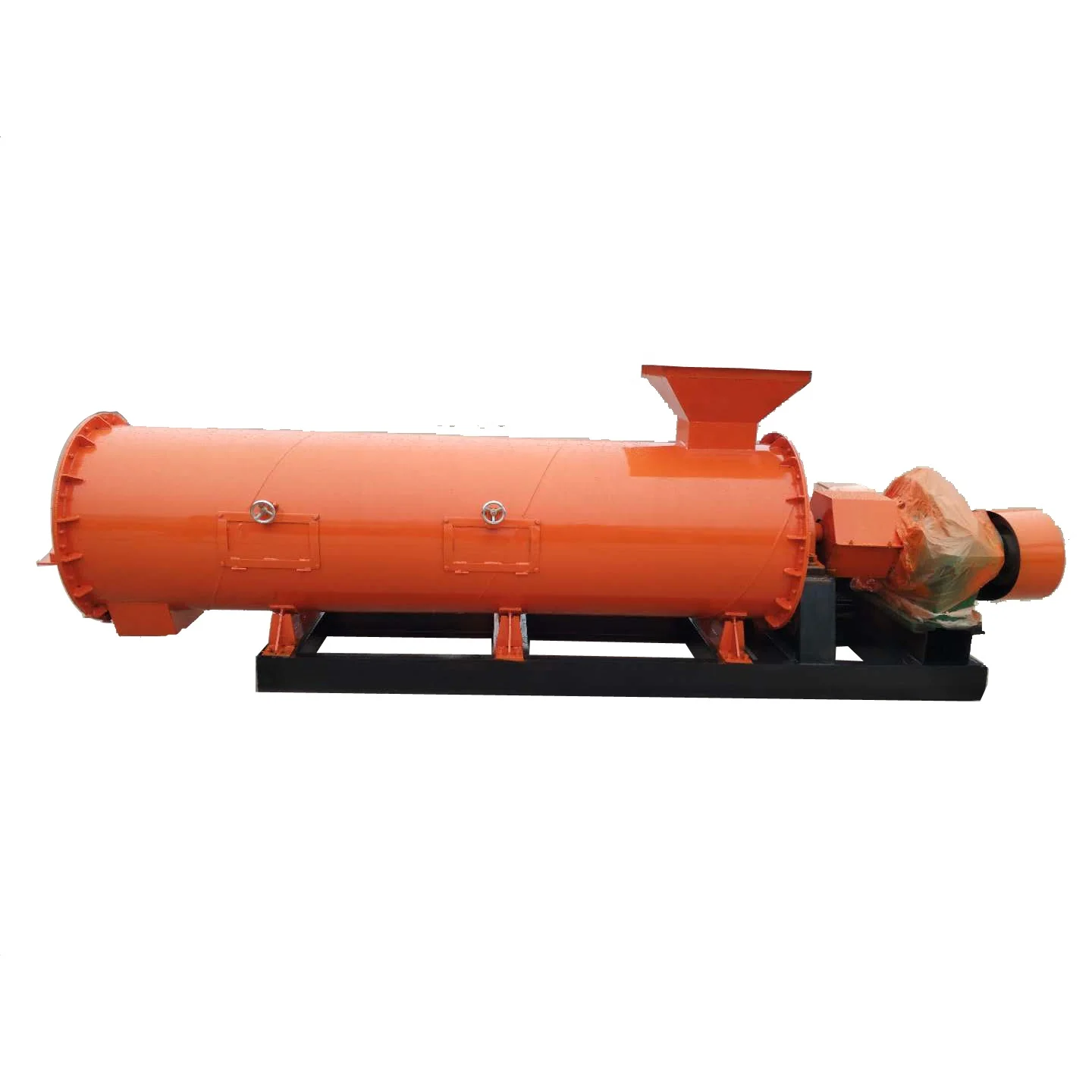

Organic manure stirring gear granulator
Churn granulator is widely used in organic and inorganic fertilizer granulation. Due to more grain rate, smooth operation, durable equipment, long service life.
Organic manure stirring gear granulator adopts wet method continuous push rod granulation new technology design and manufacture. This machine can not only granulate a variety of organic matter, especially for the use of conventional equipment is difficult to granulate coarse fiber materials. Such as: crop straw, wine residue, bacterial
residue, pharmaceutical residue, animal feces, etc., after fermentation can be granulated, and the raw materials such as humic acid and municipal sludge granulation effect has also achieved a good effect.
residue, pharmaceutical residue, animal feces, etc., after fermentation can be granulated, and the raw materials such as humic acid and municipal sludge granulation effect has also achieved a good effect.
Product Description
Stir tooth granulator shell are made of thickened seamless steel pipe, durable, never deformation. Coupled with the stable base design, so that it runs more smoothly.
The advantages of the new organic fertilizer pelletizer:
1.The particles produced are spherical.
2.Achieve pure organic granulation.
3.The use of organic particles under a certain force, can be embedded with each other and
grow up, no need to add a binder when granulating.
4.Solid particles, after granulation can be screened, reduce drying energy consumption
5.he organic matter after fermentation does not need to be dried, and the water content of the raw
material can be 20-40%.
The working principle of the new organic fertilizer pelletizer:
The working principle of the new organic fertilizer pelletizer is that the material enters the machine from one end of the body,and the pelleting rotor is continuously pushed and the mechanical movement is carried out with the housing to achieve the purpose of pelleting. The finished particles are pushed out of the machine at the other end of the body.
Technical parameters of new organic fertilizer grinder
2.Achieve pure organic granulation.
3.The use of organic particles under a certain force, can be embedded with each other and
grow up, no need to add a binder when granulating.
4.Solid particles, after granulation can be screened, reduce drying energy consumption
5.he organic matter after fermentation does not need to be dried, and the water content of the raw
material can be 20-40%.
The working principle of the new organic fertilizer pelletizer:
The working principle of the new organic fertilizer pelletizer is that the material enters the machine from one end of the body,and the pelleting rotor is continuously pushed and the mechanical movement is carried out with the housing to achieve the purpose of pelleting. The finished particles are pushed out of the machine at the other end of the body.
Technical parameters of new organic fertilizer grinder
Specification
Model | Yield (t/h) | Size | Reducer | Power(KW) |
J-40 | 0.5-1 | 2900*1200*1300 | ZD20 | 18.5 |
J-80 | 2-3 | 4500*1700*1300 | ZD25 | 37 |
J-100 | 6-8 | 5300*1900*1500 | ZD35 | 75 |
J-120 | 8-12 | 5700*2100*1700 | ZD40 | 90 |
J-150 | 10-15 | 6300*2200*2000 | ZD50 | 110 |
Granulation Quality
This machine is especially suitable for the granulation of light fine powder materials. The finer the basic particles of fine
powder materials are, the higher the sphericity of particles and the higher the quality of pellets.
powder materials are, the higher the sphericity of particles and the higher the quality of pellets.
Granulation Material
Material source widely, livestock manure urine, pile compost, green manure, sea manure, cake manure, grass carbon, soil
fertilizer, three waste.
Material source widely, livestock manure urine, pile compost, green manure, sea manure, cake manure, grass carbon, soil
fertilizer, three waste.
