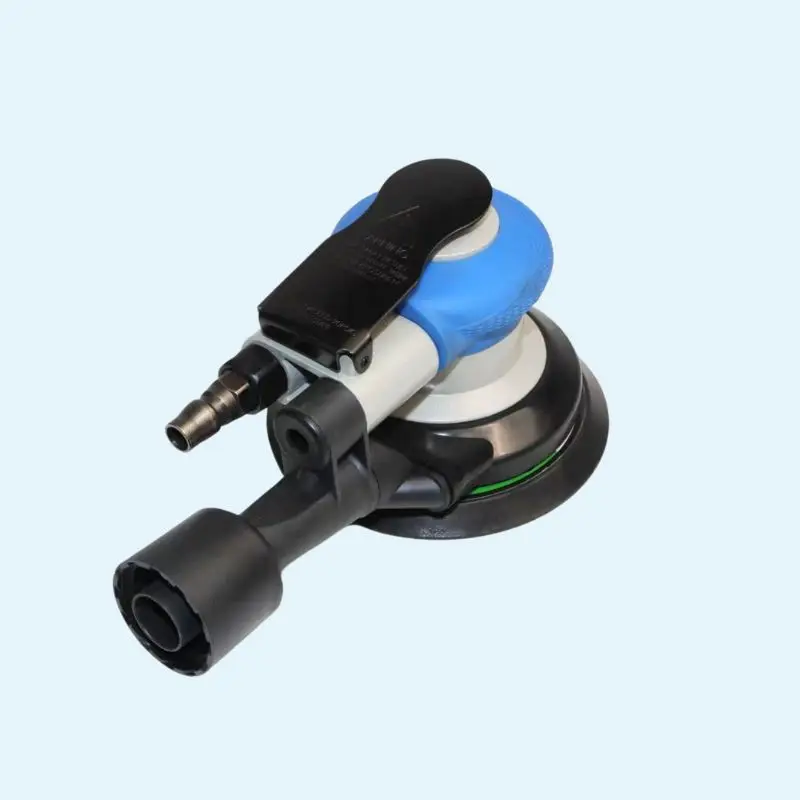

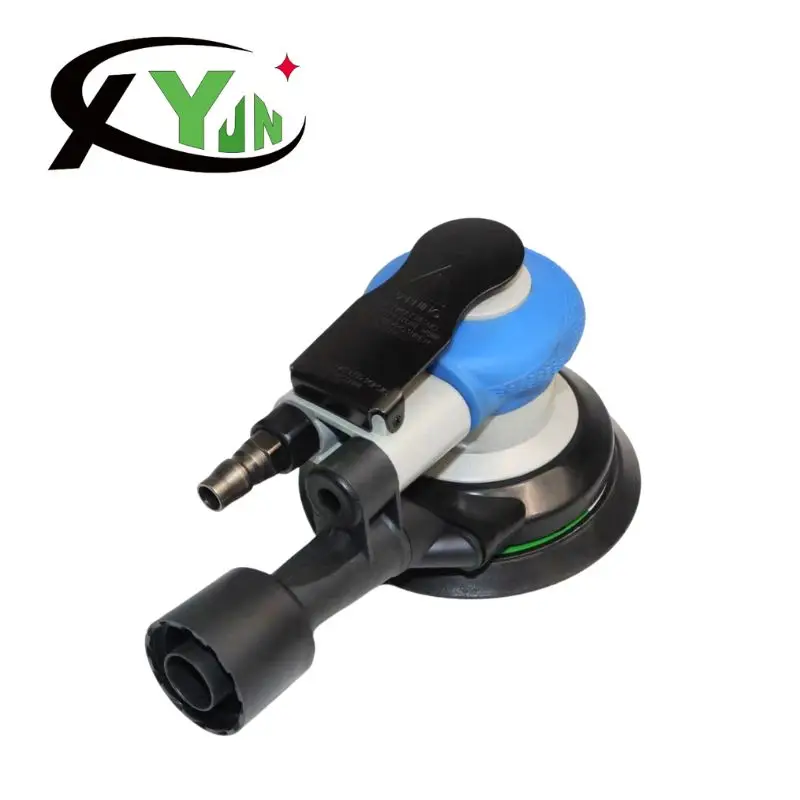

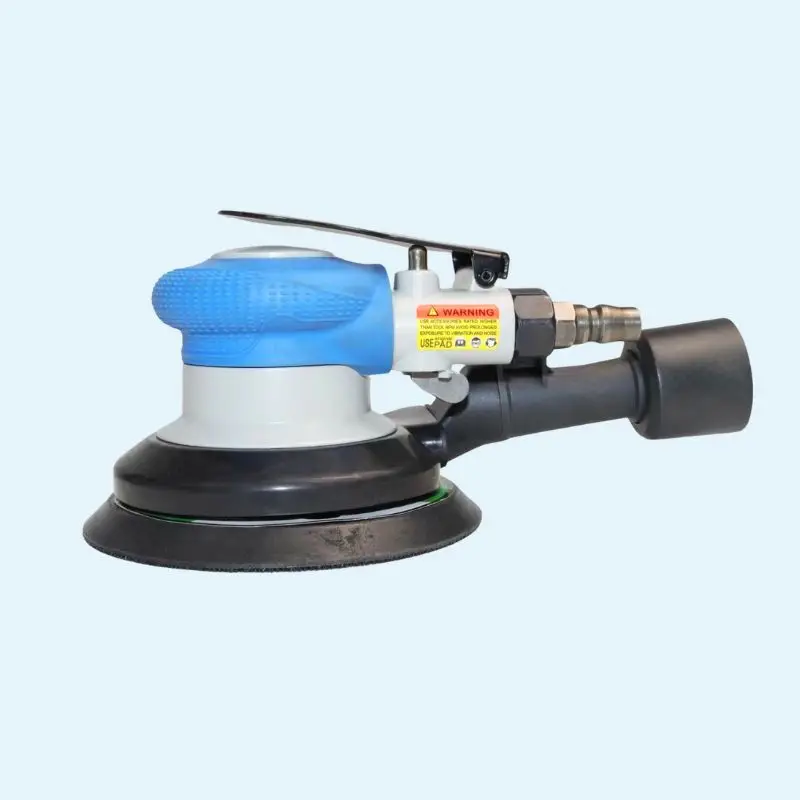

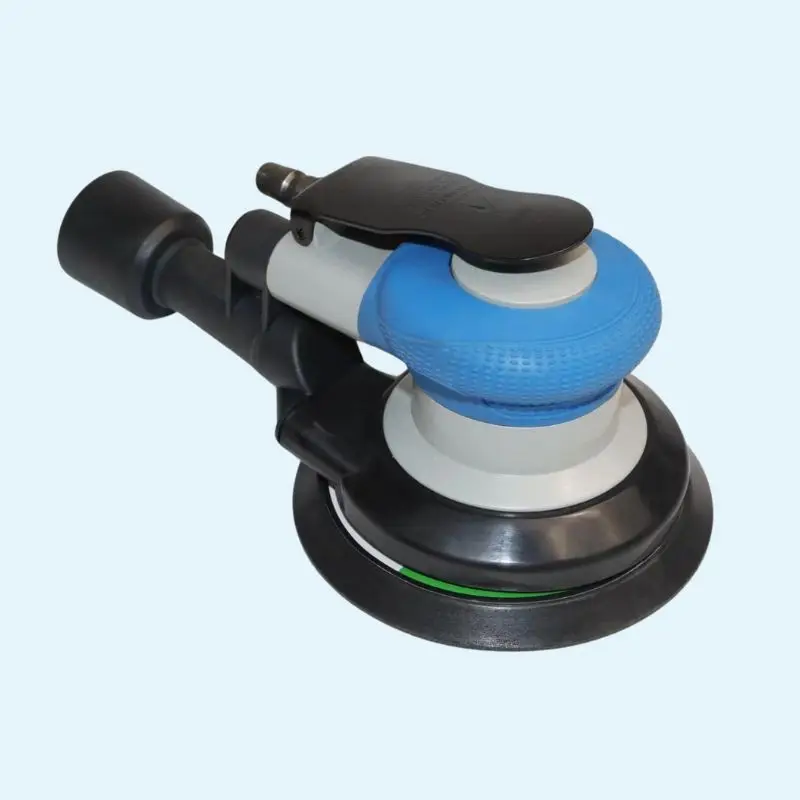

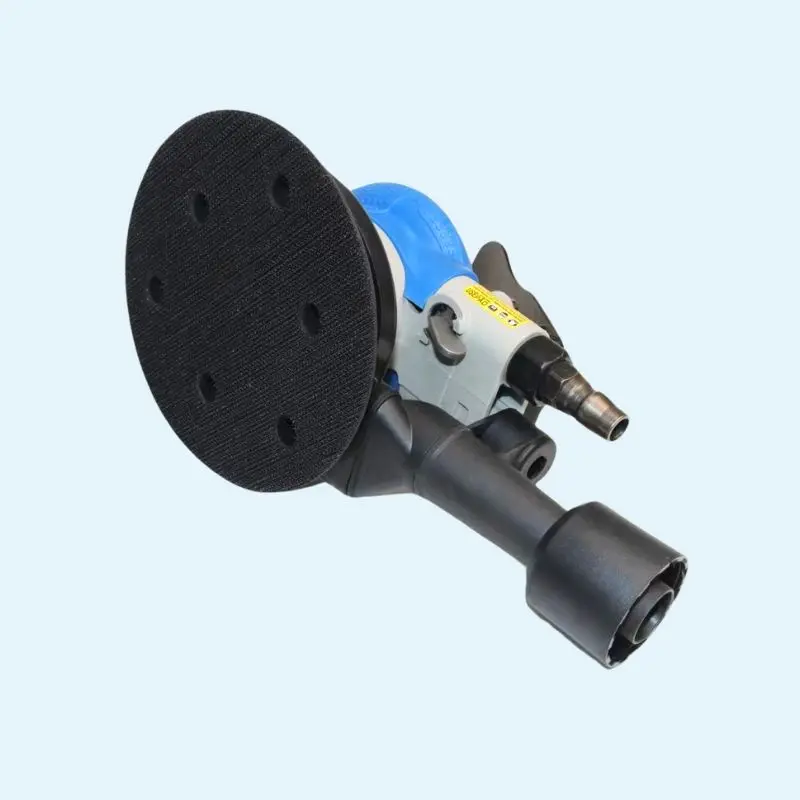

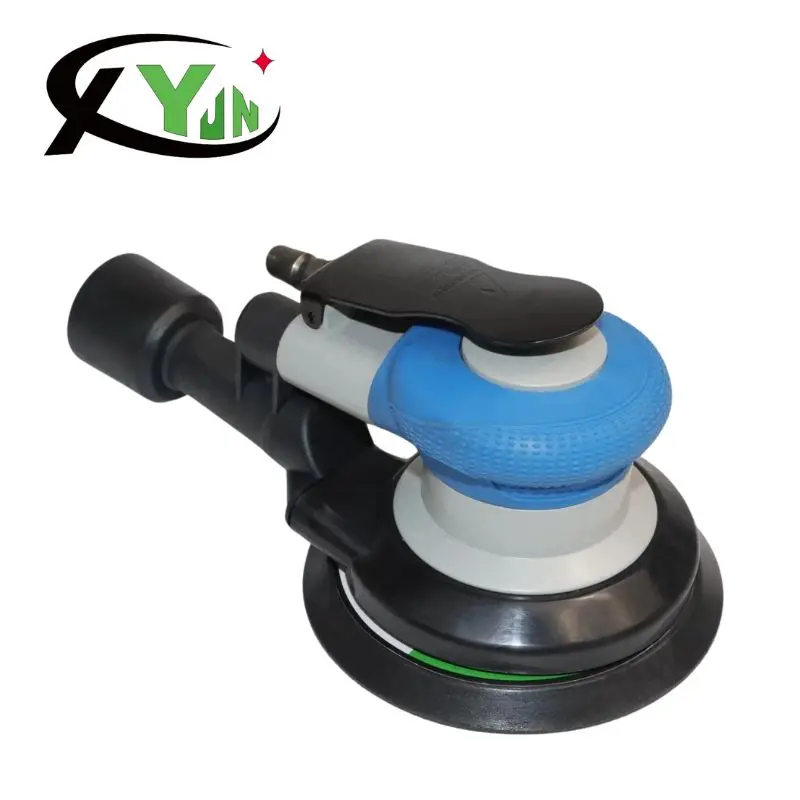

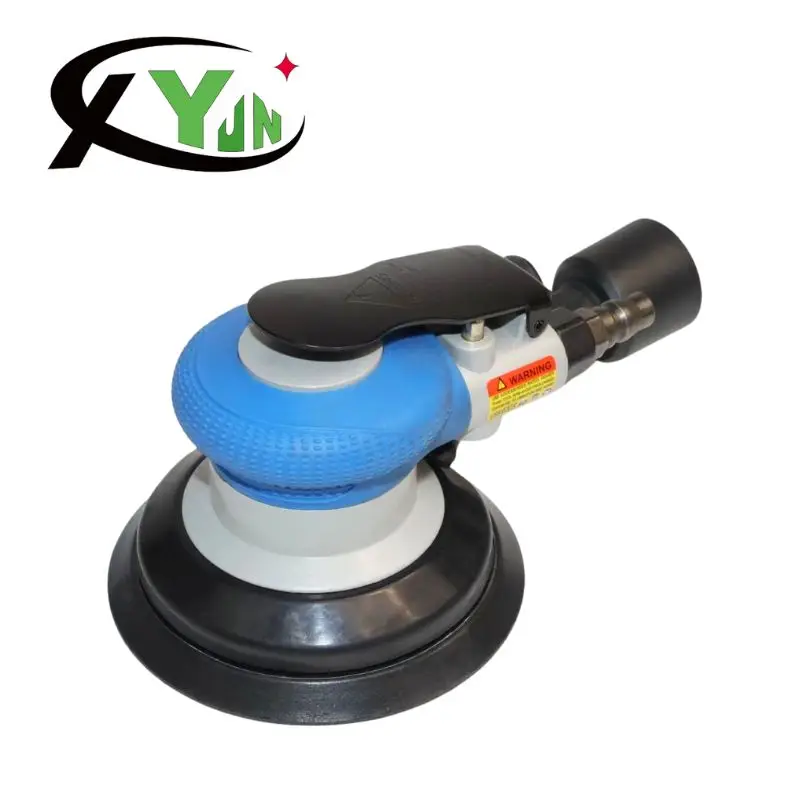

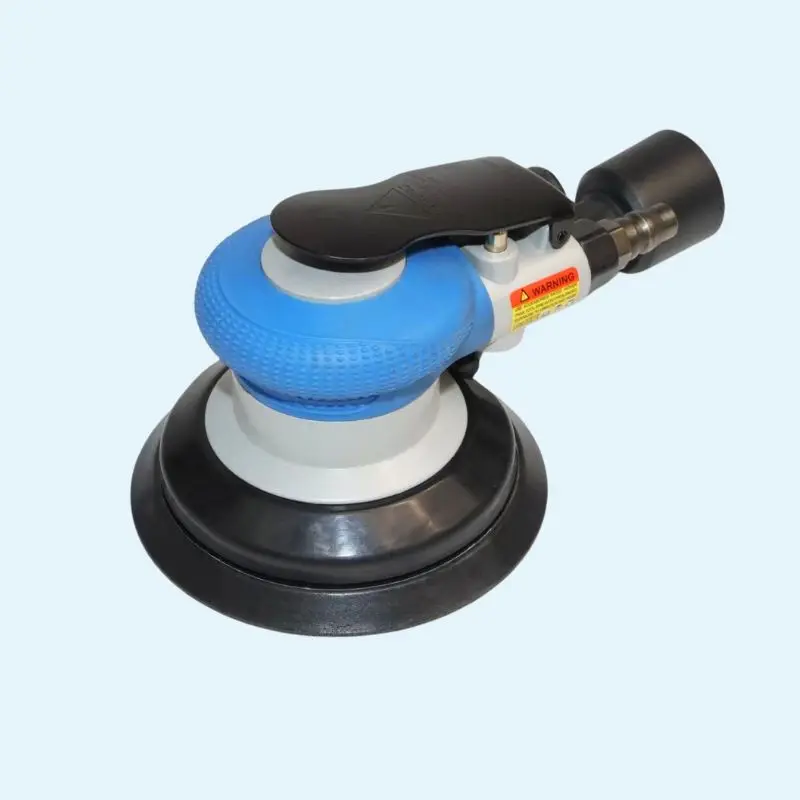

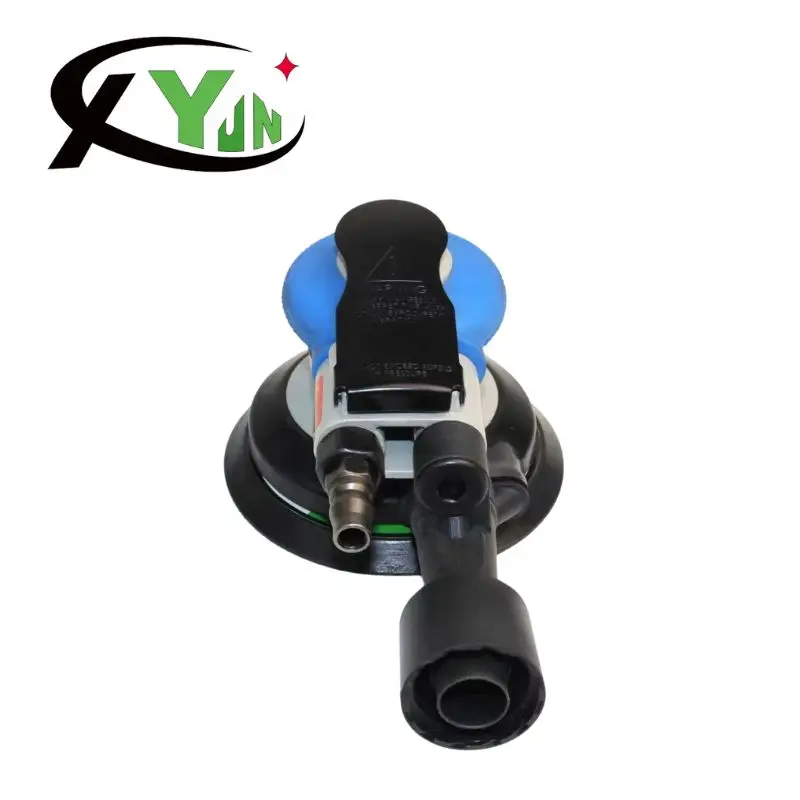

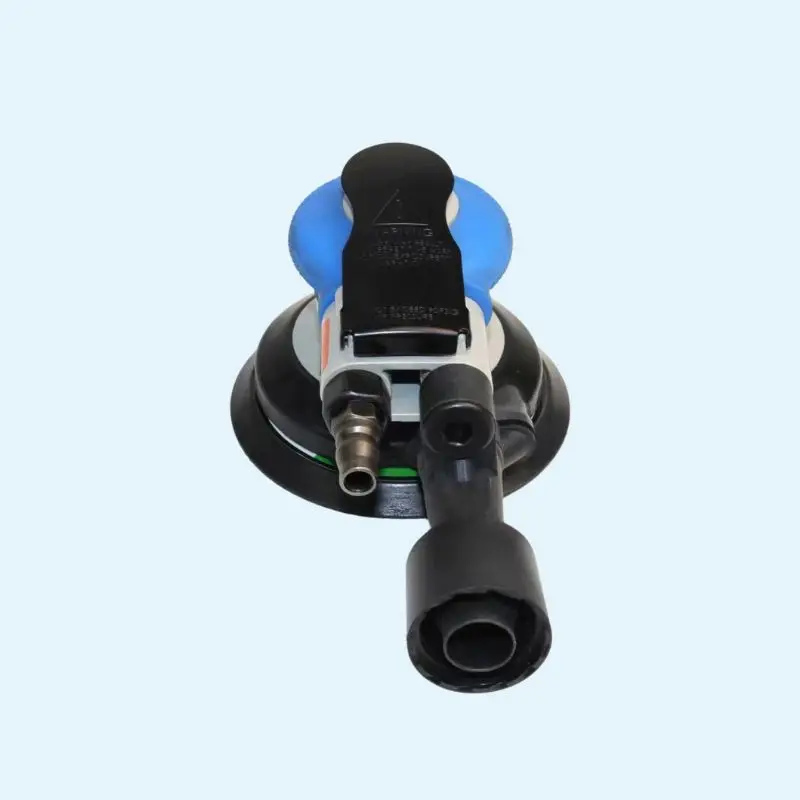

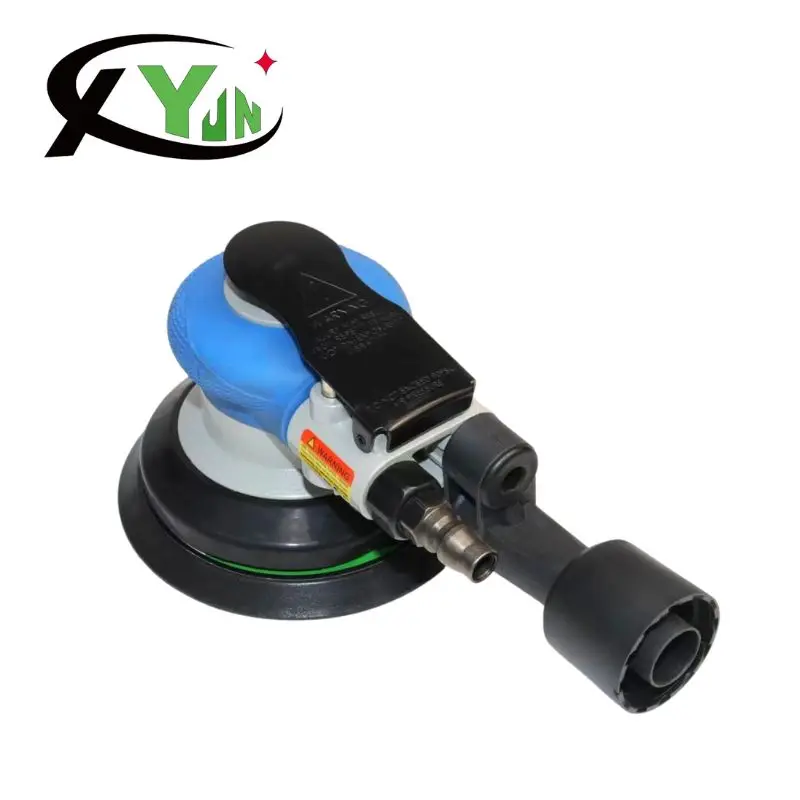

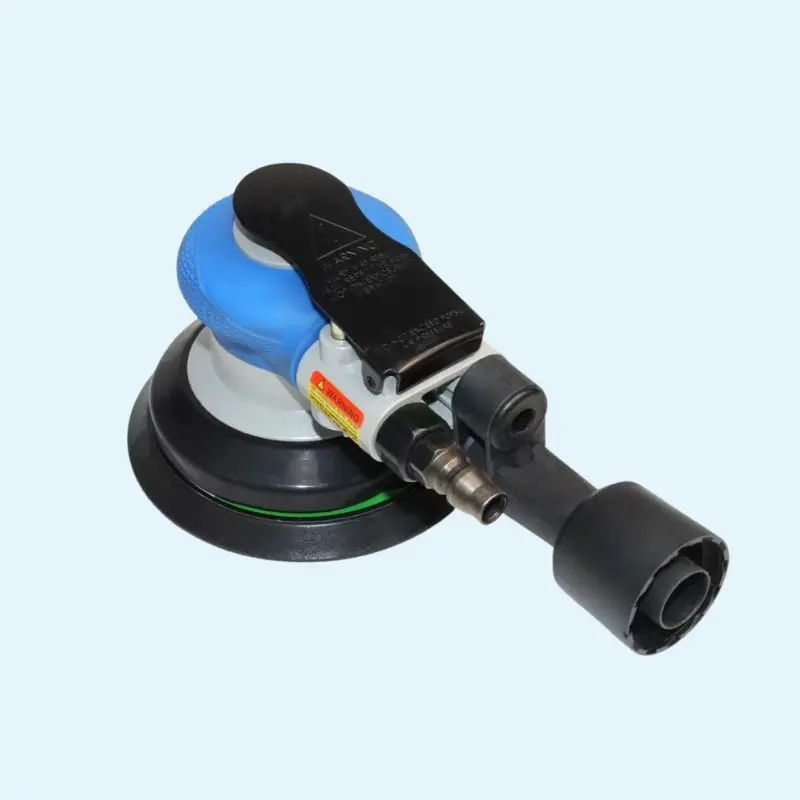

5 inch self vacuum pneumatic air orbital palm sander for car wood
- Category: >>>
- Supplier: Ningbo Xiangyun Pneumatic Tool Co. Ltd.
Share on (1601175434544):
Product Overview
Description
Step up your game with POL-AB-215-6-1-, the pro's choice for efficient, dust-minimized sanding and polishing
Model | POL-AB-215-5-1- |
Type | industrial grade |
Dimensions | 31.5 x 21 x 11 cm |
Weight | Gross: 1.436kg, Net: 0.981kg |
Shape | Circular |
Customizable | Yes |
Function | Sanding and Polishing |
No-load Speed | 12000 RPM |
Eccentric Distance | 5mm |
Operating Pressure | 90 PSI |
Air Consumption | 0.45m³/min |
Noise Level | 80-90dB |
Dust Collection | Yes |
Accessories | White Wrench, Instruction Manual, Polishing Machine, Dust Extraction Tube, Dust Bag |
Standards | National Standard, European Standard, American Standard |
Connector Type | 1/4 inch |
Certifications | ISO9001 |
Package Quantity | 1 |
Package Dimensions | 54 x 45 x 32 cm |
one box/set | 10 set |

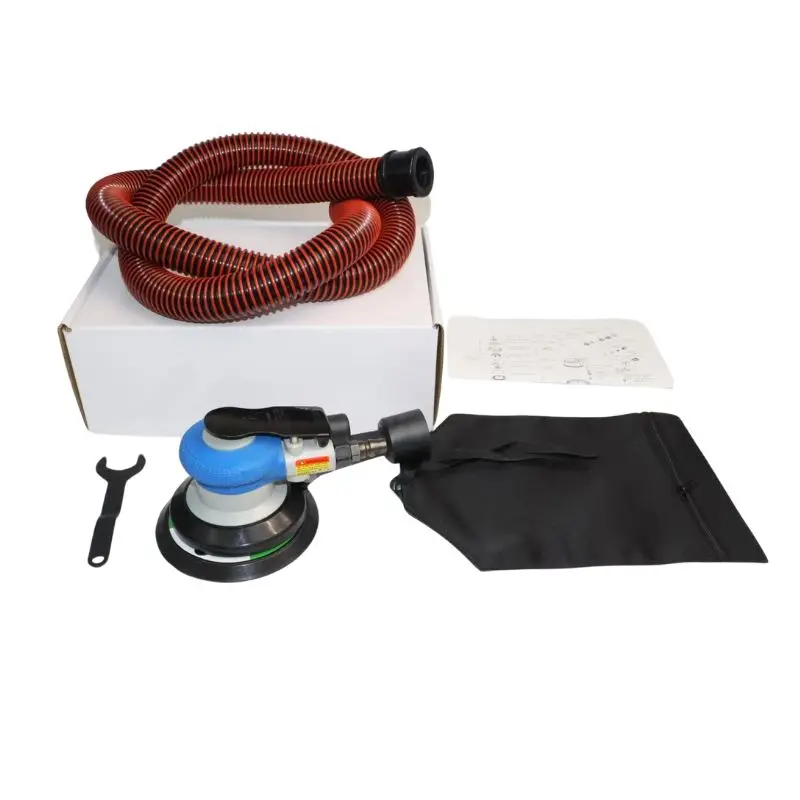

Included in the package
1. Manual ×1
2. Wrench ×1
3. 6" Polisher ×1
4. 6" Sanding Pad ×1
2. Wrench ×1
3. 6" Polisher ×1
4. 6" Sanding Pad ×1
5. Dust Extraction Tube ×1
6. Dust Bag ×1
Details Images
Wrench: For disassembling and assembling the sanding disc
Sanding Disc: Optional choice
Dust Extraction Tube:150CM
Dust Bag:26CM×18CM
Use & Care

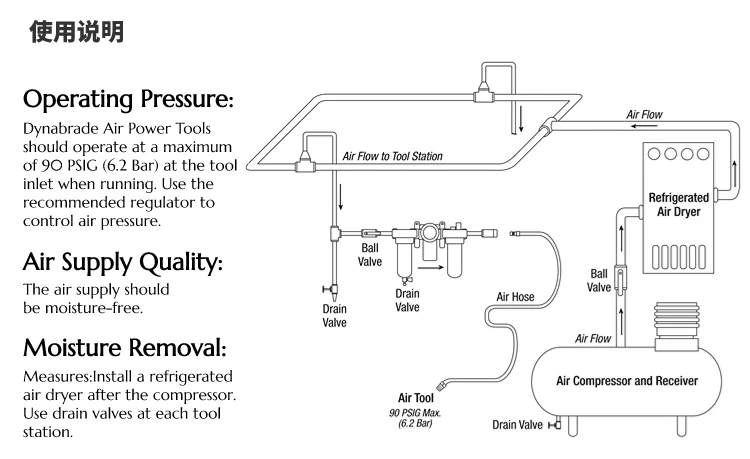

Operating Pressure:
Dynabrade Air Power Tools should operate at a maximum of 90 PSIG (6.2 Bar) at the tool inlet when running. Use the recommended
regulator to control air pressure.
regulator to control air pressure.
Air Supply Quality:
The air supply should be moisture-free.Moisture Removal:
Measures:Install a refrigerated air dryer after the compressor.Use drain valves at each tool station.
Daily Oil Maintenance
Please oil daily: Inject 0.5 CC of special pneumatic tool oil through the air inlet and run idle for 5 seconds to complete daily maintenance!
Daily Dust Removal
After each use of the polisher, remove the polishing disc and use an air duster to blow dust from the internal gaps to complete the daily cleaning task!

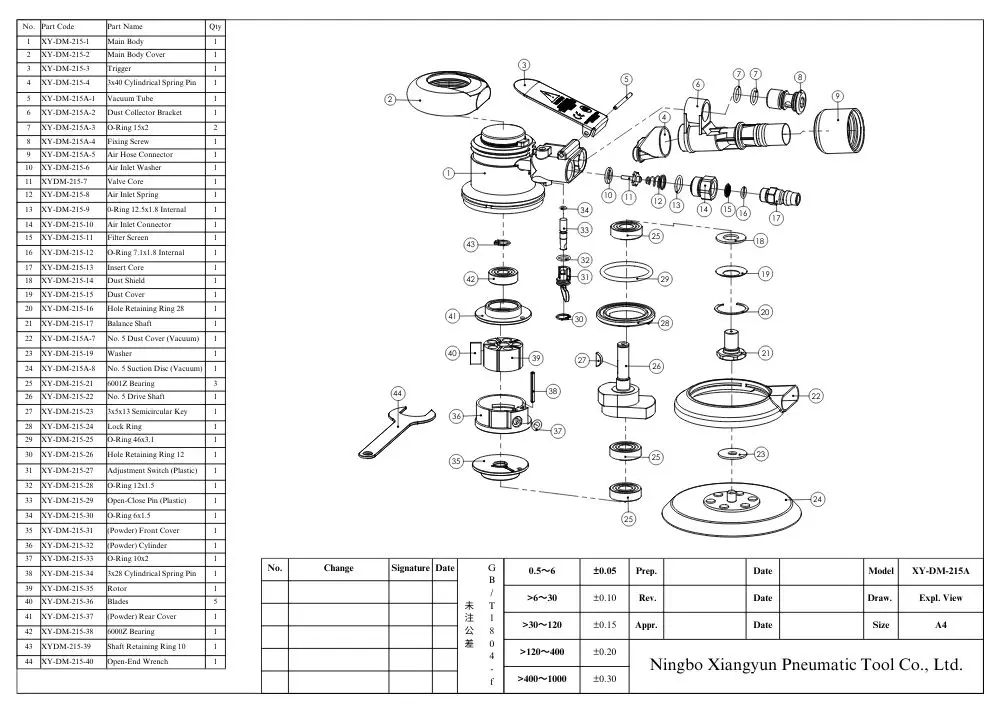

Exploded View
Custom

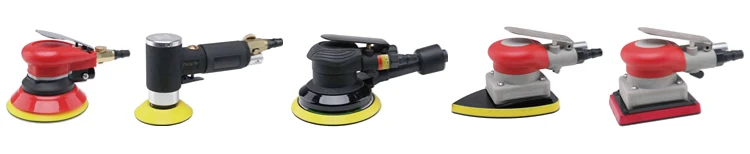

1、Styles and sizes are selectable
Round, square, triangular, mini machine etc.

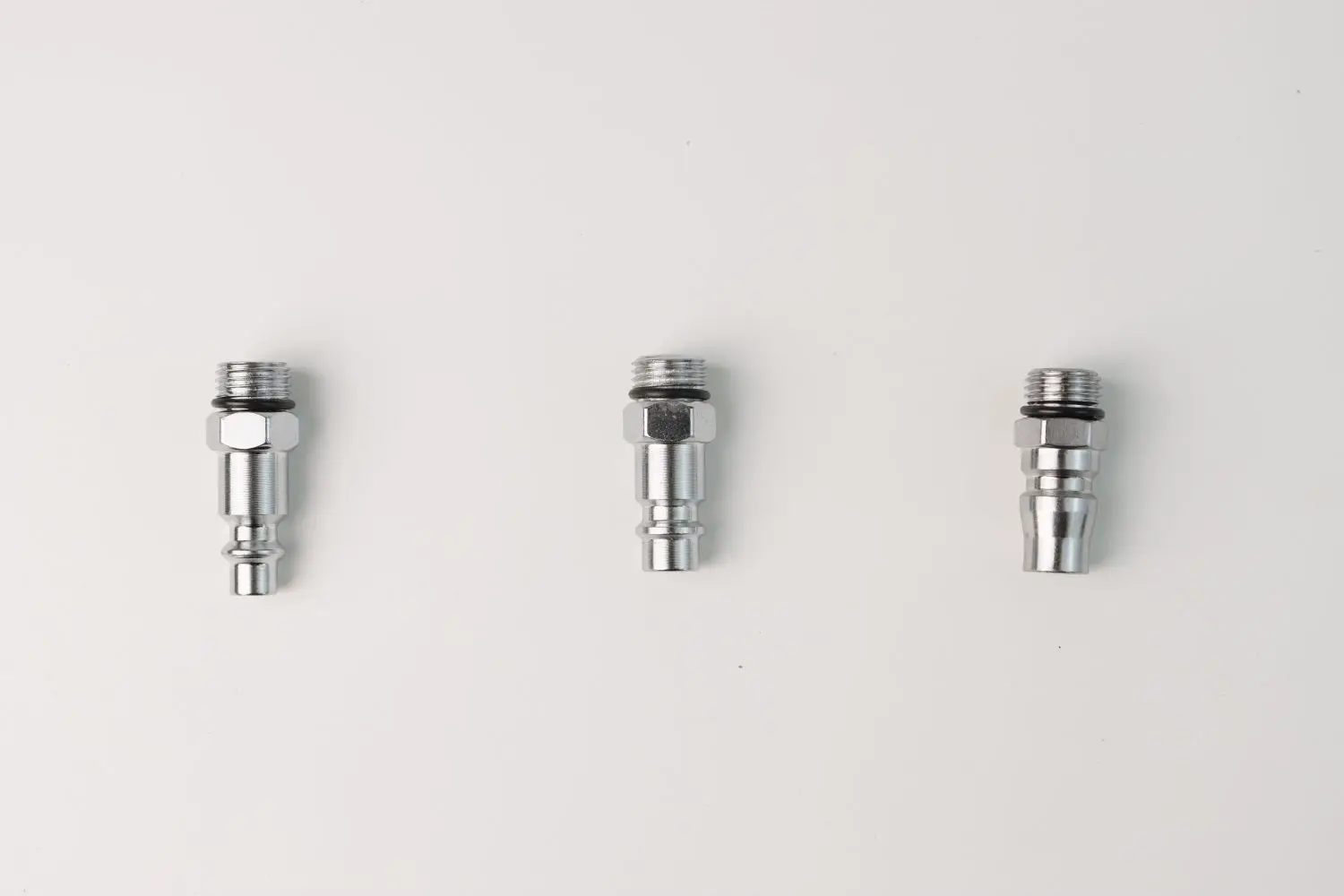

2、Various connector standards:
GB (Guobiao - Chinese National Standard)
EN (European Norm),
ANSI (American National Standards Institute), etc.

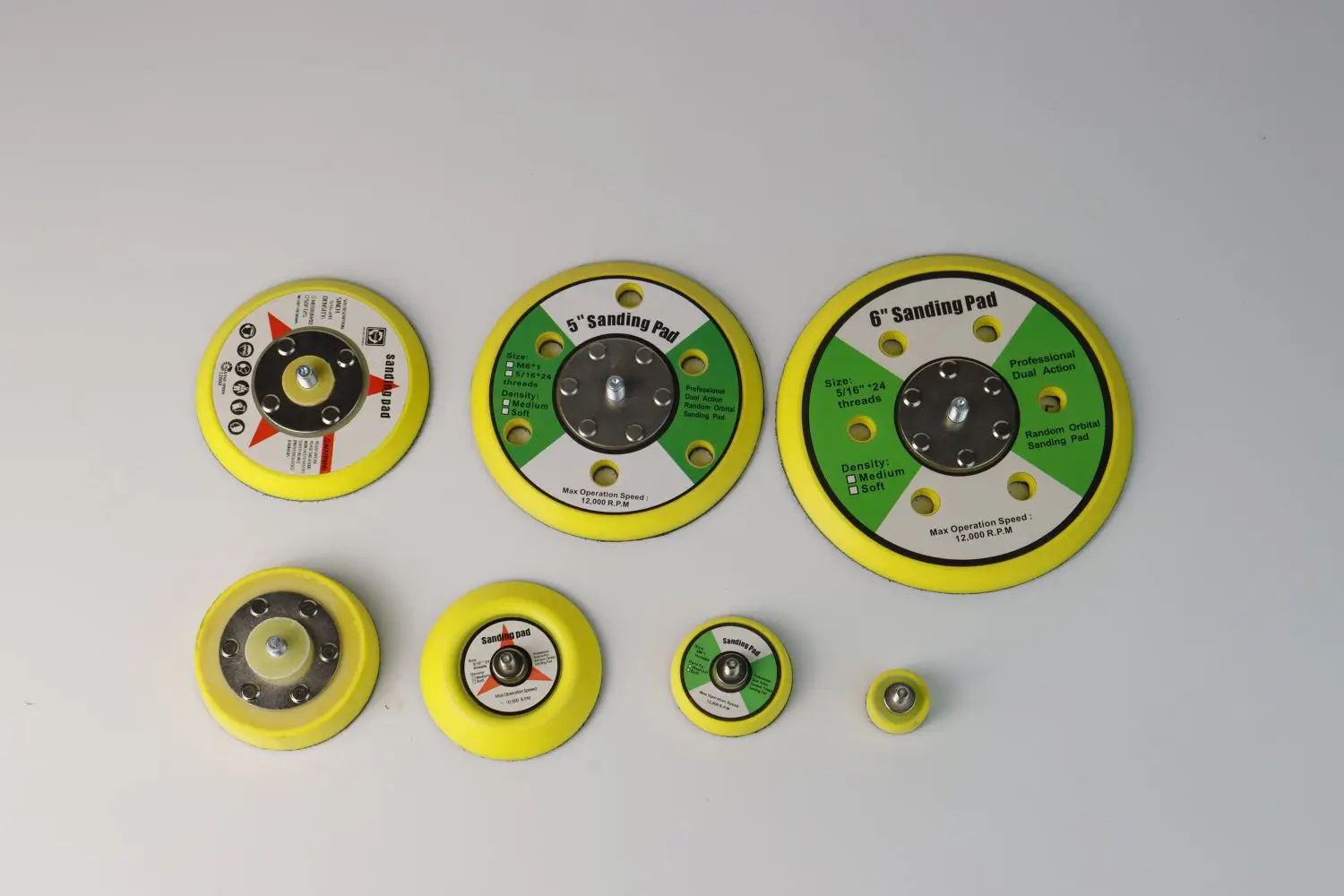

3、Various sizes of sanding discs:
1", 2", 3", 4", 5", 6", with varying hole counts, etc.

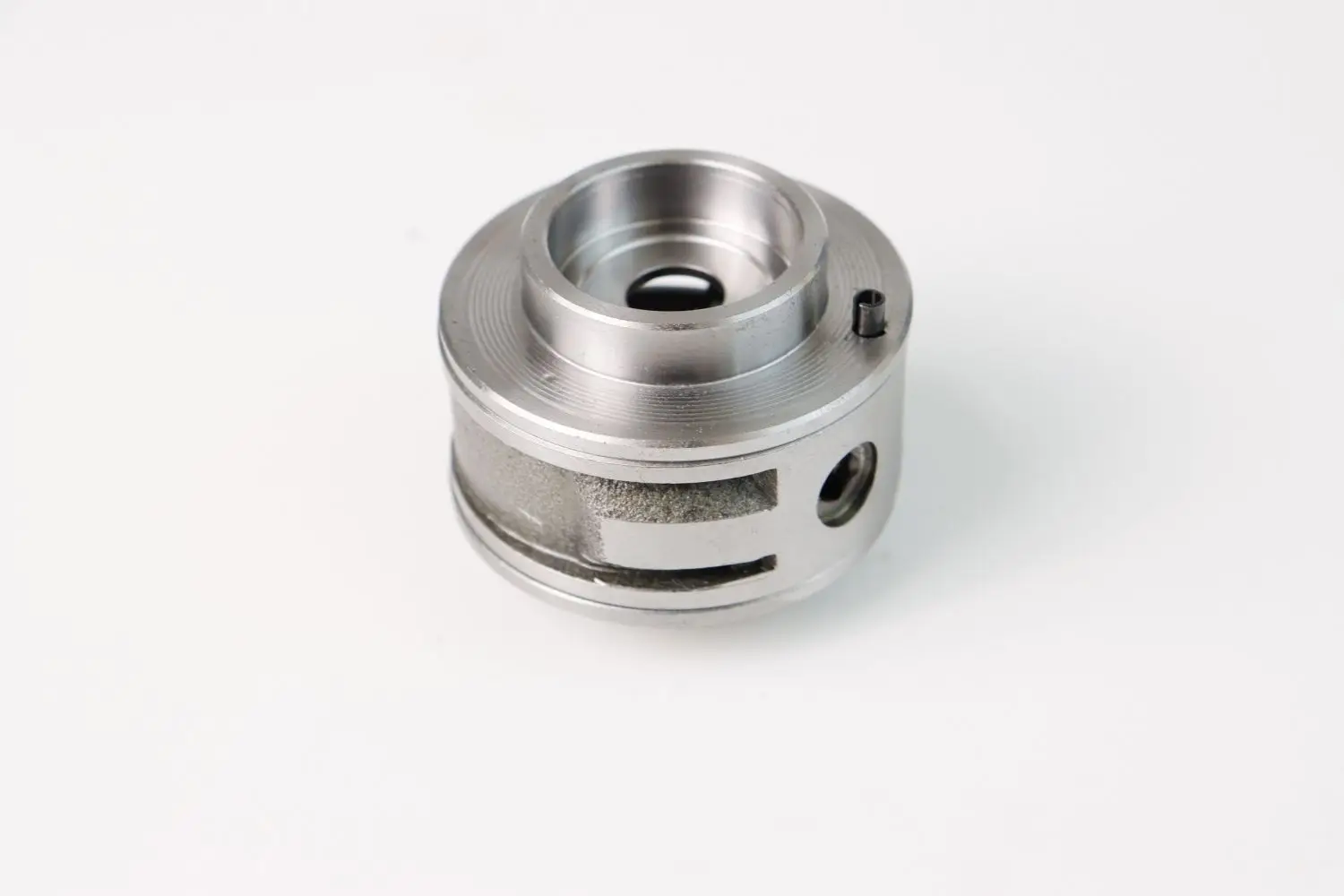

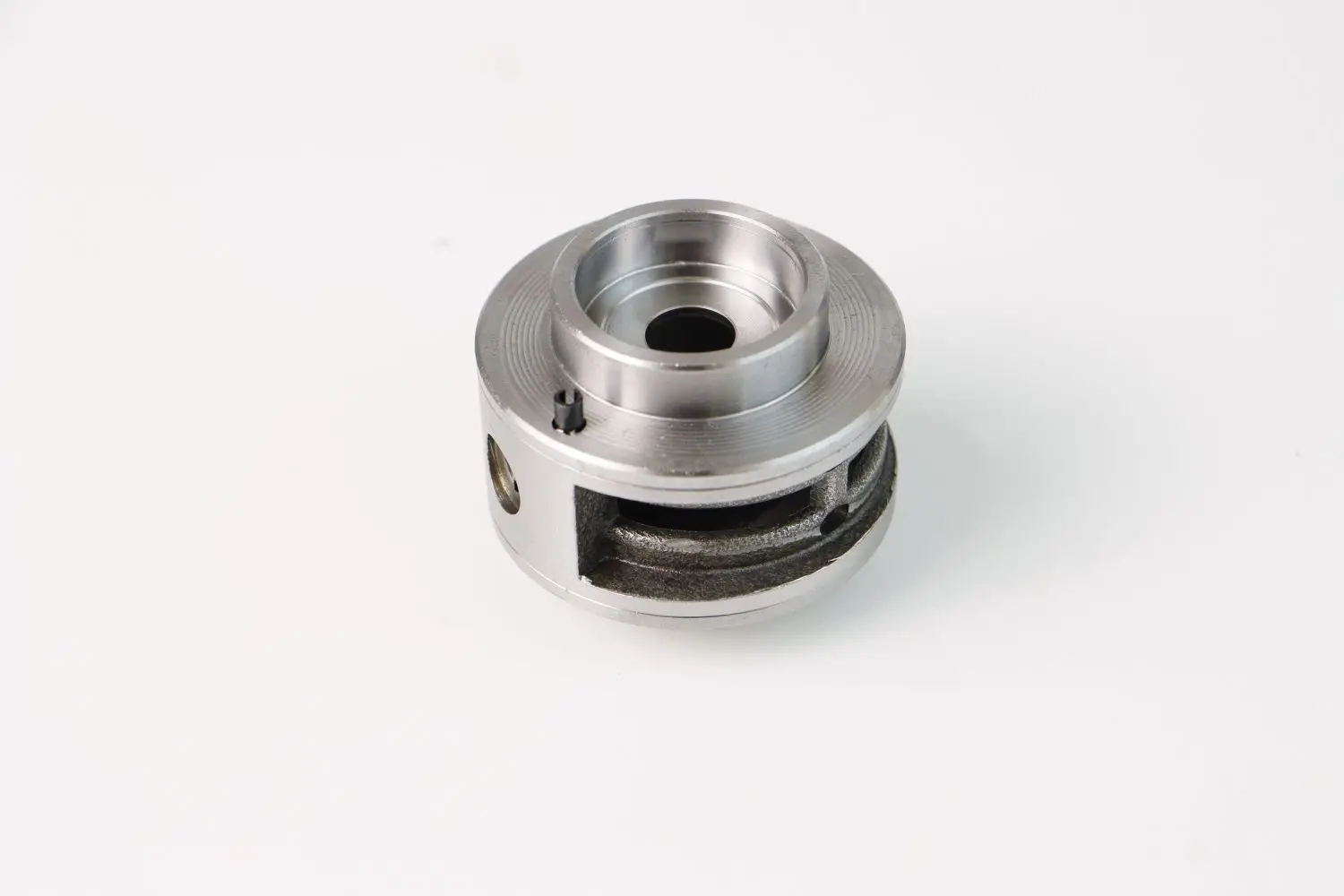

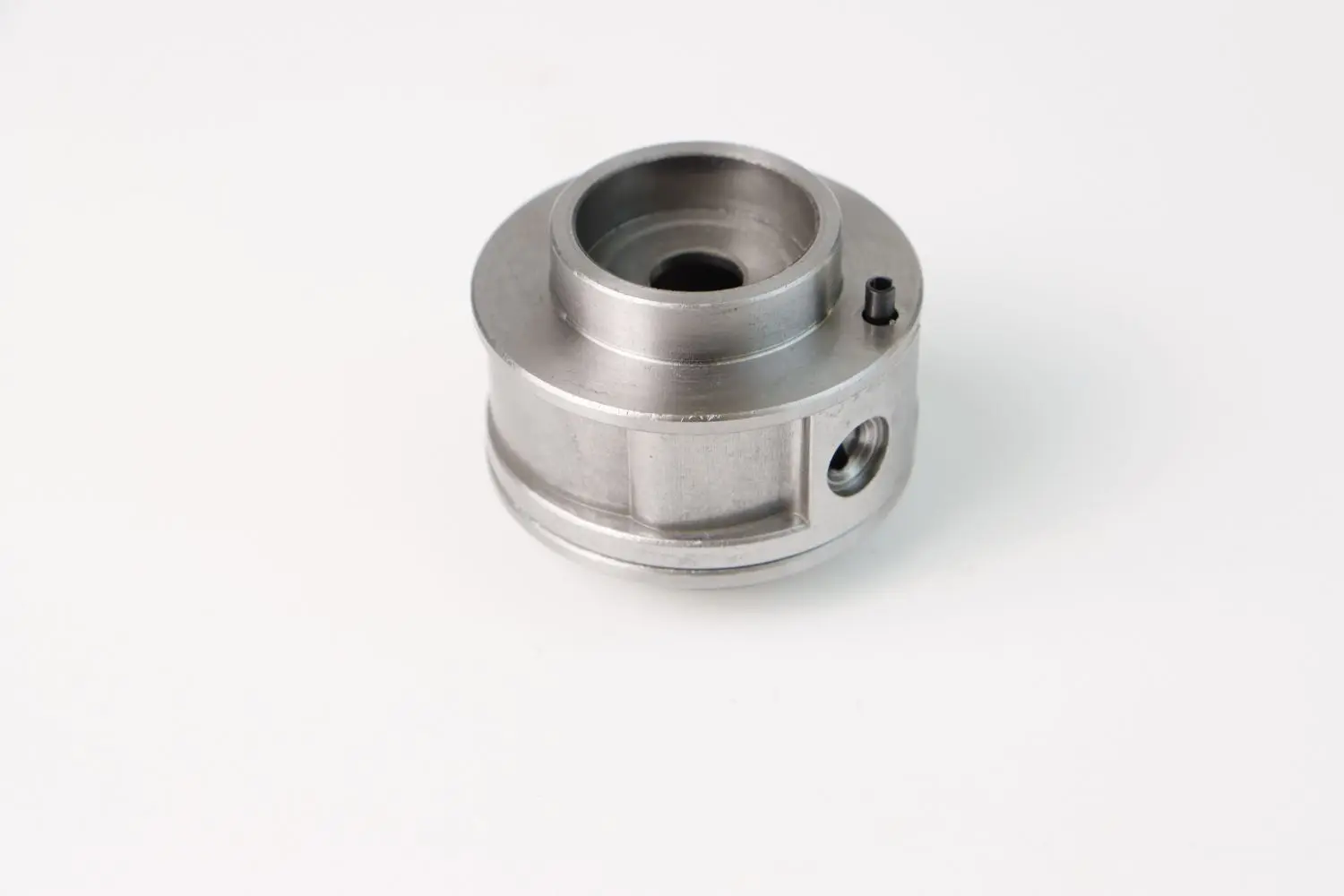

4、Different front and rear covers and cylinders
Standard version: Powder-coated;
Mid-range: Ductile iron;
High-end: Ductile iron with quenching process.

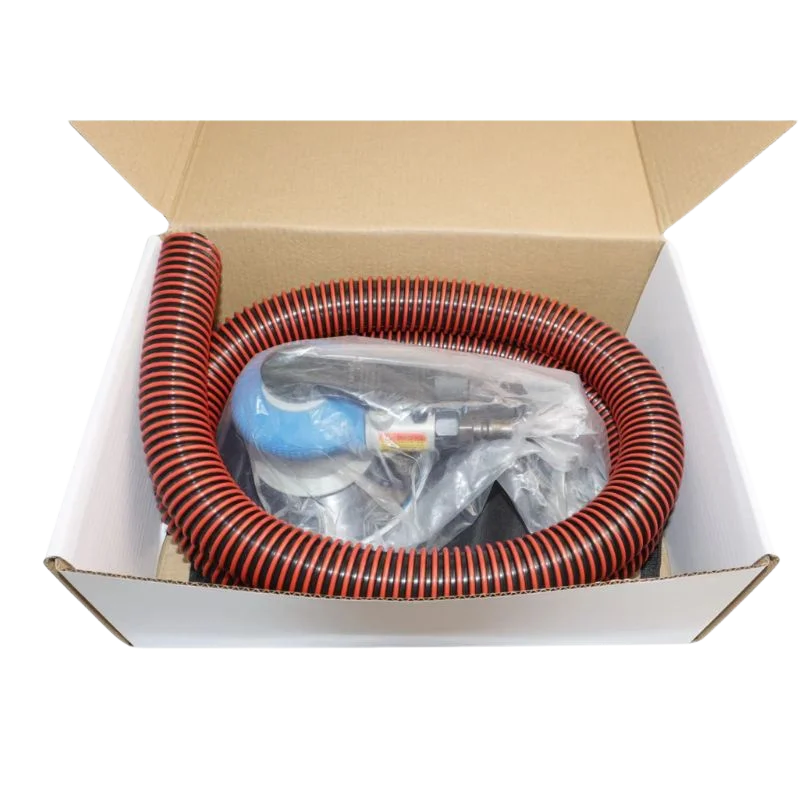

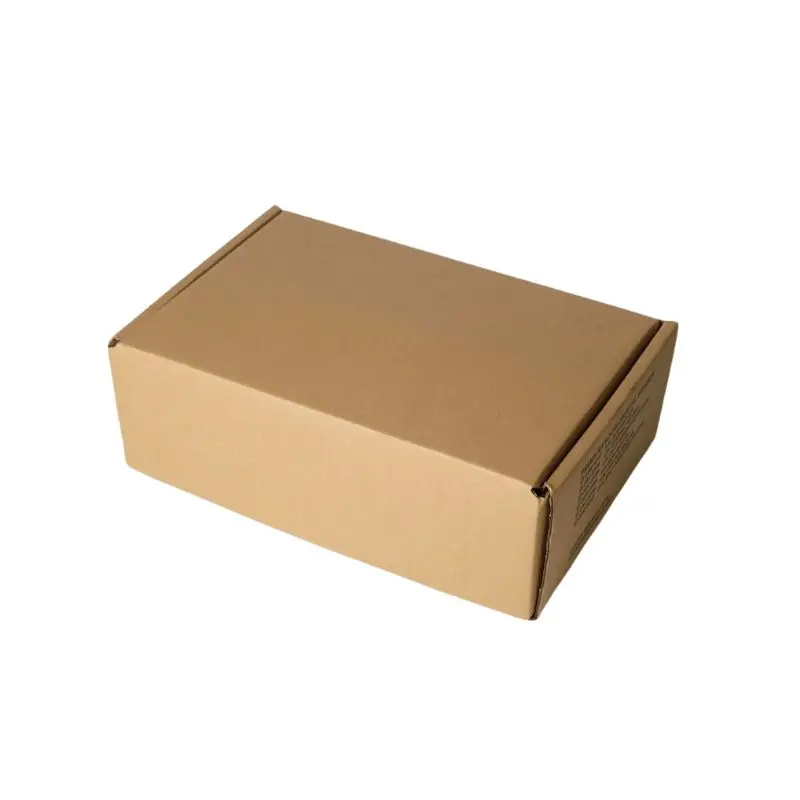

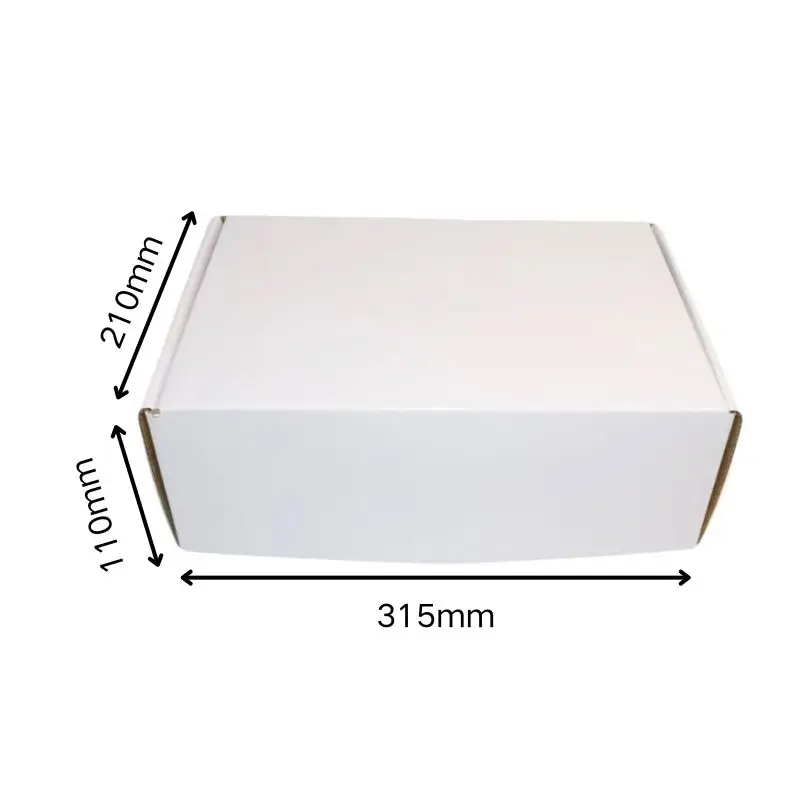

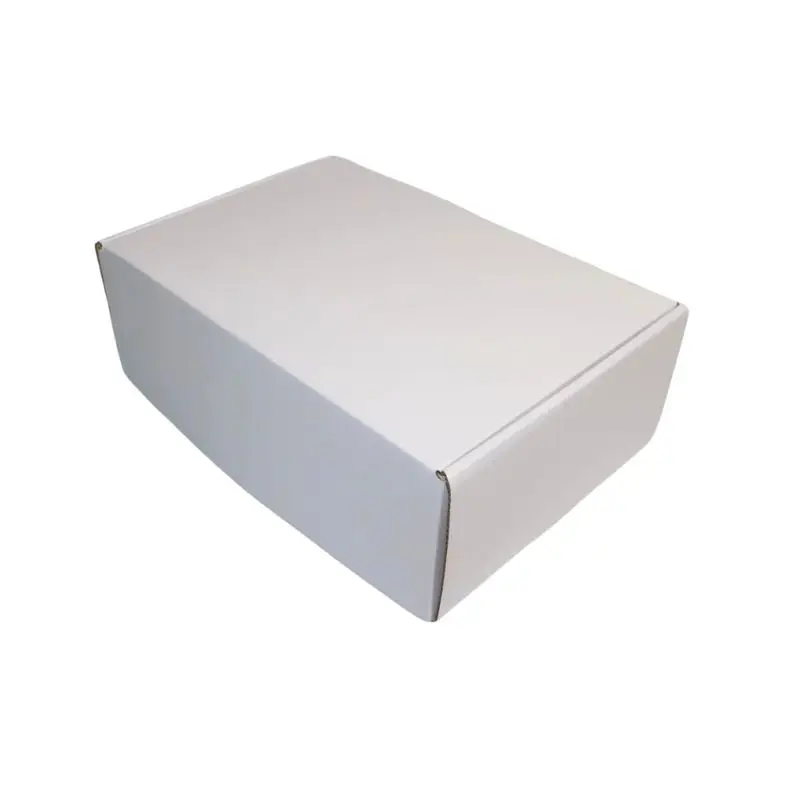

5、Various cardboard box options
different sizes, white boxes, color boxes, etc.
different sizes, white boxes, color boxes, etc.

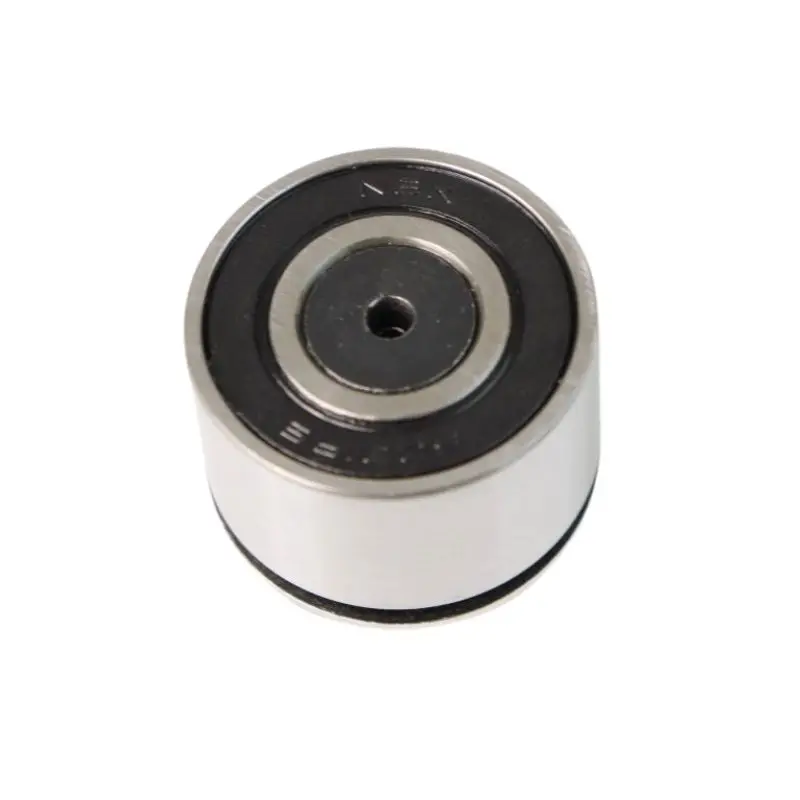

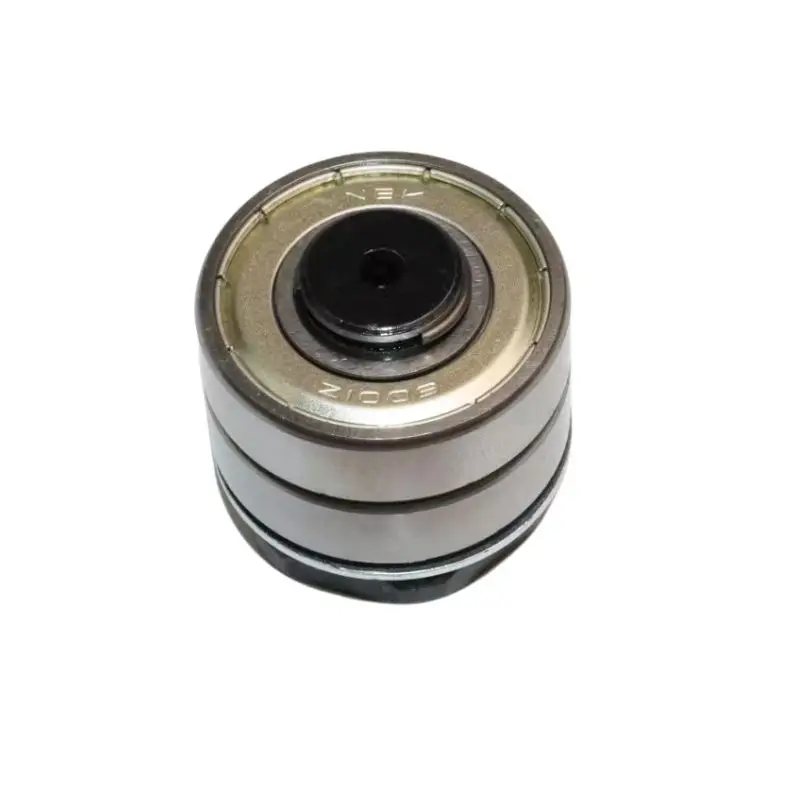

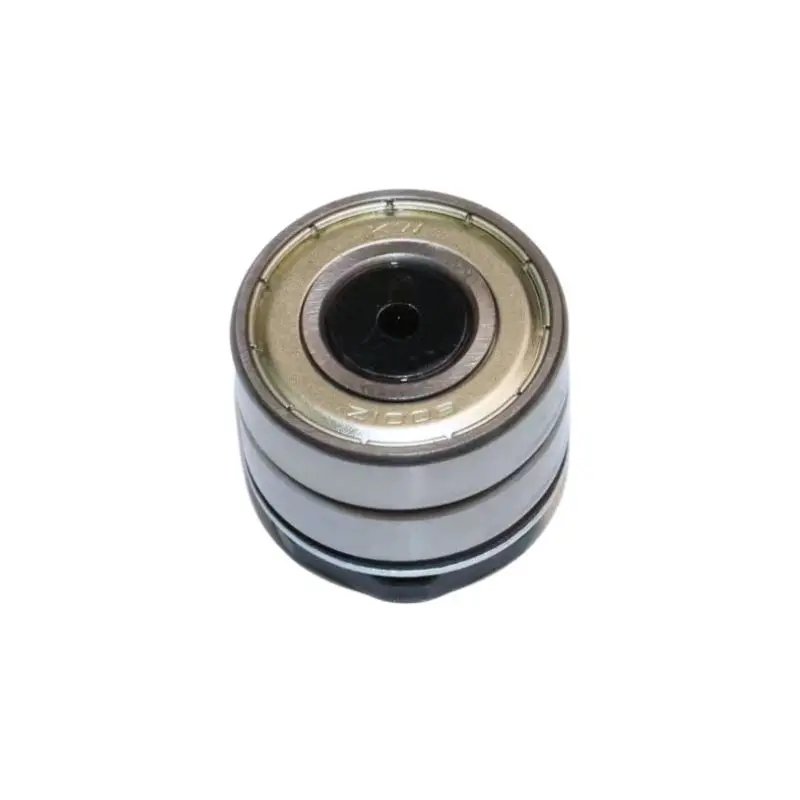

6、Various bearing options:
Domestic bearings with 11,000 RPM; Taiwanese bearings with 12,000 RPM;
Taiwanese integrated bearings with 13,000 RPM.
Domestic bearings with 11,000 RPM; Taiwanese bearings with 12,000 RPM;
Taiwanese integrated bearings with 13,000 RPM.

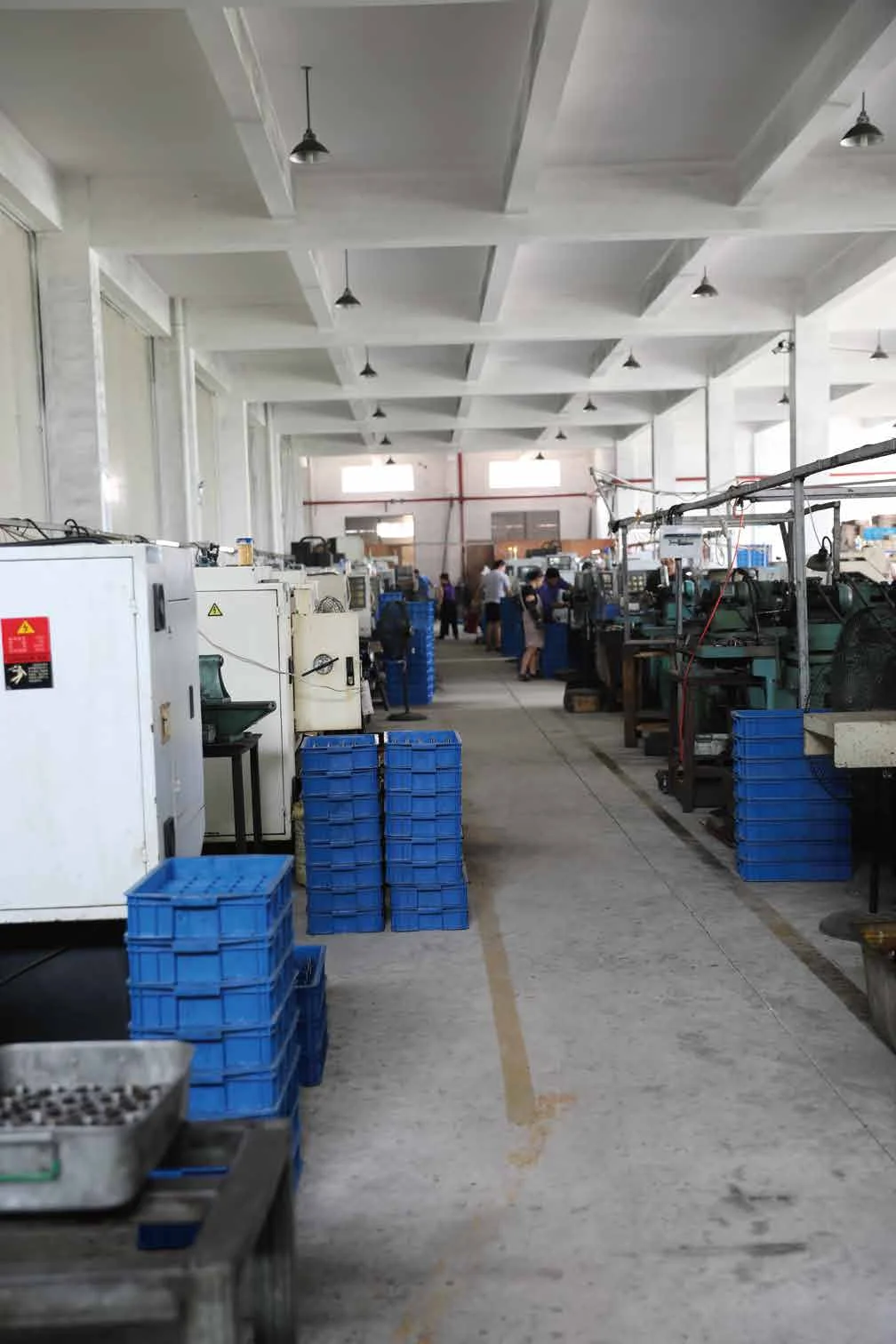

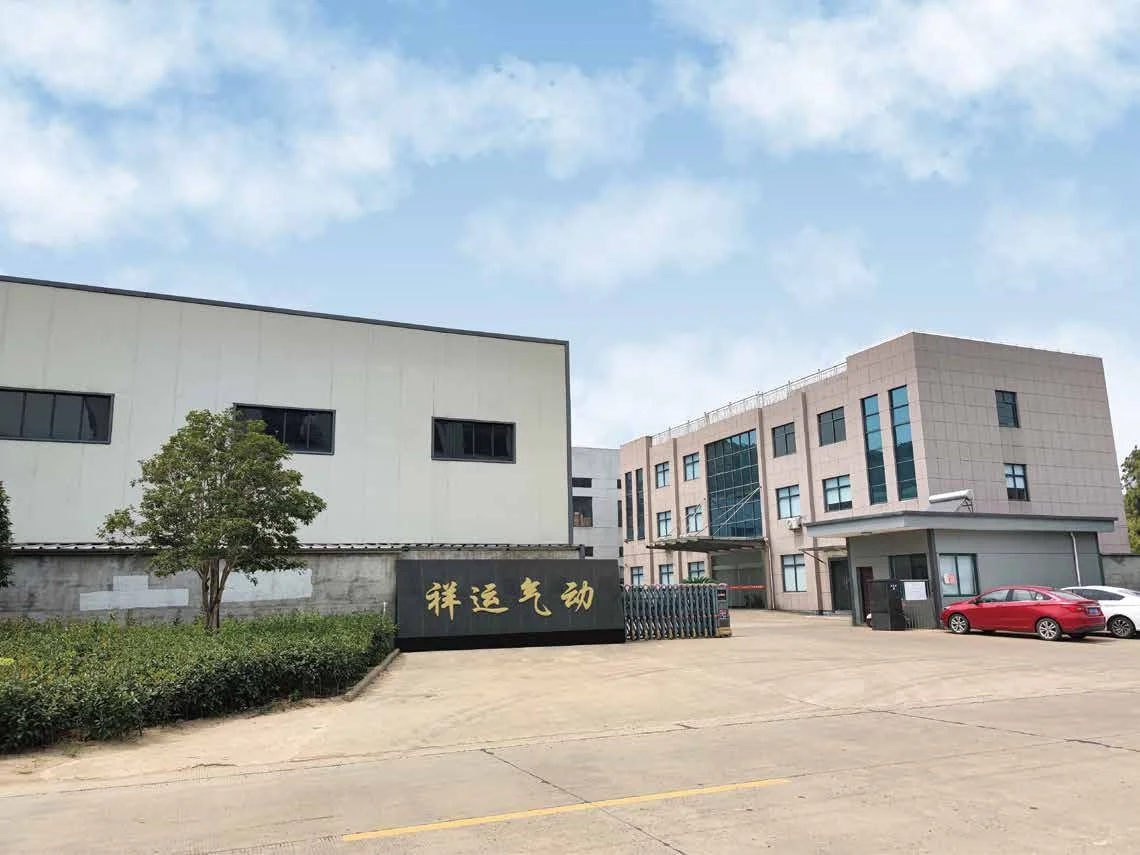

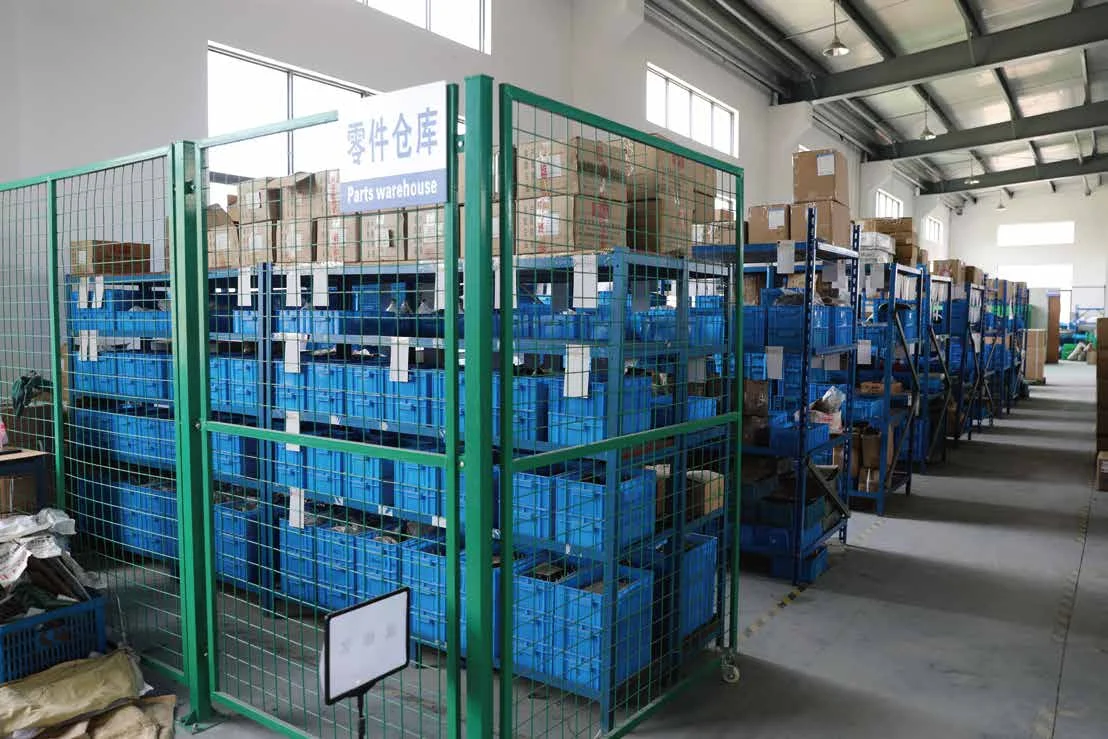

Company Profile
Company Title | Ningbo Xiangyun Pneumatic Tools Co., Ltd. |
Location | Shangtian, Fenghua, Ningbo, Zhejiang |
History and Expertise | - Established in: 2004 - Formerly Known as: Fenghua Chenyang Hardware Factory - Specialization: Production of pneumatic tools |
Main Products and Services | - Products: Pneumatic grinders (polishers) - Core Components: Eccentric shafts, small axles - Services: Supplying parts to major domestic pneumatic tool companies |
Quality and Management | - Management System: "Standardized Management System" - Features: Exquisite processing skills, rigorous quality management |
Brand Commitment | - Core Values: High-end quality (in terms of quality, cost, delivery, service) - Quality Pursuit: Artisanal excellence |
Cooperation and Future | - Invitation for Collaboration: Welcoming domestic and international colleagues for cooperation - Vision: Mutual benefit and win-win, creating a bright future together |
