SAFELY 2 3 4 Floors Space Utilization Outdoor Residential Elevator for Home Moderate Load Capacity Elevator Hydraulic Lift
- Category: >>>
- Supplier: SHANDONG SAFELY LIFT TECHNOLOGY CO. LTD
Share on (1601177617939):
Product Overview
Description
Product Description

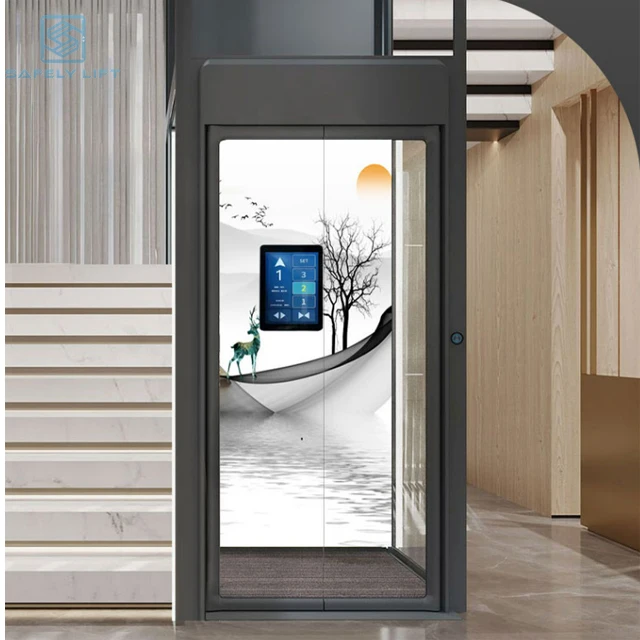

SAFELY home lift is widely used to lift person between different floors of the home, villa, hospital or bank.
It provides fast, efficient, convenient and safe access to mezzanines, basement, and any levels in multilevel building both indoors and outdoors.
Lifting height:
It can be customized according to client’s requirement.
Platform size:
It can be customized
Load capacity:
Standard ≤400 kg
It provides fast, efficient, convenient and safe access to mezzanines, basement, and any levels in multilevel building both indoors and outdoors.
Lifting height:
It can be customized according to client’s requirement.
Platform size:
It can be customized
Load capacity:
Standard ≤400 kg
Specification
item | value |
Warranty | 1 Year |
After-sale Service | Online technical support, Free spare parts, Other |
Project Solution Capability | graphic design, 3D model design, total solution for projects, Others |
Application | all |
Design Style | Modern |
Place of Origin | China |
Shandong | |
Brand Name | SAFELYLIFT |
Usage | Residential Elevators |
Drive Type | AC |
Elevator Type | Passenger Elevators |
Product parameters
Model | Cabin size (mm) | Aluminum structure inner size (mm) | Aluminum structure outer size (mm) | Lifting height (mm) | Load capacity (kg) | |||||
VPL2-3.0-H | 1200*1300 | 1540*1380 | 1660*1500 | 3000 | 400 | |||||
VPL2-3.50-H | 1200*1300 | 1540*1380 | 1650*1500 | 3500 | 400 | |||||
VPL3-5.00-H | 1200*1200 | 1540*1280 | 1650*1400 | 5000 | 320 | |||||
VPL3-6.00-H | 1200*1200 | 1540*1280 | 1650*1400 | 6000 | 320 | |||||
VPL3-7.00-H | 1200*1200 | 1540*1280 | 1650*1400 | 7000 | 320 | |||||
VPL3-8.00-H | 1200*1200 | 1540*1280 | 1650*1400 | 8000 | 320 | |||||
VPL4-8.00-H | 1200*1200 | 1540*1280 | 1650*1400 | 8000 | 320 | |||||
VPL4-9.00-H | 1200*1200 | 1540*1280 | 1650*1400 | 9000 | 320 | |||||
Custom designs are available in platform size, load capacity, lifting height, etc. | ||||||||||
Parts details
SAFELY hydraulic cylinder has outstanding features, includes smooth working performance, heavy workload, hard-wearing parts etc.
It is heavy duty with reliable performance and no leaks.
It is heavy duty with reliable performance and no leaks.
High pressure pipe with double expanded metal protected.
Good resistance to oil, water and high pressure, with wear resistance and tensile properties.
Good resistance to oil, water and high pressure, with wear resistance and tensile properties.
PUMP UNIT
With proportional valve, lift run smoothly
Overload protection: pressure delay as option is installed on group. In case of overload, hydraulic cargo lift can’t be operated to protect goods on platform.
Manual down valve is designed to let platform down to ground when input power off.
Overload protection: pressure delay as option is installed on group. In case of overload, hydraulic cargo lift can’t be operated to protect goods on platform.
Manual down valve is designed to let platform down to ground when input power off.
Total 4 pieces wire rope ensure safety,
if one broke, double protection;
High strength, safe and reliable and stronger
than chain. Wear resistance, shock
resistance, and good running stability.
Good corrosion resistance.
if one broke, double protection;
High strength, safe and reliable and stronger
than chain. Wear resistance, shock
resistance, and good running stability.
Good corrosion resistance.
In case of the Steel wire rope broken, the car can be locked immediately within 0.2s to prevent further decline.
Guarantee the safety of operator.
Guarantee the safety of operator.
On each floor, there is a HOP
On Ground floor, the HOP with key to avoid mis-operation of children.
On Ground floor, the HOP with key to avoid mis-operation of children.
According to the actual needs of the motor to provide its required supply voltage, and then achieve the purpose of energy-saving speed regulation.
Heavy aluminum alloy can support lift by itself without other supporting.
Model: 100*100*55
aluminum thickness 3.50mm
Model: 100*100*55
aluminum thickness 3.50mm

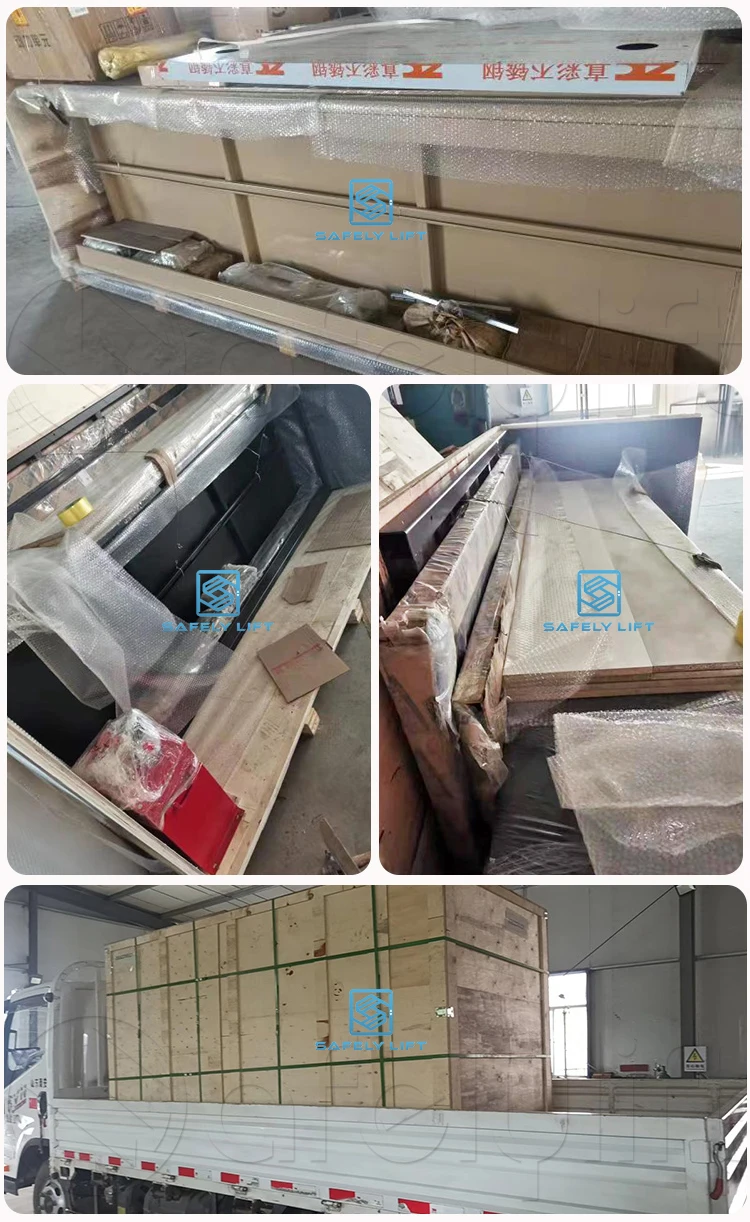

Packing & Delivery
insternation wooden case
Company Profile
SAFELY Lift Technology Co., Ltd, a professional lift manufacturer in China, mainly produces a full range of passenger and platform lifts with comply with EN-41 and also the 2006/42/EC machinery directive.
Benefit from rich experience, we draw to provide a nice solution to solve any access problem or residential lift. All our platform lifts are specially designed, to make sure its easy to use and operate. With low pit and low overhead floor, lifts are also available for existing buildings.
All lift parts are made in accordance with the Machinery Directive 2006/42/EC, BS EN 81-41. And all CHINA SAFELY LIFTS have been tested by notified body and approved with CE organization.
All SAFELY lifts can be installed in aluminum structure or in pre-built concrete shaft by clients or elevator installation team，especially hydraulic drive home lift and vertical platform lift. However, passenger elevator should be installed by professional elevator team.
SAFELY lifts also design and manufacture goods lift, from 50kg to 5000kg without pit, and lift outside structure and cladding can be provided to ensure a hassle free installation.
Sincerely, SAFELY LIFT welcomes every customer to visit our factory, to operate our lift.
Benefit from rich experience, we draw to provide a nice solution to solve any access problem or residential lift. All our platform lifts are specially designed, to make sure its easy to use and operate. With low pit and low overhead floor, lifts are also available for existing buildings.
All lift parts are made in accordance with the Machinery Directive 2006/42/EC, BS EN 81-41. And all CHINA SAFELY LIFTS have been tested by notified body and approved with CE organization.
All SAFELY lifts can be installed in aluminum structure or in pre-built concrete shaft by clients or elevator installation team，especially hydraulic drive home lift and vertical platform lift. However, passenger elevator should be installed by professional elevator team.
SAFELY lifts also design and manufacture goods lift, from 50kg to 5000kg without pit, and lift outside structure and cladding can be provided to ensure a hassle free installation.
Sincerely, SAFELY LIFT welcomes every customer to visit our factory, to operate our lift.
FAQ
1. Can we customize lift color according to my house?
Cause our painting is powder coating, all kinds of color can be customized to meet your special need.
2. Whats platform Max. Size?
For long-term normal operation, our wheelchair lift platform Max. Size 12001400mm
3. Can SAFELY company offer spare parts for future maintenance by ourselves?
Yes, we will pack some wearing parts into lift package.
4. What's your spare parts?
Oil piston seal rings, switches, and relay in controller, etc.
5. What's your delivery time if one set?
If no special requirement, our delivery time is 15 days after down payment.
6. Can we install and maintain by ourselves?
Yes, our lifts are easy to install. We also offer install video or we build group to guide you to install and maintain by yourselves.
Cause our painting is powder coating, all kinds of color can be customized to meet your special need.
2. Whats platform Max. Size?
For long-term normal operation, our wheelchair lift platform Max. Size 12001400mm
3. Can SAFELY company offer spare parts for future maintenance by ourselves?
Yes, we will pack some wearing parts into lift package.
4. What's your spare parts?
Oil piston seal rings, switches, and relay in controller, etc.
5. What's your delivery time if one set?
If no special requirement, our delivery time is 15 days after down payment.
6. Can we install and maintain by ourselves?
Yes, our lifts are easy to install. We also offer install video or we build group to guide you to install and maintain by yourselves.
