4*2 Mini refrigerator van truck cargo truck box refrigerator trucks for Vaccine carrier for seafood and frozen food
- Category: >>>
- Supplier: Chusheng Vehicle Group Co. ltdChusheng ltd
Share on (1601177753450):
Product Overview
Description

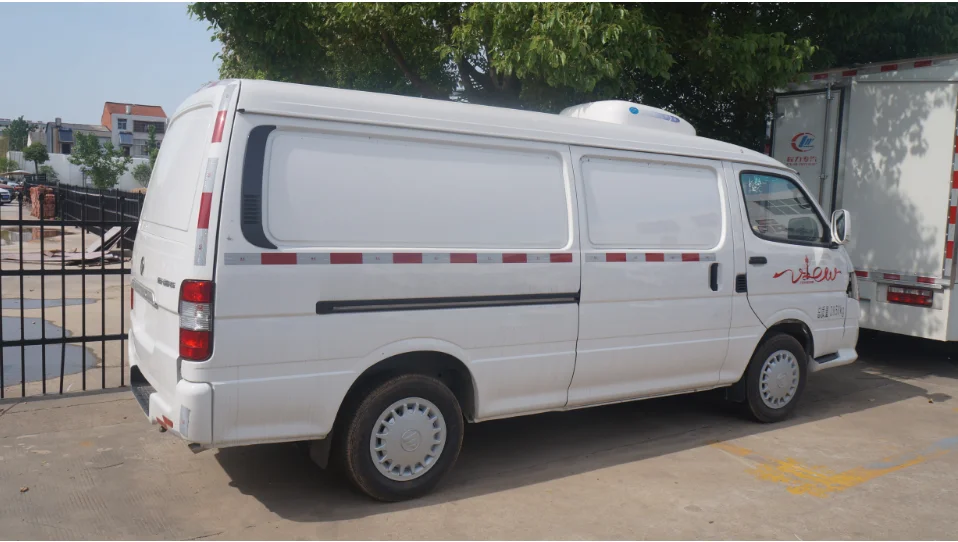

High quality 4*2 diesel refrigerator van truck for transport vegetable and meats
Product Description
Refrigerated Truck Technical Parameters:
| Item No. | Parameters |
| Overall Dimension | 6995x2310x2570 mm |
| Gross Vehicle Weight | 7345kg |
| Curb Weight | 3550kg |
| Loading Weight | 4895Kg |
| Wheel Base | 3800mm |
| Front/rear Tread | 1120/2075 mm |
| Approach/Departure Angle | 21/20degree |
| Front Axle | 2850kg |
| Rear Axle | 4645kg |
| Gearbox | LC5T26, 5 speed, manual control. |
| Engine | 4DX22-110, Diesel Engine, 4 in-line cylinder |
| Engine horsepower | 108HP EURO II |
| Displacement | 3.66 L (Diesel) |
| Full loading Fuel Consumption Rate | Maximum 215 g/kW.h |
| Max Driving Speed | 90 km/h |
| Cabin | 2 Passenger allowed |
| Tire | 8.25-16 LT (7 pieces) |
| Carriage Body | |
| Size: | 5100x2100x1400mm |
| Body Material | Strong Fiberglass Inner and Outer Wall, with 8cm Middle Polyfoam Insulation. |
| Refrigerator | High Quality Hanxue Refrigerator, Lowest Cooling Temperature negative 18 centi-degree (negative 608 Fahrenheit degree) |
| LOGO | Company Logo or any advertisement can be printed on the carriage body according to the customer's design. (same as showed in last photo) |
Advantages of Insulated Freezer Van body:
The advantages of Insulated/Freezer Van Body
1. It is made of GRP and PU foam with all-closed structure that the GRP (Glass Reinforced Plastic Fiber) outside
and PU foam in the core.
2. Light in weight: 40% lighter than metal body.
3. Non-corrosion, non-pollution, anti-brine, acid and soda-resisting.
4. The panel used for the truck body was constructed in type of sandwich. The thermal insulation layer is 50-80mm
thick, which offers a very good thermal insulation performance.
5. Length of Cargo body: 10-40 inch; Capacity of Cargo body: 5-70CBM. The material of the cargo body is optional
according to which kinds of goods the truck transport, with perfect heat preservation, box open model:
Rear double-open or Side-open.
6. Refrigeration unit Brand Optioanl: American CARRIER, THERMO KING. South Korea hanya. China Songhan,
hanxue, etc. The Temperature range can be 0° C ~ -20° C. The refrigeration units that we select have simple
structure, convenient operation, reliable working, low energy consumption, large refrigerating capacity, small noise,
easy installation and maintenance and other advantages.

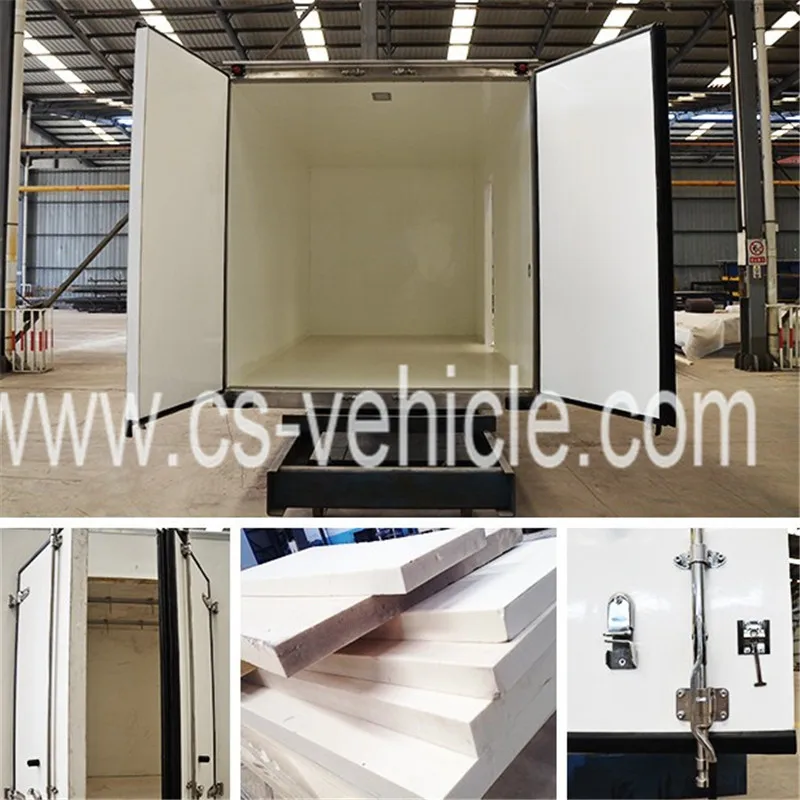

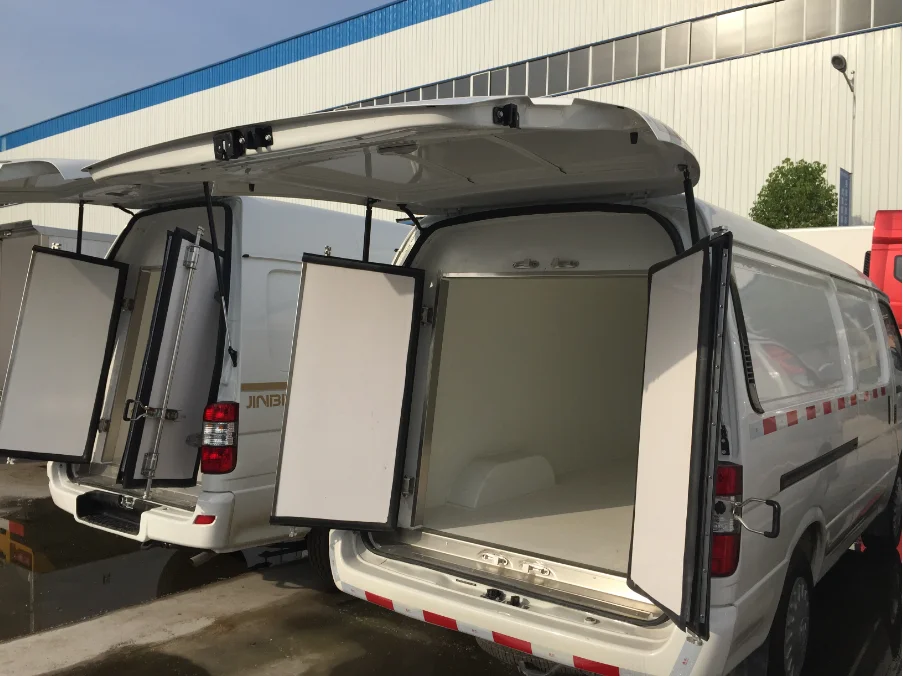

Insulated Freezer Van Inside body:
Packaging & Shipping
Our Services
1.Our Advantages
(1)Competitive Factory Price and Excellent Quality
(2)More than 20 years' experience as a manufacturer
(3)Products Quality Certification SGS CCC ISO
(4)Perfect after-sale service
(5)Customized products available with us
(6)Export to more than 90 countries and regions
2. FAQ
Q1. : Are your manufacturer ?
A : Yes! We can totally manufacture the trucks as you required.
Q2. Do you have a good orgonization of shipping vessle ?
A : Yes, we have a good and long term cooperation with the world first class famous shipping company line,
like MSK,PIL,SUNSHINE SHIPPING,ETC.The order over 500 units of vehicle,we will lease a vessel.
Q 3 : How about your warranty items?
A : We supply original spare parts of our vehicles, if you need, we will show you spare parts list for your
choosing to make sure daily maintain of your vehicles.
Q 4 : Can I be your agent in my country?
A : It is Ok if the order is appropriate, we looks forward to long-term cooperation with you.
Q 5 : What is the delivery time and payment term?
A : Our common products delivery time is 10-35 working days except some definitely special vehicles.
We accept 30% T/T deposit and 70% balance T/T or 100% L/C. More details, please contact with our salesman.
3. Warranty
(1) One year quality guarantee or within 100000km, which comes the first.
(2) Other spare part could be supplied by OEM at cost prices.
(3) Regularly callback to know the vehicle's working status.
(4) The overseas engineers are always ready to deal with unexpected needs.
Company Information
1. Chusheng (Hubei) Special-purpose Vehicle Manufacturing Co., Ltd. is a famous and the biggest manufacturer with very professional experience in special automobile field for more than 15 years in China. We have more than 3000 workers, 400 technicians, and factory scale is more than 690,000m2.
2. Our most advantage and leading products including LPG tanker series, Water Tank, Fuel tank, Refrigerated Truck, Garbage Truck, Towing/Wrecker truck, Dump Truck, Sewage Suction Truck, Concrete Mixer Truck, Bulk Cement Truck, Van Truck, Sweeper Truck, Truck with Crane, Fire fighting Truck, High-altitude Operation Truck, Chemical Liquid Truck, Milk Transport Truck, LED Display Truck, Various Semi-trailer, Spare parts etc.
3. We have successfully exported to more than 60 countries, such as Ghana, Togo, Sudan, Kuwait, Peru, Nigeria, Benin, Angola, Tajikstan, Azerbaijan, Namibia, Burma, Korea, Iran, Afghanistan, Iraq, Philippines, Vietnam, Saudi Arabia, Mexico, Chile, Bolivia, Tanzania, Zambia, Zimbabwe, Yemen etc.
We have strict quality control of raw material, professional management team and technical workers, advanced equipments, strict inspection before delivery, excellent packing and shipping team.
Certificates

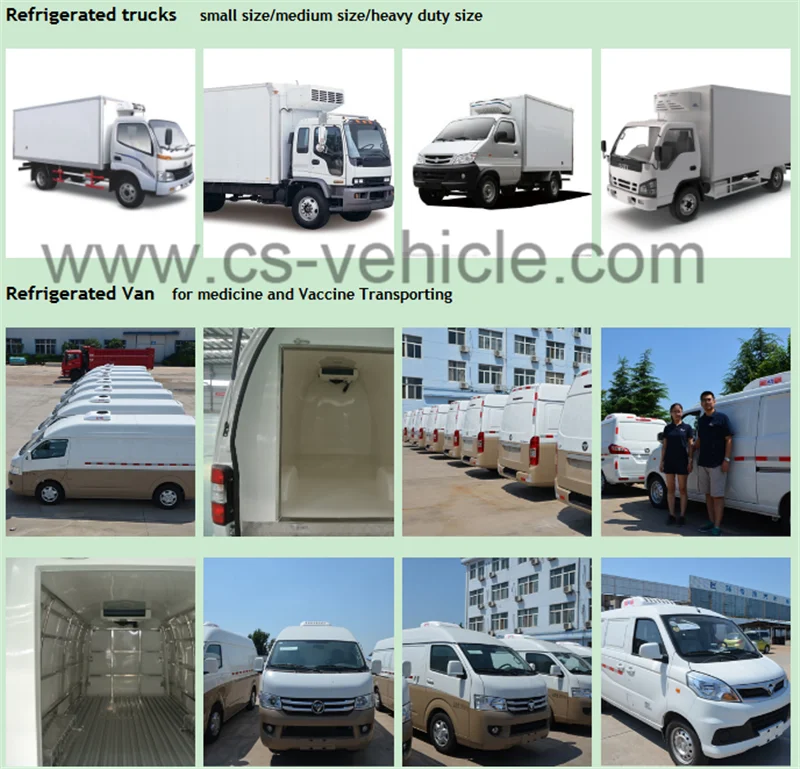

Hot Sale series
Truck shipments
Our professional team
Exhibition & Customer Visits
Contact
Justine DENG
Vendeuse/Sales
Hubei Chusheng Vehicle Co., Ltd.
Factory: NO.9, Jiliang Avenue, Suizhou Economic Development Zone,Suizhou,Hubei,China
Office: Room 1108, Eurasia Plaza,No.20 Jinyinhu Road, East- west lake District,Wuhan,Hubei,China.
Tel:+86-27-59323486 , Fax:+86-27-59323485
Mob/Whatsapp/Viber/Imo: +86-153 3717 2243
Email: justine©cs-vehicle.com ; info©cs-vehicle.com
Web:www.cs-vehicle.com
