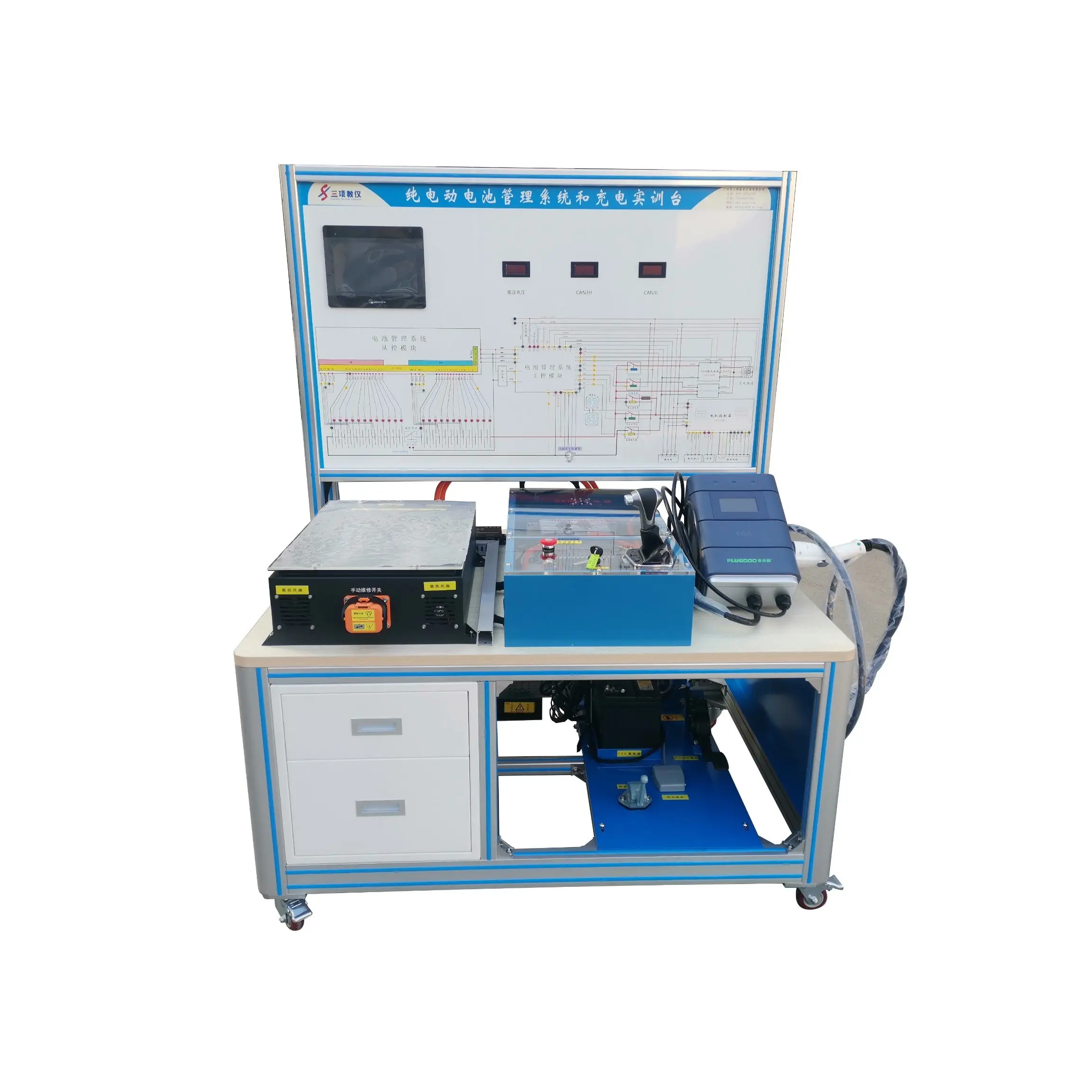

New Energy Vehicle Physical Integration Battery Management System, Drive System Training Platform for Student
New Energy Vehicle Physical Integration Battery Management System, Drive System Training Platform for Student
New Energy Vehicle Physical Integration Battery Management System, Drive System Training Platform for Student
New Energy Vehicle Physical Integration Battery Management System, Drive System Training Platform for Student
New Energy Vehicle Physical Integration Battery Management System, Drive System Training Platform for Student
New Energy Vehicle Physical Integration Battery Management System, Drive System Training Platform for Student
New Energy Vehicle Physical Integration Battery Management System, Drive System Training Platform for Student

New Energy Vehicle Physical Integration Battery Management System, Drive System Training Platform for Student

Share on (1601177767028):


Price:

Quantity:


Product Overview

Description



Products Description


New Energy Vehicle Physical Integration Battery Management System, Drive System Training Platform for Student



*Product overview

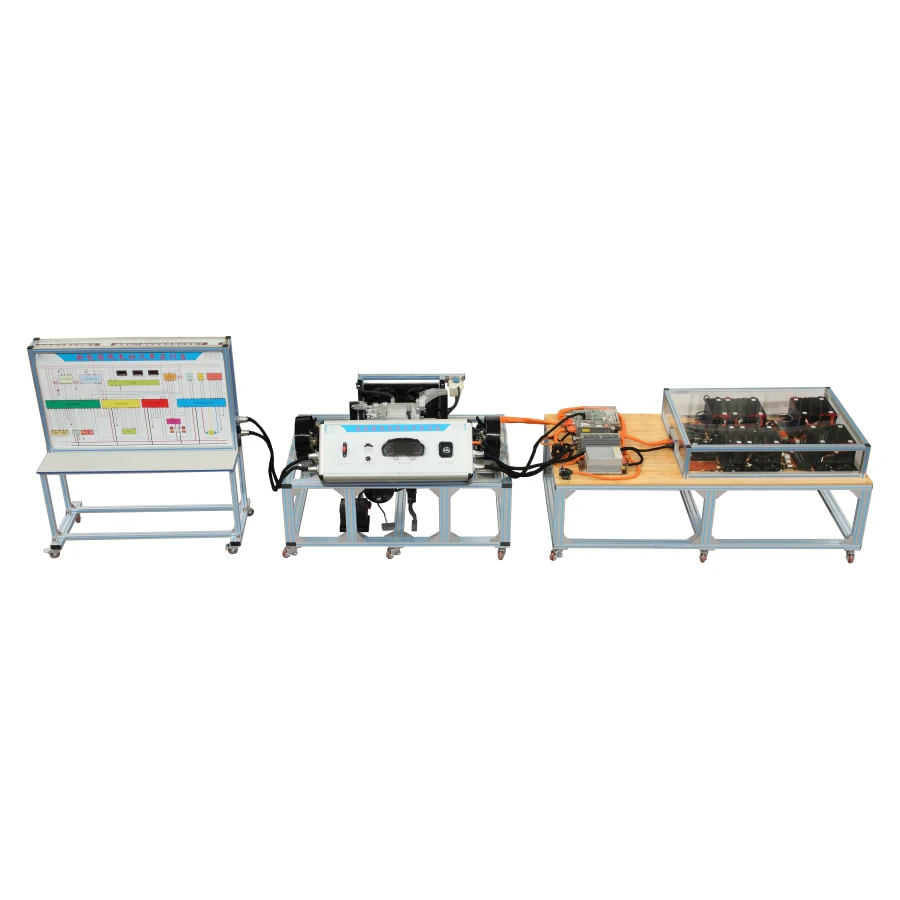

The use of new energy vehicles mass production of lithium iron phosphate power battery, single battery nominal voltage 3.2V, capacity 20Ah, the battery is safe and stable. The power battery adopts 24 single batteries in series, the rated voltage of the battery pack is 73.6V, and the surface of the battery pack can be dynamically monitored with a 10mm thick transparent arc vertical plate, which clearly shows the connection of the power battery pack, and prevents the conductor from falling off the battery terminal, causing a short circuit of the battery. Understand the working process of AC motor control system by using the basic principles of electric vehicle, drive motor and motor controller, such as performance characteristics and structure, check the circuit diagram and relevant data, and analyze the relationship between various components.



*Technical parameter
Battery type: lithium iron phosphate battery, battery unit voltage: 3.2V, battery pack nominal voltage: 76.8V, battery pack capacity: 1.5H, battery pack number :24, control relay: 3, temperature acquisition channels: 4, balancing current: 100mA, touch screen: 10 inches, charger input voltage: 85~265VAC, charging output voltage :48 ~96VDC, charger conversion efficiency to charger conversion efficiency :≥95%, DC input voltage :48
~96VDC, DC output voltage :13.8VDC, DC full load efficiency :≥88%, system operating voltage :12VDC, communication mode: CAN communication, RS485, motor type: three-phase asynchronous motor, rated power :5KW, rated voltage :72V, rated speed :3000rpm, phase number :3 phase, peak speed :6000rpm, controller type: AC controller, rated voltage :72V, output, Input voltage range :55~86VDC, rated current :120A, peak current :275A, output frequency range :0~400Hz, efficiency :98%, communication mode :CAN2.0 Gear riser type: post switch type, working voltage :12VDC, communication mode :CAN2.0 communication, instrument type: mechanical and electronic hybrid instrument, working voltage :12VDC, communication mode :CAN2.0 communication.
1, Overall size :1400x1000x1600mm(L x W X H)1700x860x1100mm(L x W X H)
2, external power supply: AC 220V/50Hz
3, working voltage: DC 76V
4, working temperature :-25℃~+50℃


Products Show




item
value
Place of Origin
China
Guangdong
Brand Name
Sanxiang
Model Number
GZSX-X1013
Product name
New energy vehicle physical integration battery management system, drive system training platform
Application
School Classroom
Function
Student Learning
Type
Teaching Instrument
Material
Aluminum Alloy
Color
White
Size
1400*1000*1600mm
MOQ
1 Set
Package
Wooden Box
Warranty
1 Year
