Multifunction Digital Control Inverter DC TIG Welding Machine TIG 250 TIG Pulse MMA 2 In 1 Argon Gas Welder
- Category: >>>
- Supplier: ZHEJIANG KAITAI AMPEREX TECHNOLOGY CO. LTDZHEJIANG LTD
Share on (1601177834328):
Product Overview
Description
Product Description
New Design
KAITAI Portable Smart Welder Single Phase 220V DC Argon ARC Welding TIG-250
KAITAI Portable Smart Welder Single Phase 220V DC Argon ARC Welding TIG-250
Model: | TIG-250A |
Input Voltage(V) | 1phase 220v 50/60Hz |
Input Capacity(KVA) | TIG:7.6 MMA:9.6 |
Input Current(A) | TIG:34.4 MMA:43.6 |
Duty cycle (%) | 60 |
No-load Voltage(V) | 53 |
Output Current range(A) | TIG:5-230 MMA:5-200 |
Output Voltage Adjusting Range(V) | TIG:19.2 MMA:26.4 |
Protection Class | IP21S |
Insulation Class | F |
Machine Size(mm) | 480*230*380 |
Packing Size(mm) | 600*305*440 |
Weight(Kg) | 13.8 |
Features:
☑ HF DC TIG/Pulse TIG/MMA Multifunction.
☑ Compact and portable design, high effciency and low consumption.

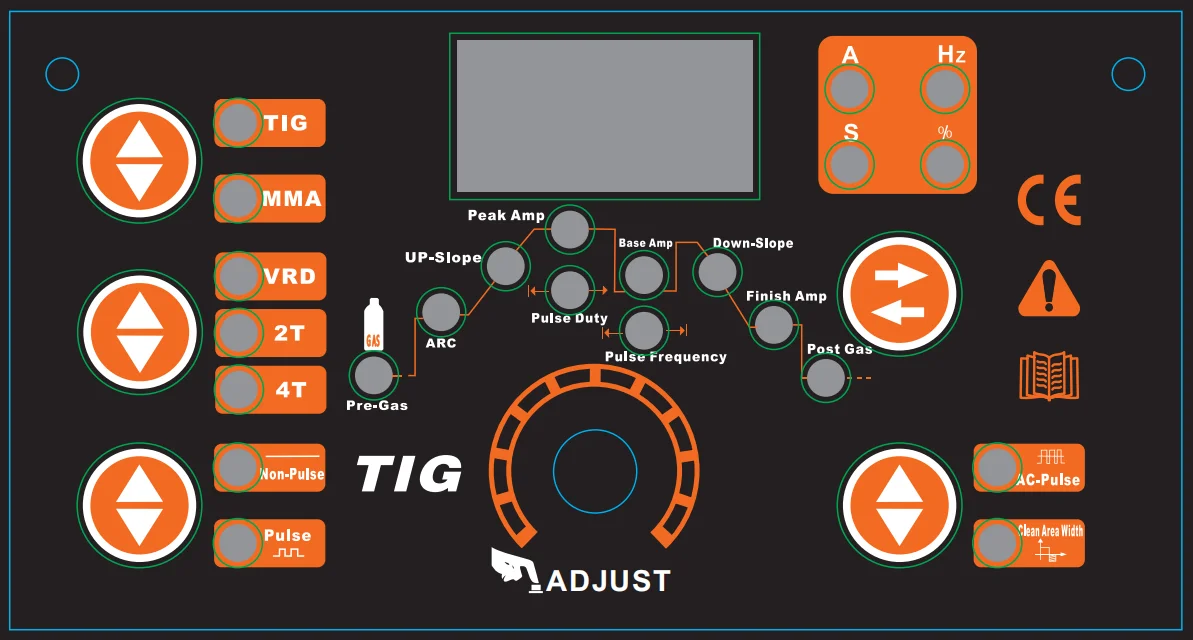

☑ Digital Human Machine Interface, precise welding process parameter adjustment: Gas pre-flow, Up-slope,Peak/Base amp, Gas delay, etc.
☑ Applicable for welding various nonferrous metals, stainless steel, alloy steel, carbon steel and copper, etc.
☑ VRD, over current/temperature protection.
☑ Compact and portable design, high effciency and low consumption.
☑ Digital Human Machine Interface, precise welding process parameter adjustment: Gas pre-flow, Up-slope,Peak/Base amp, Gas delay, etc.
☑ Applicable for welding various nonferrous metals, stainless steel, alloy steel, carbon steel and copper, etc.
☑ VRD, over current/temperature protection.
Detailed Images
Product packaging

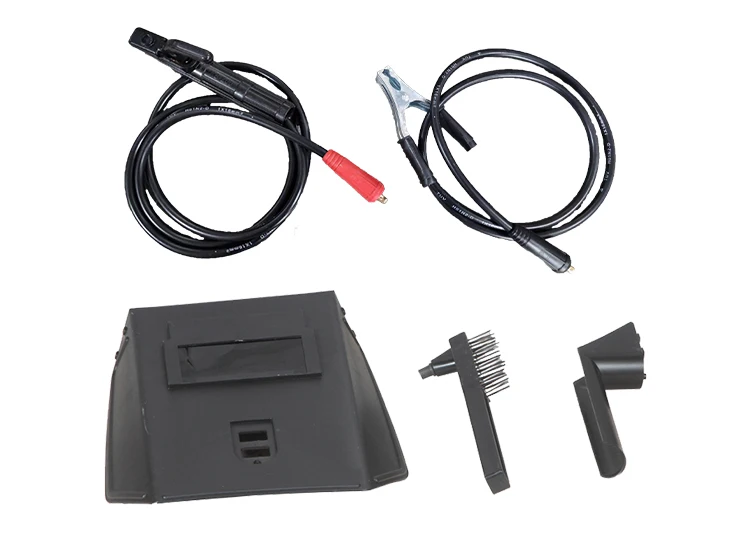

Included: 8mQQ150,
Welding machine
1.2m 16² 200A earth clamp,
1.8m 16²200A electrode holder,
Mask,
Hammer
