BIOBASE Autoclave BKM Z23B 23L 0.1/0.3MPa High Efficiency Vacuum Pump Table Top Autoclave for Hospital
- Category: >>>
- Supplier: Biobase Biochore Co. Ltd.
Share on (1601178103500):
Product Overview
Description

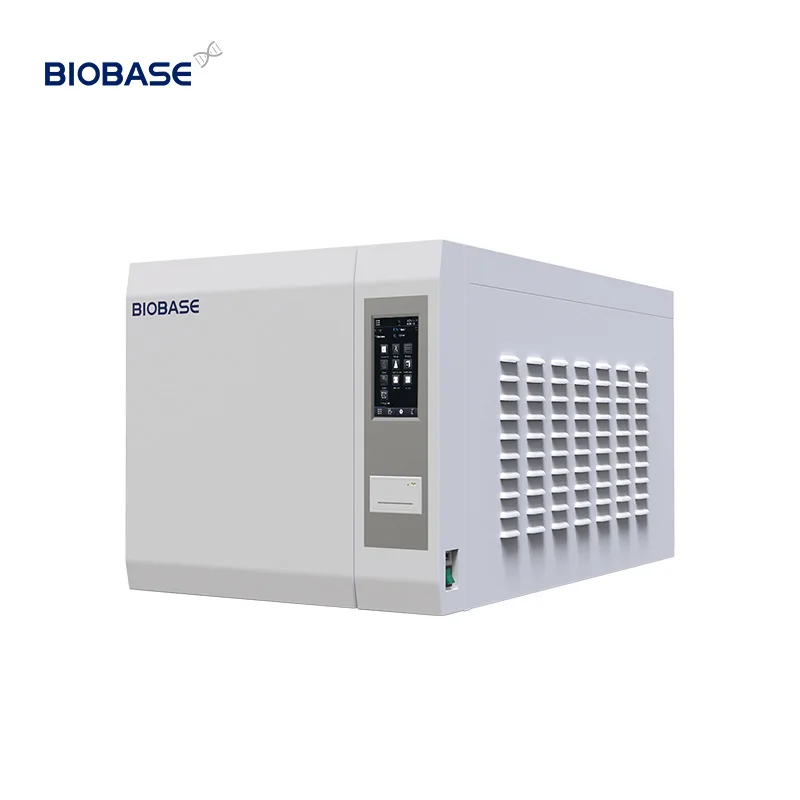

Table Top Autoclave BKM-Z23B
Product Description
Introduction
The pulse vacuum autoclave extracts vacuum and fills steam into the sterilization room for many times to make the sterilization chamber reach a certain vacuum degree, and then fills saturated steam to reach the set pressure and temperature, so as to achieve the purpose of sterilization of the sterilized substance.
Technical Paramenters
Model | BKMZA (Perious name:BKM-Z18B) | BKMZB (Perious name:BKM-Z24B) | |
Capacity | 18L | 23L | |
Chamber Size(mm) | φ247*360 | φ247*470 | |
Sterilization Class | Class B | ||
Sterilization Temperature | 121℃,134℃ | ||
Drying System | Vacuum drying system | ||
Display | LCD display | ||
Testing System | B&D Test Vacuum Test Helix Test | ||
Control Precision | Temperature: 1℃ Pressure: 0.1bar | ||
Sterilization Data | BKMZA/BKMZB: USB(standard) and printer(optional) | ||
Safety System | Hand lock door Pressure lock system Relief valve in case of over pressure Pressure or temperature over load protection Alarm for system failure, finish reminding, water level warning | ||
Water Supply System | Build-in water tank easy to clean | ||
Water Tank Capacity | 3.5L | ||
Water Consumption | 0.16L~0.18L in one cycle | ||
Tray Holder | 3 pcs SS trays on SS shelf | ||
Chamber | SUS304 Max working pressure: 2.3bar Min working pressure: -0.9bar Design temperature: 140℃ | ||
Ambient Temp. | 5～40℃ | ||
Noise | <65dB | ||
Consumption | 1950VA | 1950VA | |
Power Supply | Standard: 220V±10%,50Hz/60Hz; Optional: 110V±10%,50Hz/60Hz. Wiring Method: Plug | ||
External Size(W*D*H)mm | 495*600*410 | 495*700*410 | |
Package Size(W*D*H)mm | 610*810*590 | 610*810*590 | |
Gross Weight(kg) | 63 | 65 | |
Product Details
Features
1.Brand-new operation interface: The LCD touch screen can display real-time information such as temperature, pressure, time, operating status, fault alarm, and equipment operating curve, making the sterilization information more intuitive and clear, and it is convenient for users to observe the operating status of the equipment.
2.Multiple safety protection devices: automatic over-temperature protection device, multiple control and protection of evaporator, door safety interlock protection, double over-pressure protection device, etc.
3.Door structure: BKM-K18/23B autoclave adopts a manual door structure, BKM-Z18/23B autoclave adopts automatic door structure. It is could quick and convenient to operate, and effectively protects the human body and prevents burns.
4.Vacuum system: It adopts high-efficiency vacuum system, low working noise, ultimate vacuum can reach more than -80KPa, fast pumping speed, good dryness of items, and more thorough sterilization.
5.Diversified procedures: There are fast procedures, encapsulation procedures, rubber procedures, dressing procedures, liquid procedures, liquid customization, solid customization and other procedures, as well as B&D testing, vacuum testing procedures, and appointment procedures.
6.High-efficiency air filter: 0.22pm sterilizing high-efficiency air filter, the filtration efficiency is not less than 99.5%, to
ensure that the vacuum-breaking air is sterile air, and to avoid re-contamination of sterile materials.
7.Recording device: The equipment is equipped with a thermal printer and USB interface as standard, which can record the data of the entire sterilization process in real time.
8.Other functions: automatic operation of the whole process of preheating, replacement, heating, sterilization, exhaust steam, and vacuum drying.
2.Multiple safety protection devices: automatic over-temperature protection device, multiple control and protection of evaporator, door safety interlock protection, double over-pressure protection device, etc.
3.Door structure: BKM-K18/23B autoclave adopts a manual door structure, BKM-Z18/23B autoclave adopts automatic door structure. It is could quick and convenient to operate, and effectively protects the human body and prevents burns.
4.Vacuum system: It adopts high-efficiency vacuum system, low working noise, ultimate vacuum can reach more than -80KPa, fast pumping speed, good dryness of items, and more thorough sterilization.
5.Diversified procedures: There are fast procedures, encapsulation procedures, rubber procedures, dressing procedures, liquid procedures, liquid customization, solid customization and other procedures, as well as B&D testing, vacuum testing procedures, and appointment procedures.
6.High-efficiency air filter: 0.22pm sterilizing high-efficiency air filter, the filtration efficiency is not less than 99.5%, to
ensure that the vacuum-breaking air is sterile air, and to avoid re-contamination of sterile materials.
7.Recording device: The equipment is equipped with a thermal printer and USB interface as standard, which can record the data of the entire sterilization process in real time.
8.Other functions: automatic operation of the whole process of preheating, replacement, heating, sterilization, exhaust steam, and vacuum drying.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
