Wholesale in stock 3kw 6kw 10kw pure sine wave solar power inverter for home
- Category: >>>
- Supplier: Guangzhou Anern Energy Technology Co. ltd.
Share on (1601178345009):
Product Overview
Description
ONE Product Description

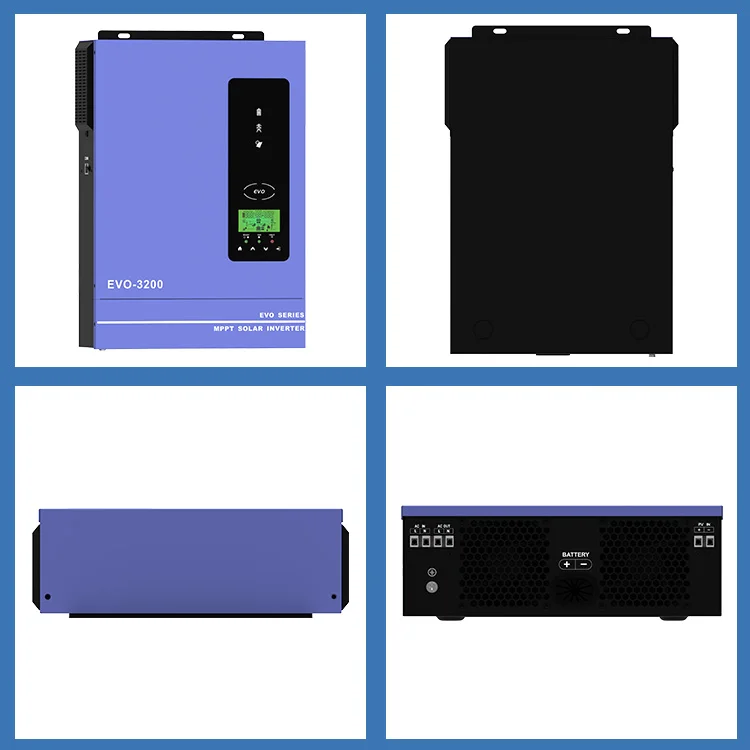

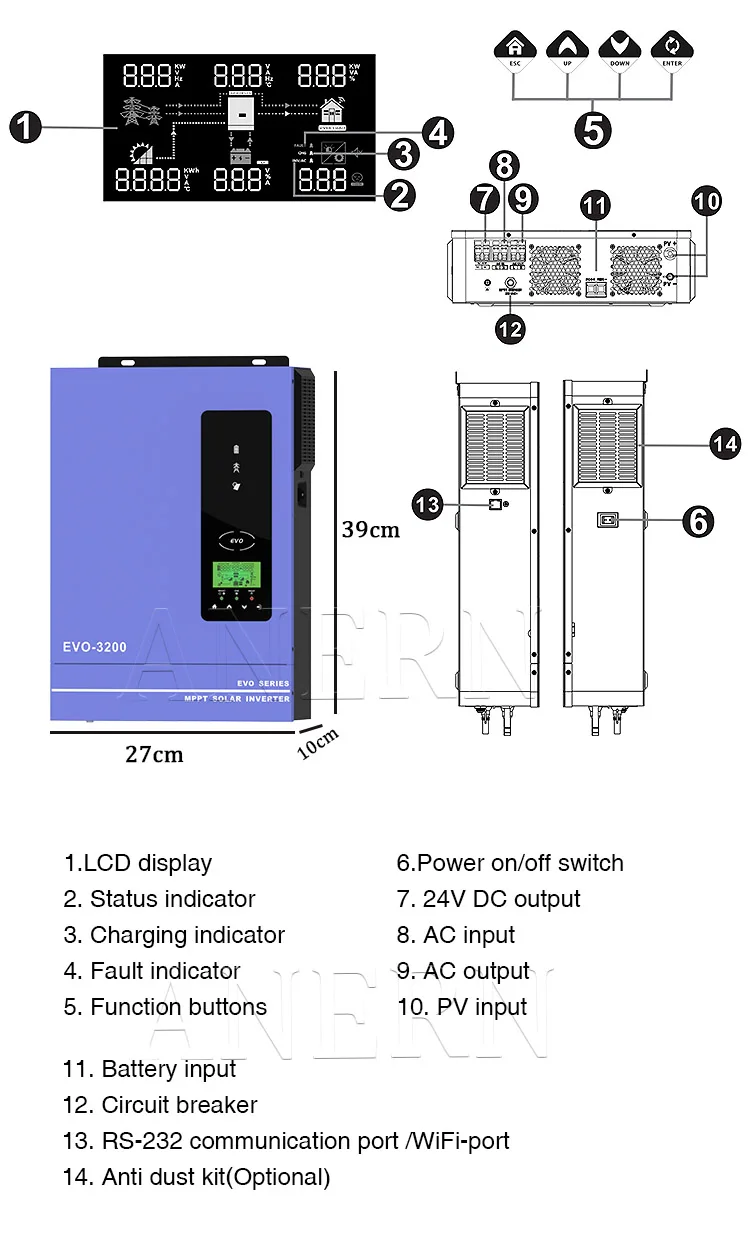

Model | SCI-EVO-3200 | |
RATED POWER | 3200KVA/3000W | |
AC INPUT | ||
AC Input Voltage | 230VAC | |
Selectable Voltage Range | 170-280 VAC (For Personal Computers) | |
90-280 VAC (For Home Appliances) | ||
Frequency Range | 50 Hz/60 Hz (Auto sensing) | |
AC OUTPUT | ||
AC Voltage Regulation (Batt. Mode) | 230VAC ± 5% | |
Surge Power | 6400VA | |
Efficiency (Peak) PV to Inverter | 98% | |
Efficiency (Peak) Battery to Inverter | 94% | |
Transfer Time | 10 ms (For Personal Computers); 20 ms (For Home Appliances) | |
Waveform | Pure sine wave | |
BATTERY & AC CHARGER | ||
Battery Voltage | 24VDC | |
Floating Charge Voltage | 27VDC | |
Overcharge Protection | 33VDC | |
Maximum AC Charge Current | 60A | |
SOLAR CHARGER | ||
Maximum PV Array Power | 3000W | |
MPPT Range @ Operating Voltage | 30-400VDC | |
Maximum PV Array Open Circuit Voltage | 400VDC | |
Maximum Charging Current | 80A | |
PHYSICAL | ||

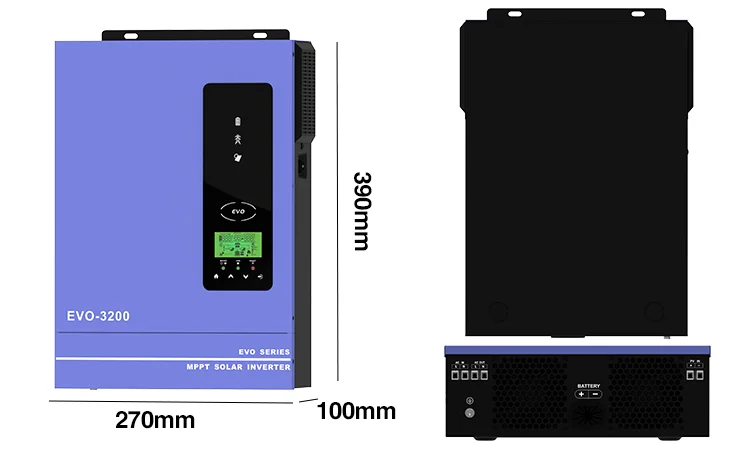

Dimension, D x W x H (mm) | 390*270*100mm | |
Net Weight (kg) | 5.4 | |
INTERFACE | ||
Communication interface | WIFI | |
OPERATING ENVIRONMENT | ||
Humidity | 5% to 95% Relative Humidity(Non-condensing) | |
Operating Temperature | –10°C - 50°C | |
Storage Temperature | –15°C - 60°C | |
TWO Product Description

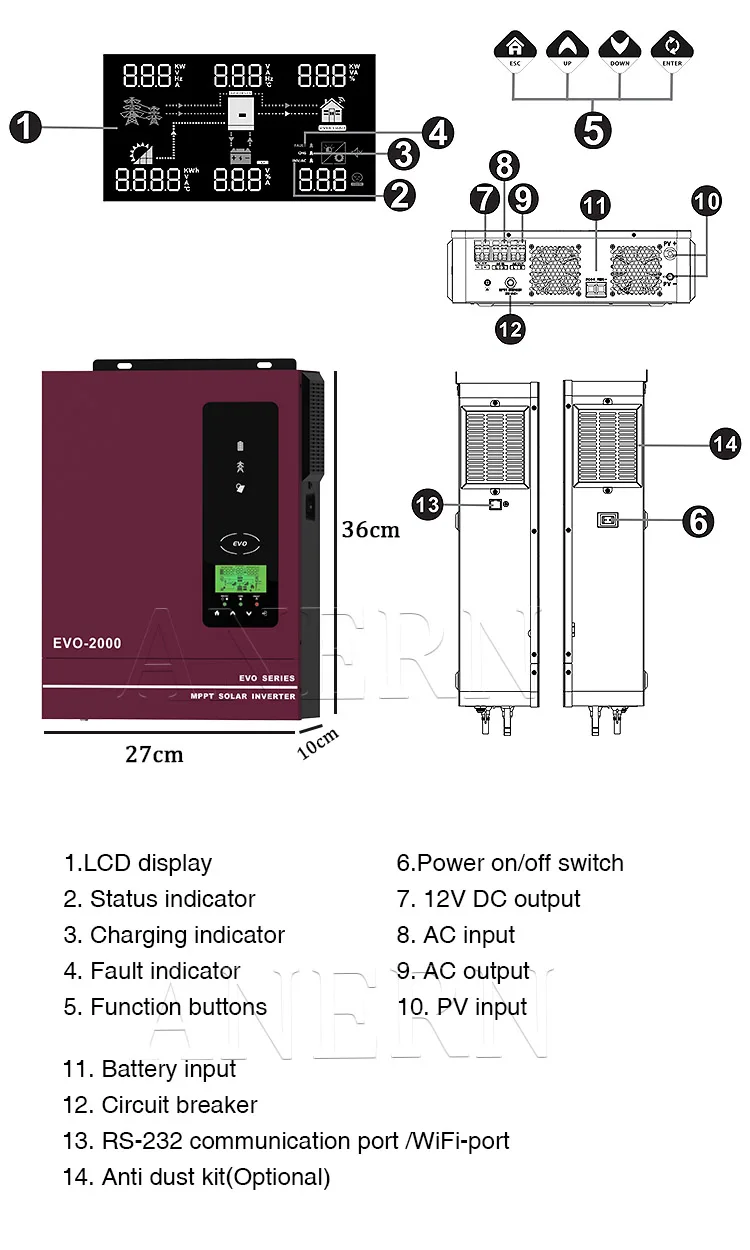

Model | SCI-EVO-2000 | |
RATED POWER | 2000KVA/1600W | |
AC INPUT | ||
AC Input Voltage | 230VAC | |
Selectable Voltage Range | 170-280 VAC (For Personal Computers) | |
90-280 VAC (For Home Appliances) | ||
Frequency Range | 50 Hz/60 Hz (Auto sensing) | |
AC OUTPUT | ||
AC Voltage Regulation (Batt. Mode) | 230VAC ± 5% | |
Surge Power | 4000VA | |
Efficiency (Peak) PV to Inverter | 98% | |
Efficiency (Peak) Battery to Inverter | 94% | |
Transfer Time | 10 ms (For Personal Computers); 20 ms (For Home Appliances) | |
Waveform | Pure sine wave | |
BATTERY & AC CHARGER | ||
Battery Voltage | 12VDC | |
Floating Charge Voltage | 13.5VDC | |
Overcharge Protection | 16VDC | |
Maximum AC Charge Current | 60A | |
SOLAR CHARGER | ||
Maximum PV Array Power | 2000W | |
MPPT Range @ Operating Voltage | 30-400VDC | |
Maximum PV Array Open Circuit Voltage | 400VDC | |
Maximum Charging Current | 80A | |
PHYSICAL | ||
Dimension, D x W x H (mm) | 360*270*100mm | |
Net Weight (kg) | 4.4 | |
INTERFACE | ||
Communication interface | WIFI | |
OPERATING ENVIRONMENT | ||
Humidity | 5% to 95% Relative Humidity(Non-condensing) | |
Operating Temperature | –10°C - 50°C | |
Storage Temperature | –15°C - 60°C | |
