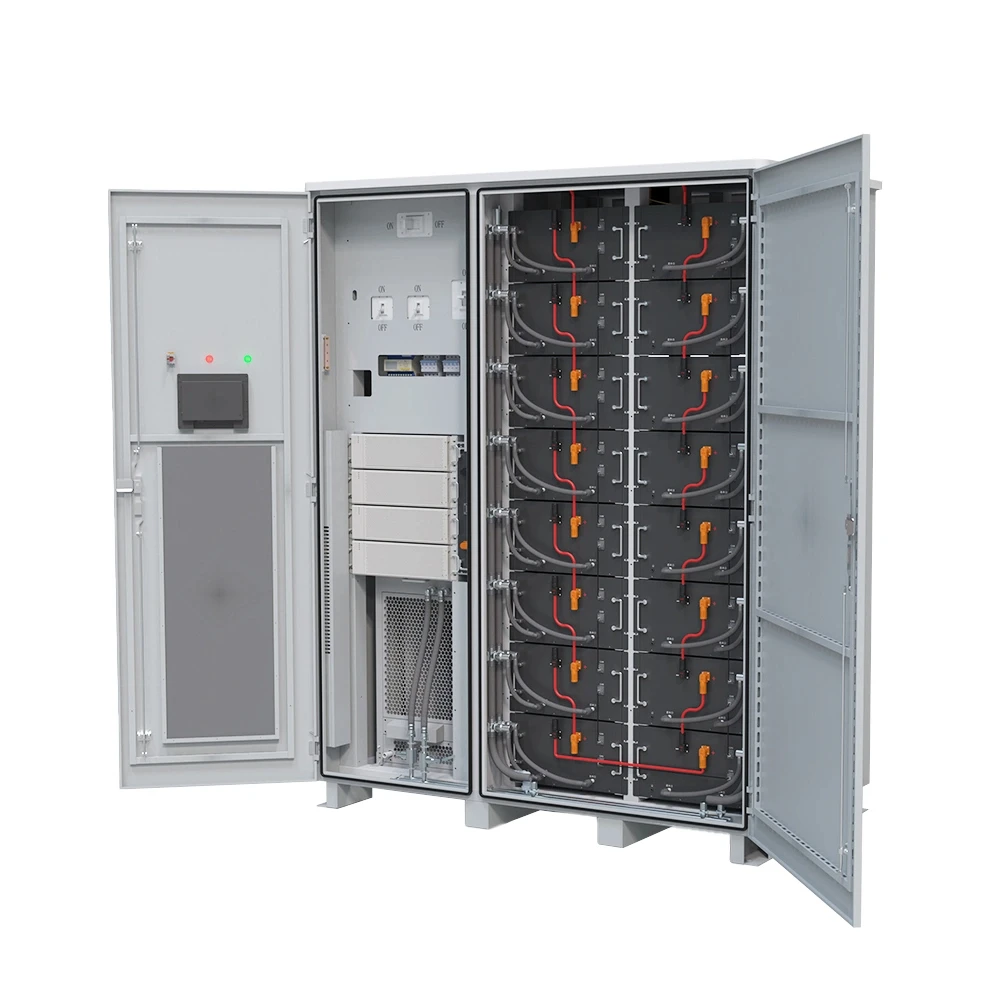

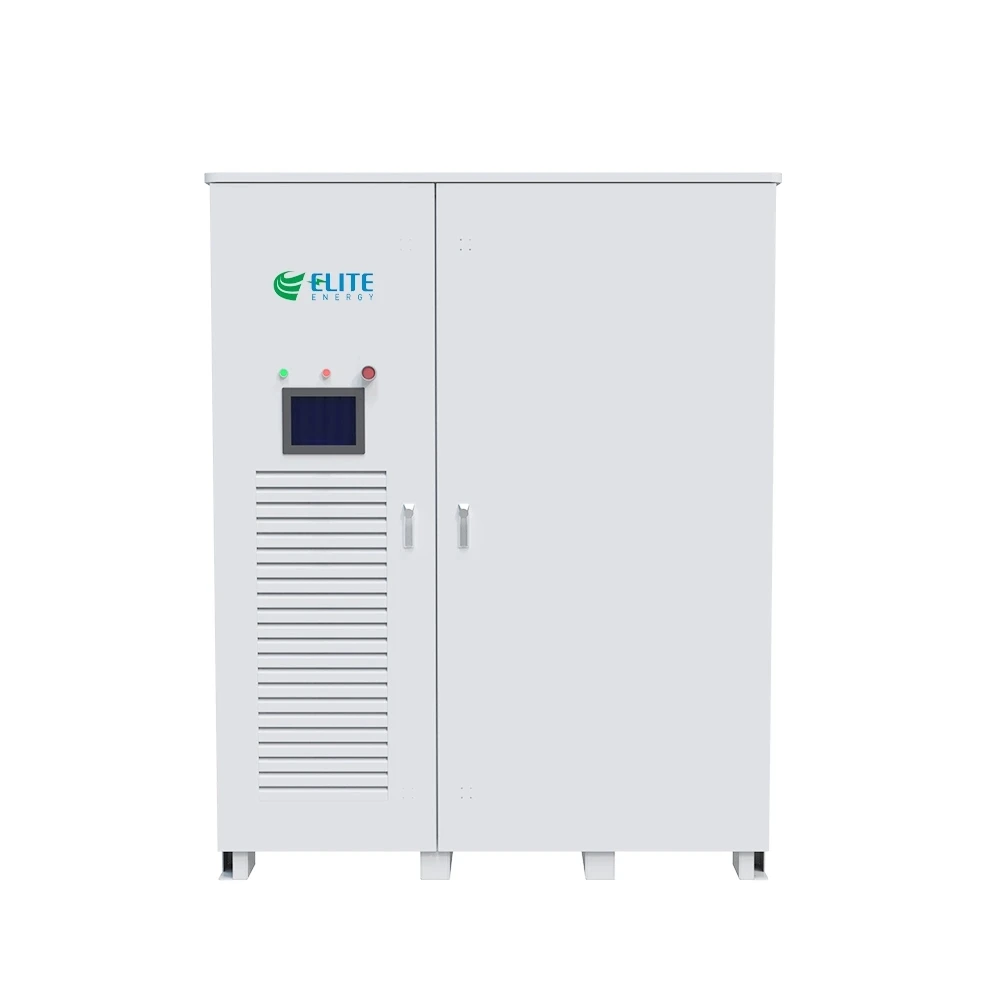

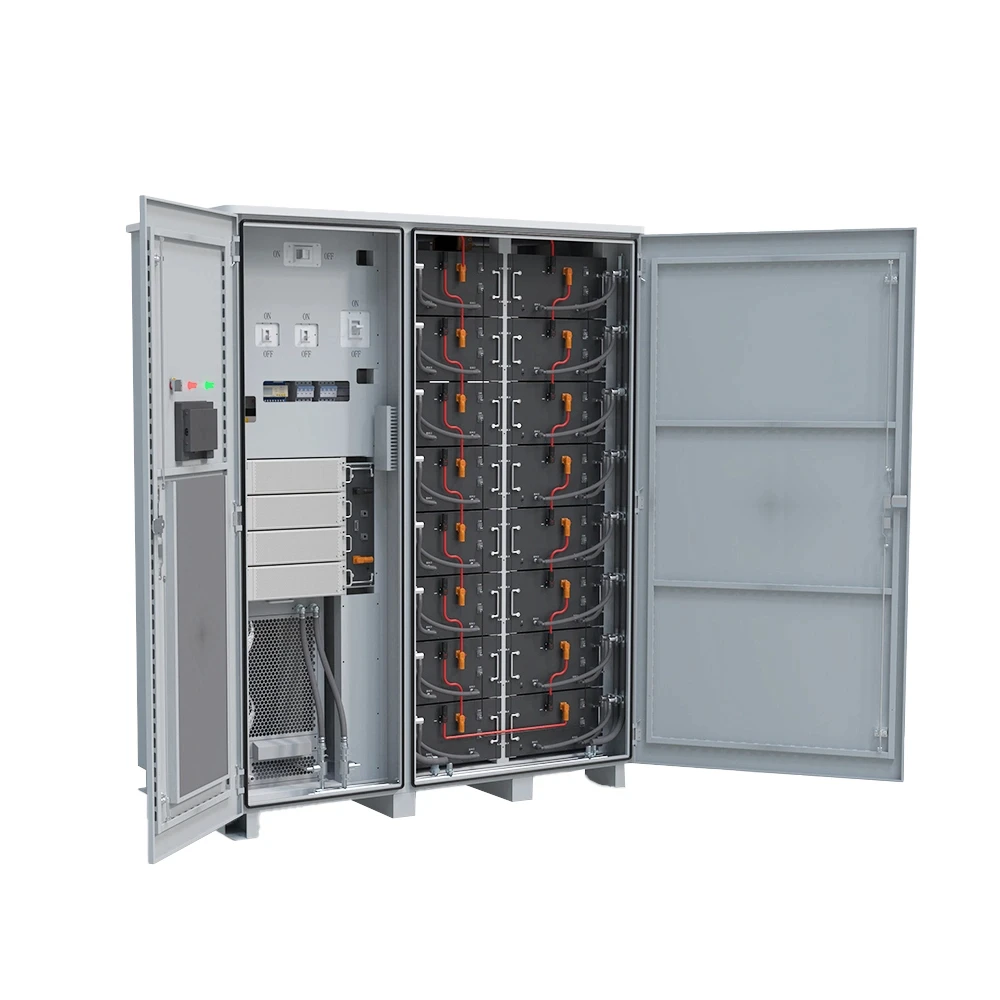

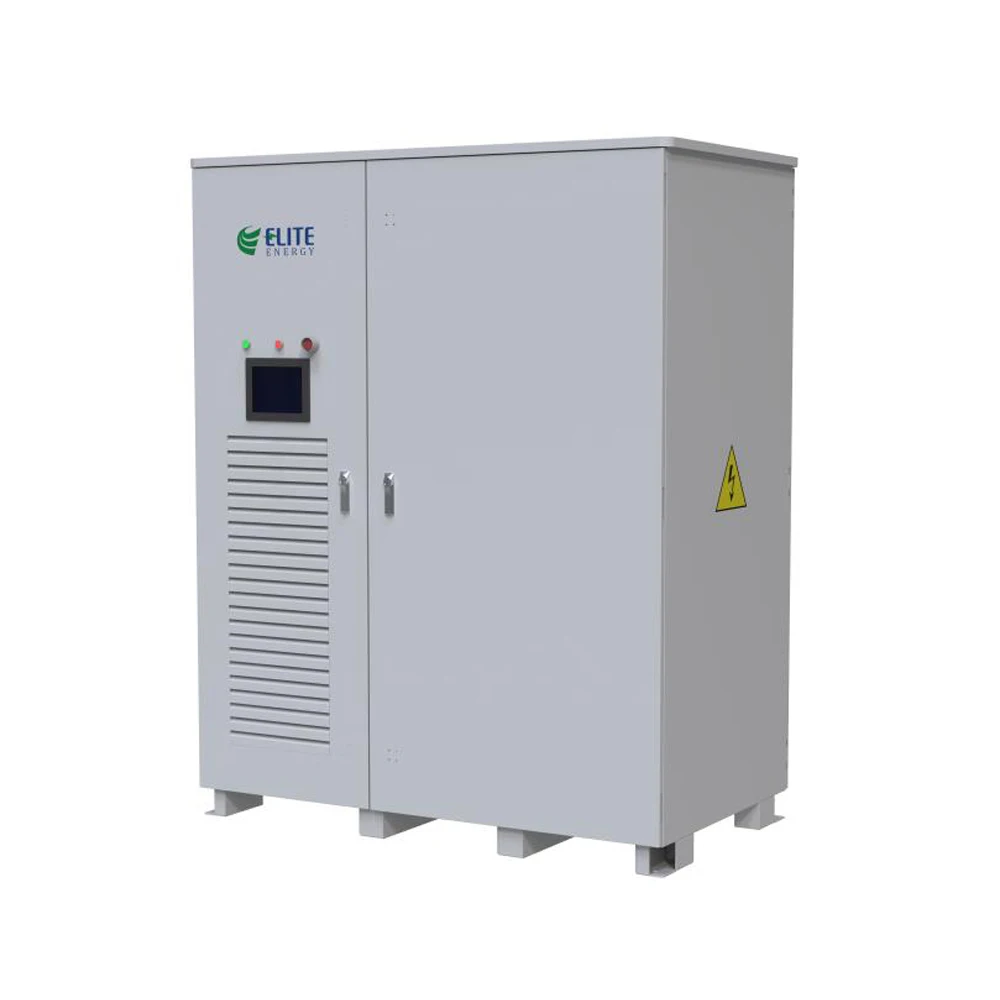

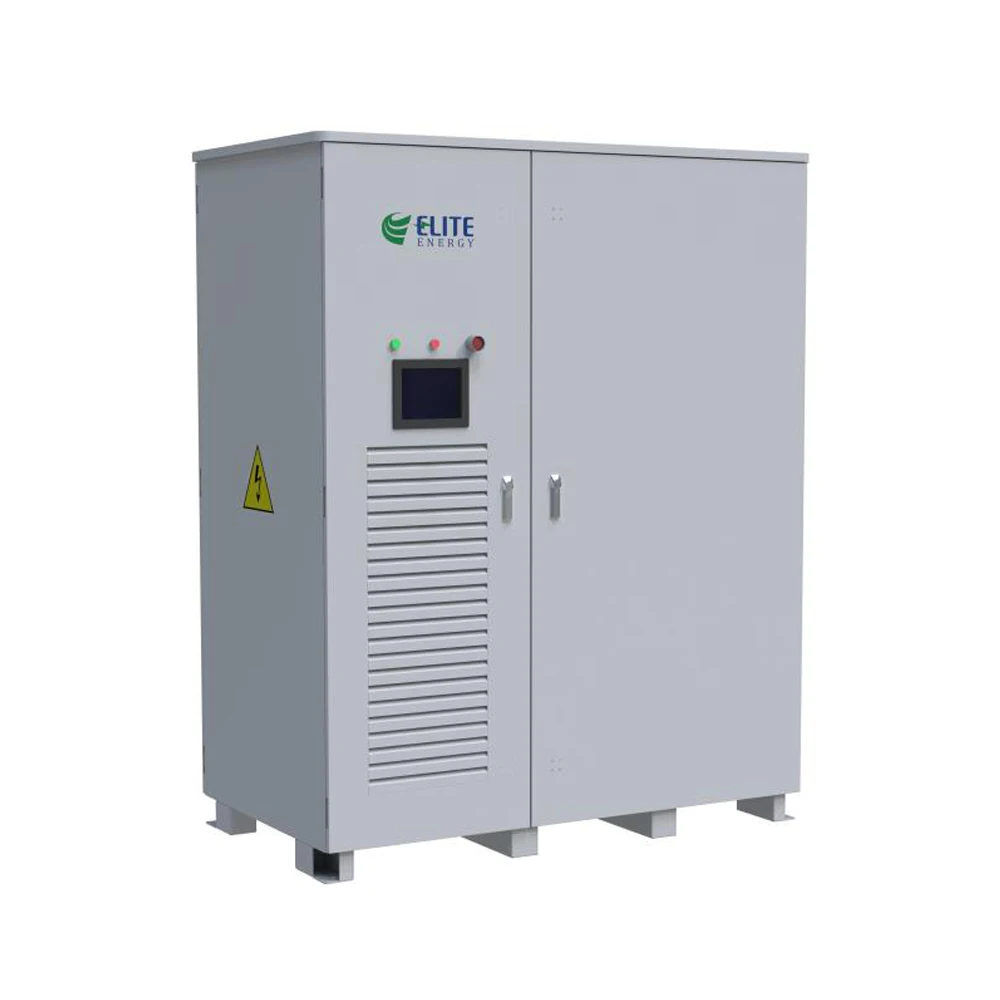

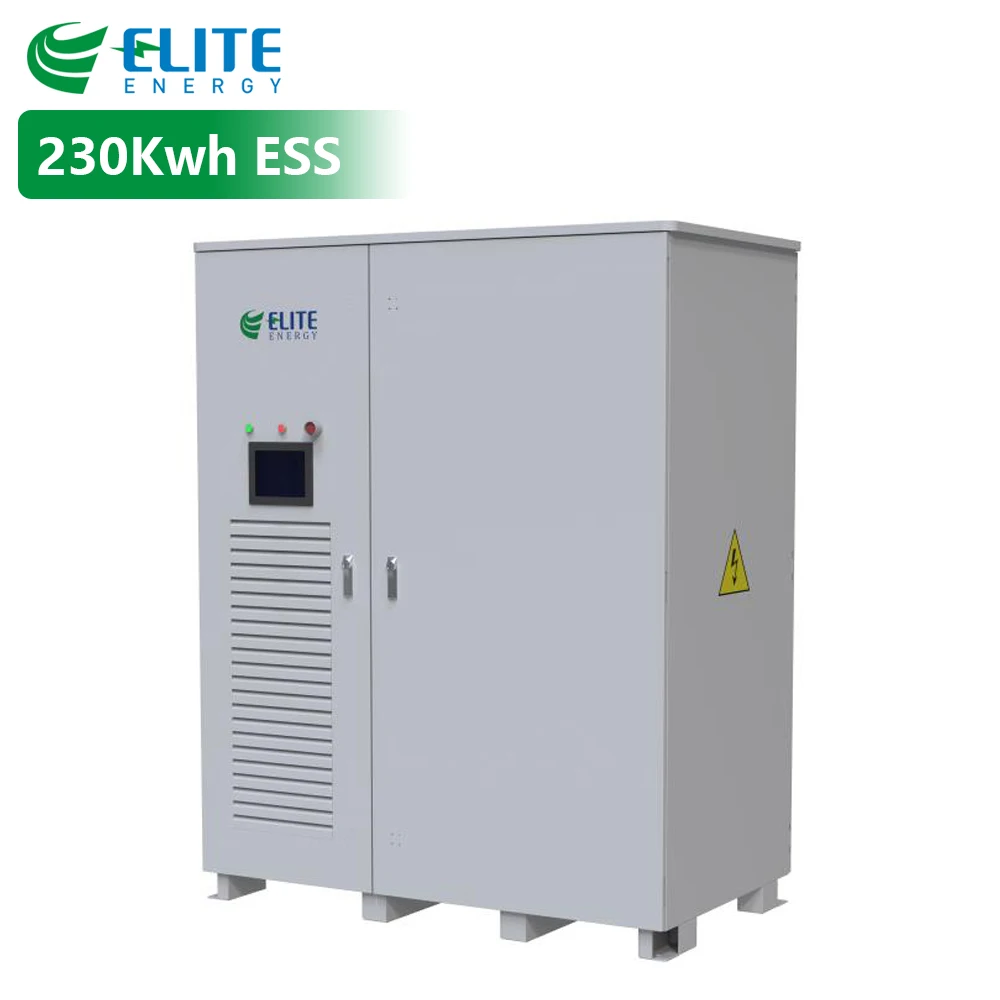

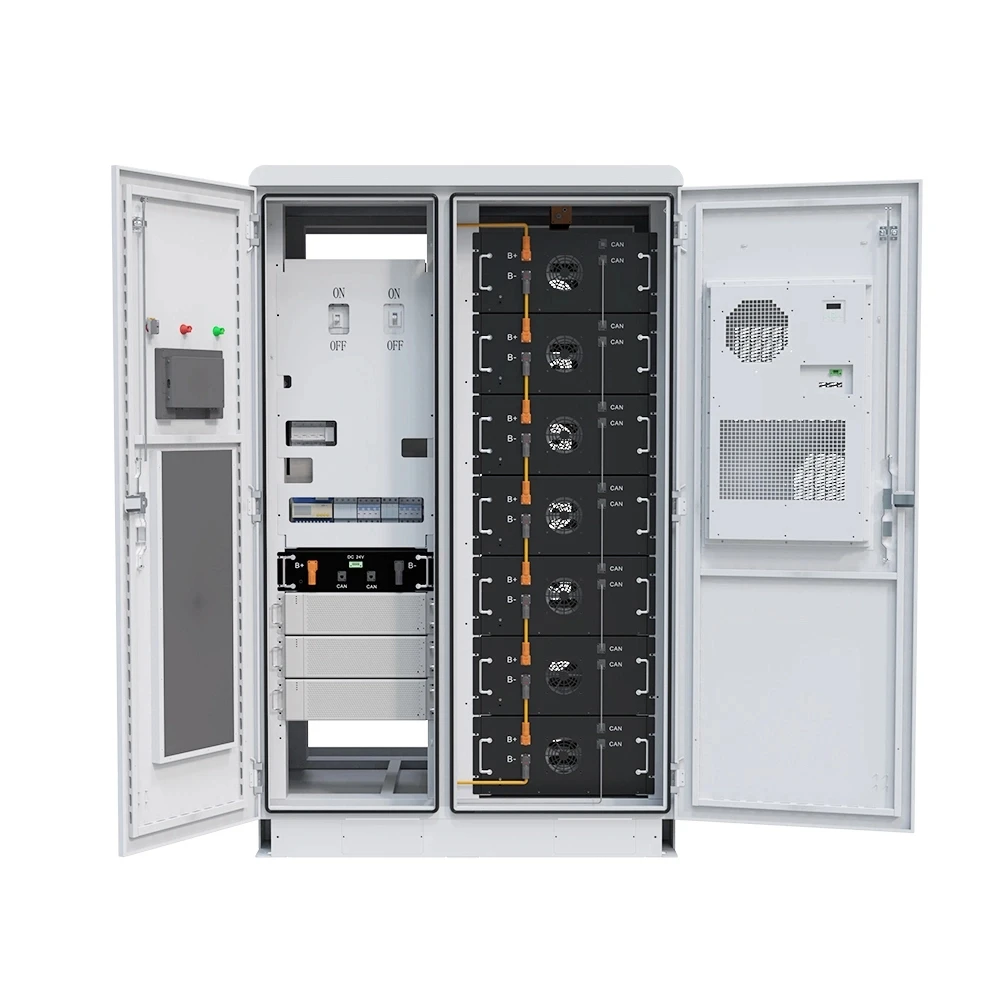

230kWh Energy Storage Cabinet High Voltage Liquid Cooling All In One Lithium Ion Battery For Industrial Commercial Solar System
- Category: >>>
- Supplier: Dongguan Elite New Energy Co. Ltd.
Share on (1601178574150):
Product Overview
Description
ELITE Industrial Commercial Energy Storage System 230kWh Container Liquid Cooling High Voltage BESS Solar Lithium Battery
Product Paramenters
Product model | ELTE230K120 | ELT114K60 | ||
Battery System Parameters | ||||
Cell Type | LFP 3.2V/280AH | LFP 3.2V/135Ah | ||
Battery Module | 51.2V 280Ah 14.336kWh | 76.8V 135Ah 10.368kWh | ||
Number of Battery Modules | 16 | 11 | ||
Rated Energy | 229.376kWh | 114.048kWh | ||
Rated Voltage | 819.2V | 844.8V | ||
Voltage Range | 665.6~934.4V | 660.0-963.6V | ||
Charge and Discharge Rate | ≤0.6C | ≤0.6C | ||
DOD | 95% | 95% | ||
Lifetime | >6000 cycles | >6000 cycles | ||
Cooling Method | Liquid cooling | Air cooling | ||
Fire Protection System | Thermal aerosol fire extinguishing systems | Thermal aerosol fire extinguishing systems | ||
PCS Parameters | ||||
Rated Power | 120kW | 60kW | ||
Rated DC Voltage | 800V | 800V | ||
Max.DC Current | 176A | 88A | ||
Rated Grid Voltage | 230/400V 3P+N+PE | 230/400V 3P+N+PE | ||
Rated Frequency | 50Hz | 50Hz | ||
Over-load Capability | 1.1 10min;1.2 1min | 1.1 10min;1.2 1min | ||
Maximum Photovoltaic Input Voltage | 1000V | 1000V | ||
Maximum Photovoltaic Power | 60kW | 60kW | ||
MPPT Operating Voltage Range | 200~850V | 200~850V | ||
MPPT Input Way | 1 | 1 | ||
Maximum Input Current | 200A | 200A | ||
System Parameters | ||||
Communication Interface(EMS) | LAN | LAN | ||
Installation Environment | Indoor/outdoor | Indoor/outdoor | ||
IP Grade | IP54 | IP54 | ||
Operating Humidity Range | 5%RH-95%RH | 5%RH-95%RH | ||
Operating Temperature Range | -20C-55C | -20C-55C | ||
Noise | 65db | 65db | ||
Maximum Working Altitude | 3000m | 3000m | ||
Dimensions(L*W*H) | 1850*1070*2350mm | 1360*2000*1130mm | ||
Weight | 2700Kg | 1350kg | ||
Product Features
1. All in one system. integated with Battery, Inverter, MPPT, EMS
2. With black start, uninterrupted power supply
3. Apply to hybrid grid/off grid system
4. Optional cooling of air cooling and liquid cooling
5. Widely applicable for industrial and commercial energy storage
6. System can be expaded
3. Apply to hybrid grid/off grid system
4. Optional cooling of air cooling and liquid cooling
5. Widely applicable for industrial and commercial energy storage
6. System can be expaded
OEM / ODM Supported
1. All models of shell material, battery dimension, color, label can be customized.
2. BMS functions(like Bluetooth function and LCD display function) can be customized.
3. New BMS or battery model developing is available, professional battery solution will be provided based on customers' requirements.
2. BMS functions(like Bluetooth function and LCD display function) can be customized.
3. New BMS or battery model developing is available, professional battery solution will be provided based on customers' requirements.
Certifications
Products with CE, UKCA, MSDS, UN38.3, BIS, etc. approved;
Factory with ISO9001, ISO14001 and ISO45001 certificated.
Founded in 2017, Elite New Energy Co., Ltd. is a high-tech enterprise specializing in the R&D and production of LiFePO4 battery systems for EV, ESS, lead acid battery replacement and many other different applications.
Equipped with state-of-art facilities and equipment, certified with Quality System ISO9001, Environmental Management System ISO14001, and Occupation Health and Management System ISO45001, complied with up- to-date certifications: CE, BIS, MSDS, UN38.3, Elite New Energy’s products perfectly meet international standards with most excellent performance and safety Compliance, and fully qualified for high end OEM/ODM markets.
Elite New Energy now have strong R&D centers for developing leading technologies and applying them to the product design, so as to providing high quality and excellent performance LiFePO4 battery solution.
FAQ
Q1. Do you have MOQ (Minimum Order Quantity) limit?
A: No, Elite do not have MOQ limit, sample order or small volume is available.
Q2. What about the lead time?
A: Standard product lead time: Samples: 3-5 days, Bulk order: 3-4 weeks.
Customized product lead time: 3-4 weeks both for sample or bulk order.
Q3. How do you ship the goods? How about the shipping time?
A: By air door to door (6-12 days): FEDEX, UPS or DHL, suitable for urgent small order.
By sea door to door (25-50 days): suitable for bulk order.
By sea to delivery port (20-35 days): Suitable for bulk order.
By Air to airport (3-5 days): Suitable for urgent heavy package.
Q4. How to proceed with an order?
A: Firstly, providing your requirements or applications, then we will provide battery solution and quote accordingly. Secondly, confirming the order and do the deposit for it, then we will arrange the production.
Q5. Is it available to print my logo on the product?
A: Yes. Just send us you logo and we will make a label for the product. For product with metal/aluminum case, logo silk-print on the case is available.
Q6.Which Certificates do you have?
A: Factory with ISO9001, ISO14001 and ISO45001 approved;
Products with CE/UKCA/UN38.3/MSDS/etc..
Q7.How about the product warranty?
A: 3 years warranty + product lifetime technical support.
Q8: How can I pay for the order?
A: T/T, Paypal, L/C, etc..
Other payment options please contact us before order confirmation.
