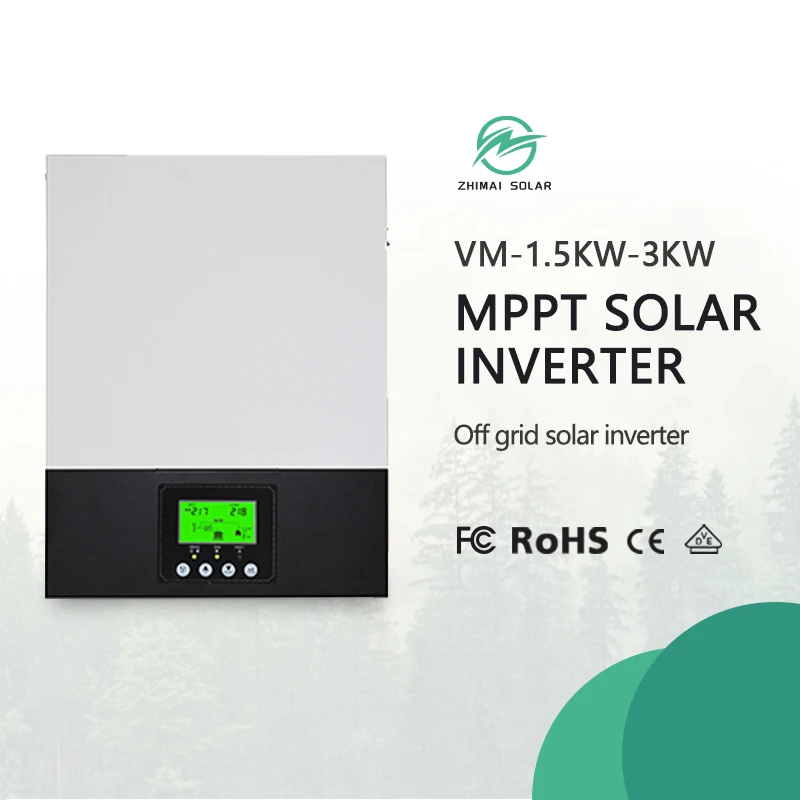

DC AC Pure Sine Wave Inverter 1.5KW 3KW 1500w 3000w with Input AC PV Generator Compatible 2 Mppts
- Category: >>>
- Supplier: Zhimai (shenzhen) New Energy Co. Ltd.
Share on (1601178636045):
Product Overview
Description
Line Mode Specifications | 1.5KW | 3KW | ||
Rated Output Power | 1500VA/1500W | 3000VA/2400W | ||
Input Voltage Waveform | Sinusoidal (utility or generator) | |||
Nominal input Voltage | 230Vac | |||
Low Loss Voltage | 170Vac ±7V(UPS) 90Vac ±7V(Appliances) | |||
Low Loss Return Voltage | 180Vac ±7V(UPS) 100Vac +7V(Appliances) | |||
High Loss Voltage | 280Vac ±7V | |||
High Loss Return Voltage | 270Vac ±7V | |||
Max AC Input Voltage | 300Vac | |||
Nominal input Frequency | 50Hz/60Hz(Auto detection) | |||
Low Loss Frequency | 40 ±1Hz | |||
Low Loss Return Frequency | 42 ±1Hz | |||
High Loss Frequency | 65 ±1Hz | |||
High Loss Return Frequency | 63 ±1Hz | |||
Output Short Circuit Protection | Circuit Breaker | |||
Efficiency (Line Mode) | ＜95%(Rated R load, battery full charged ) | |||
Transfer Time | 10ms typical (UPS); 20ms typical (Appliances) | |||
Inverter Mode Specifications | ||||

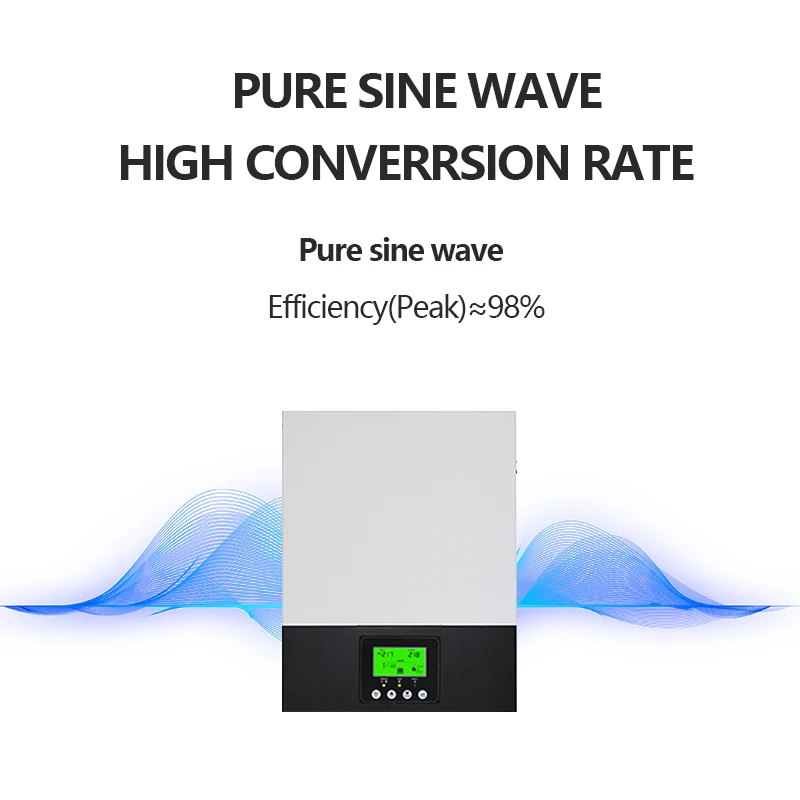

Output Voltage Waveform | Pure Sine wave | |||
Output Voltage Regulation | 230Vac+5% | |||
Output Frequency | 50Hz | |||
Peak Efficiency | 91% | |||
Overload Protection | 5s@=150%load;10s@110%-150%load | |||
Surge Capacity | 2*rated power for 5 seconds | |||
Nominal DC input Voltage | 12Vdc | 24Vdc | ||
Cold Start Voltage | 11.5Vdc | 23.0Vdc | ||
Low DC Warning Voltage | ||||
@load＜50% | 11.0Vdc | 22.0Vdc | ||
@load > 50% | 10.5Vdc | 21.0Vdc | ||
Low DC Warning Return Voltage | ||||
@load＜50% | 11.5Vdc | 22.5Vdc | ||
@load > 50% | 11.0Vdc | 22.0Vdc | ||
Low DC CutoffVoltage | ||||
@load＜50% | 10.2Vdc | 20.5Vdc | ||
@load > 50% | 9.6Vdc | 20.0Vdc | ||
High DC Recovery Voltage Frequency | 14.0Vdc | 32Vdc | ||
High DC Cut off Voltage | 16.0Vdc | 33Vdc | ||
No Load PowerConsumption | ＜25W | ＜30W | ||
Charging Mode Specifications | ||||
Charging Algorithm | 3-Step | |||
AC Charging Current(Max) | 60Amp | 60Amp | ||
Bulk Charging Voltage Flooded Battery | 14.6 | 29.2 | ||
14.1 | 28.2 | |||
Floating Charging Voltage AGM/Gel Battery | 13.5Vdc | 27Vdc | ||
MPPT Solar Charging Mode | ||||
Max PV Array Power | 2000W | 3000W | ||
Nominal Pv Voltage | 240Vdc | |||
PV Array MPPT Voltage Range | 90 -430Vdc | |||
Max PV Array Open Circuit Voltage | 450Vdc | |||
Max Charging Current(AC charger plus solar charger) | 80Amp | 80Amp | ||
Maxmiun Solar Charging Current | 80Amp | 80Amp | ||
Safety Certification | CE | |||
Operating Temperature Range | -10°C-50°C | |||
Storage Temperature | -15°C-60”C | |||
Humidity | 5% to 95% Relative Humidity(Non-condensing) | |||
Dimension(D*W*H),mm | 348X270X95 | |||
Net Weight, kg | 4 | 5 | ||
