Digital Class D Processor 1U Professional Dsp Audio Power Amplifier Dante Digital Signal Processor
Digital Class D Processor 1U Professional Dsp Audio Power Amplifier Dante Digital Signal Processor

Digital Class D Processor 1U Professional Dsp Audio Power Amplifier Dante Digital Signal Processor

Share on (1601180450995):


Price:$1,227.00-1,288.33

Quantity:


Product Overview

Description

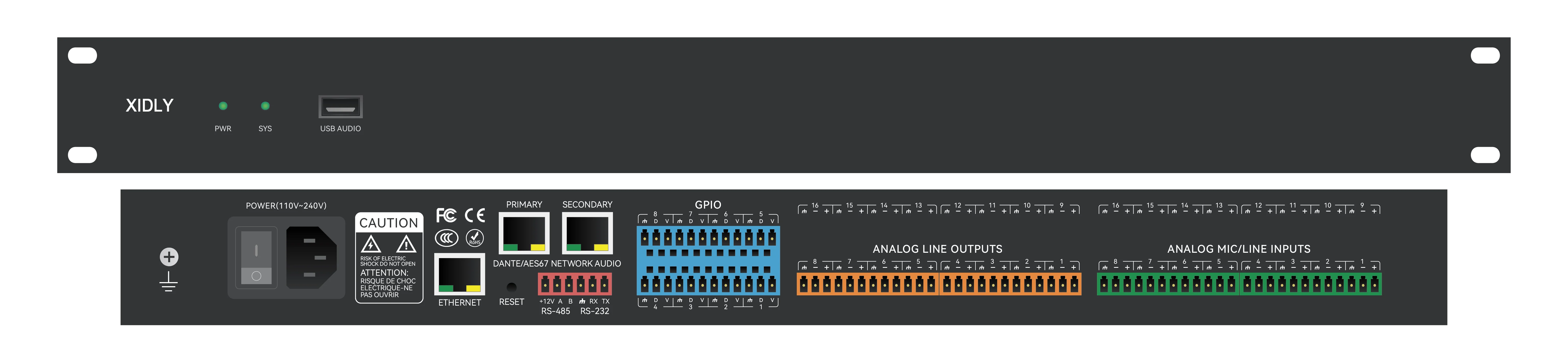

Dante Digital Signal Processor
XY-88DAE



































Number of Dante input and output channels: 8 x 8















Processor: ADI SHARC 21489
Sampling rate/quantization bit: 48K/24bit
40bit DSP floating point engine
Input gain: 0/3/6/9/12/15/18/21/24/27/30/33/36/39/42/45/48 dBu
Phantom power supply:+48V/10mA max
Frequency response (20~20kHz): ± 0.3dB
Maximum level:+18dBu
THD+N:<-95dB @17dBu
Input dynamic range: 113dB
Output dynamic range: 113dB
Channel isolation @ 1kHz: 108dB
Input impedance (balanced connection): 5.4K Ω
Output impedance (balanced connection): 600 Ω
System delay:<3ms
Working power supply: AC110~240V, 50Hz/60Hz
Dimensions (W x D x H): 482 x 260 x 45mm
Transportation weight: 4kg
