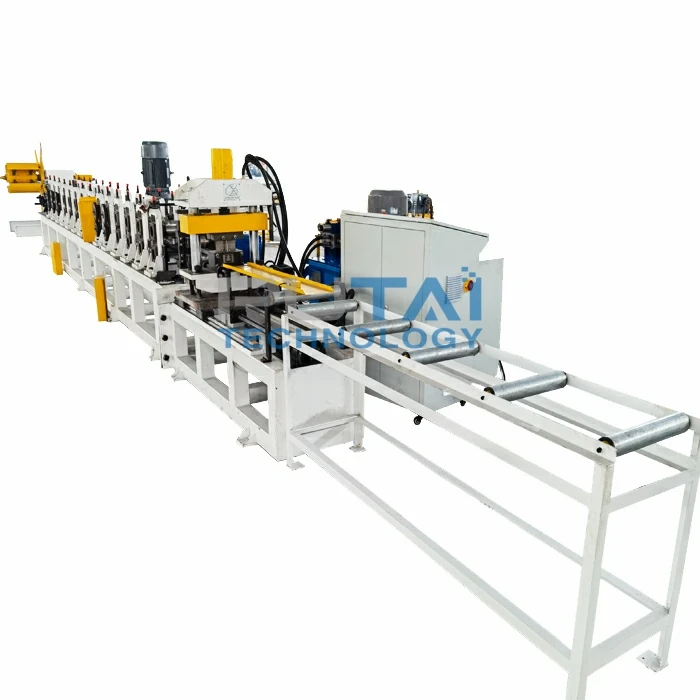

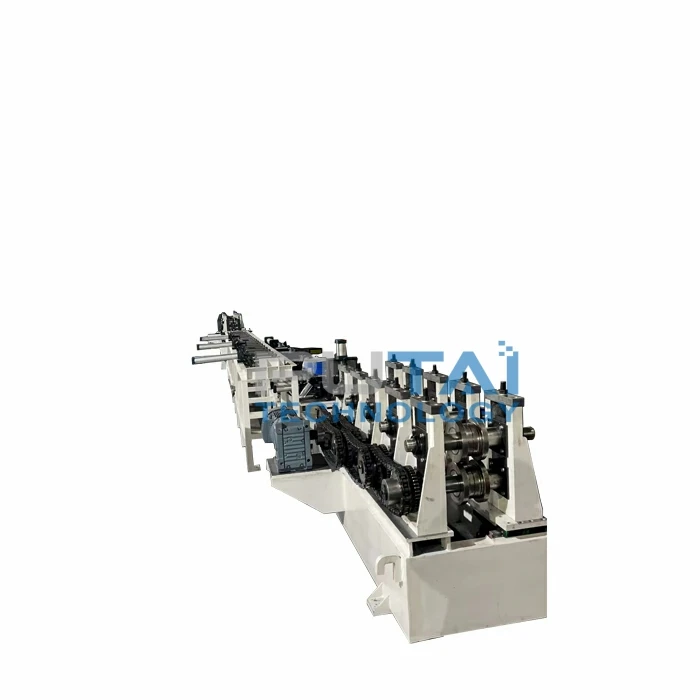

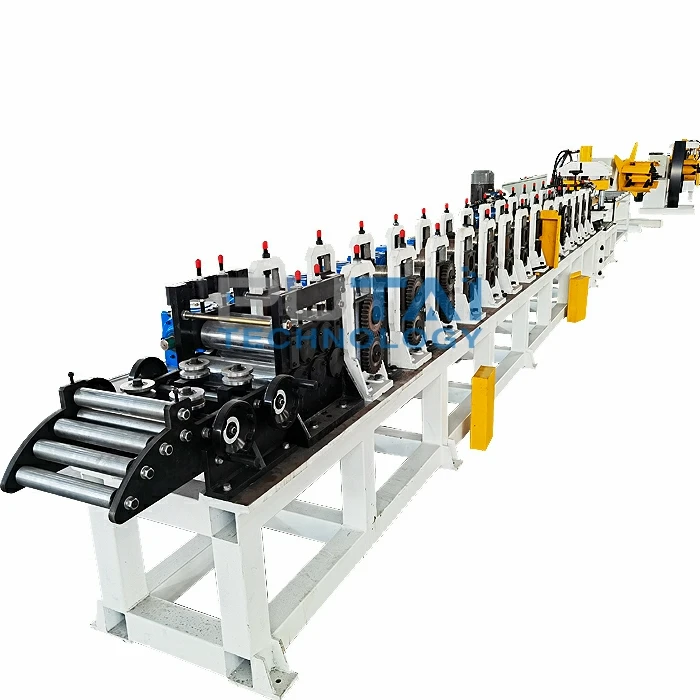

Heavy Duty Pallet Racking Upright Roll Forming Machine Steel Pallet Rack Shelf Storage Roll Forming Machine
- Category: >>>
- Supplier: Bazhou Chenglang Keel Equipment Co. Ltd
Share on (1601180525893):
Product Overview
Description
Product Description
Heavy Duty Pallet Racking Upright Roll Forming Machine Steel Pallet Rack Shelf Storage Roll Forming Machine

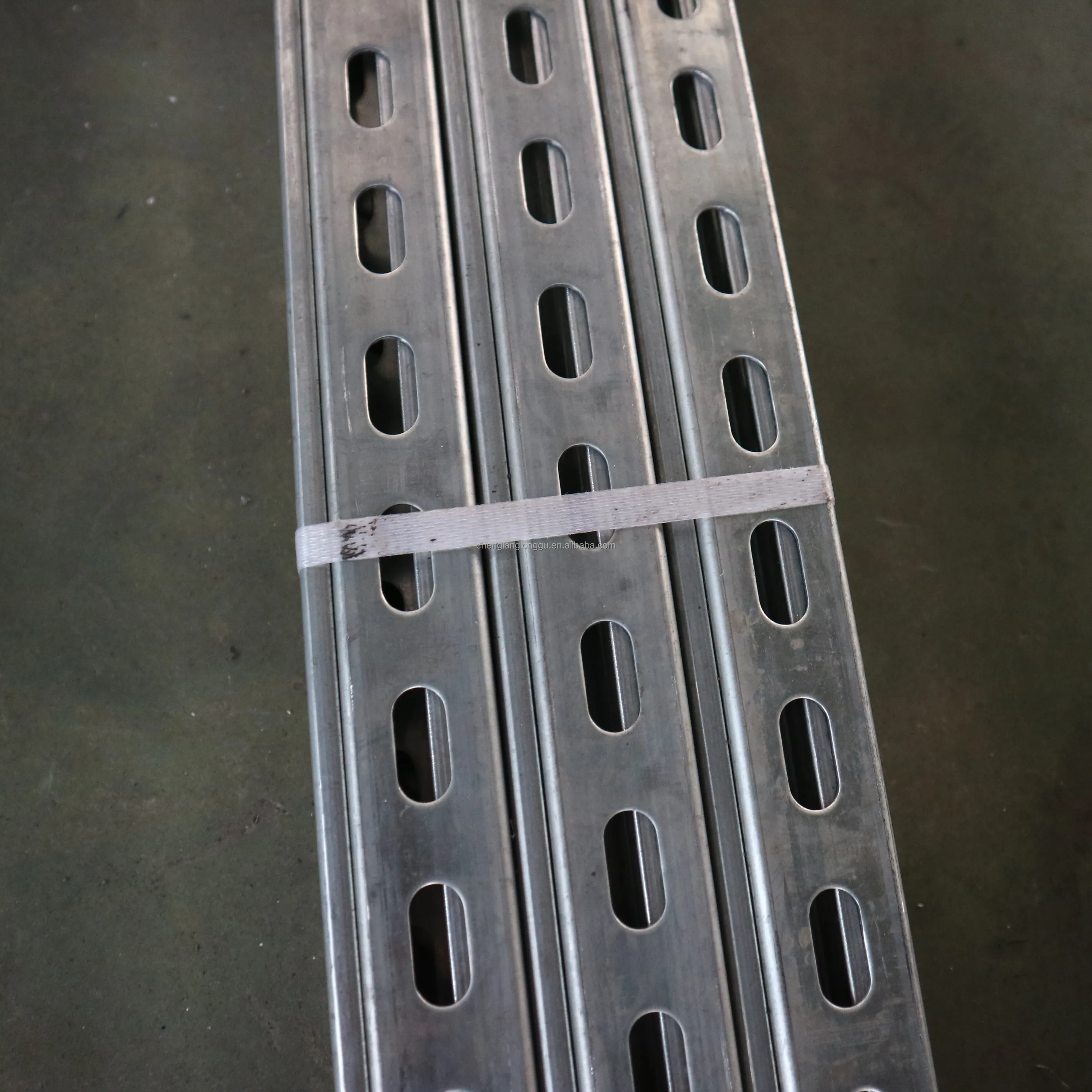

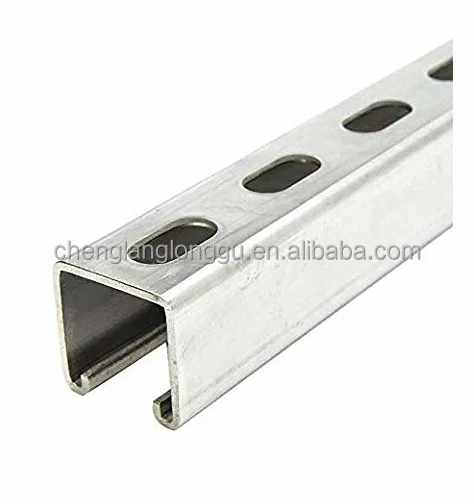

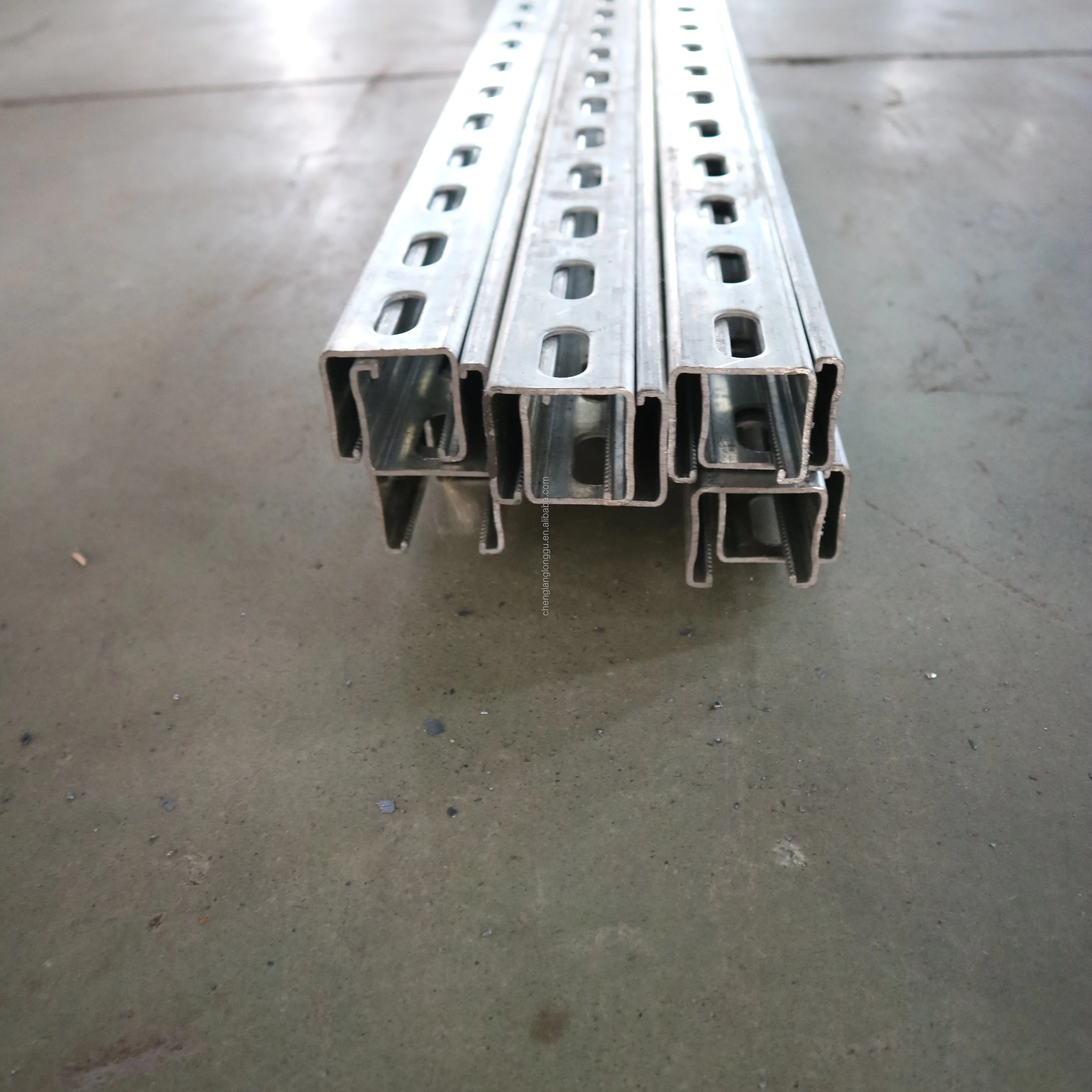

Strut Channel
Strut Packing

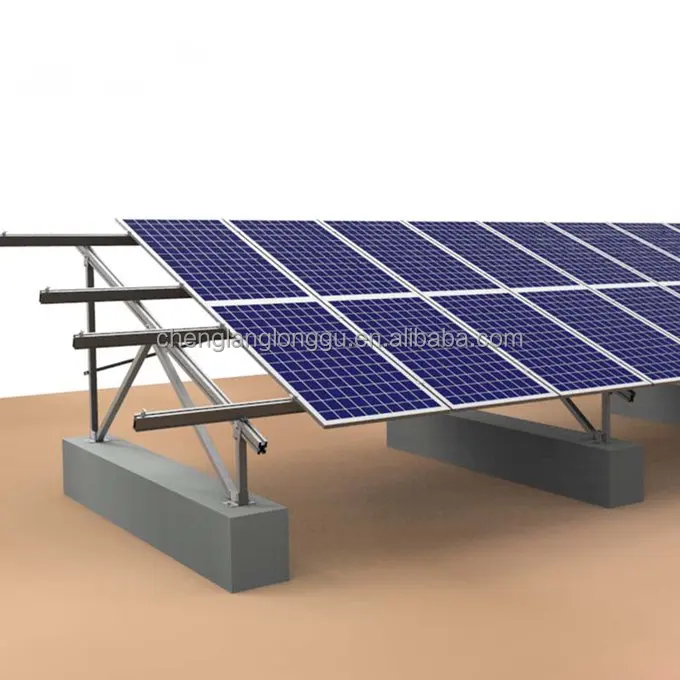

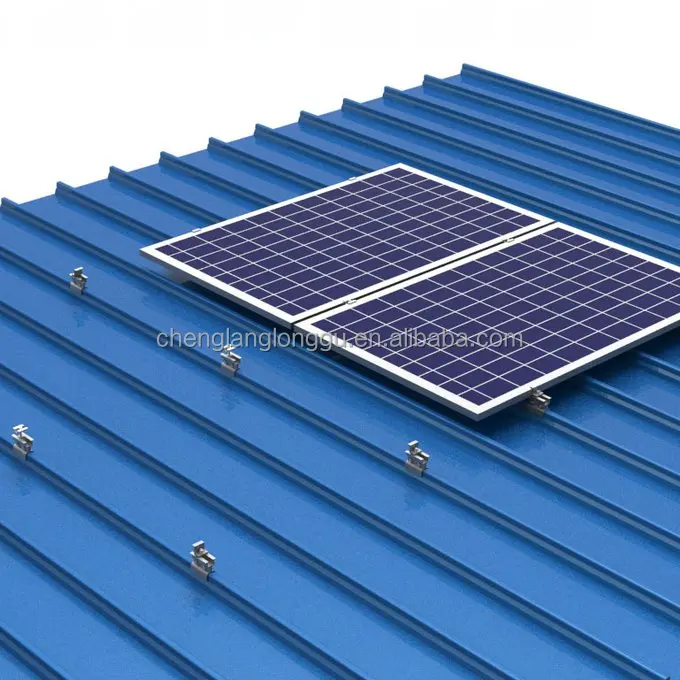

Solar Strut Channel

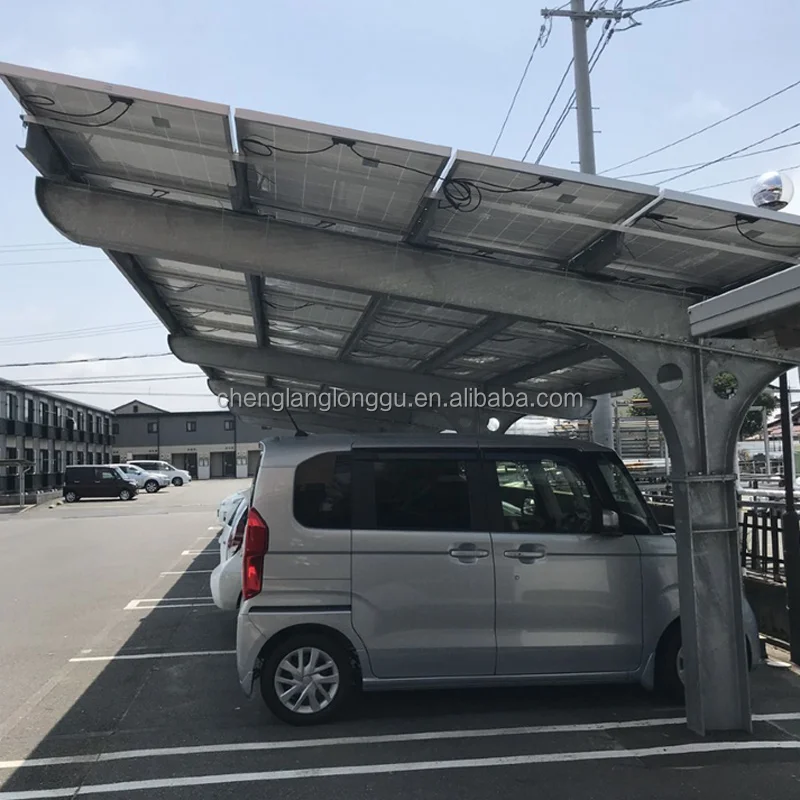

Project case
Strut channel roll forming machine is also called like seismic support roll forming machine or seismic channel roll forming
machine, its product is used to mount, brace, support, and connect lightweight structural loads in building construction. Our strut channel roll forming machine is suitable to produce strut channels with 12 gauge(2.6mm) or 14 gauge(1.9mm) thick sheet metal (normally range 2-2.5mm), raw material could be Hot-rolled and cold rolled steel, Hot-dip galvanized sheet, Pre-Galvanized Steel, Mill(Plain/Black) Steel, Aluminum, Stainless Steel, etc. And according to slot type, our machine could produce solid channels,slotted channels, half-slotted channels, long-slotted channels, punched channels, punched and slotted channels, etc.PUTAI has much experience with solar photovoltaic stent roll-forming machines. We exported to Saudi Arabia, Turkey, Iraq, India, Kuwait, Qatar, Pakistan, Argentina, etc. We have made the strut channel profile, and American standard profile as well. The most popular size of strut channel profile is 40*21, 41*41, and 41*62, and our roll forming machine could produce 3-5 sizes(eg: 41x21,41x41, 41x62) in one machine (by manually changing spacers), the working speed can reach 16m/min.Now we have two workshops producing solar photovoltaic stents and we export them to the USA. If you come to visit us, we would like to show you the production line.
machine, its product is used to mount, brace, support, and connect lightweight structural loads in building construction. Our strut channel roll forming machine is suitable to produce strut channels with 12 gauge(2.6mm) or 14 gauge(1.9mm) thick sheet metal (normally range 2-2.5mm), raw material could be Hot-rolled and cold rolled steel, Hot-dip galvanized sheet, Pre-Galvanized Steel, Mill(Plain/Black) Steel, Aluminum, Stainless Steel, etc. And according to slot type, our machine could produce solid channels,slotted channels, half-slotted channels, long-slotted channels, punched channels, punched and slotted channels, etc.PUTAI has much experience with solar photovoltaic stent roll-forming machines. We exported to Saudi Arabia, Turkey, Iraq, India, Kuwait, Qatar, Pakistan, Argentina, etc. We have made the strut channel profile, and American standard profile as well. The most popular size of strut channel profile is 40*21, 41*41, and 41*62, and our roll forming machine could produce 3-5 sizes(eg: 41x21,41x41, 41x62) in one machine (by manually changing spacers), the working speed can reach 16m/min.Now we have two workshops producing solar photovoltaic stents and we export them to the USA. If you come to visit us, we would like to show you the production line.
Detailed Images

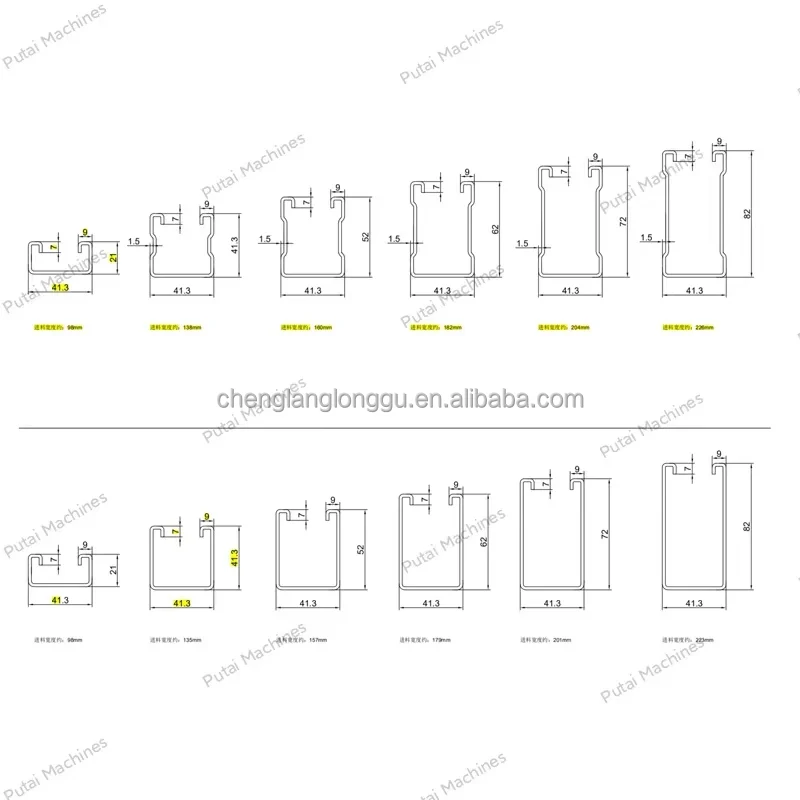

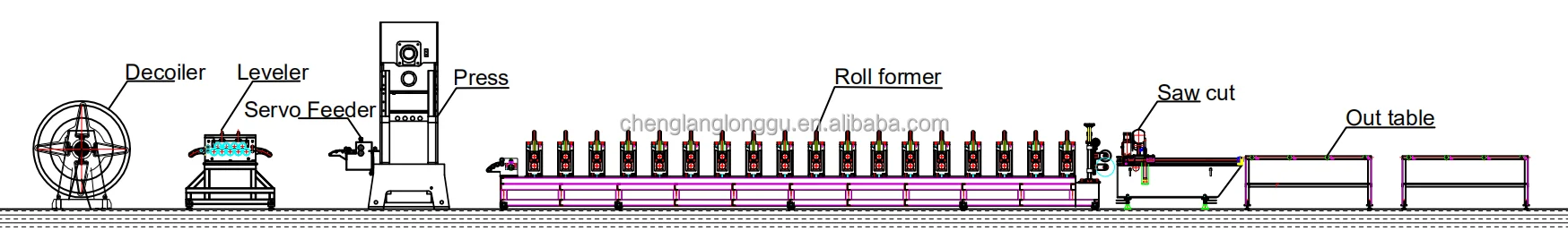

Product detail drawing

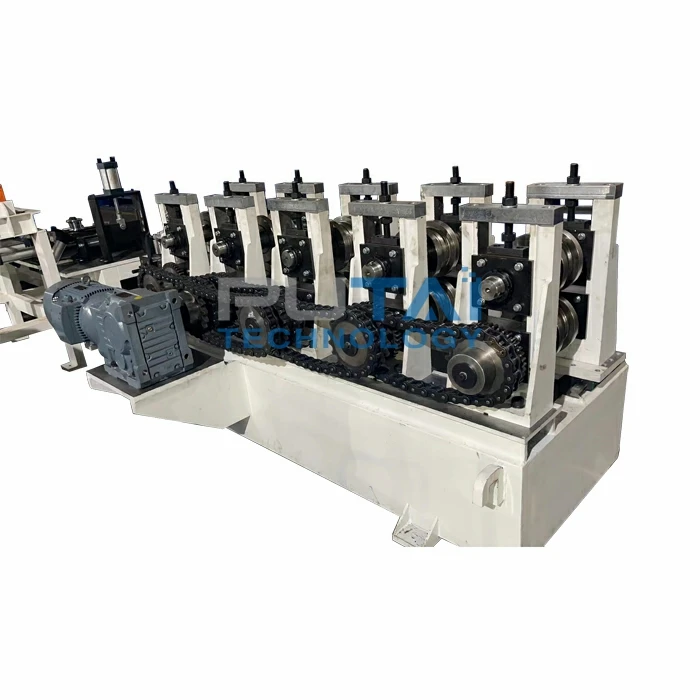

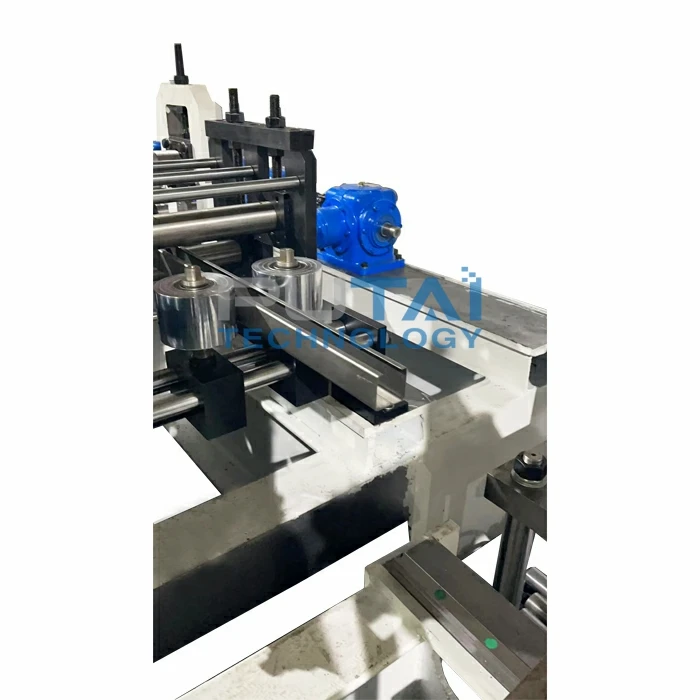

1.Roller | 2.Better Productivity | 3.The use of graduated nuts |
Cr12 (also known as D3) steel is a high-carbon, high-chromium steel alloy used in the production of rollers for various applications, including the manufacturing of asymmetrical sectional steel, round steel, and flat steel. Cr12 steel is known for its high wear resistance, toughness, and strength, making it an ideal material for roller production. used for roll forming machine | With gearbox transmission, roll forming machines can operate at high speeds while maintaining accuracy, improving productivity. This is particularly useful when manufacturing large quantities of products in a short amount of time. Gearbox transmission is the standard for many roll forming machines and is designed to withstand high levels of wear and tear. As a result, machines equipped with gearbox transmission require less maintenance than those equipped with alternative transmission systems. | in roll forming machines is essential for ensuring the accuracy and quality of the end product. Any misalignment can cause defects in the final product, which can be costly to correct. Graduated nuts make it possible to adjust the settings of the metal forming rollers and change the machine's configuration quickly, easily, and securely. |
Product Presentation
Product Name | Strut Roll Forming Machine |
Material | GI/PPGI/GL/PPGL |
Power | 16.5KW |
220V/380V/415V According to the customer's national industrial voltage | |
Type | Strut channelt forming machine |
Model | Struct profile |
Roller | 22 Rows |
Decoiler type | load-bearing | Advantage |
Manually deociler | 1.5t/2.5t | Economical applicability(order machine free for you ） |
Hydrualic deociler | 3t/5t | Hydraulic automatic tightening (powerful to loasing steel than manual) |
Double Arm decoiler | 2t+2t/3t+3t | Changing materials is faster and easier（for high speed machine to produce the profile) |
Manually deociler
Hydraulic Decoiler
Double arm decoiler
Related Product
Certificate
Our R & D team has won a number of patent certificates and quality outstanding brand awards
Company Introduction
Our company Bazhou chenglang factory and Putai company(Tianjin Branch) is a professional cold roll forming machine manufacturer,we have been focusing on this field for 23 years. Our equipment includes roof forming machine, floor deck machine, automatic hydraulic uncoiler machine, shutter door coiling machine, light keel cold roll forming machine,stud and track C Z U forming machine, whole equalizer machine and other related construction equipment. With more than 22 years of engineering and design research and develop team. We have two patents for independently developed machine .At the same time, our machines use brand electrical components, raw materials from brand steel mills, strict process control, two year warranty, installation and training services. Our customers all over the world, such as Germany, the United States, Mexico, Chile, Bolivia, Italy, Australia, Kuwait, Saudi Arabia, South Korea, South Africa, Kenya and other countries and regions. We have rich experience in different country needs such as profiles, thickness ranges, use, installation etc.
Company tenet: technological innovation, customer - centered, win-win. Thank you for your trust and choice, we will provide you with the best service support, help you achieve greater success. We look forward to more cooperation with old and new friends from all over the world!
Company tenet: technological innovation, customer - centered, win-win. Thank you for your trust and choice, we will provide you with the best service support, help you achieve greater success. We look forward to more cooperation with old and new friends from all over the world!
Client Feedback
Packing&Shipping
FAQ
1-Are you manufacturer or trading company?
Yes, and we have more than 33 years of the cold roll forming machine
2-Can the machine parts be changed according to my requirements?
Yes, we will try our best to give you the best products.
3-What is your payment term?
30% T/T deposit paid in advance, 70% balance paid before shipping.
4-What is the delivery time?
About 35days after receive the deposit.
5- How can I get to your factory？
We could pick you up in airport or high speed rail station. The nearest airport is Beijing Daxing airport or Tianjin airport, and the nearest station is Bazhou or Shengfang station,please contact us.
6- What service can you provide before order?
About the pre-sale service. We provide you answers of all your questions on our machines,such as technical parameter, price, payment terms, ect. If you wanna visit our factory and check the machines, we also can send you invitation letter and give you our warmest welcome.
7- Can you finish the machine during the delivery time?
We will finish the machine in time according to determined lead time
8-Can you provide some spare parts?
Yes. The quick-wear parts are sent to you together with the roll forming machine
