Tobee Effluent Handling
$12,600

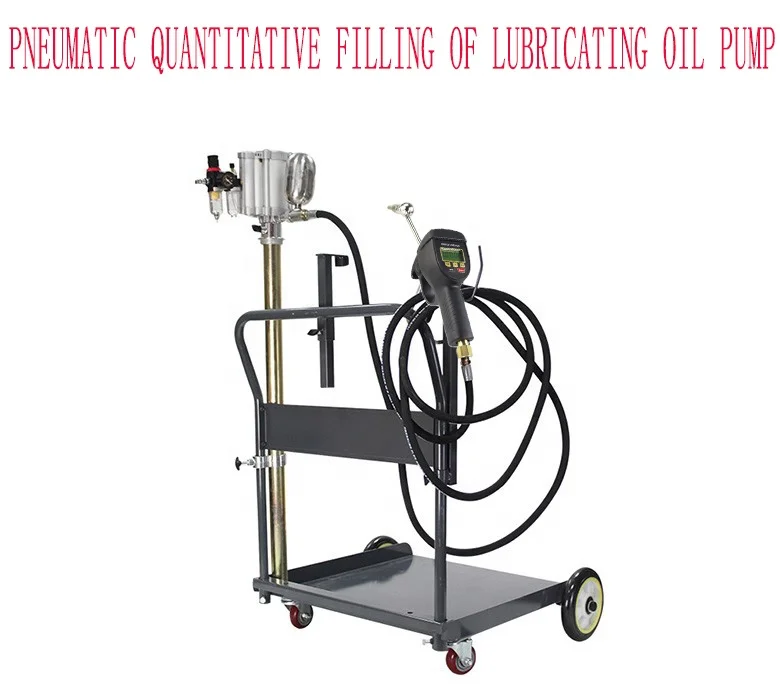

Pneumatic oil pump configuration vehicle and quantitative oil gun oil barrel pumps metering pump piston pump
- Category: >>>
- Supplier: Heyuan Dianyan Technology Co. Ltd.
Share on (1601180580601):
Product Overview
Description
Product Description

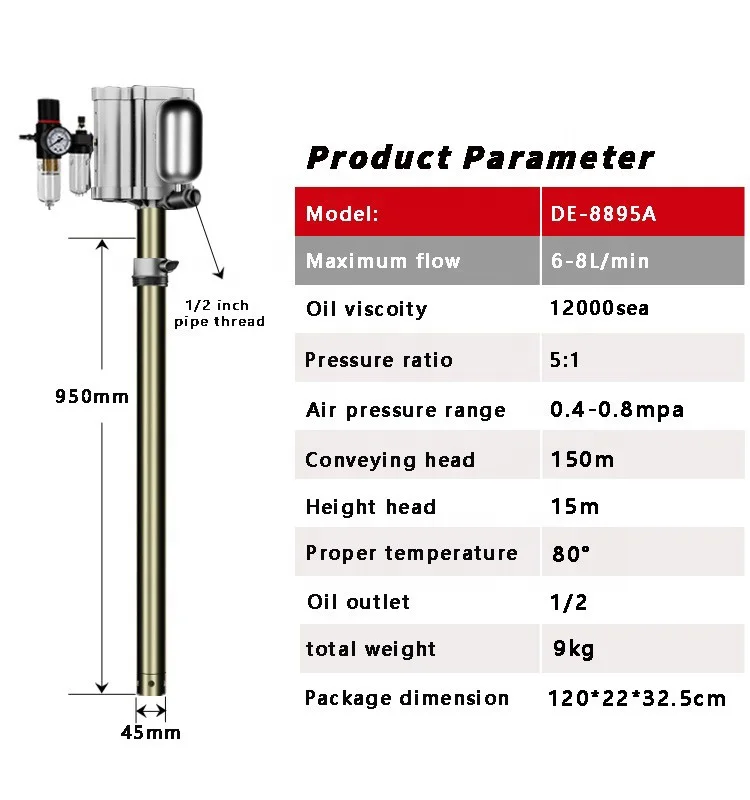

| Oil pump model | DE-8895A |
| The required air pressure for the equipment | 0.6-0.8Mpa |
| The length of the suction rod of the oil pump | 950MM |
| The diameter of the oil pump's lifting rod | 45MM |
| The oil output speed of the equipment | 8L/MIN |
| What size of oil drum is the device suitable for use on | 55 gallons/170KG/208L |
| Maximum applicable viscosity of the equipment | ISO VG 220 |
| The height that the equipment can transport | 15M |
| Equipment conveying distance | 100M |
| Packaging size | 120CM*20CM*20CM |

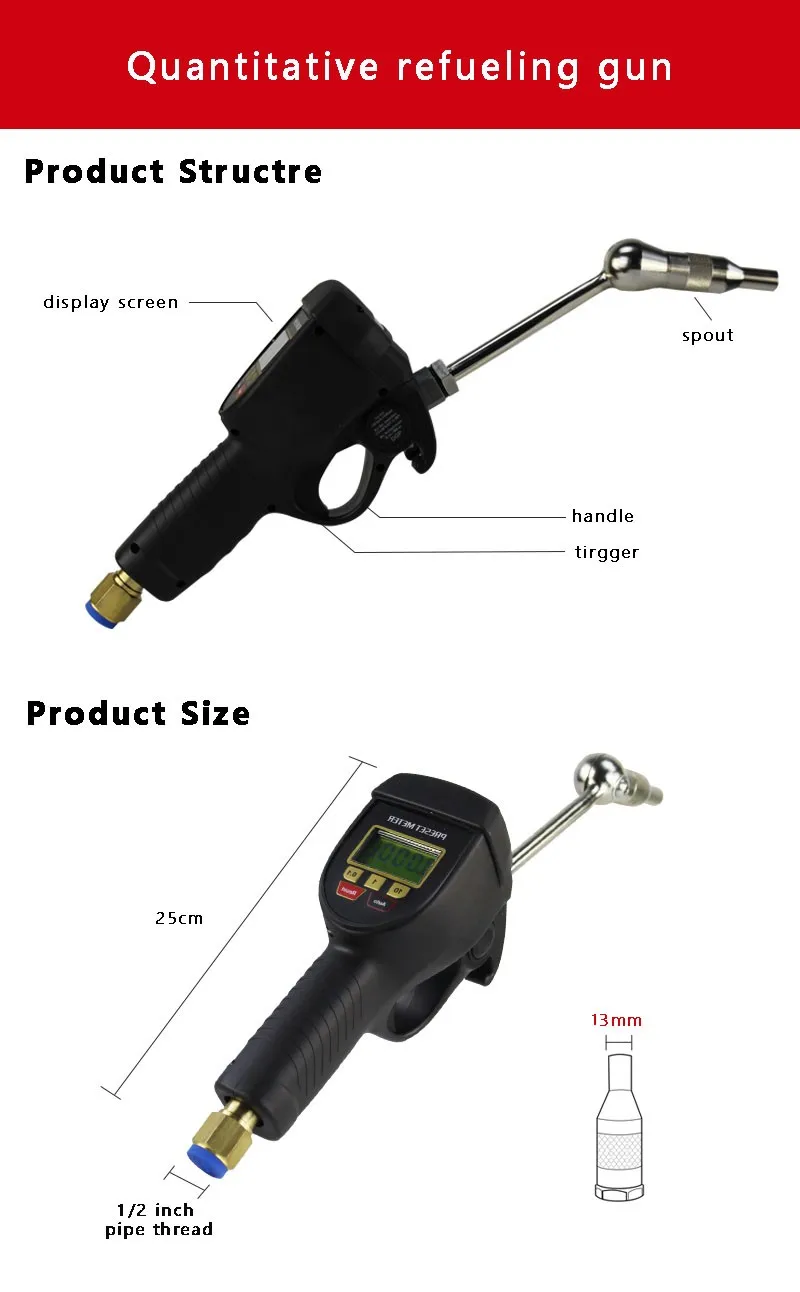

| Oil gun model | DE-Q3 |
| function | Set refueling volume |
| Measurement unit | L/GAL/QTS/PTS(Default Unit:L) |
| Minimum measurement | 0.1L |
| Export size | 13MM |
| Thread size | 1/2 |
| accuracy | 0.3% |
| Steering degree | 360° |
| battery | 4 No. 5 batteries |
| weight | 2KG |
| size | 30CM*18CM*16CM |

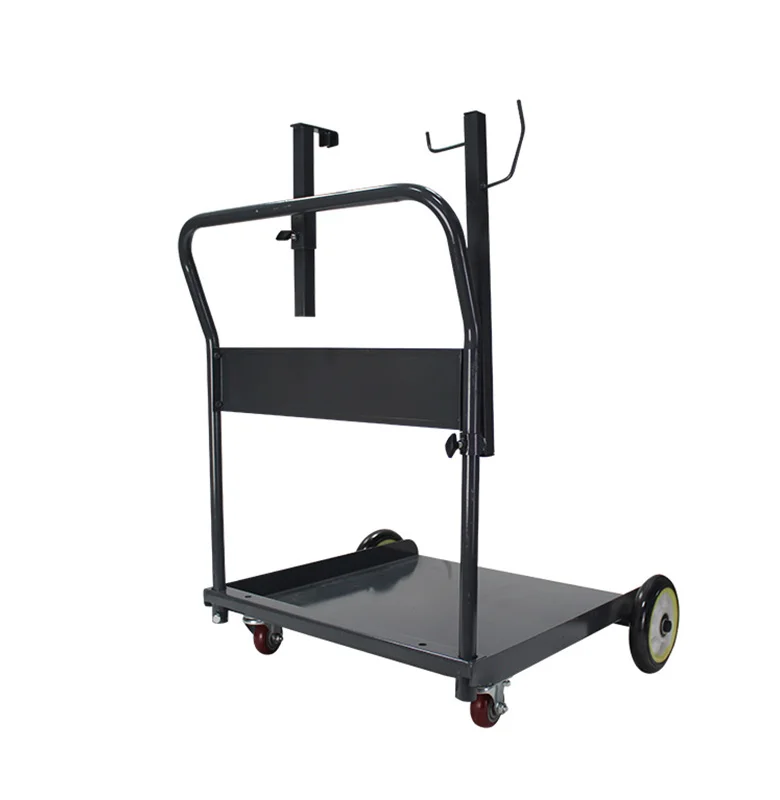

| Can withstand weight | 300KG |
| Suitable oil drums for placement | 55 gallons/170KG/208L |
| weight | 23KG |
| Assembled volume | 710MM*780MM*875MM |
| Packaging size | 770MM*670MM*12MM |
