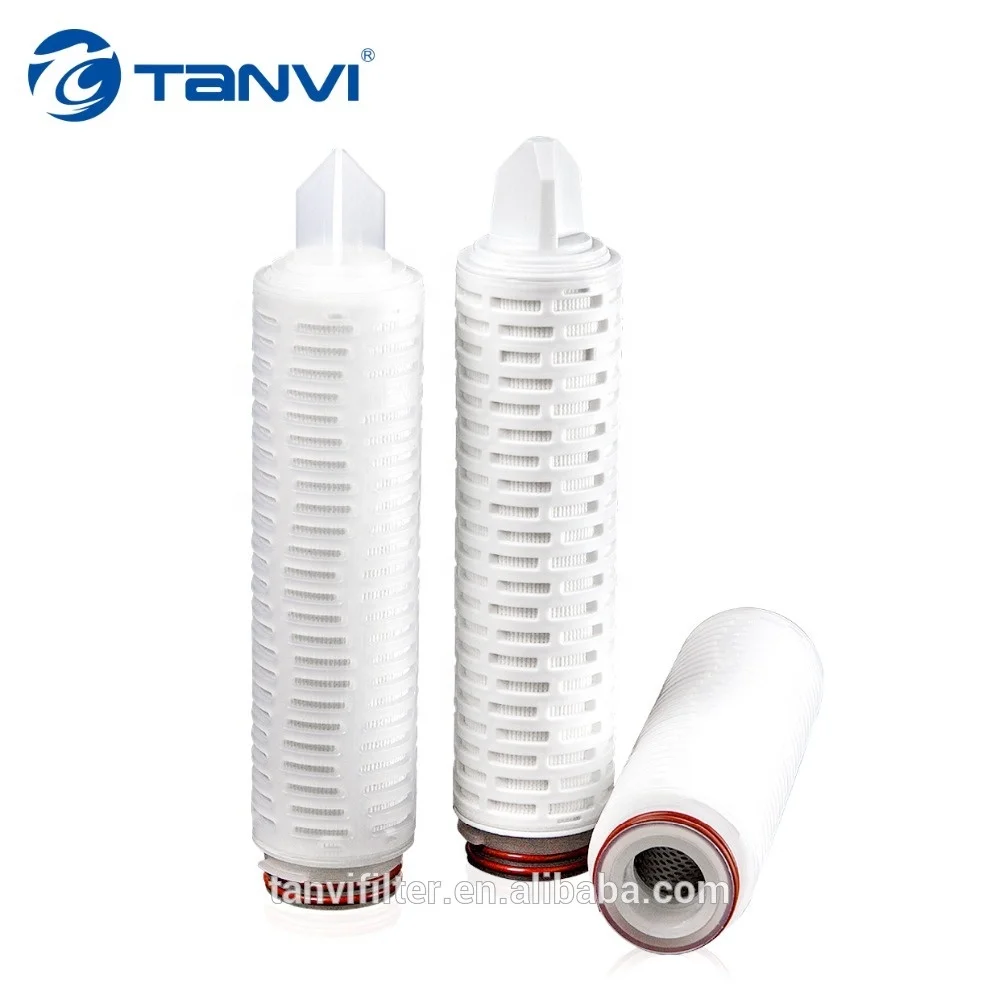

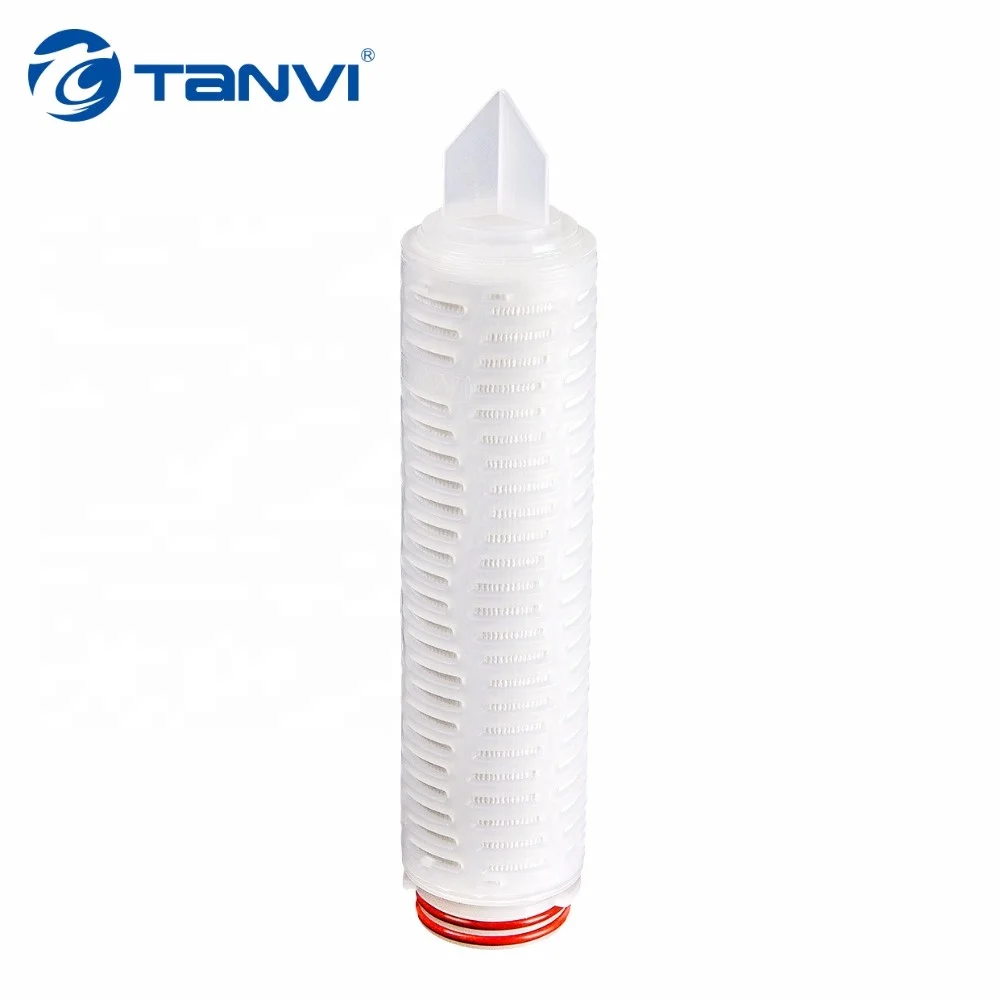

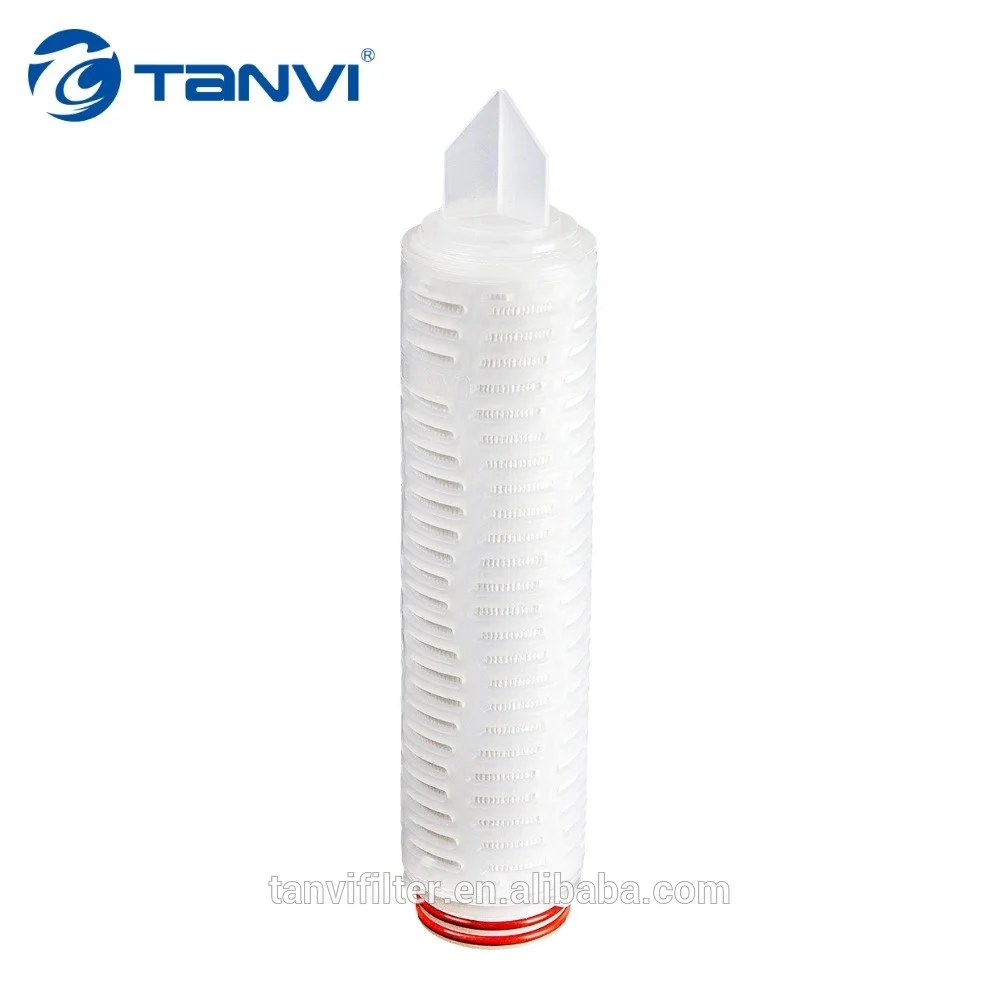

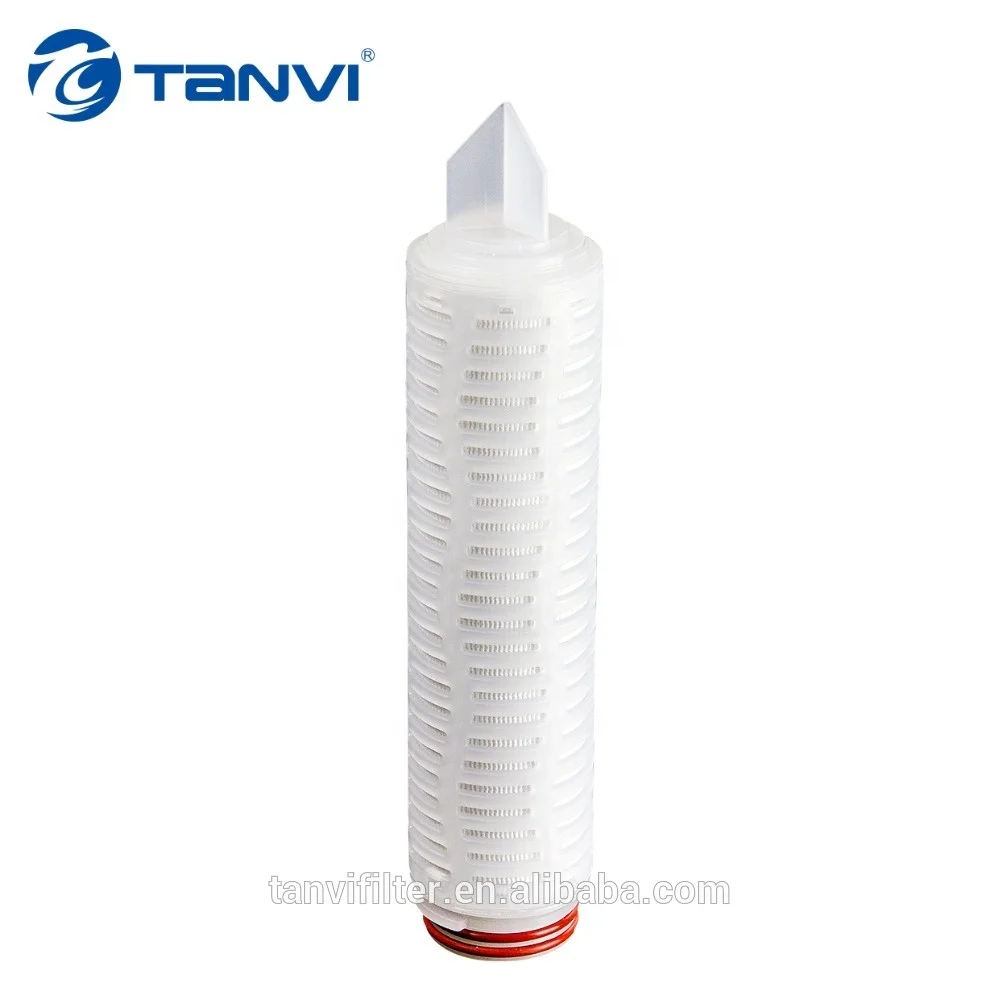

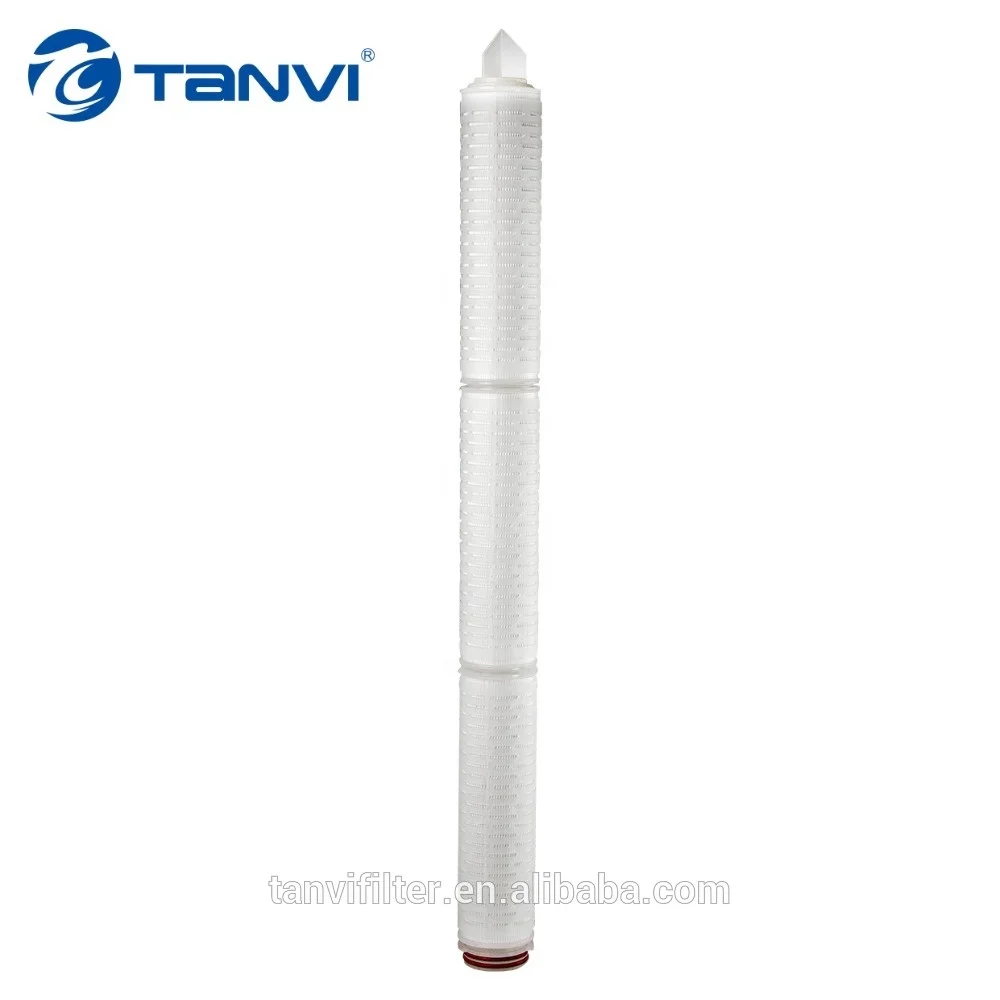

Oil And Water Removal Glass Fiber filter cartridge 0.45micron 20inch

Product Overview

Description



Tanvi TVDP series polypropylene filter cartridge is designed and manufactured . All of them are manufactured in clean room conditions and meet the requirements of the USP VI and are food conform. All components are made from Polypropylene, thermic-welded and free of binders, adhesives or additives. This type of depth filter cartridge retains particles with absolute efficiency. Available in a broad range of pore sizes and length make many options for practical application. The pleated construction provides a high surface area to offer outstanding overall filtration economy.



• High filtration efficiency


• high dirt-retention capacity


• Low differential pressure, high flow rate


• Excellent and extensive chemical resistance


• Long service life



• Filtration of strong acid and alkali solutions


• Chemical intermediate prefiltration


• Prefiltration of LVP and SVP


• Prefiltration of biological products


• Pre-filtration of beverage and liquor


• Prefiltration of freeze-dried powder needles


• Prefiltration and fine filtration of high purity chemical reagents


• Prefiltration and fine filtration of process water



Filtration Media	Glass fiber
Media Support	PP non-woven
Cage	PP material
Core	PP material or pp stainless liner
Out Diameter	Φ68mm Φ69mm
Inner Diameter	Φ32mm
Length	2.5~40"
O-Ring	Silicone, EPDM, Nitrile,Viton ,Viton encapsulated PTFE
Retention rating	0.10, 0.20, 0.45,1.00,3.00,5.00,10.0,20.0,40.0 µm
Effective filtering area	≥0.60m²
PH value	PH value
Normal operating temperature	≤55℃
Max. operating temperature	80℃,pressure differential ≤0.10Mpa
Max. differential pressure	25℃,forward direction 0.42Mpa,reverse direction 0.21MPa
Esotoxin	<0.25EU/ml
Extractive	<0.03g (10"filter cartridge)

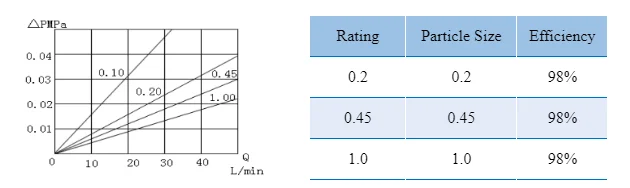

               Flow rate with water at 23℃                                              Particle retention efficiency





DGF	Micron ratings		Length		End Caps		O-ring/Gaskets
PP Filter  Cartridge	Code	μm	Code	Inches	Code	Types	Code	Material
	01	0.10	L02	2.5	E1	DOE	S	Silicone
	02	0.22	L05	5	E2	222 O-ring/Flat	B	Buna-N
	04	0.45	L10	10	E3	222 O-ring/Fin	E	EPDM
	06	0.65	L20	20	E4	226 O-ring/Flat	V	Viton
	10	1.0	L30	30	E5	226 O-ring/Fin	T	Teflon/Viton
	30	3.0	L40	40	E6	215 O-ring/Flat
	50	5.0	L50	50	E7	215 O-ring/Fin
	10	10.0
	20	20.0
	30	30.0



Hangzhou Tanvi Filtering Equipment Co., Ltd is a manufacturer of microfiltration products. We offer a broad selection of high-performance filtration products for microelectronics, food and beverage, fine chemicals and water. As 10-year development, we are experienced in microfiltration field. Not only manufacturing microfiltration products, but also providing designing and solution to our worldwide customers.



Tanvi is located in a beautiful east city of China-Hangzhou, our factory covers 5000 squares  meters, including production workshop, washing workshop, testing workshop, packing workshop and laboratory. All of our production and test facility are up-to-date. Besides, we have experienced technical team to provide solutions, installation direction and operating service, after-sales service according to the requirement of the customers.



Our goal is to deliver stable quality products on time while responding to the needs of  customers with premier customer service and provide customers cost-effective products with  reasonable prices.



1.Payment Term

We can accept  L/C, T/T, Western Union, MoneyGram, Paypal

3.Shipping :

If your order is not big enough , door to door Service is the best choice via UPS,FEDEX,DHL,EMS.

For big quantity, by air or by sea through your forwarder is one Normal Way , we also can recommend cost-effective forwarder for your reference.

4.Sample:

1) For For first cooperation,  buyer afford the sample fee and shipping cost,  and the cost will be  refund when  made  formal  order .

2) For old customer, we will send free sample , even though new designed sample.

3) If we have some in stock,  sample delivery date is within 1-2days, customized sample is about 5-7 days

5. Lead time:

The normal lead time for  filter cartridges 5-10days, which depends on your quantity.

6. OEM service:

OEM service is available for all customers, we cam make the logo and labels as your request.
