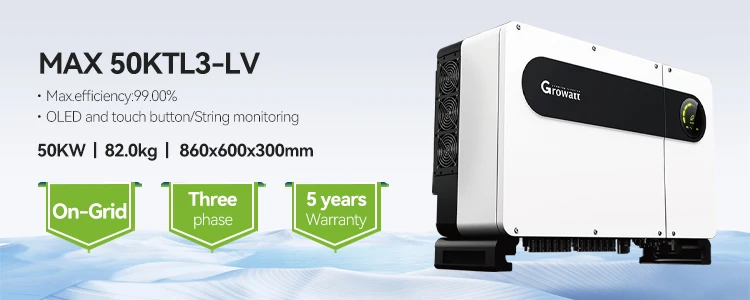

Growatt OLED And Touch Button Three Phase On Grid Solar Inverter For Storing Electric
- Category: >>>
- Supplier: Anhui Sun D.ta New Energy Co. Ltd.
Share on (1601180763382):
Product Overview
Description
Product Paramenters
Module | MAX 50KTL3 LV | |
Input Data(DC) | ||
Max.recommended PV power (for modules STC) | 75000W | |
Max.DC voltage | 1100V | |
Start voltage | 250V | |
Nominal voltage | 585V | |
Voltage range | 580V | |
MPP voltage range | 200V-1000V | |
No.of MPP trackers | 6 | |
No.of PV string per MPP tracker | 2 | |
Max.input current per MPP tracker | 26A | |
Max.short-circuit current per MPP tracker | 32A | |
Output Data(AC) | ||
AC nominal power | 50000W | |
Max.AC apparent power | 55500VA | |
Nominal AC voltage range | 220V/380V,230V/400V(340-440V) | |
AC grid frequency range | 50/60Hz(45-55Hz/55-65Hz) | |
Max.output current | 80.5A | |
Adjustable power factor | 0.8 leading…0.8 lagging | |
THDi | ﹤3% | |
AC grid connection type | 3W+N+PE | |
Efficiency | ||
Max.efficiency | 98.8% | |
European efficiency | 98.4% | |
MPPT efficiency | 99.9% | |
Protection Devices | ||
DC reverse polarity protection | yes | |
DC switch | yes | |
AC/DC surge protection | Type II/Type III | |
Insulation resistance monitoring | yes | |
AC short-circuit protection | yes | |
Ground fault monitoring | yes | |
Grid monitoring | yes | |
Anti-islanding protection | yes | |
Residual-current monitoring unit | yes | |
AFCI protection | Optional | |
General Data | ||
Dimensions(W/H/D) | 860x600x300mm | |
Weight | 82kg | |
Operating temperature range | -25℃-+60℃ | |
Nighttime power consumption | ﹤1W | |
Topology | Transformerless | |
Cooling | Smart air cooling | |
Protection degree | IP 65 | |
Relative humidity | 0-100% | |
Altitude | 4000m | |
DC connection | H4/MC4 (Optional) | |
AC connection | Cable gland+OT terminal | |
Display | OLED+LED/WIFI+APP | |
Interfaces:RS485/USB/WIFI/GPRS/RF/LAN | Yes/Yes/Optional/Optional/Optional/Optional | |
Warranty:5 years/10 years | Yes/Optional | |
CE,VDE0126,Greece,EN50438,EN50549,C10/C11,UTE C 15-712,IEC62116,IEC61727,IEC61683,CEI0-21,CEI0-16,N4105,BDEW,DRRG,TOR Erzeuger,G98/G99,G100,AS/NZS3100,AS4777,UNE217001,UNE206007,PO12.2,NRS097-2-1,MEA,PEA,KSC8565 | ||
Product Packaging

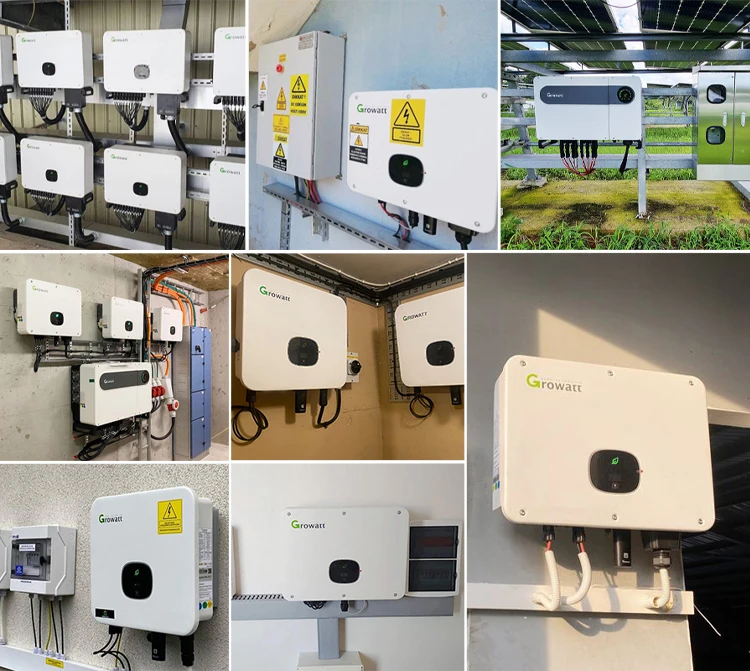

Our Projects
Certifications

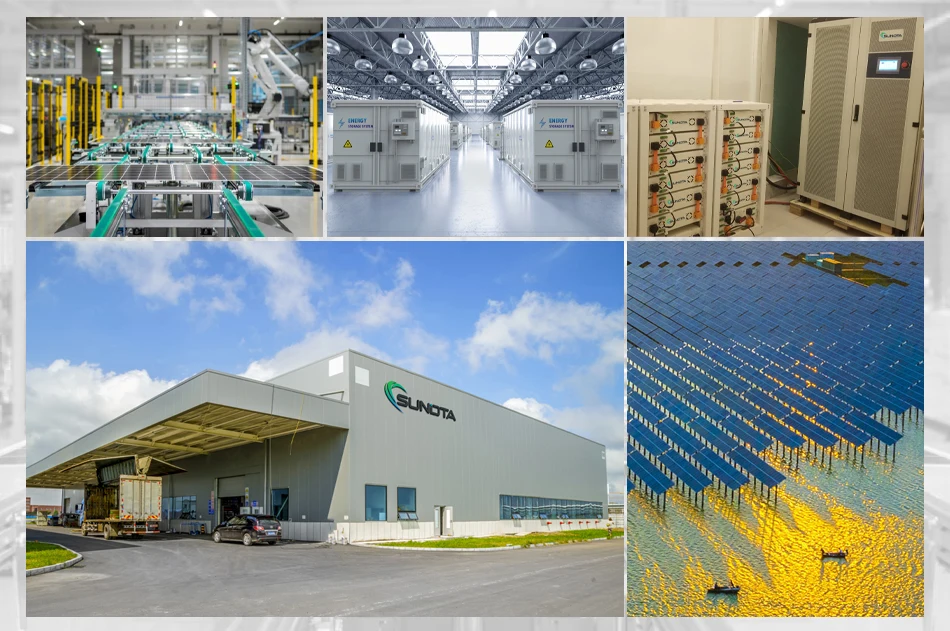

Company Profile
