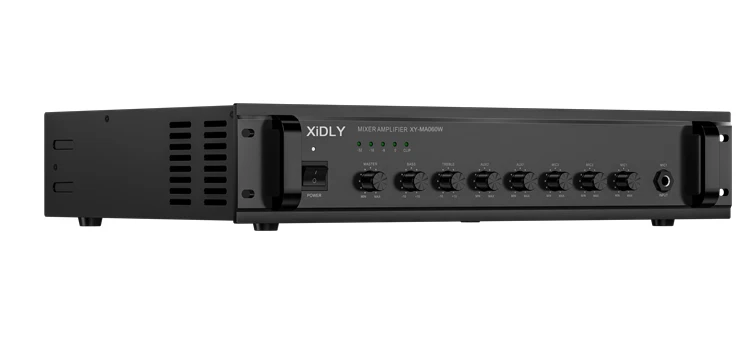

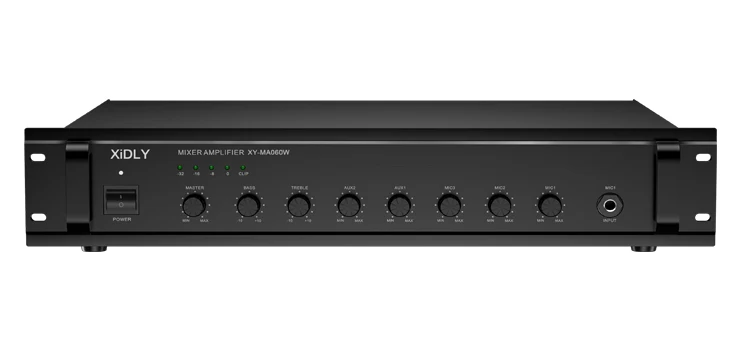

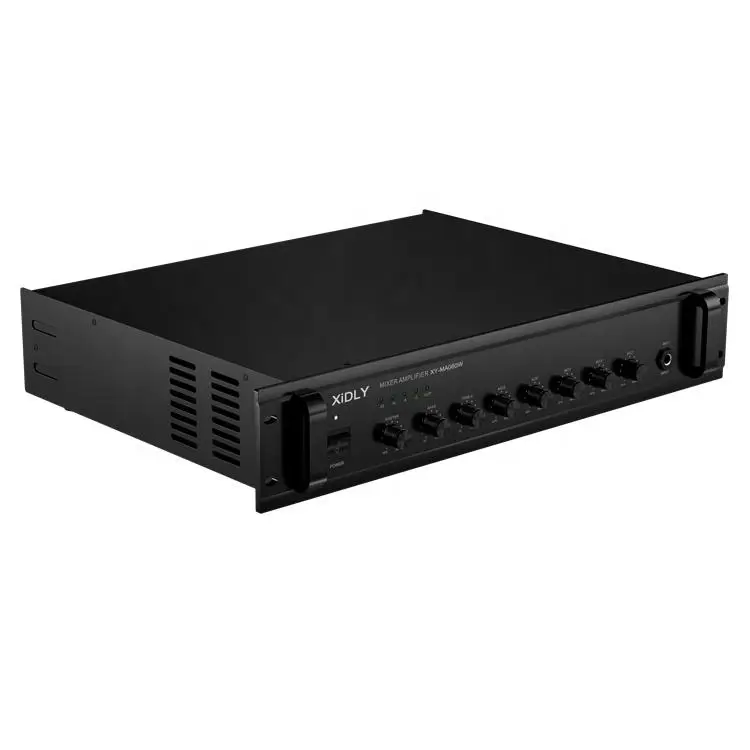

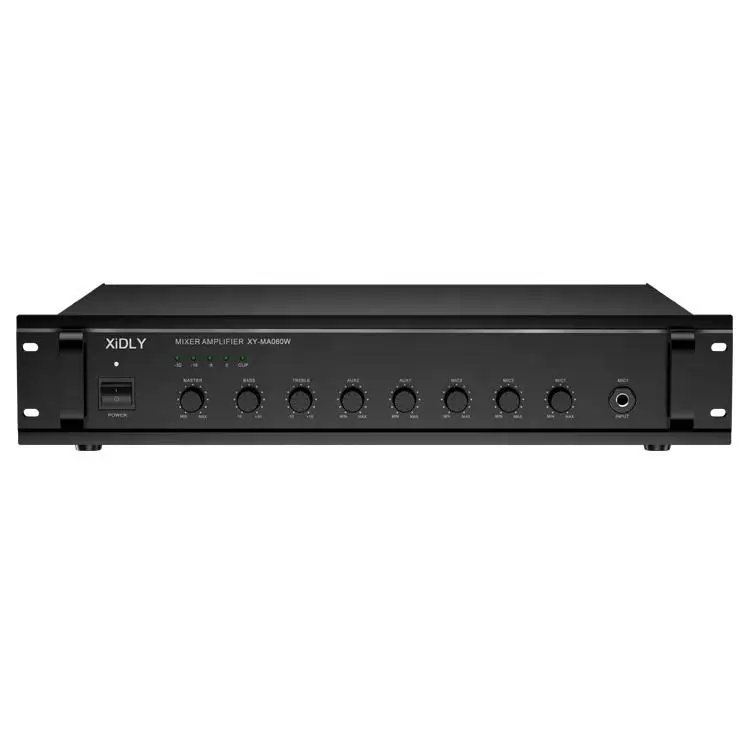

OEM Accuracy Professional Audio Latest Design Digital Echo 240 Watt Sound Audio Mixer Amplifier
- Category: >>>
- Supplier: Foshan Xinghongde Technology Co. Ltd.Foshan Ltd.
Share on (1601180821135):
Product Overview
Description
Specification
Hot Sale Professional BASS And TREBLE Tone Control Power Audio Mixer Amplifier
The Audio Signal Mixing Amplifiers are designed for background music/paging and public address system installations,these units are exceptional values, and are easy to install in a variety of system designs.
The mixer amplifiers feature three balanced mic. inputs and two line inputs, 60/120/240/350/500/650W watts of amplifier power are available with either 70/100-volt or 4 to 16 ohms(Ω) loads. Also included a balanced line level output for adding additional power amplifiers.
The unit also features muting function that MIC1 overrides MIC2,MIC3 AUX1,AUX2 with 0~30dB dB attenuation.
And features complete protection is provided for output short circuit,overload,high temperature,peak current limiters.
Widely used for any kind of public areas such as shops,supermarks,shcools,churches,stations,hotels etc.
Features
CE & RoHS certified.
Power rates: 60W/120W/240W/350W/500W/650W available.

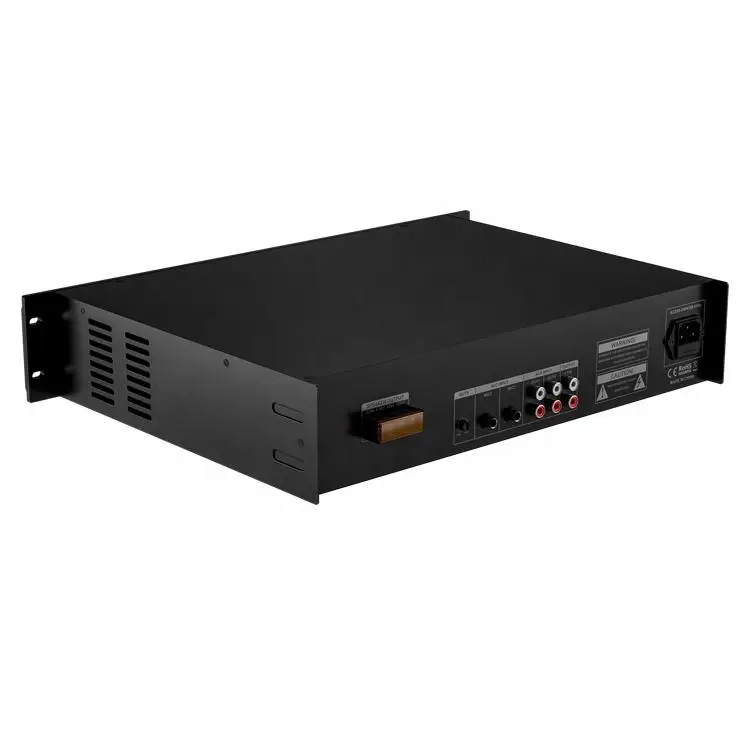

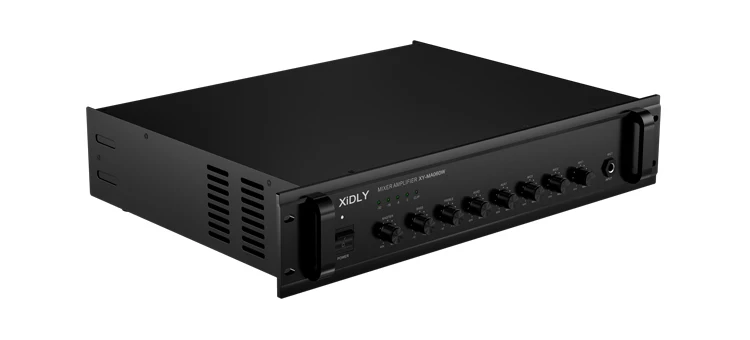

Aluminium alloy panel with standard 19" 2U height.
70V/100V and 4~16Ω loads.

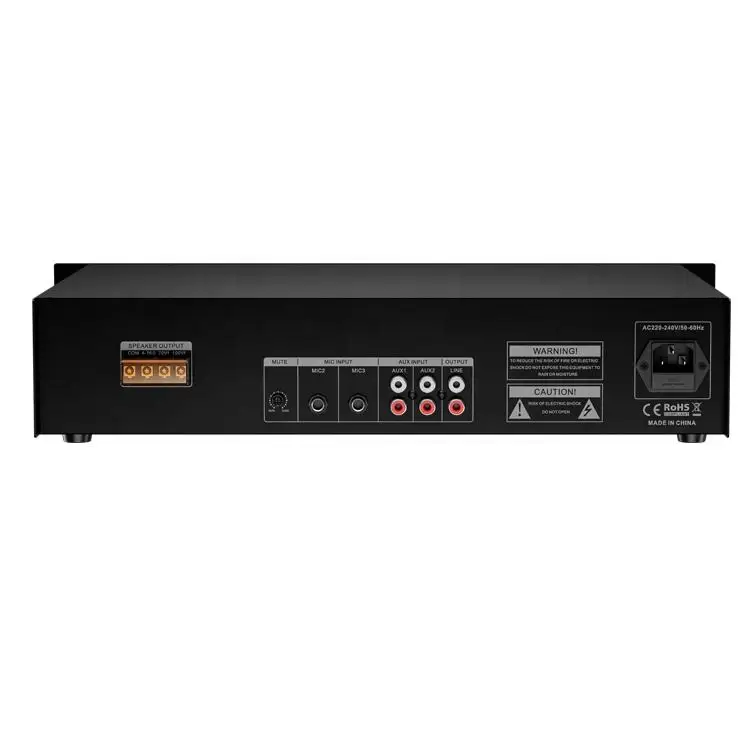

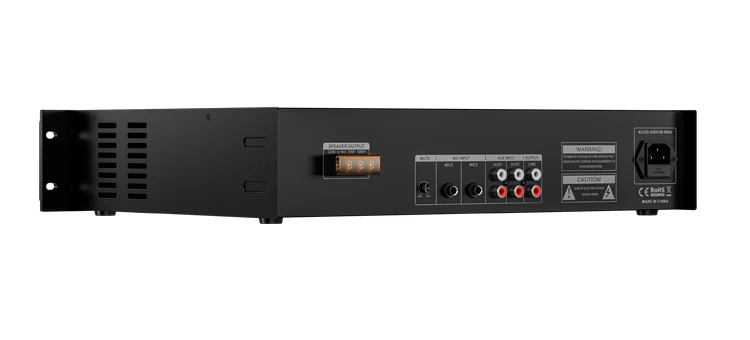

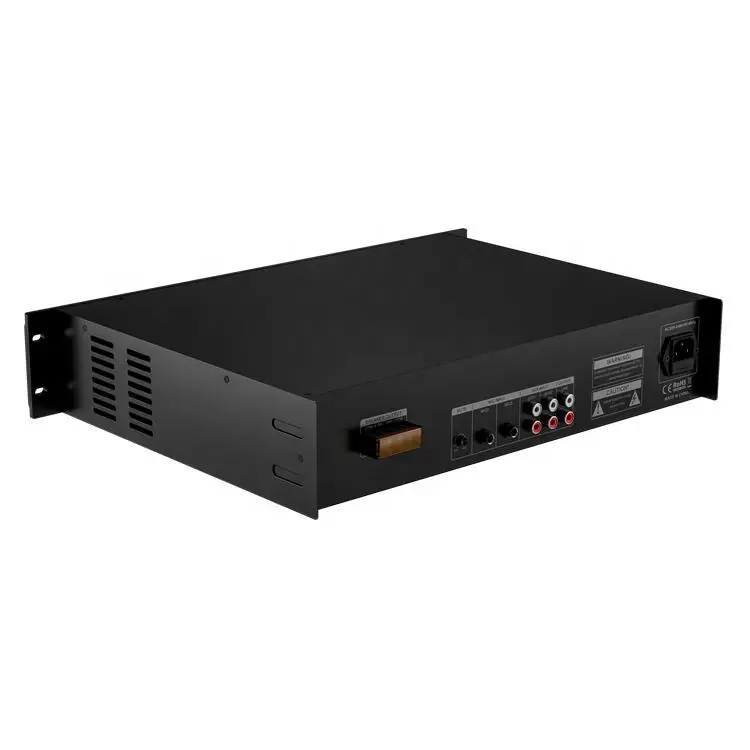

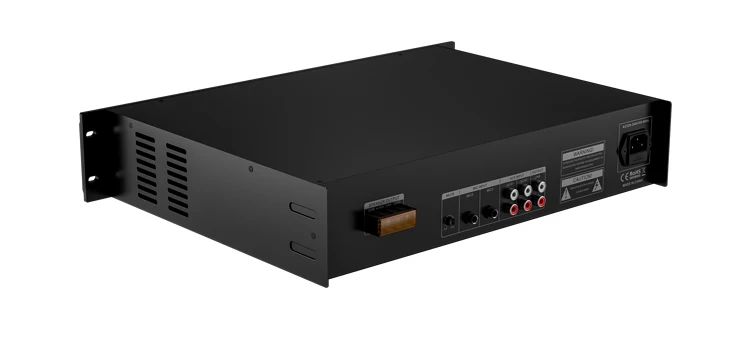

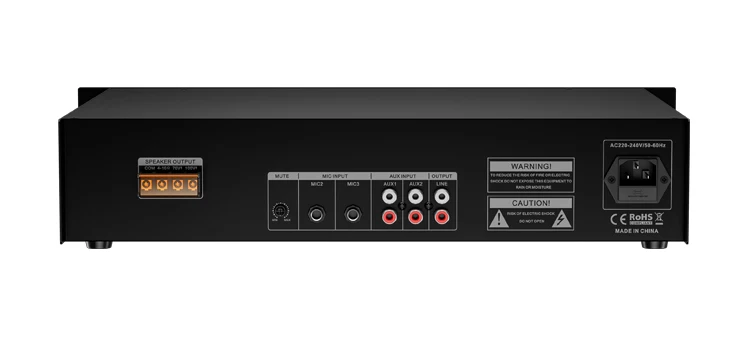

3 MIC inputs,2 LINE inputs,1 LINE output.
Individual volume controller for MIC & AUX inputs.
MASTER volume controller.
BASS and TREBLE tone controller.
MIC1 has priority over other inputs.
Protections of short circuit,overload,high temperature.
Built-in fan with intelligent startup function,can reduce energy consumption and for heat dissipation.
Specifications
Model | XY-MA060W | XY-MA120W | XY-MA240W | XYMA350W | XY-MA500W | XY-MA650W | ||||
Rated Power | 60W | 120W | 240W | 350W | 500W | 650W | ||||
Output Mode | 4-16 ohms;70V/100V line voltage | |||||||||
MIC Input | MIC1/ MIC2/MIC3:600 ohms 5-8 mV , Unbalanced | |||||||||
AUX Input | AUX1/ AUX2:10k ohms 150-470 mV , Unbalanced | |||||||||
Frequency Response | 60Hz~15kHz(±3dB) | |||||||||
THD | <0.5% at 1kHz,1/3 rated power | |||||||||
S/N | Line:85 dB,MIC:>72 dB | |||||||||
Tone | BASS:100 Hz(±10dB),TREBLE:12kHz(±10dB) | |||||||||
Muting Function | MIC1 overrides MIC2,MIC3,AUX1,AUX2 with 0~30dB dB attenuation | |||||||||
Cooling | DC 12V FAN | |||||||||
Protection | AC fuse, short circuit,overload,high temperature | |||||||||
LED Indicators | POWER,SIGNAL, CLIP,PROTECT | |||||||||
Power supply | Optional | |||||||||
Power Consumption | 95W | 185W | 350W | 485W | 675W | 880W | ||||
Dimensions | 89(H)x483(W)x366(D)mm | |||||||||
Packing Size | 185(H)x520(W)x435(D)mm | |||||||||
Net Weight | 11.2Kg | 12.7Kg | 15.1Kg | 16.1Kg | 18.6Kg | 19.8Kg | ||||
Gross Weight | 11.8Kg | 13.6K | 16.0Kg | 17.0Kg | 19.8Kg | 21.5Kg | ||||
