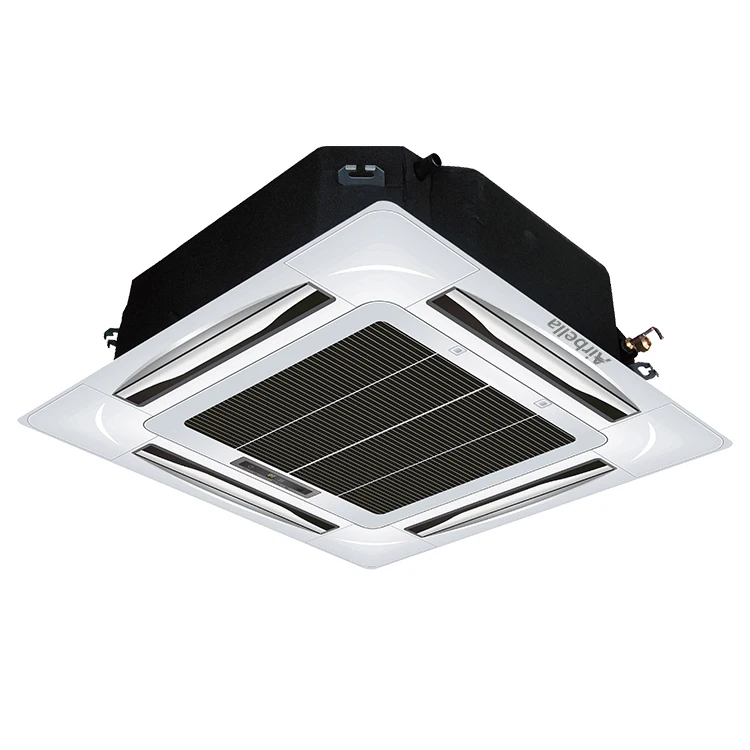

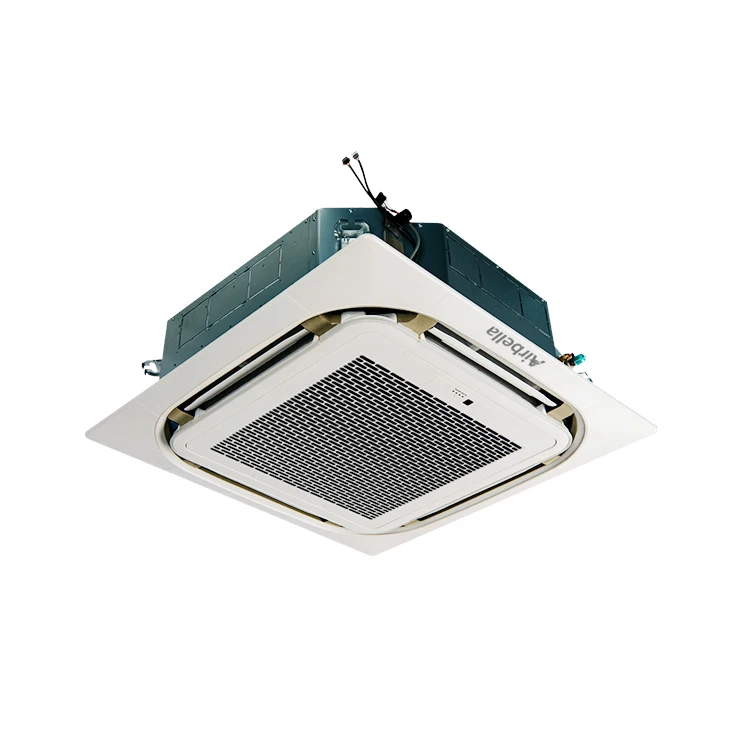

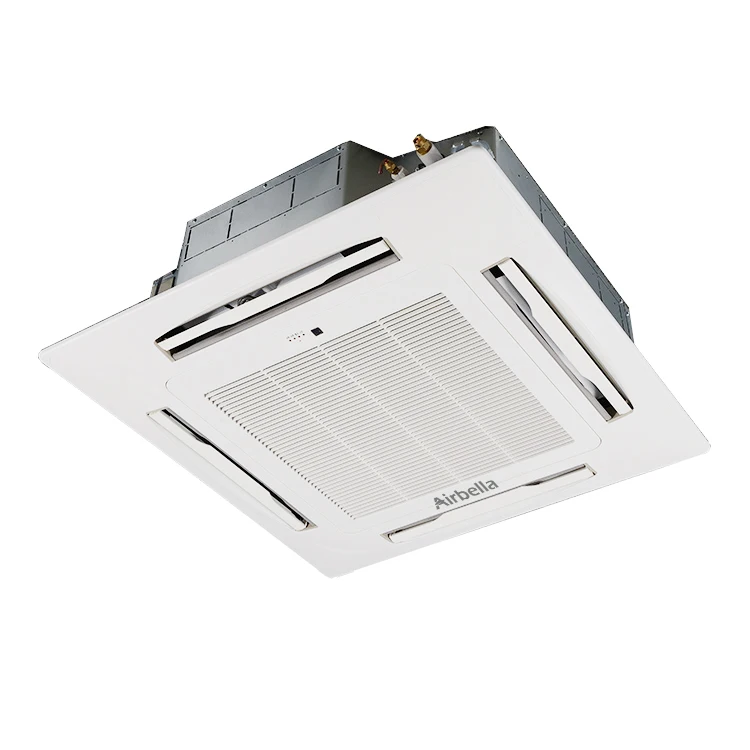

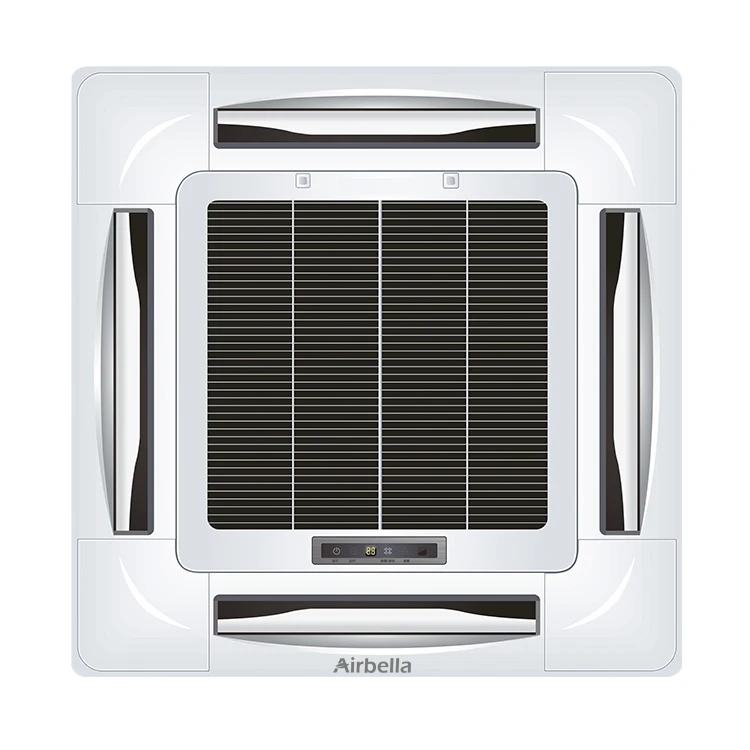

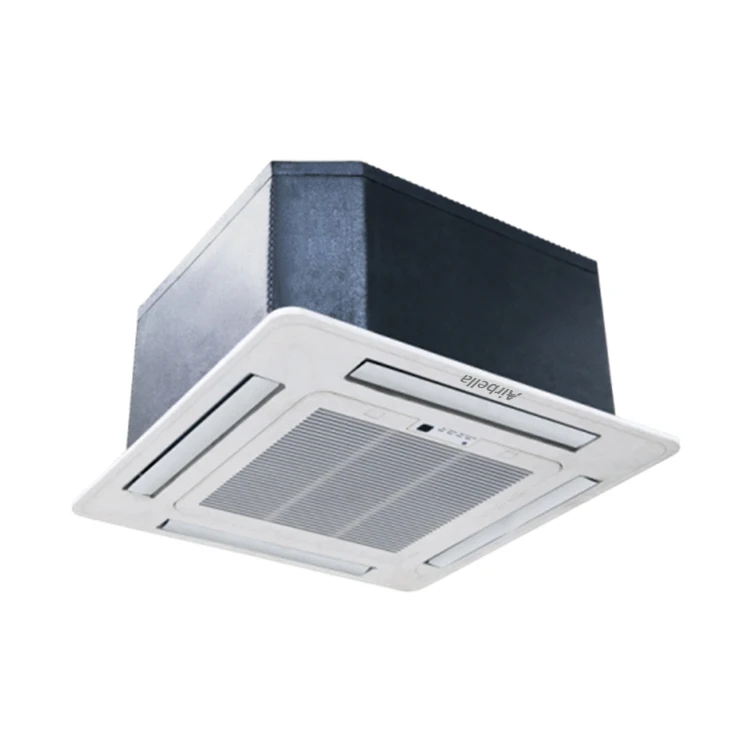

50HZ R410A 12000 18000Btu DC Light Commercial Compact Cassette Type Air Conditioning
- Category: >>>
- Supplier: Foshan Peile Engineering Technology Co. Ltd
Share on (1601180889090):
Product Overview
Description
Model | AOSN-12HA1XG | AOSN-18HA1XG | ||||
Outdoor unit code | 821027400010 | 821032400025 | ||||
Outdoor power supply | V/Ph/Hz | 220~240/1/50 | 220~240/1/50 | |||
Cooling | Capacity | Btu/h | 12000 | 18000 | ||
KW | 3.5 | 5.3 | ||||
Power Input | W | 1290 | 1900 | |||
Rated current | A | 5.5 | 8.26 | |||
Heating | Capacity | Btu/h | 13200 | 20000 | ||
KW | 3.9 | 5.9 | ||||
Power Input | W | 1270 | 1690 | |||
Rated current | A | 5.5 | 7.35 | |||
Max. input consumption | W | 1610 | 2500 | |||
Max. current | A | 8.7 | 12.6 | |||
Starting current | A | 35 | 48 | |||
Compressor | Model | QXA-B15E030 | WHP06800ASV-C7EQ | |||
Type | ROTARY | ROTARY | ||||
Brand | Landa | HIGHLY | ||||
Capacity | Btu/h | 12000 | 17201 | |||
Input | W | 1270 | 1750 | |||
Rated current | A | 5.94 | 8.2 | |||
Locked rotor Amp | A | 33.5 | 45 | |||
Thermal protector | Internal | Internal | ||||
Capacitor | μF | 35 | 60 | |||
Refrigerant oil | ml | 320 | 480 | |||
Outdoor fan motor | Model | YDK-40-6P3-AL-01 | YDK-40-6P3-AL-01 | |||
Output | W | 40 | 40 | |||
Capacitor | μF | 3 | 3 | |||
Speed | r/min | 890 | 890 | |||
Outdoor coil | Number of rows | 1 | 1 | |||
Tube pitch(a)x row pitch(b) | mm | 21 | 25 | |||
Fin spacing | mm | 1.5 | 1.4 | |||
Fin type | Hydrophilic | Hydrophilic | ||||
Tube outside dia. and type | mm | φ7 | φ9.52 | |||
inner grooved | inner grooved | |||||
Coil length×height×width | mm | 760×504×13.37 | 760×500×22 | |||
Number of circuits | 2 | 2 | ||||
Outdoor air flow | m3/h | 2000 | 2200 | |||
Outdoor noise level | dB(A) | 55 | 55 | |||
Outdoor unit | Dimension(W*H*D) | mm | 850×555×345 | 850×555×345 | ||
Packing(W*H*D) | mm | 915×600×380 | 915×600×380 | |||
Net/Gross weight | kg | 31/34 | 36/38.5 | |||
Refrigerant type/quantity | g | R410A/800 | R410A/1000 | |||
Throttle part | capillary | capillary | ||||
Design pressure | MPa | 4.0/1.2 | 4.0/1.2 | |||
Max pressure | MPa | 4.0 | 4.0 | |||
Connection wiring | Outdoor Power Supply | From indoor unit | From indoor unit | |||
Power wiring | mm2 | 3×1.5 | 3×2.5 | |||
Signal wiring | mm2 | 5×1.5 | 5×1.5 | |||
Refrigerant piping | Liquid side/Gas side | mm | 6.35/12.7 | 6.35/12.7 | ||
Max. pipe length | m | 15 | 15 | |||
Max. high drop | m | 8 | 8 | |||
Ambient temp. | Cooling | °C | 18～50 | 18～50 | ||
Heating | °C | -7～24 | -7～24 | |||
Airbella is a professional and reliable air conditioner supplier in Guangdong China. Founded in 2012 in Hongkong, Airbella had actually served for off-line customers for over12years. Our business has covered North and Latin America, Asia pacific, Africa and Europe. Currently, we have more than 100 OEM customers, and just started to run our own brand Airbella since 2024.Our team is made up of different departments such as sales, R&D and after service, quality control and production.
