outdoor submersible garden electric motor small water jet dancing fountain pumps with led fountain nozzle lights
outdoor submersible garden electric motor small water jet dancing fountain pumps with led fountain nozzle lights
outdoor submersible garden electric motor small water jet dancing fountain pumps with led fountain nozzle lights
outdoor submersible garden electric motor small water jet dancing fountain pumps with led fountain nozzle lights
outdoor submersible garden electric motor small water jet dancing fountain pumps with led fountain nozzle lights
outdoor submersible garden electric motor small water jet dancing fountain pumps with led fountain nozzle lights
outdoor submersible garden electric motor small water jet dancing fountain pumps with led fountain nozzle lights

outdoor submersible garden electric motor small water jet dancing fountain pumps with led fountain nozzle lights

Share on (1601181003441):


Price:$160.00 - $220.00

Quantity:


Product Overview

Description



outdoor submersible garden electric motor small water jet dancing fountain pumps with led fountain nozzle lights


Product Description

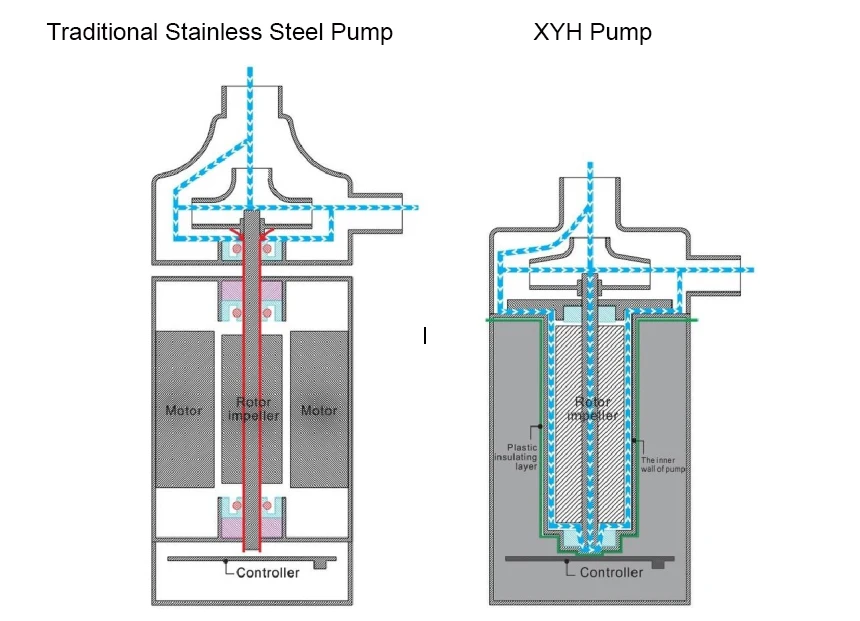

Comparison diagram of water pump structure
This is a sample diagram. the structure, material and color shall be subject to the actual




XYH PUMP PERFORMANCE VS OTHERS



XYH Pump
Traditional Stainless Steel Pump

Comparison Feedback



Driying
method


Brushless DC magnetic
isolation(three-phase
sensorless driving)



Traditional motor
type+ impeller
The magnetic isolation motor has
isolation layer and is driven by
magnetic, and the motor potting,
does not have to worry about water ingress. The motor is not dependent on the oil seal like the traditional motor, which may be
damaged due to water ingress caused by seal wear

Material
of housing

PPS+30%GF
(Engineering plastic)
Stainless steel/
Castiron
Engineering plastics are resistant to
seawater corrosion, usually stainless
steel is not resistant to corrosion and
seawater. It requires specific materials.

Constant
power
output
For example,12V(24V)
10W Pump,from 12V-18V
(24V-30V) is 10W, and is able to work in a long term

No constant
power function
Constant power allows the pump to
maintain the same power under different voltage conditions, which avoids the
power difterence caused by the difference in the input voltage of the pump caused by the difference in cable length.



Waterproof Grade




IP68




IP67
The XYH water pump controller motor
is filled with custom-made sealant glue, which is isolated from water and electricity
through magnetic force, and there is
basically no possibility of damage.Traditiona stainless steel water pumps use oil seals. The oil seal has resistance and wear, if
it is damaged or worn out, the motor will be
damaged by water ingress.


Feedback
speed



300ms



500ms

Zhongke adopts the latest control algorithm, which requires a hard start, the impact is more stable, the life response speed is
about 300 milliseconds, and the fountain pump responds quickly to make the ettec better




Efficiency



150W 10M 8000L/H
200W 10M 13500L/H



250W 4M4000L/H
600W 8M 8000L/H
750W 10M 13000L/H
The XYH water pump is a direct drive
with high efficiency, and the motor cavity has sufficient water flow for heat dissipation
the motor-type water pumphas arn additional load due to the frictional resistance of theoil seal, and the
overall efficiency of the motor is very low due to the lack of water flow for
heat dissipation.

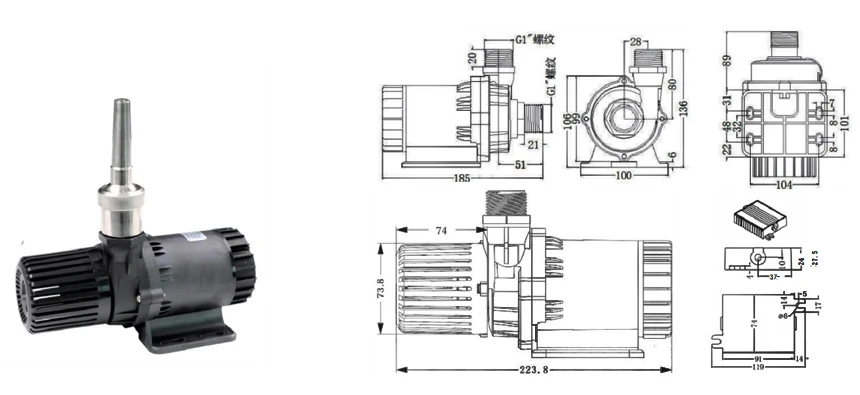

Specification



Model
Head
Flow
Rate
Wide
Operating
Voltage

Power
Rated Voltage
Recommended solar panel
power
Inlet/ outlet
OD
Controlling method

(M)
(L/H)
(V)
(W)
(V)
(W)
(DN)

DC80TIM-150
10
10000
18-30
150
24
195
25
Power on to work
DC80TIM-150DMX
10
10000
18-30
150
24
195
25
DMX512
Nozzle
Mode
Spray height(M)/Nozzle diameter (mm) Testing data for EIBIEIIUe OIIly
DN 20 Yuzhu
4M/19mm
DN 25 Yuzhu
3M/20mm
DN 25Oubing
1.5M/32mm
DN 40 Universal
4.5M/13mm
3.5M/16mm
Eilter cover 1inches
DN 25 Universal
6.5M/8mm
5.5M/10mm
5M/12mm

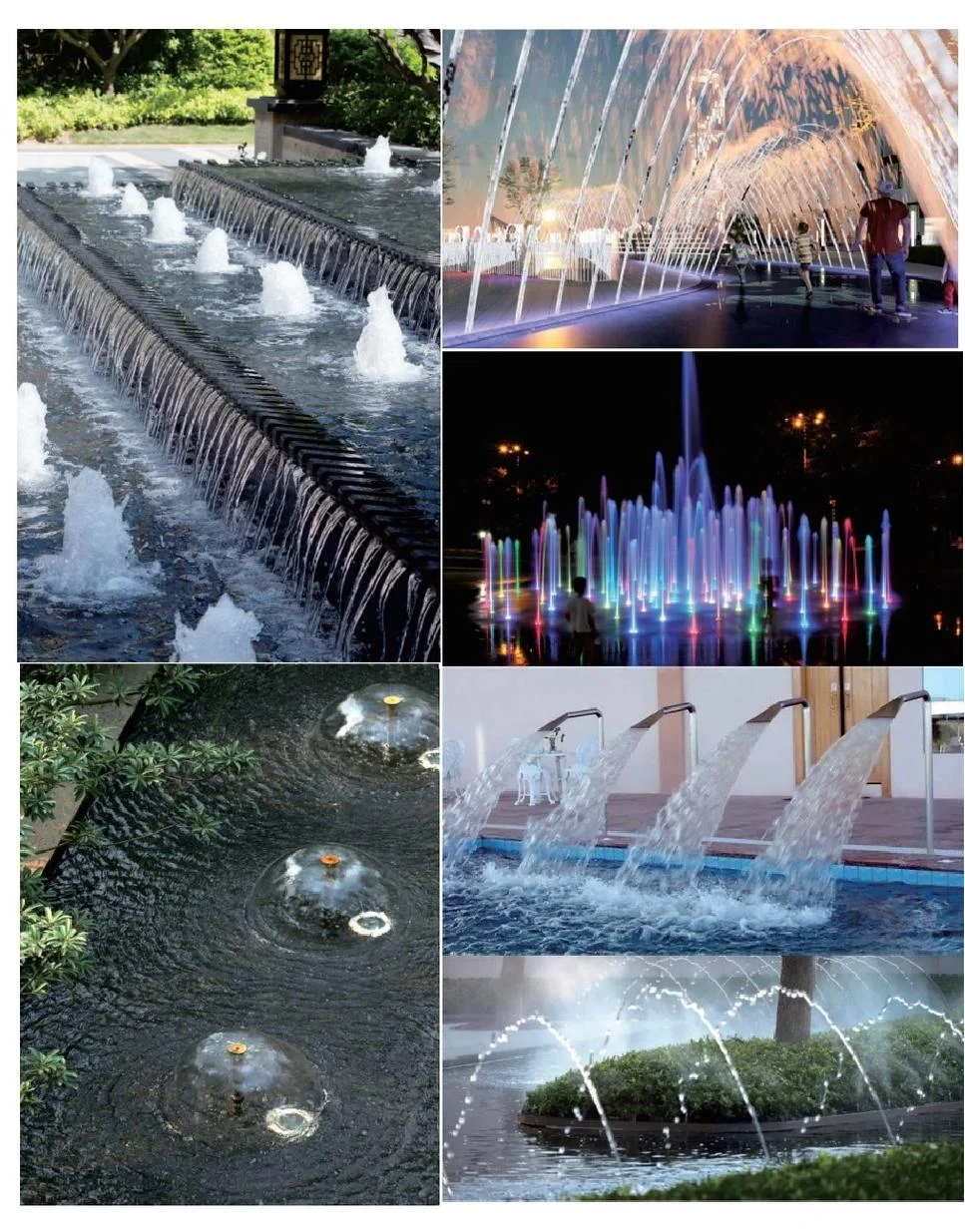

Product effect display






Company Profile




Chongqing Xinyuanhui Optoelectronics Technology Co., Ltd is a professional outdoor landscape lights factory specialized in LED Underwater lights,LED Fountain Lights,LED Underground Lights,LED Pool Lights,LED Wall Washer Lights,and some other lights for outdoor landscape.Our products passed IS09001 -2015,CE,ROHS,IP68 protection level certifications.
we are proud to inform that we successfully passed all the assessment by bureau veritas.




FAQ


1. who are we?
We are based in Chongqing, China, start from 2008,sell to Domestic Market(76.00%),South Asia(5.00%),North America(5.00%),Africa(2.00%),Mid East(2.00%),Southeast Asia(2.00%),Eastern Asia(1.00%),South America(1.00%),Oceania(1.00%),Western Europe(1.00%),Southern Europe(1.00%),Central America(1.00%),Northern Europe(1.00%),Eastern Europe(1.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
LED Underwater Light,LED Underground Light/LED Flood Light,LED Point Lamp

4. why should you buy from us not from other suppliers?
We are a professional manufacturer of led underwater lights, engaged in fountain industry more than 30 years .

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,FCA,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
