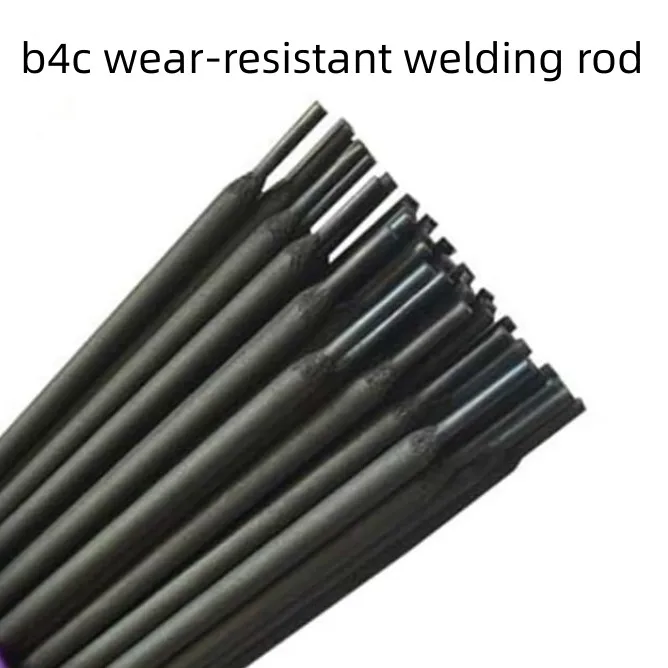

Boron carbide B4C 60 150um or 80 325mesh particle size boron carbide powder for Weld flux cored wire

Product Overview

Description

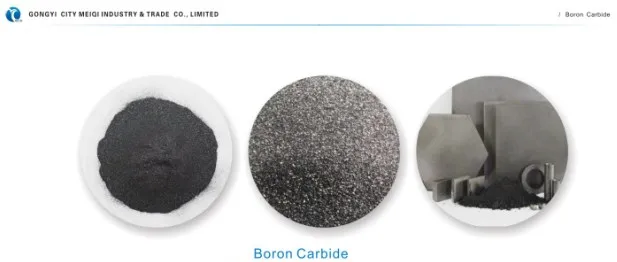

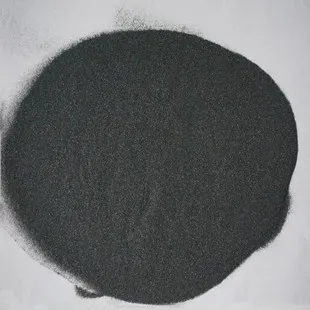

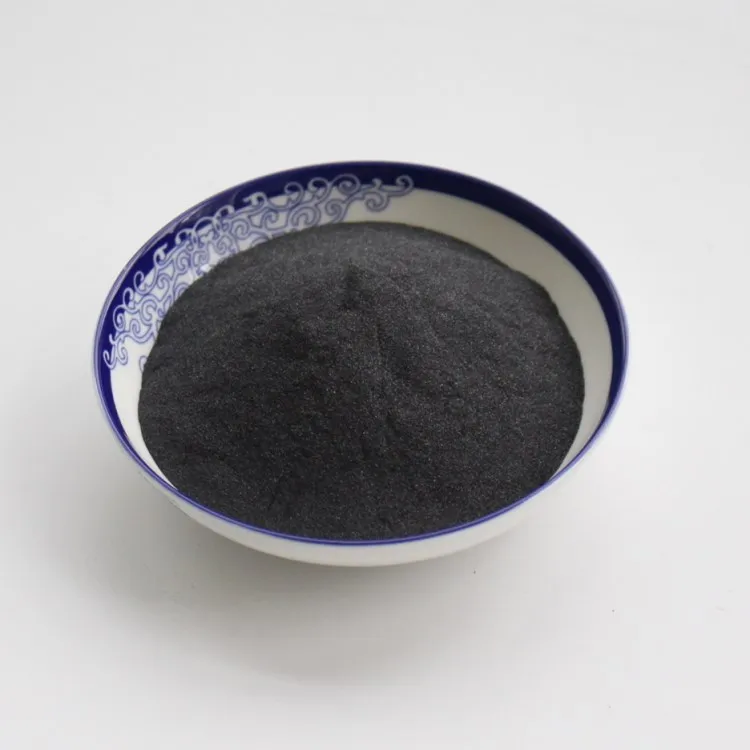

  Boron carbide B4C 60-150um or 80-325mesh particle size boron carbide powder for Weld flux-cored wire





Boron carbide powder  Features:

1. Boron carbide  powder possesses high purity, narrow range particle size distribution, larger specific surface area and so on;

2. The melting point of nano B4C is up to 2350oC, boiling point higher than 3500℃ hardness up to 9.3, flexural strength ≥ 400Mpa;

3. Boron carbide powder does not react with acid and alkali solution. It has high chemical potential and is one of the most stable materials to acid. Also, it has properties of anti-oxidation, high temperature resistant, high strength, high grinding efficiency, high hardness, high elastic modulus, high wear-resistant, and good self-lubrication characteristics;

4. Boron carbide powder has a larger thermal neutron capture cross section, with excellent neutrons absorption property and good anti-radiation performance



Specification :



Color	Black Powder
Molecular Formula	B4C
Density & phase	2.52g/cm3   Solid
Solubility In Water	Insoluble
Melting Point	2450°C
Boiling point	3500°C
Crystal Structure	Rhombohedra
Mohs Hardness	9.6
Micro Hardness	4950kgf/mm2

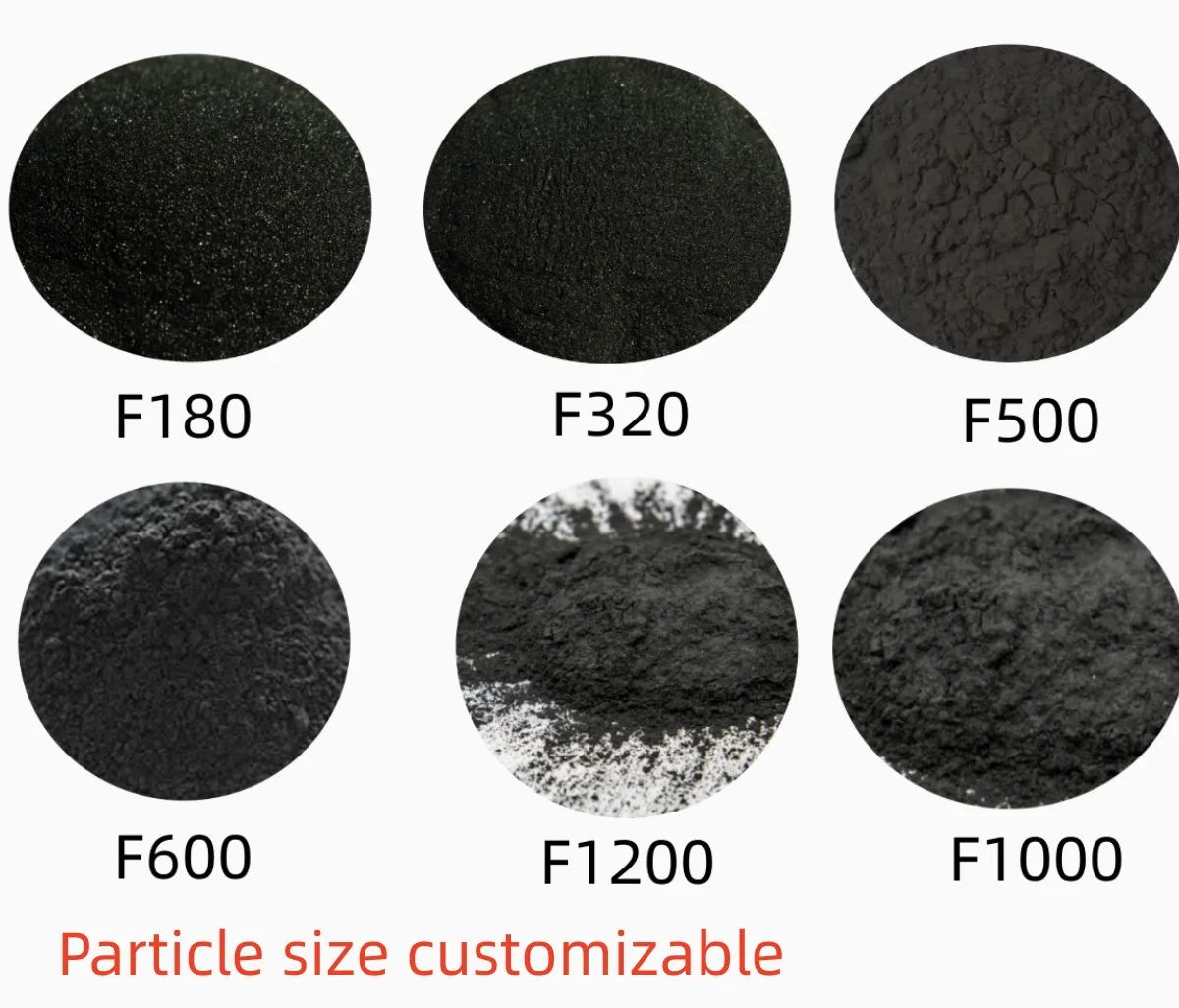

Grit Size	Size(μm)	Chemical   Composition
		B%	C%	Fe2O3%	BC%
60#	315-215	78-81	17-22	0.2-0.4	97-99
80#	200-160
100#	160-125
120#	125-100	78-80	17-22	0.2-0.4	96-98
150#	100-80
180#	80-63
240#	60-50	77-80	17-22	0.3-0.5	96-97
280#	50-40
320#	40-28
W40(360#)	35-28	76-79	17-21	0.3-0.6	95-97
W28(400#)	28-20
W20(500#)	20-14	75-79	17-21	0.4-0.8	94-96
W14(600#)	14-10
W10(800#)	10-7	74-78	17-21	0.4-0.9	92-94
W7(1000#)	7-5
W5(1200#)	5-3.5	74-78	17-21	0.5-0.9	90-93
W3.5(1500#)	3.5-2.5
-325#	<45	74-79	17-22	<0.4	92-97
0-44μm	<45
-200#	<90	74-80	17-22	<0.3	94-97
-100#	<150
-25μm	<25	74-79	17-21	<0.3	92-96
-10μm	<10	74-78	17-21	<0.3	91-95
60#-150#	250-75	77-81	17-22	<0.3	95-98
40#-120#	315-106
30#-60#	355-250
Boron carbide block	Low-mid-high carbon	92-80	17-23	<0.3	90-99

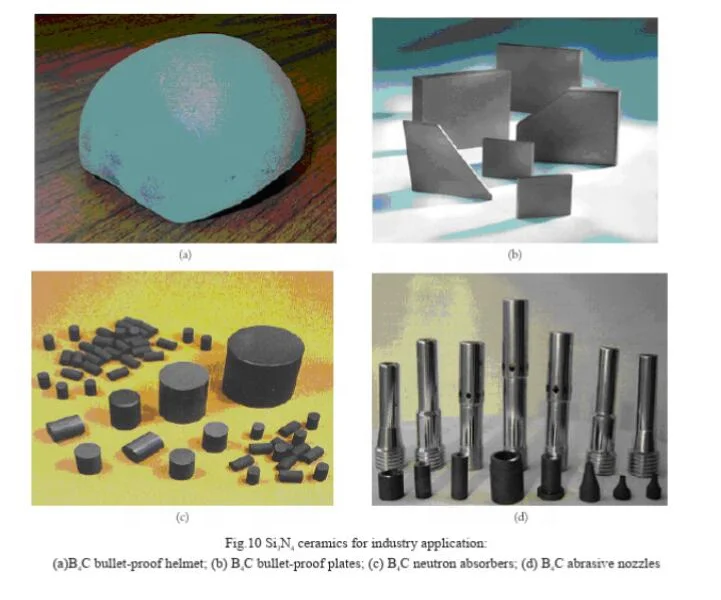

Boron Carbide Application:







1) Be used in the field of fine abrasives: as grinding media for materials levigating e.x. be used to burnish,grind,polish and bore a hole on hard materials such as precious stones, ceramics, cutting tools, bearings,and carbide grinding etc.;

2) Be widely used in the field of industrial ceramic materials e.x. to produce blasting nozzles, seal rings, nozzles, bearings, mud pump plunger the pestle and rocket launchers, warships, helicopters ceramic coating;

3) Boron carbide powder  has a proper standing in the area of shielded and control materials. It is the best material for controlling and shielding nuclear reactor the It is safe guareente in the nuclear industry;

4) Be used to produce ceramic armor which is suitable for lightweight ceramic armor e.x. be used in aircraft, vehicles, ships and for protection of the human body;

5) Be used to produce alloy powder so as to improve the life of the mechanical component;

6) Advanced Refractory materials: precision measuring element such as high-precision nozzles, seal rings and other fine engineering ceramics.

Boron Carbide Nanopowder Storage Conditions:

Damp reunion will affect its dispersion performance and using effects, therefore, this product should be sealed in vacuum and stored in cool and dry room and it should not be exposure to air. In addition, the product should be avoided under stress.

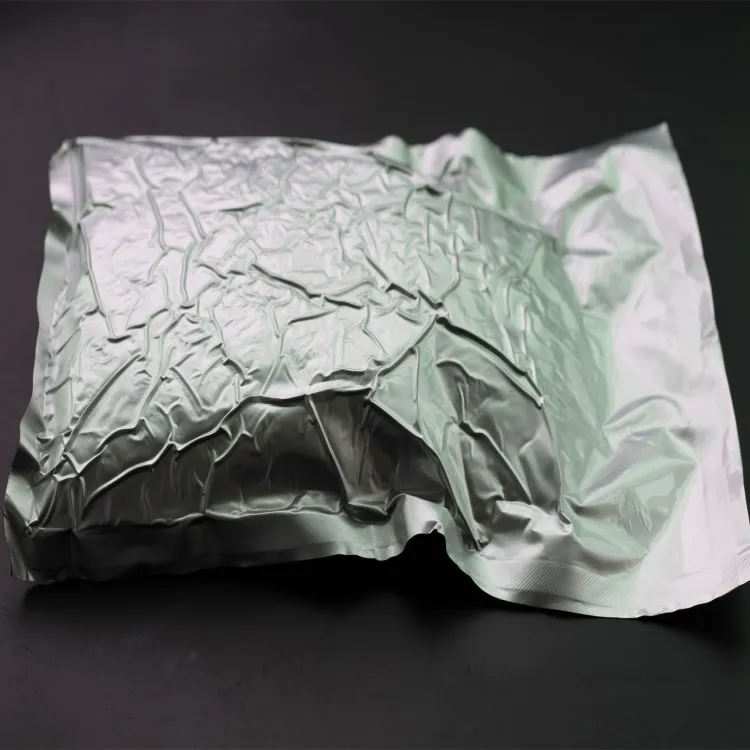

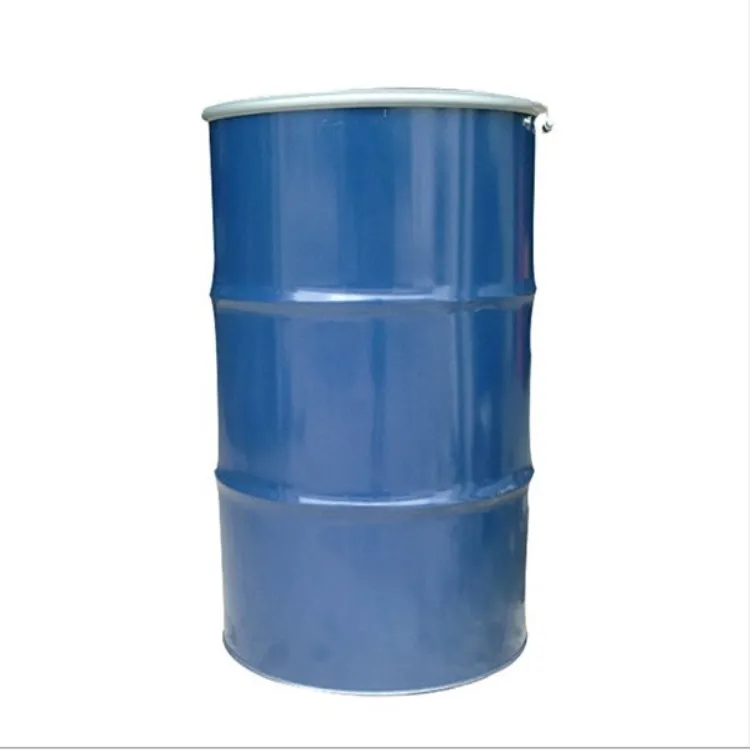

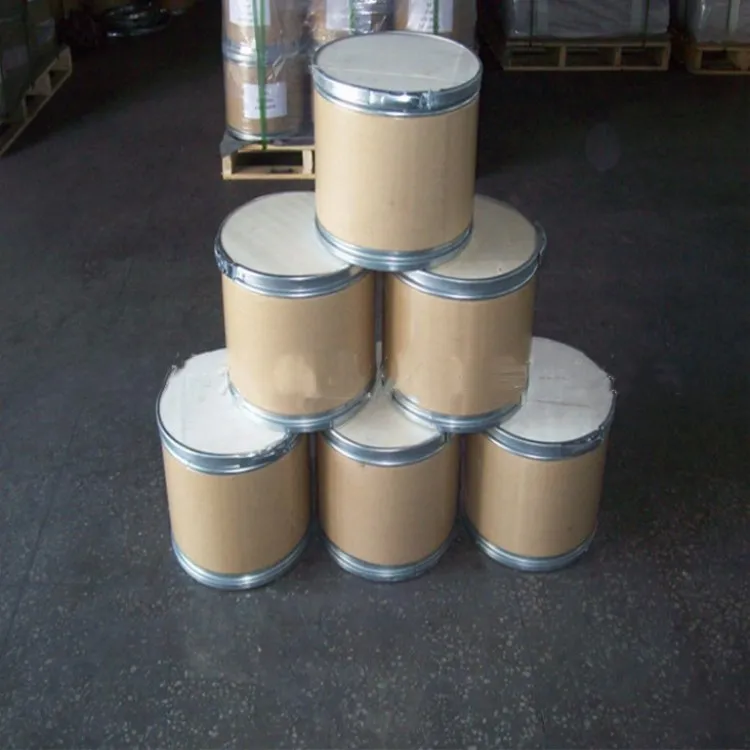

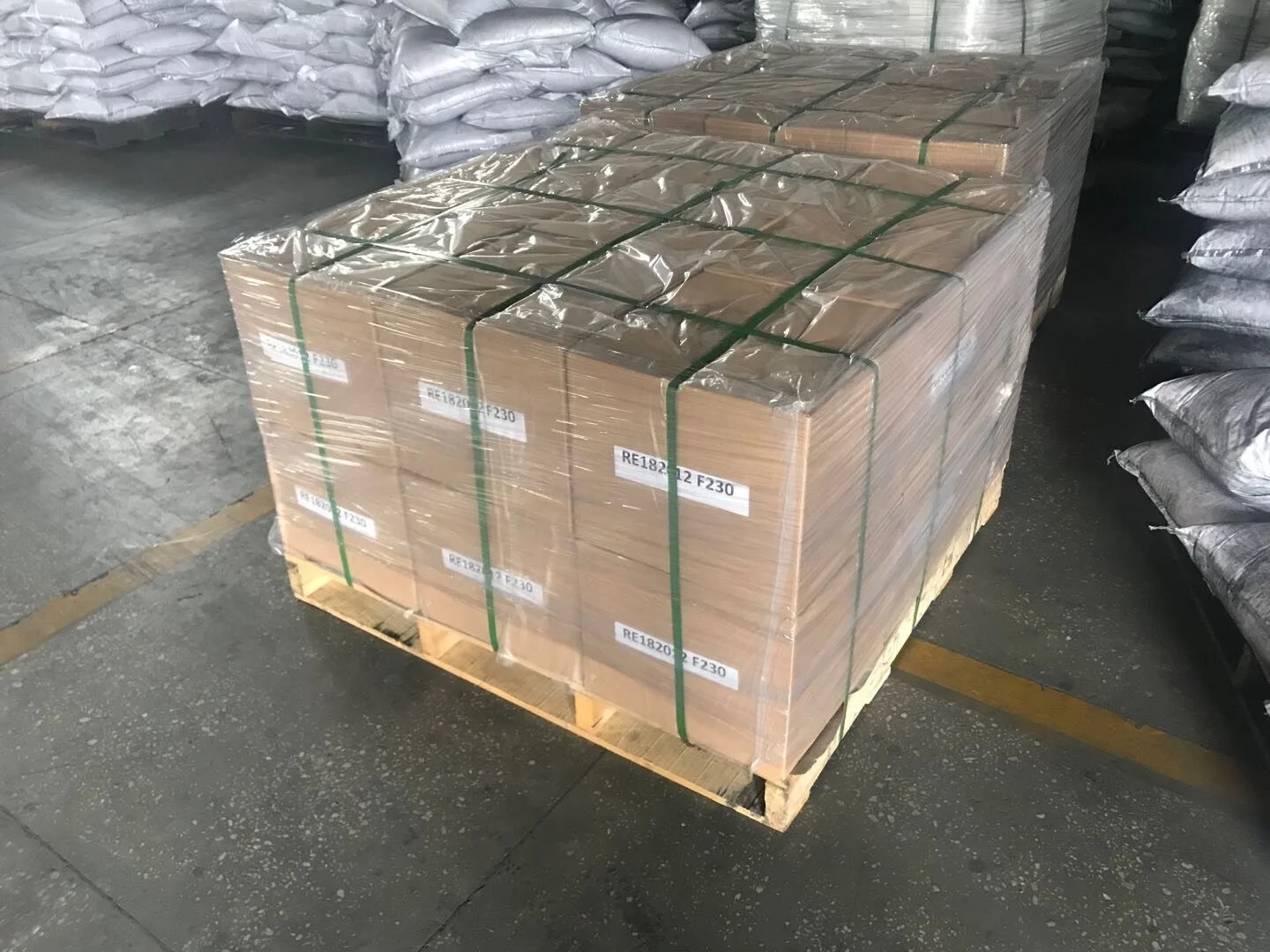

Boron Carbide Package:
