Aluminium window door corner crimping and joint machine
- Category: >>>
- Supplier: Jinan Parker Machinery Co. Ltd.
Share on (1601181020656):
Product Overview
Description
Product Description
Feature
Used for connection of 90°angle structure of aluminium doors and windows.
The new linkage structure makes corner-assembling synchronous.
Left and right punching heads feed synchronous to avoid deforming in corner-assembling procedure to make window corner connection more solid.
Synchronously feeding structure makes the adjustment simple and easy.

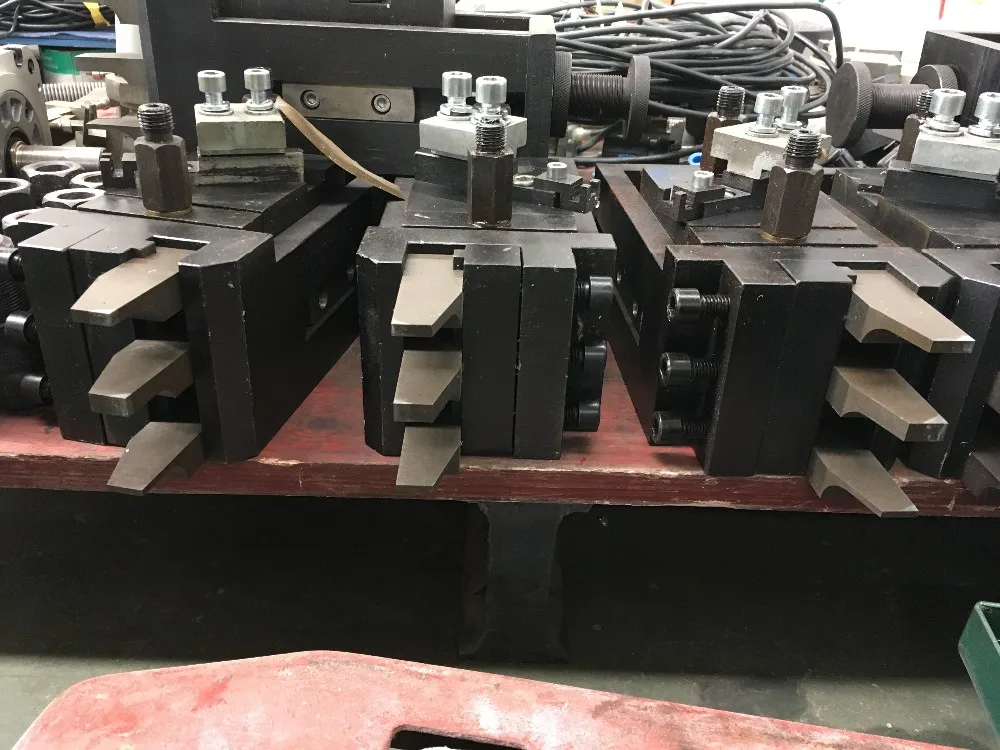

The blades can be adjusted up and down relatively by the threads.
It can be equipped with single-blade multipoint blades, making the corner-forming more reliable, the work more efficient, the manufactures more precision and the quality more excellent.
Used for connection of 90°angle structure of aluminium doors and windows.
The new linkage structure makes corner-assembling synchronous.
Left and right punching heads feed synchronous to avoid deforming in corner-assembling procedure to make window corner connection more solid.
Synchronously feeding structure makes the adjustment simple and easy.
The blades can be adjusted up and down relatively by the threads.
It can be equipped with single-blade multipoint blades, making the corner-forming more reliable, the work more efficient, the manufactures more precision and the quality more excellent.
LJJ-160
Aluminum single head corner crimping machine
Parameter
Voltage
380V 50HZ
Power
2.2KW
Air pressure
0.5-0.8MPa
Air consumption
2L/min
Hydraulic system pressure
40MPa
Oil tank capacity
20L
Max. width of profile
160mm
Seam of crimping error
≤0.15mm
Overall dimension
1096mmx1800mmx1300mm
Weight
480Kg
\t\t\t\t\t\t\t\t\tCompany \t\t\t\t\t\t\t
PARKER IS DEVELOPING WITH THE WORLD.
Parker was founded in 2003, peck with the best team and most stringent manufacturing standards, has been committed to the global supply of machinery and the best service.
Today, with more than 300 employees, 70000㎡ workshop, export to over 80 countries.
Parker has become Chinese and even the world's window door curtain wall and insulating glass high-end machinery manufacturing base.
CE Certificate
Patent Certificate
Honor at home and abroad
FAQ
Q: How can I get the best machine for our business?
A: Just let us know your cutting material, size, thickness, and working area needed, we will suggest the most suitable machine and professional solution.
Q: When can we arrange shipment?
A:We usually arrange shipment in 15 days after getting deposit, but customized machines should be more than 25 days.
Q: This is my first time using this kind of machine, is it easy to operate?
A: Of course the machine is easy to operare. We will send you the English version user manual and install video which shows how to assamble and use the machine clearly, almost all the customers can operate the machine easily. No need to worry about this, after all, Parker will always be here to help!
Q: If the machine has problem in my place, how could I do?
A: Usually there won't be any problem under "normal use" as per the user manual. But in case you have any problem, our professional after-service team will provide you any support you need any time!
B:We can send you free components to you if your machines are in guarantee time.
C:We can send our engineers to repair your machines.
Q: This machine is not suitable for me, do you have more models available?
A: Sure, in order to meet different customers' different requirments, we reserched many other different machines.
