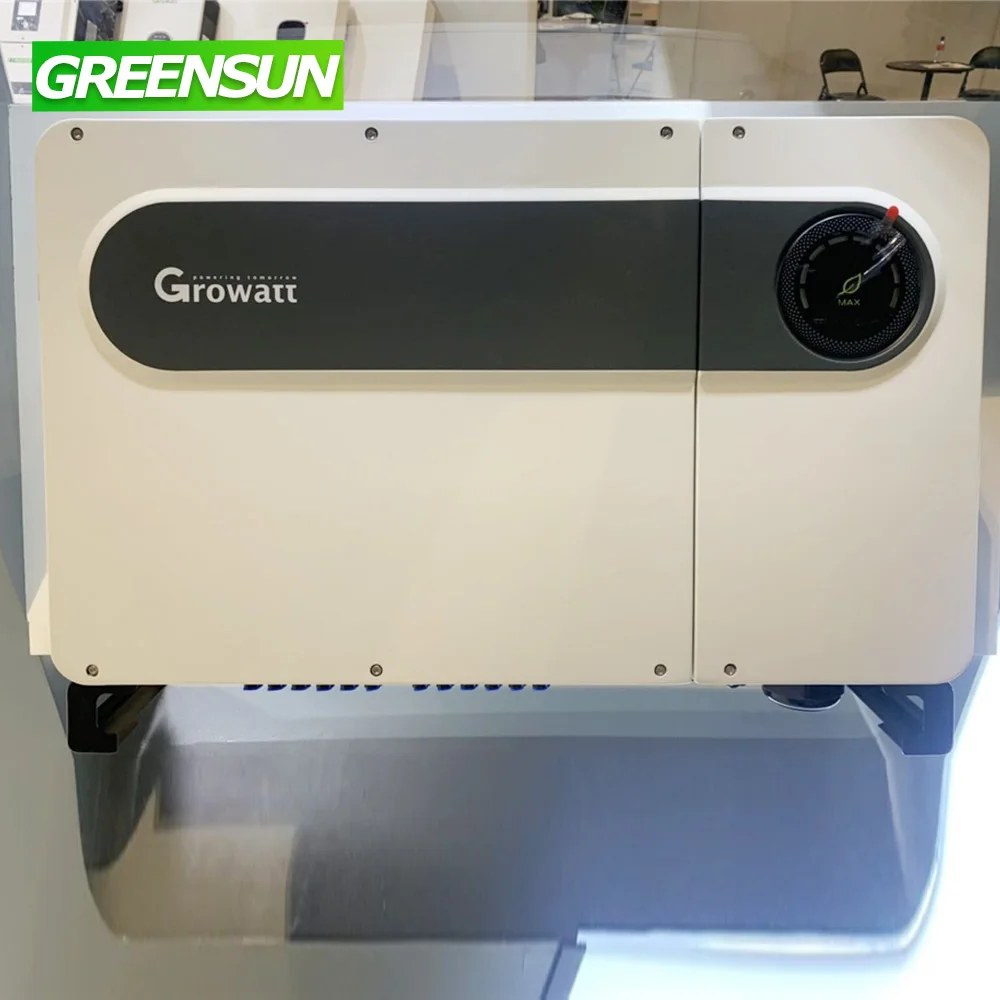

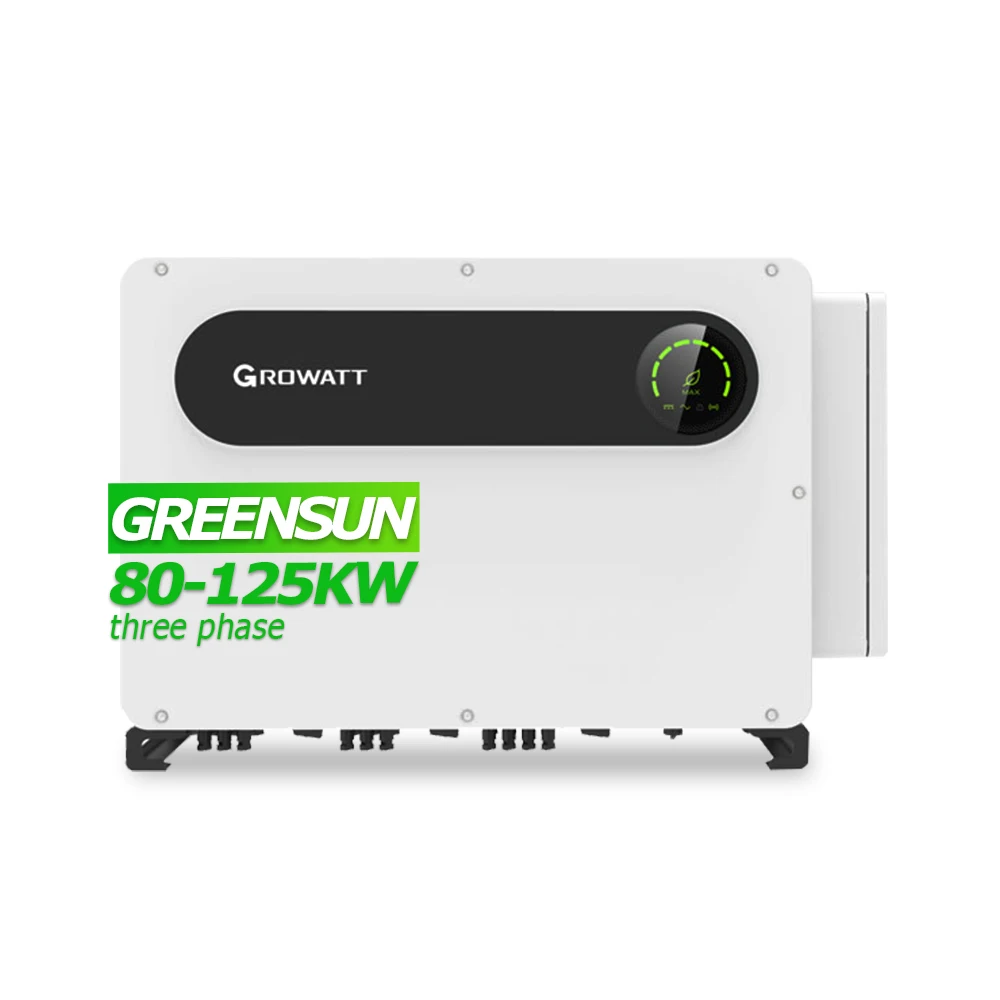

Growatt MAX 125 kw solar inverter mppt 100kw 110kw power inverter 125kw solar grid tie inverter
- Category: >>>
- Supplier: Hefei Greensun Solar Energy Tech Co. LimitedHefei Limited
Share on (1601181178483):
Product Overview
Description
Product Description
On Grid Inverter
* 10 MPPTs fusefree design
* Smart I/V scan and diagnosis
* Intelligent string monitoring
* AC&DC type II SPD
* IP66 and C5 protection
* Max. DC Voltage up to 1100V
* High Yield
* High power density, offer lighter and easy installation

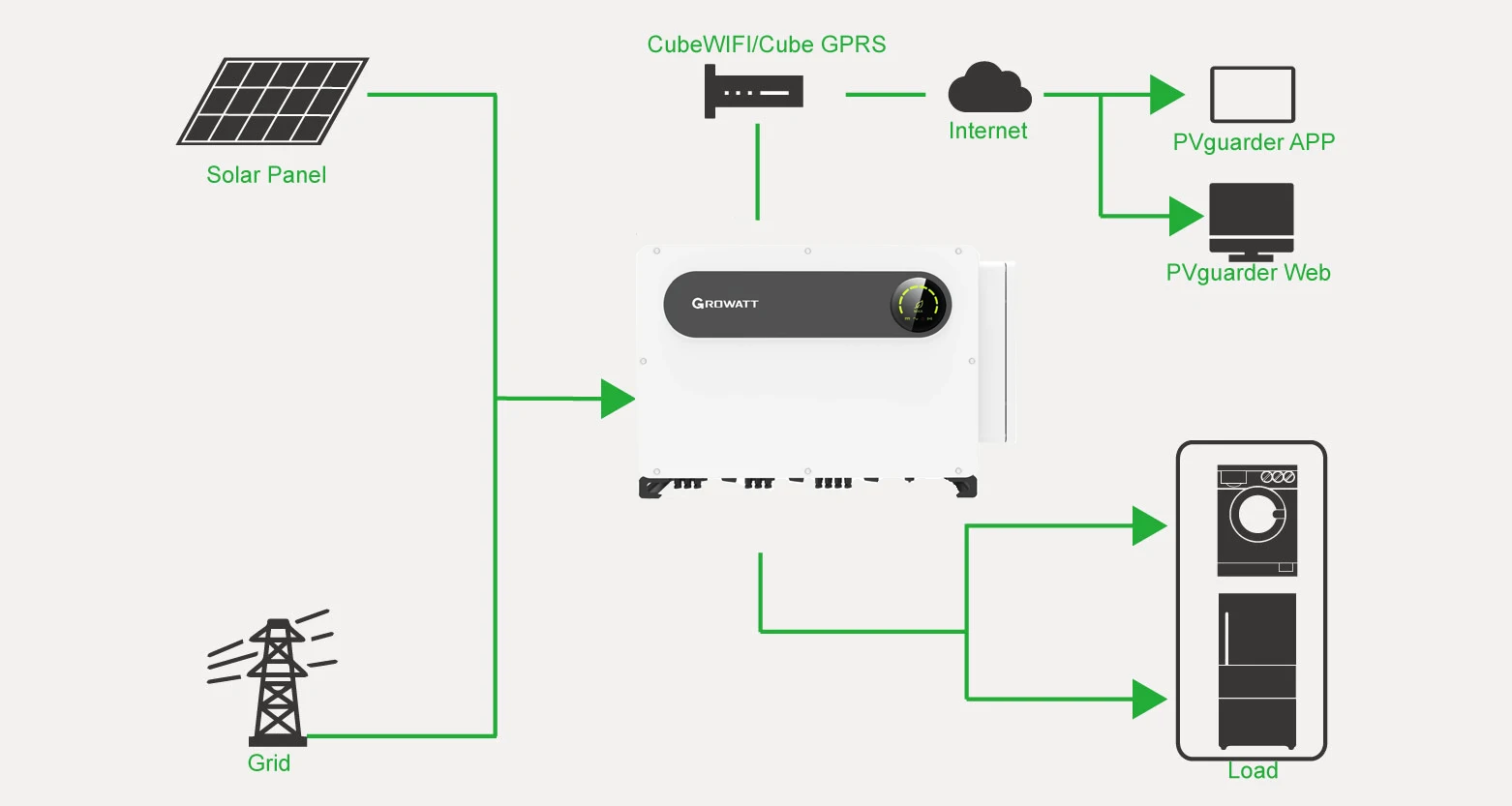

* Real Time Monitoring(Flexible communication connection, support RS485, WiFi, GPRS)
* Warranty:5 years/10 years
Specification
ON GRID String Inverter 100KW-125KW | ||||||||
MODEL | MAX100KTL3-X LV | MAX110KTL3-X LV | MAX120KTL3-X LV | MAX125KTL3-X LV | ||||
Input data (DC) | ||||||||
Max. DC voltage | 1100VDC | 1100VDC | 1100VDC | 1100VDC | ||||
MPP voltage range | 180-1000VDC | |||||||
No. of MPP trackers | 10 | |||||||
No. of PV strings per MPP tracker | 2 | |||||||
Max. input current per MPP tracker | 32A | |||||||
Max. short-circuit current per MPP tracker | 40A | |||||||
Output data (AC) | ||||||||
AC nominal power | 100000W | 110000W | 120000W | 125000W | ||||
Nominal AC voltage(range*) | 230V/400V(340-440VAC) | |||||||
AC grid frequency（range*） | 50/60 Hz(45~55Hz/55-65 Hz) | |||||||
Max. output current | 158.8A | 174.6A | 190.5A | 198.5A | ||||
Adjustable power factor | 0.8leading ...0.8lagging | |||||||
THDi | <3% | |||||||
AC grid connection type | 3W/N/PE | |||||||
Efficiency | ||||||||
Max.efficiency | 98.8% | |||||||
European efficiency | 98.4% | 98.5% | 98.5% | 98.5% | ||||
MPPT efficiency | 99.9% | |||||||
Protection devices | ||||||||
Dimensions (W / H / D) | 970/640/345mm | |||||||
Weight | 84KGS | |||||||
Protection degree | IP66 | |||||||
Interfaces: RS485 / USB /PLC/GPRS/4G/WiF | Yes/Yes/Optional/Optional/Optional/Optional | |||||||
Certification | CE,IEC62116, IEC61727, CQC, VDE0126, VFR2019, EN50549-1/2, C10/C11, UNE206007, G99 CEI 0-21/0-16, N4105&N4110, UNE206006,MEA, PEA, KSC8565 | |||||||
Production Lines
Packing & Delivery
Professional Packing: Carton, Wooden Pallet and Wooden Box. | ||||||
By Express | TNT, DHL, FedDex, UPS available | |||||
By Air | Shenzhen/Shanghai or other Designated Airport | |||||
By Sea | Shenzhen, Shanghai, Ningbo or other Designated Port in China | |||||

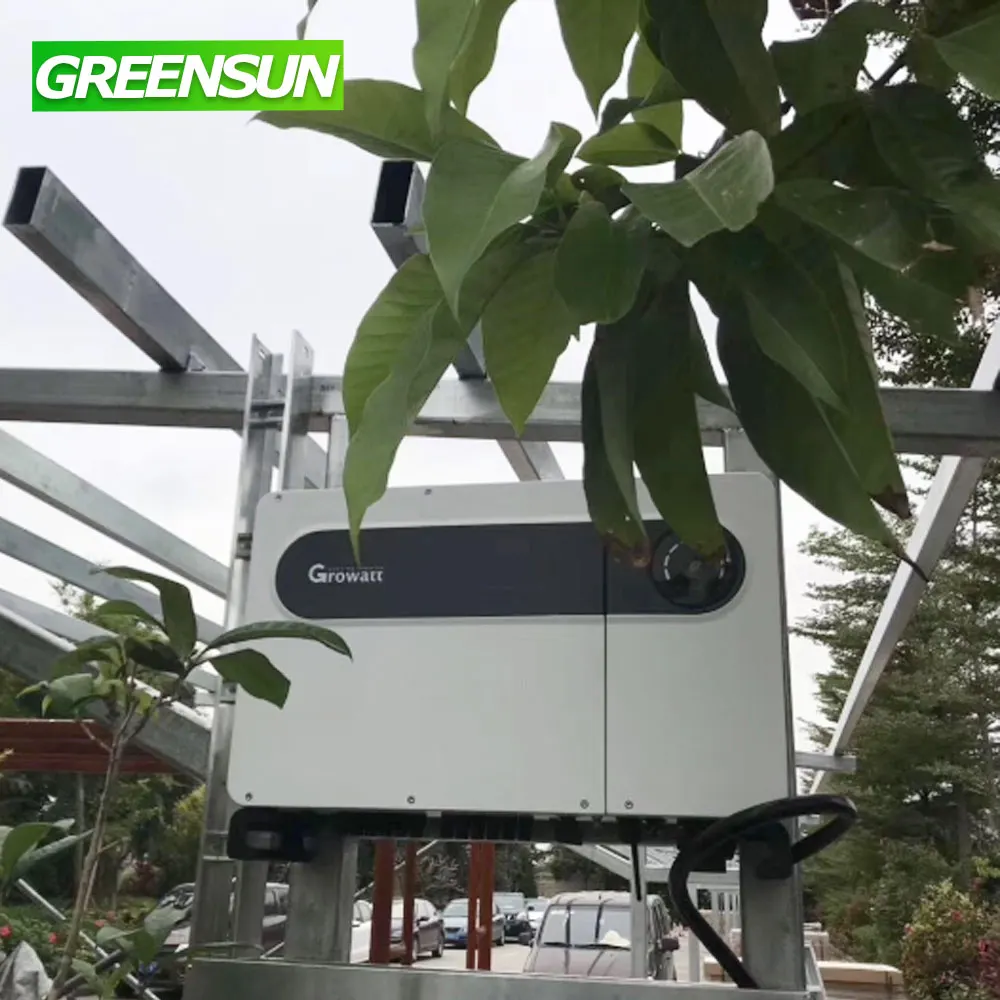

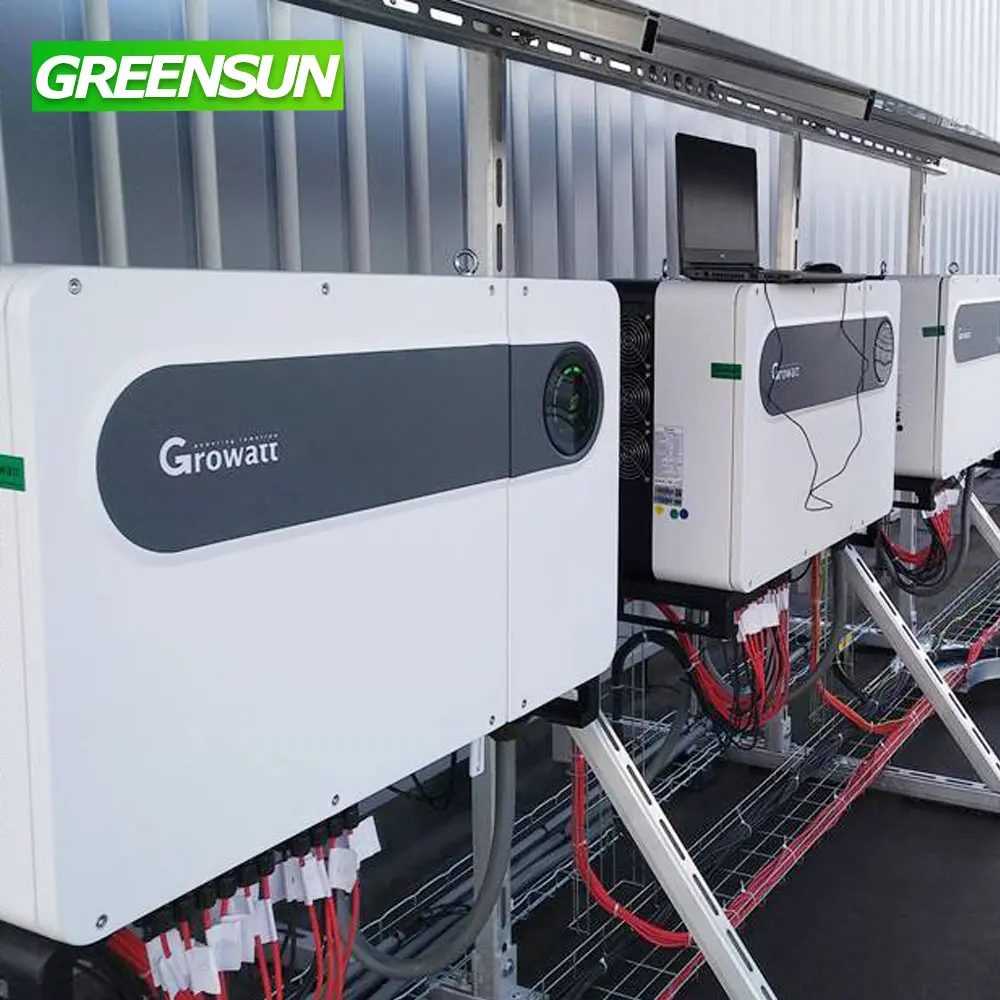

Project
