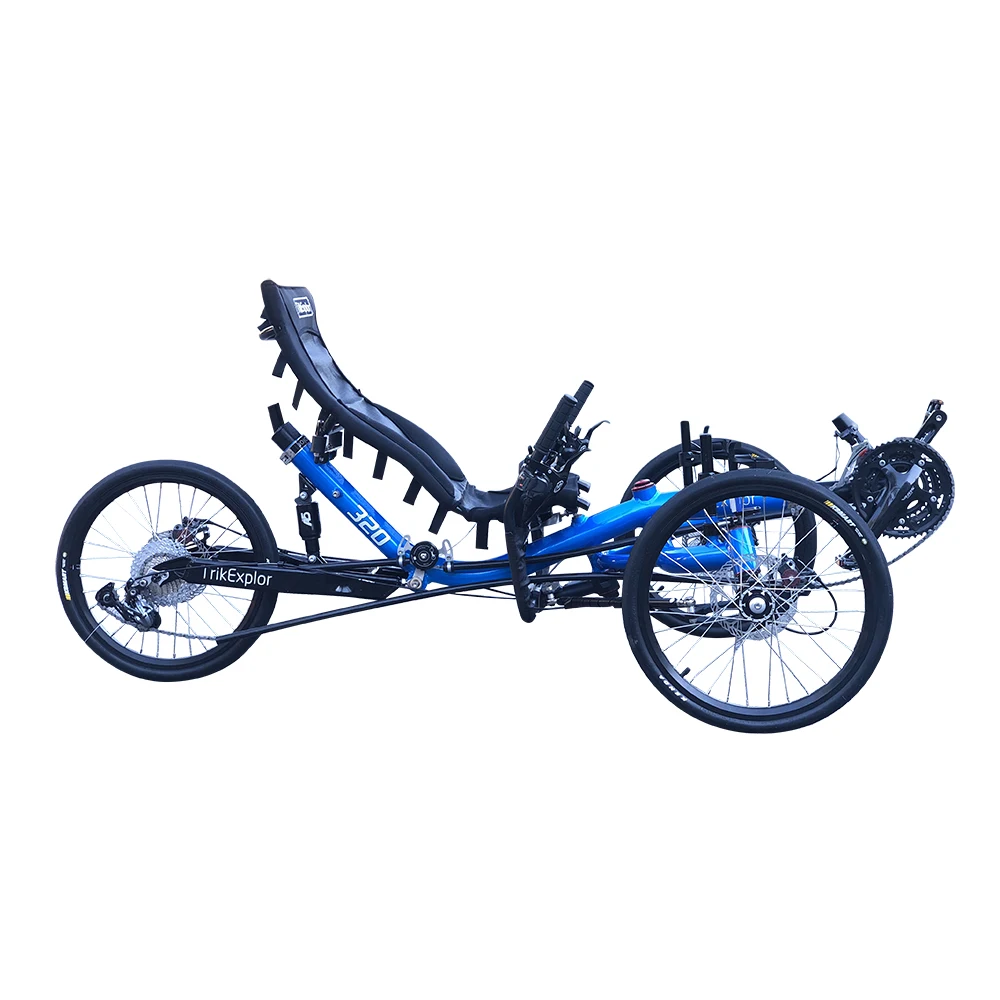

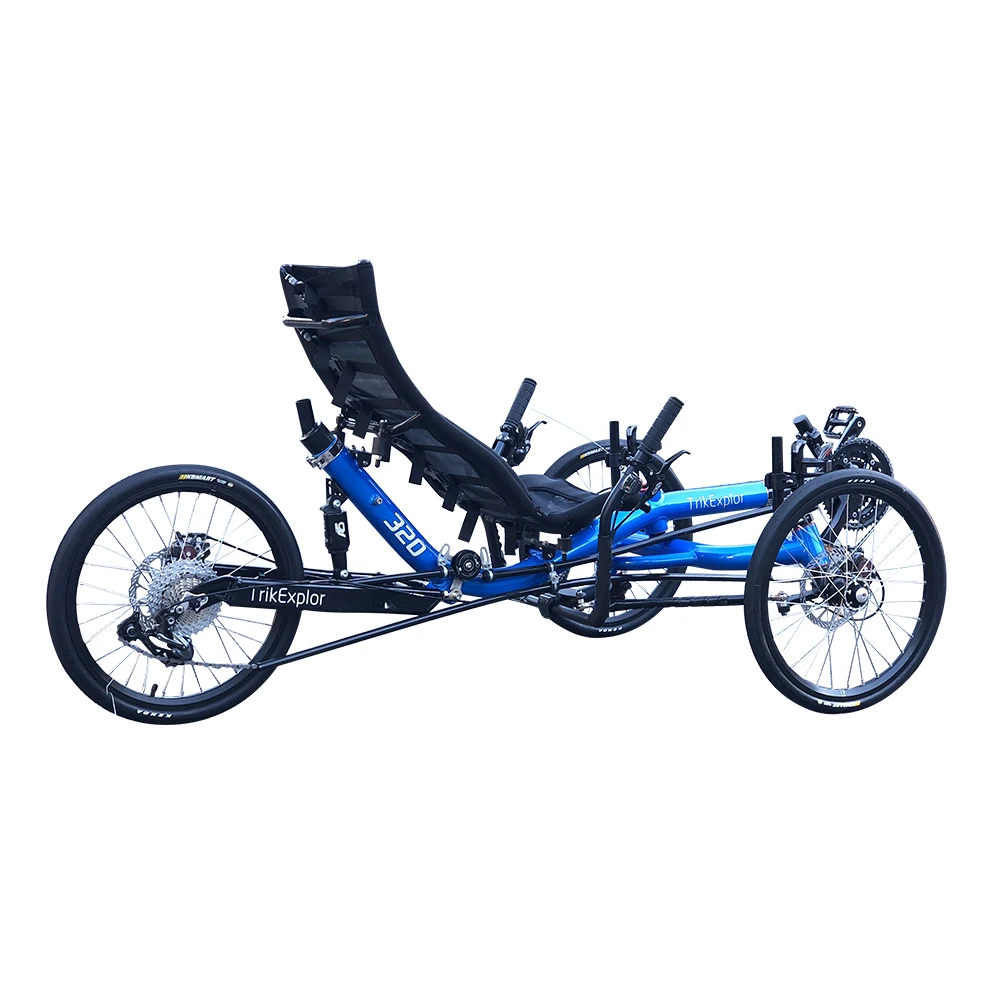

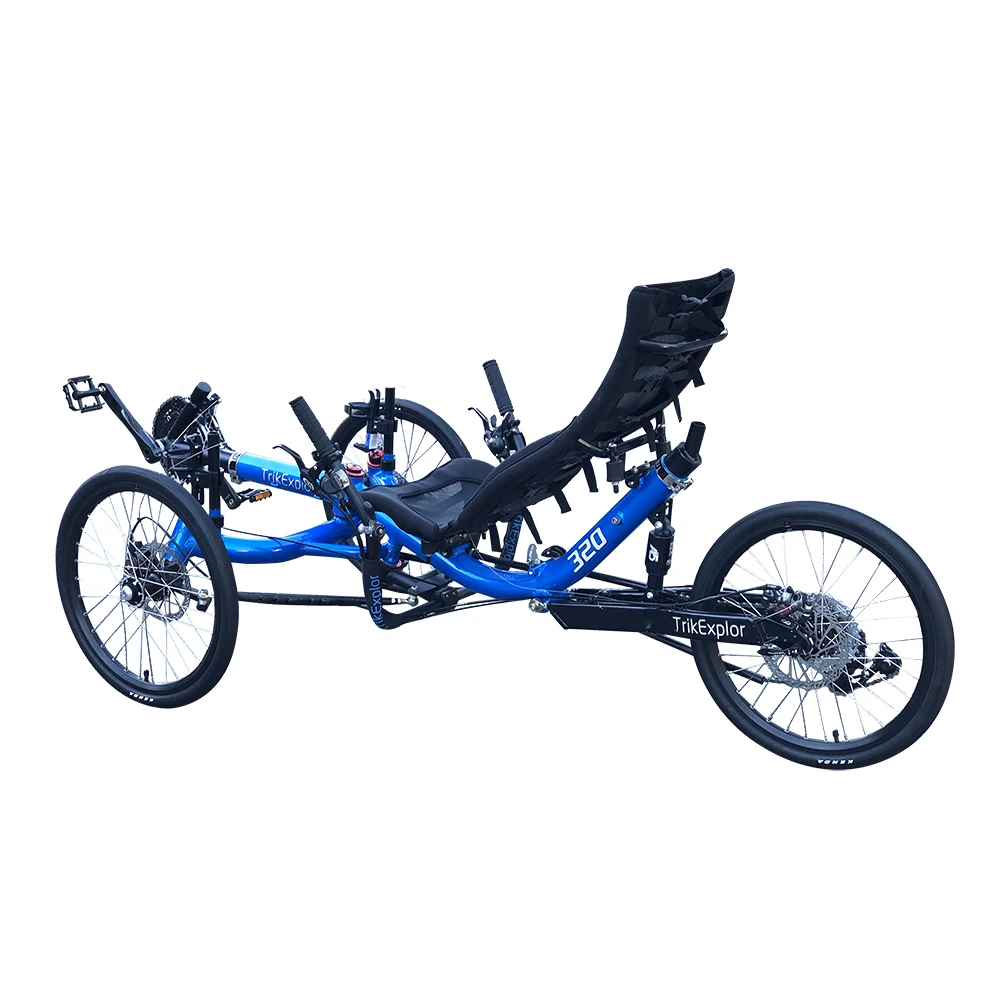

TrikExplor Free Shipping Three Wheel Touring 20 inch Road Bike Alloy Tricycle Recumbent with Rear Suspension

Share on (1601181293864):


Price:

Quantity:


Product Overview

Description



Why recumbent trikes


Do you often travel by bicycle?

When riding a touring bicycle do you suffer from pain in the neck, back, or hips because of the upright position and narrow saddle?





Why not travel in a more comfortable manner? Sit in a naturally relaxed position, see more of the world around you and add a smile to your face. Recumbent trikes give you a new freedom to experience the joy of cycling without the pain.

You will enjoy the pleasure of riding again.





Various of Recumbent


                  Fat tire Recumbent Trike

326 Traveling Recumbent Trike



                   H420E City Commuting Recumbent Quad

  420 Traveling Recumbent Quad



Did you notice that all our models have the same base frame? Yes, that it is our unique modular design.


Most of recumbent trikes are with integrated body. The frame, cruciform beam, and rear fork (chain stay) are welded together. With our approach, the body components are independent. They are connected with bolts or on some models, quick releases.



Our frame is an open design, various components can be used to configure many different models from recumbent bicycles to recumbent quads.





The advantages of our design is that you can get a bike, trike, or quad just by purchasing extra components. In addition, if a piece should ever break, you can buy just the part that needs replacing. This approach greatly reduces your potential operating expenses.


For bike shops, it can greatly reduce inventory costs. What's more, with the various mounting points, our open designed frame gives the bike shop options to customize a human powered vehicle (HPV) to suit many riders. The bike shop is not just a sales and repair shop, but a custom HPV builder.



Why model 320




Medium seat height\t
The medium seat height help you get on and off the trike easily and provides a clear view in traffic.\t\t\t\t\t\t\t\t\t\t

Ergo mesh seat\t
The Ergo-mesh seat is designed to provide optimum back support. The cover features breathable fabrics to maximize airflow, while cushioning in the base and side bolsters enhances comfort.\t

Good ground clearance
Medium seat height offers a good ground clearance, ideal for roads and trail use.\t\t\t\t\t\t\t\t\t\t

Air suspension\t
The rear air suspension can be optimized by simply adjusting, which delivers a comfortable and controlled ride.





Technical Data
Components
Overall width
90 cm
Frame
Aluminum 6061 T6
Overall height
91 cm
Seat
TrikExplor Ergo-mesh seat
Overall length
185-205 cm
Tires
Kenda 20x1.35"
Track width
85 cm
Front brakes
Avid BB7 mountain mechanical disc brake
Wheel base
118cm
Rear brake
Avid BB7 mountain mechanical disc brake
Ground clearance
17 cm
Brake levers
Avid FR-5
Bottom seat height
37 cm
Shifter
Shimano Alivio SL-M4000 3x9-speed
Seat width
37 cm
Rear derailleur
Shimano Alivio RD-M4000 9-speed
Seat depth
25 cm
Crankset
Shimano Sora FC-3503 50-39-30T
Seat angle
40°
Cassette
Shimano CS-HG400-9 9-speed 11-32T
Turning circle
4.0 m
Chain
Shimano CN-HG73 9-speed
Weight
20 kg
Option 1
Wheel size
20"
Motor
 36v 250w rear hub motor
Max. load
125 kg
Battery
36v 11.6Ah lithium battery with Panasonic cells
Rider height
165-200 cm
Display
 LCD display


Customer Reviews








Our trike at international bike shows.





Packing & Delivery


In accordance with our years of experience shipping to over 50 countries, we utilize various shipping methods. And for all shipping methods, we pack our trikes in individual carton boxes.



Quantity (unit)
Package
Shipping Way
Est. Delivery Time
1~2
Carton
FedEx
7 days
3-29
Carton
By sea or air
25 days
30-50
Carton
By sea
30 days



When you order 1-2 units, you can buy it at alibaba directly, just click the start order.



Different port has different freight, please let me know your sea port or airport when you submit inquiry.



FAQ


Q: Can you make the trike with electric motor?
A: Sure, please contact us for price.


Q: Does the trike has suspension?
A: Yes. The trike has rear suspension.

Q: What accessories do you supply?
A: We supply mirror, flag, water holder, headrest. They are free accessories.
Side pod, mudguards, standing support etc are available for purchase.


Q: What colors are available?
A: Our available colors are blue, red, white and black.

Q: I am 190 cm tall and weight 100 kg. Is the trike suitable for me?
A: Yes. Our trike is suitable for 165 to 200 cm height and the max. load is 125 kg.


If you have more questions, feel free to send inquiry to us.



Company & Service


TrikExplor has been producing recumbent cycles in China since 2003, creating a Chinese top recumbent brand.

We are deeply committed to manufacturing superior quality recumbent cycles in a constant bid to offer the ultimate recumbent experience.

We are cyclists ourselves. We have logged tens of thousands of miles racing, touring, trail riding, commuting, and day tripping on our trikes and quads.





Every year we attend the bike shows in Europe and USA and publish videos, photos and other information on Youtube, forum and other social media.

You can see more info and reviews on these websites and test our bikes at shows.





Warranty service

We offer 5 years warranty for frame, 1 year warranty for electric kits (motor, display and controller) and other parts (With exception of usage and wear and tear).

please contact us for detail policy.



How to buy


Buy one as sample or for personal use.

You can place the order here directly, just click the start order. The posted price is with shipping by express.


Buy more for retail sales

For more information and price, please don't heistate to click inquiry to us or chat with us.


If you have bicycle store, online shop or do any other bicycle related industries, we are welcome you to be one of our dealers



If you have not yet found a model that meets your desires, feek free to contact us, our amazing frames are ready for your customization and DIY!
