TSP01 08A Split laboratory injection pump, eight channel independent control, precision microfluidic micro injection
TSP01-08A Split laboratory injection pump, eight-channel independent control, precision microfluidic micro-injection
TSP01-08A Split laboratory injection pump, eight-channel independent control, precision microfluidic micro-injection
TSP01-08A Split laboratory injection pump, eight-channel independent control, precision microfluidic micro-injection
TSP01-08A Split laboratory injection pump, eight-channel independent control, precision microfluidic micro-injection
TSP01-08A Split laboratory injection pump, eight-channel independent control, precision microfluidic micro-injection
TSP01-08A Split laboratory injection pump, eight-channel independent control, precision microfluidic micro-injection

TSP01 08A Split laboratory injection pump, eight channel independent control, precision microfluidic micro injection

Share on (1601181703069):


Price:

Quantity:


Product Overview

Description



Number of Channels\t1 / 2 / 3 / 4 / 5 / 6 / 7 / 8\t\t
Running Control\tEach drive unit can be controlled separately\t\t
Working Mode\tInfusion / Withdraw ( Infusion, withdrawal, infusion / withdrawal, withdrawal / infusion, continuous )\t\t
Max. Infusion Distance\t90 mm\t\t
Syringe Size\t10 uL to 60 mL\t\t
Syringe Selection\tThe syringe can be selected in the manufacturer table which includes manufacturer, material and size or input the inner diameter of the syringe barrel directly\t\t
Display\tIindustrial grade color touch screen\t\t
Setting Mode\tTouch screen control\t\t
Fast forward / backward\tInfuse or withdraw liquid at full speed\t\t
Linear Speed\tMin: 3um/min Max: 90 mm/min\t\t
Adjusting Resolution\t3um\t\t
Linear Force\t> 90N\t\t
Travel resolution\t0.3125 um/ustep\t\t
Travel control accuracy\t≤ 0.5%\t\t
External control signal\tRS485 or Start/Stop\t\t
Communication Interface\tRS485\t\t
Power Supply (Controller)\tDC 24 V, 120W\t\t
Operating temperature\t0°C - 40°C\t\t
Relative humidity\t＜ 80%\t\t
Controller Dimensions\t245mm*188mm*102.28mm\t\t
Controller Weight\t1.8 Kg\t\t

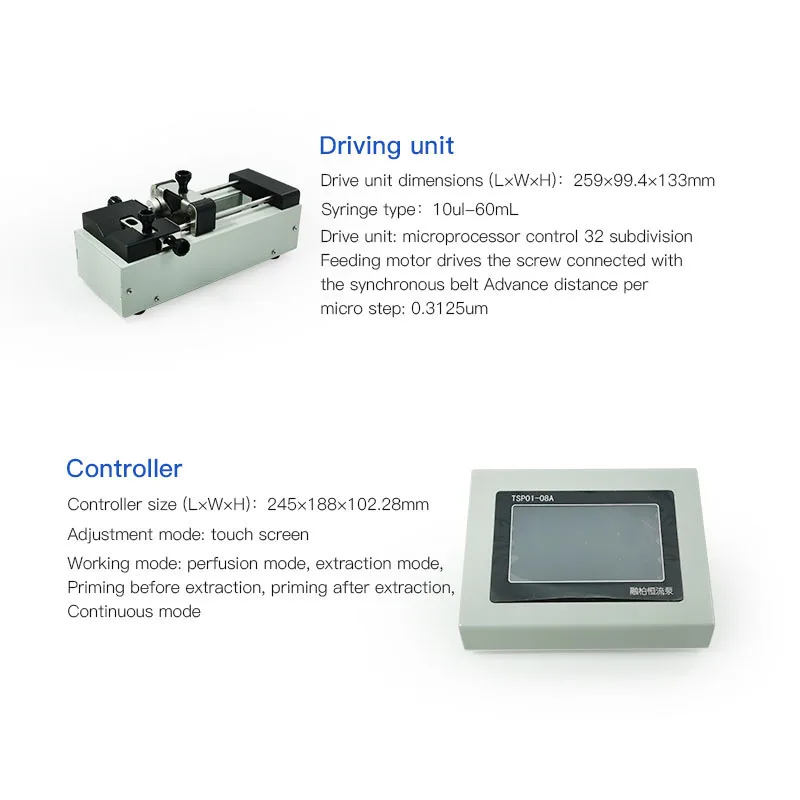

Drive Unit Dimensions\t259mm*99.4mm*133mm\t\t
Drive Unit Weight\t2.4 Kg\t\t
IP rating\tIP31\t\t
Power-off Memory\tStoring the running parameters automatically\t\t
Calibration Function\tAcquire accurate volume through calibration\t\t
Protection Function\tThe pump will stall and give an alarm when the drive structure of the pump is blocked\t\t
Syringe Protection\tAdjust syringe rest to prevent syringe from damaging\t\t

















Baoding Rongbai Peristaltic Pump Manufacturing Co., Ltd.


Email: rongbaipump@foxmail.com


Postcode: 071000


Address:

4-C-622, Electric Valley Technology Center, No. 3088, Lekai North Street, National High-tech Industrial
Development Zone, Baoding City, Hebei Province, China



FAQ



Warm tips:


(1)Usually we send the goods by EMS/DHL/SEA, if you want ship by any ways please feel free to contact us.

(2) A tracking number will send to you after your order has been shipped

(3) Delivery: Small orders will be shipped within 24 hours if the payment is made before 3 pm on the same day. For large
orders,please contact customer service. If you encounter shop activities, generally control the delivery within 48 hours, if there is anextension Please understand.

(4) Return/Exchange: If the product is not in use, it can be returned for 7 days without reason.

(5) Size: The product size is marked, if there is any error, please contact the customer service staff to solve it.

(6) Color: Store products are all actual shots.

(7) Customization: The company accepts orders of various sizes, and can be customized and developed according to customer requirements to ensure quality and low prices. New and old customers are welcome to negotiate business.


Product Maintenance：


(1) When the pump is not working for a long time, loosen the pressure block to avoid squeezing the hose for a long time to cause deformation.

(2) The roller of the pump head should be kept clean and dry, otherwise it will accelerate the wear of the hose, shorten the
service life of the hose and cause premature damage to the roller.

(3) The surface of the drive and the pump head are not resistant to organic solvents and strong corrosive liquids, so special attention should be paid when using them.


Warranty：


(1) The product is guaranteed for one year.

(2) Contact the seller or manufacturer before returning to the factory for repair.

(3) The original packaging or other reliable packaging methods should be used as far as possible for the return to the factory for maintenance and transportation.

(4) When returning to the factory for maintenance, the fault phenomenon and contact information should be found in detail.

(5) During the warranty period, if it is improperly used or damaged by the user, it will not be included in the free warranty.
