0/1 10V dimming Driver Best Quality Constant Currents Dali Dimming Intelligent Tunable LED Driver for Indoor Light Fixtures
- Category: >>>
- Supplier: KC Electronic Technology Company Limited
Share on (1601181715539):
Product Overview
Description
Products Description
Features
Housing made from SAMSUNG/COVESTRO'S V0 flame retardant PC
·Housing made from SAMSUNG/COVESTRO'S V0 flame retardant PC
materials. ·Two channel output, output current level selectable by DIP S.W.
·High efficiency up to 85 %
·Built-in active PFC function
·Protections: Short circuit, over load, over Voltage
·Suitable for indoor LED lighting application, such as down light, panel light, and so on
·Housing made from SAMSUNG/COVESTRO'S V0 flame retardant PC
materials. ·Two channel output, output current level selectable by DIP S.W.
·High efficiency up to 85 %
·Built-in active PFC function
·Protections: Short circuit, over load, over Voltage
·Suitable for indoor LED lighting application, such as down light, panel light, and so on

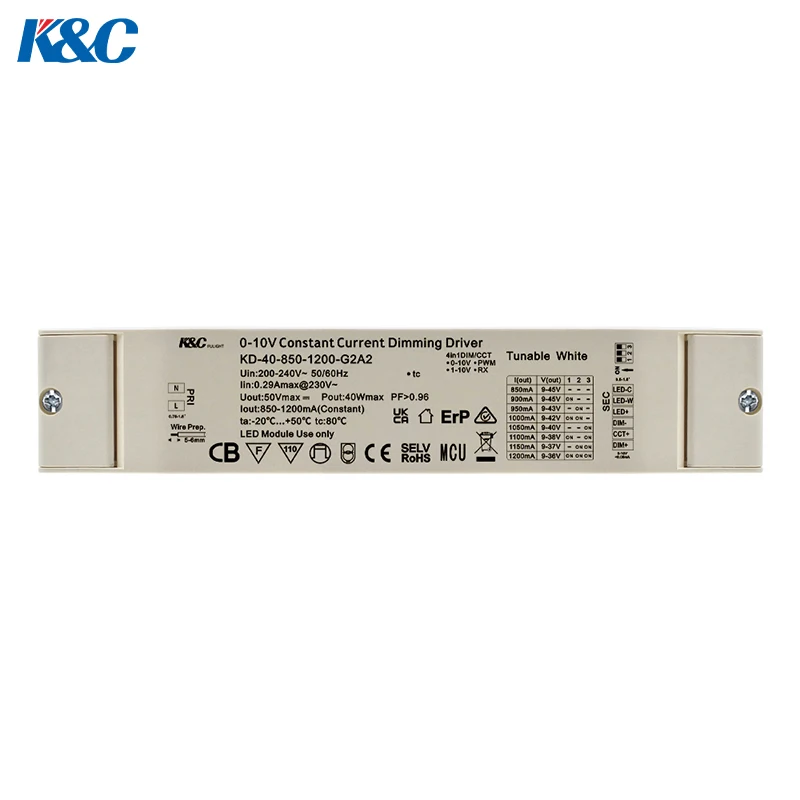

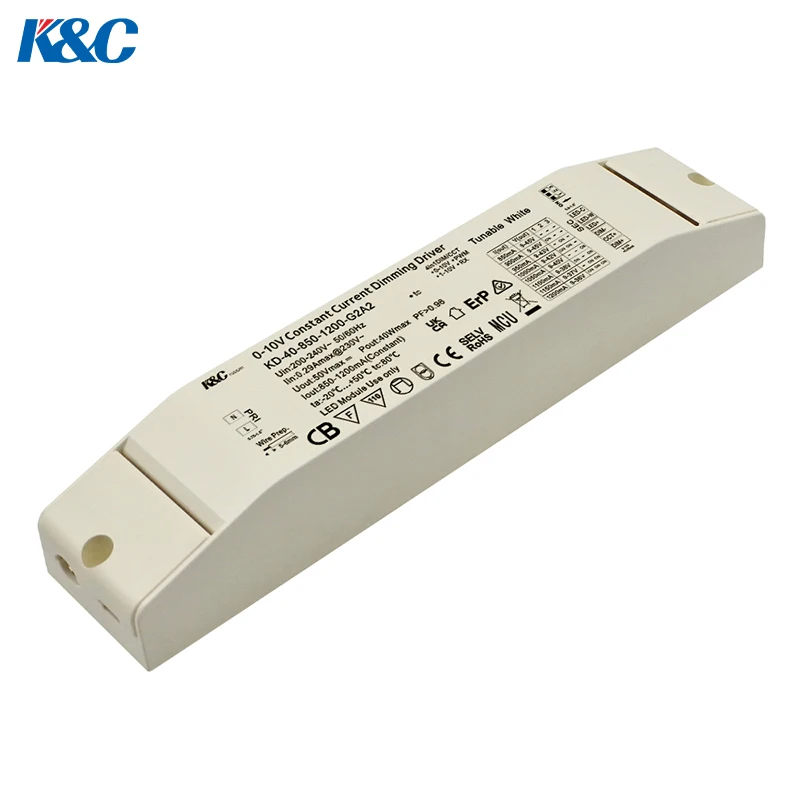

40W 850/900/950/1000/1050/1100/1150/1200mA Constant Current 0/1-10V Driver KD-40-850-1200-G2A2
KD-40-850-1200-G2A2 is a constant current output mode LED driver. The output current can be easily set via DIP switch, and the driver can be adjusted by the external 0/1-10VDC active signal, PWM signal , or adjustable resistance to achieve the smooth dimming effect.
KD-40-850-1200-G2A2 is a constant current output mode LED driver. The output current can be easily set via DIP switch, and the driver can be adjusted by the external 0/1-10VDC active signal, PWM signal , or adjustable resistance to achieve the smooth dimming effect.
Model | KD-40-850-1200-G2A2 | ||||
Input | Efficiency | 87%@230VAC, Full load | |||
Voltage | 220VAC-240VAC | ||||
Frequency | 50/60Hz | ||||
Power Factor | 0.95@230VAC,Full load | ||||
THD | <10%@230VAC, Full load | ||||
Current | 0.23Amax@230VAC, Full load | ||||
Inrush Current | Cold start,22A(twidth=30us measured at 50% Ipeak)@230VAC | ||||
Output | Current(mA)/Voltage (VDC)/ Power(W) | 850mA/9-45VDC/38.25W 900mA/9-44VDC/39.6W 950mA/9-42VDC/39.9W 1000mA/9-40VDC/40W 1050mA/9-38VDC/39.9W 1100mA/9-36VDC/39.6W 1150mA/9-35VDC/40.25W 1200mA/9-33VDC/39.6W | |||
Ripple Current | <3% | ||||
Channel | 2 | ||||
Current Tolerance | ±5% | ||||
Standby Power | <0.5W | ||||
No load output voltage | 50VDC Max | ||||
Turn On Delay Time | <1.5s, at 230Vac | ||||
Function | Dimming Mode | 0/1-10V active signal, adjustable resistance, PWM | |||
Dimming Range | 0.3%-100% | ||||
Protection | No Load | The LED Driver will not be damaged. | |||
Short Circuit | No Output, recovers automatically after fault condition is removed | ||||
Over Load | Hiccup mode, recovers automatically after fault condition is removed | ||||
Safety | Surge | L-N:1KV | |||
Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA | ||||
Others | Working Temp. | -20℃~50℃ | |||
Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | ||||
Tc | 75℃ | ||||
Material | PC | ||||
IP Rating | IP20 | ||||
Lifetime | 50,000h@tc:60℃ | ||||
Warranty Condition | 5 years | ||||
Switch Cycle | >25,000 times | ||||
Packing Size | 375*330*180mm(L*W*H), 10Kg±5%/Carton/50PCS | ||||
Dimension | 200*40*31mm(L*W*H) | ||||
G.W | 200g±5% | ||||
1. 100% factory price
2. 10 engineers and own tooliong house, strong at OEM&ODM
3. A lot of stock, fast delivery available
4. More than 200 led aluminum profile designs
5. Support both small or big orders
