Acrylic Pipe Bending Machine ABM 700mm ABM1300 Acrylic Hot Bending Tool PVC Plastic Sheet Bending Machine
- Category: >>>
- Supplier: Guangzhou Z-Z Advertising Material Co. Ltd.
Share on (1601181781807):
Product Overview
Description
Product Superiority
1, the hot bending width is large, can process some thick plates.
2, the current control range is larger, the temperature adjustable range is wider.
3, with the length and Angle positioning parts of the bending machine, can be set by the ruler and Angle. Convenient proofing and production of small batches, debugging and measurement of sample size, and ensure the consistency of batch products.
4, good heat dissipation function, slow down the aging of the internal lines and components of the machine.
5,stable quality, good reputation, after-sales guarantee. 6, with leakage switch protection, to ensure the safe use of equipment.
2, the current control range is larger, the temperature adjustable range is wider.
3, with the length and Angle positioning parts of the bending machine, can be set by the ruler and Angle. Convenient proofing and production of small batches, debugging and measurement of sample size, and ensure the consistency of batch products.
4, good heat dissipation function, slow down the aging of the internal lines and components of the machine.
5,stable quality, good reputation, after-sales guarantee. 6, with leakage switch protection, to ensure the safe use of equipment.
Specification
Acrylic Bending Machine | ||||
Model | ABM700 | ABM1300 | ||
Voltage | 100-240V | |||
Power | 1000W | 1500W | ||
Applicable thichness | 1-10mm | |||
Width | ≤700mm | ≤1300mm | ||
Temperature range | 0-600℃ | |||
Packing | 100*24*54cm | 160*24*54cm | ||
15KG | 25KG | |||
Product Display
1、There are 2 sizes 700mm and 1300mm
Size---700mm
Size---1300mm

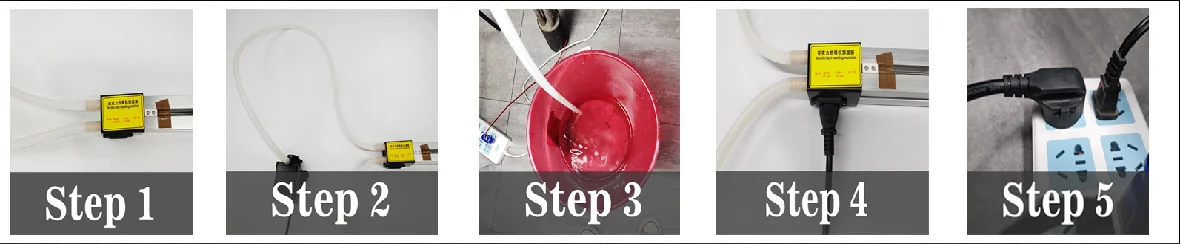

2、Method Of Application
Step 1: Fix the drain pipe on the hot bending machine
Step 2: Connect the pump
Step 3: Put the pump into a container with 30 L of water, connect the power supply of the pump, and let the water flow in the pipeline
Step 4: Connect the power source of the hot bending machine and adjust the temperature through the thermostat. Turn the switch clockwise to heat up, turn counterclockwise to cool down
Step 5: After preheating for about a few minutes, wait until the tube body redness reaches the temperature, the heater can bend the plate
Step 2: Connect the pump
Step 3: Put the pump into a container with 30 L of water, connect the power supply of the pump, and let the water flow in the pipeline
Step 4: Connect the power source of the hot bending machine and adjust the temperature through the thermostat. Turn the switch clockwise to heat up, turn counterclockwise to cool down
Step 5: After preheating for about a few minutes, wait until the tube body redness reaches the temperature, the heater can bend the plate
3、Operation Sequence
（1）Adjust the temperature and preheat for 5-6 minutes
（2）Adjust the width positioner
（3）Adjust angle
（4）Bent sheet
（5）Fix the hot bending Angle at the Angle location of the plate placement

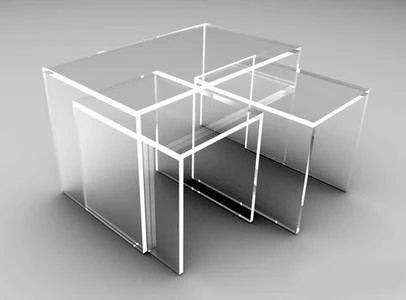

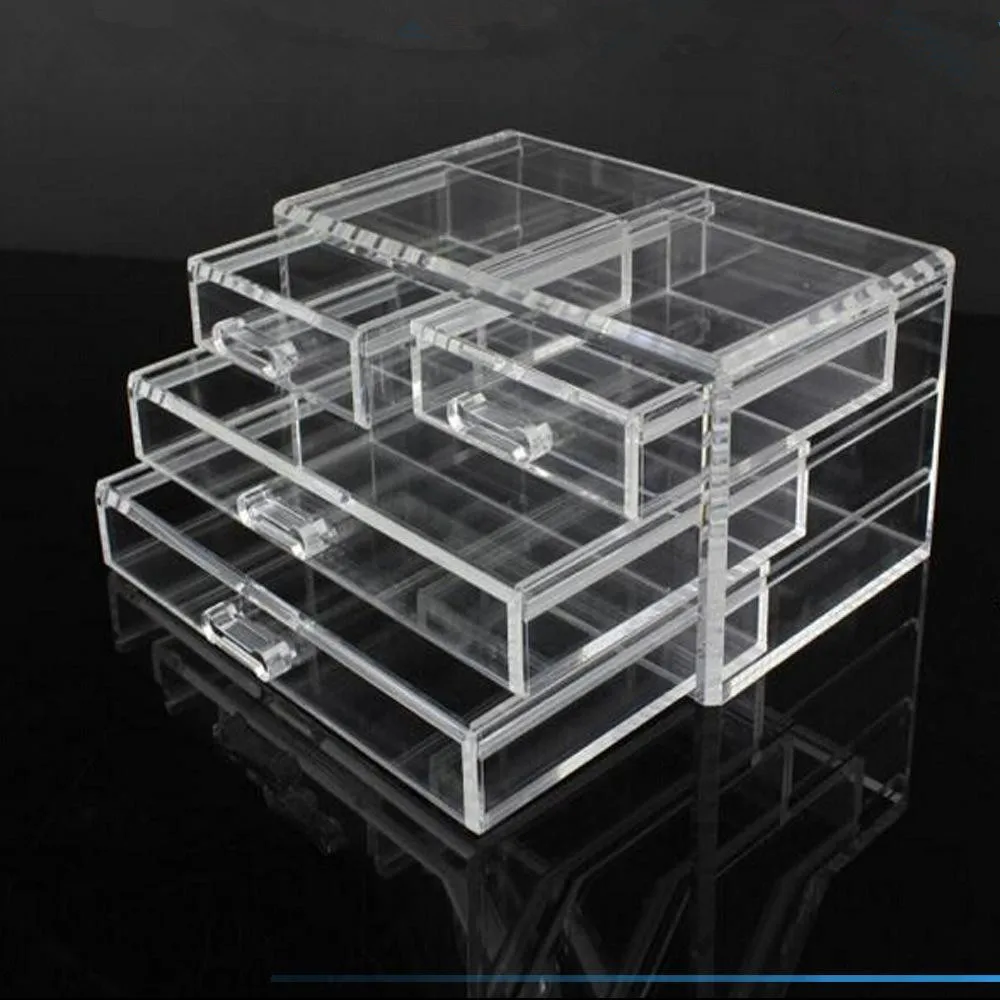

4、Finished product

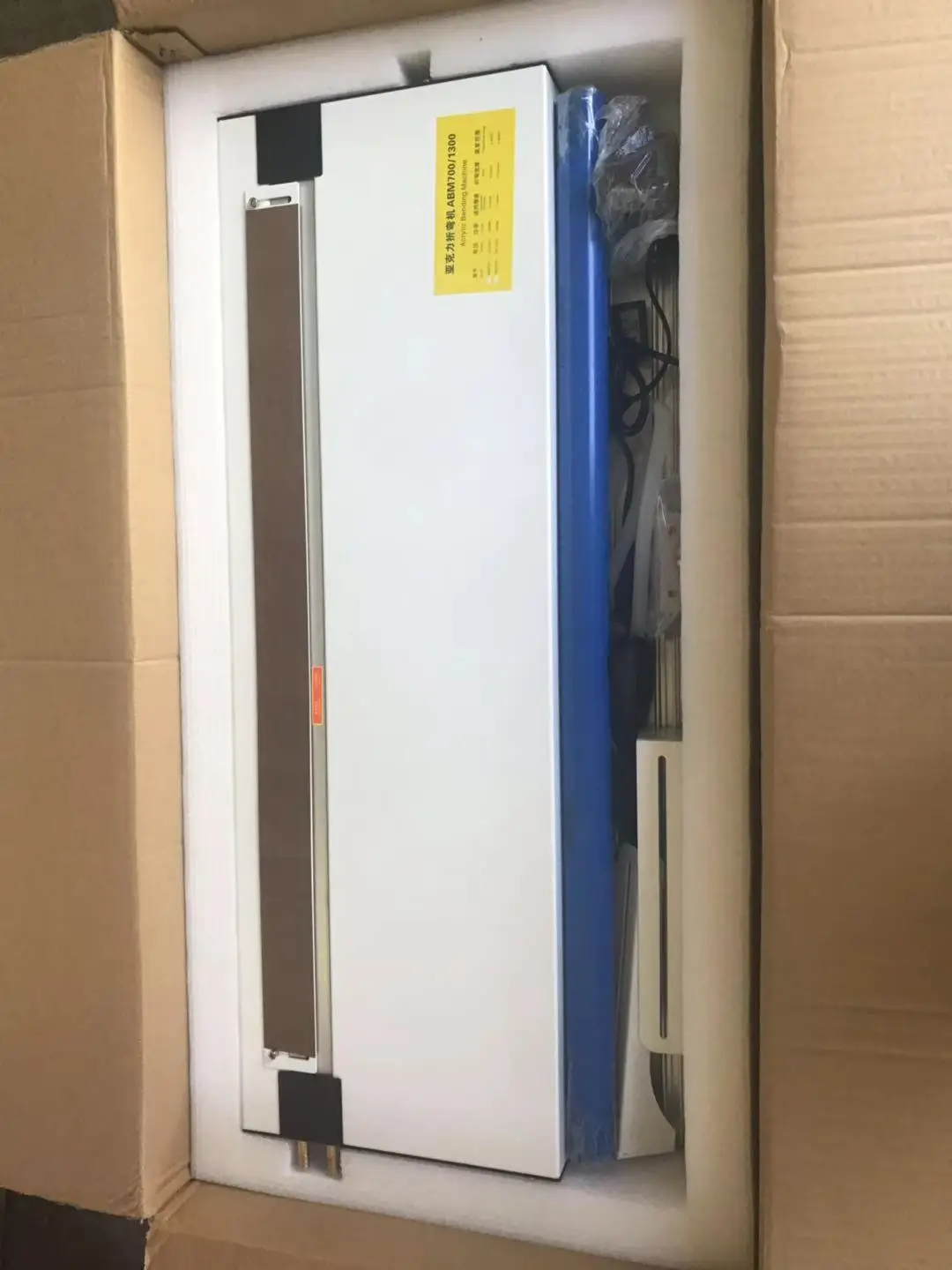

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient
packaging services will be provided.
Company Profile
FAQ
1.Q: How to solve the technical problems?
A:We have one professional technicians team who can solve problems .
2.Q: how can we guarantee quality?
A:Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. Q: How to get a quotation?
A: You can contact us by email or by send inquiry for Alibaba. We will reply you within 2 hours
A:We have one professional technicians team who can solve problems .
2.Q: how can we guarantee quality?
A:Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. Q: How to get a quotation?
A: You can contact us by email or by send inquiry for Alibaba. We will reply you within 2 hours
