Mining Machinery Mini Raymond Mill Raymond Grinding Mill Raymond Grinding Mill

Share on (1601181879072):


Price:$15,700.00 - $16,700.00

Quantity:


Product Overview

Description


















Product Description













SBM is a hi-tech, engineering group. We are specialized in the research, develop-ment, and production of industrial crushing, powder grinding, mineral processing equipments and other .











SBM most professional Mini Raymond Mill Raymond Grinding Mill Raymond Grinding Mill





  mtw series european Mini Raymond Mill Raymond Grinding Mill Raymond Grinding Mill    is designed by our experts, according to collected advices from customers' long-term experiences. It takes the advanced patent technology from European and the supply the customers with outstanding performance at low costs.













SBM most professional Mini Raymond Mill Raymond Grinding Mill Raymond Grinding Mill



Mini Raymond Mill Raymond Grinding Mill Raymond Grinding Mill   is ideal machine for grinding barite, limestone, mica, talcum, quartz, calcite, granite, porcelain clay, basalt, gypsum, gold, iron ore, bauxite, copper, cement, coal etc. So it has wide application in powder making industry of construction, mining and paper-making and so on.





Features



1. Cone gear whole transmission-compact conformation, convenient installation, reducing dissipation of energy.

2. Optimization design for grinding roller grinding ring of main-spring pressurization, high-wearing feature.
3. High-performance powder concentrator design-accurate and quick selection of powder.
4. Unique wear proof perching knife design- fission type, convenient for maintenance, wear resistant material, long life.





mtw series Mini Raymond Mill Raymond Grinding Mill Raymond Grinding Mill  technical data






















































































































































































































Name & Model



MTW110



MTW138



MTW175



MTW215



Ring Roller Number(pcs)



4



4



5



5



Major diameter of roller(mm)



360×190



460×240



520×280



640x 320



Inner diameter of roller (mm)



1100×190



1380×240



1750×280



2150x 320



Revolving Speed(rmin)



120



96



75



65



Revolving Speed(rmin)



<30



<35



<40



<50



Final size(mm)



1.6-0.045,
fineness can reach to 0.038



1.6-0.045,
fineness can reach to 0.038



1.6-0.045,
fineness can reach to 0.038



1.6-0.075,
fineness can reach to 0.038



Capacity(th)



3.5-10



6.5-15



13-20



30-45



Overall dimension(mm)



8625×7933×8642



10920×9470×10227



12275×9555×9916



14730x 10860x 10341



Main unit motor



Model



Y280M-6



Y315M-6



Y355M2-8



Y3-355-4-8



Power(kw)



55



90



160



280



Rotate Speed(rmin)



980



990



740



740



Classifier speed regulating motor
(variable frequency motor)



Model



Y132M-4



Y180M-4



Y200L-4



YVP280M-4



Power(kw)



7.5



18.5



30



90



Rotate Speed(rmin)



1440



1470



1470



1470



Centrifugal induced draft fan motor



Model



Y250M-4



Y315-4



Y315L2-4



Y315L2-4



Power(kw)



55



110



200



315



Rotate Speed(rmin)



1480



1480



1480



1480



Elevator



Bucket Model



TH210



TH315



TH315



TB315



Motor Model



Y100L2-4



Y112M-4



Y112M-4



Y160M-4



Motor Power(kw)



3



3



4



11



Rotate Speed(rmin)



1430



1430



1440



1440



Jaw Crusher



Model



PE250×400



PE250×750



PE250×750



PC1010



Motor Model



Y180L-6



Y200L2-6



Y200L2-6



Y315M2-6



Power(kw)



15



22



22



110



Rotate Speed(rmin)



970



970



970



990



Magnetic Vibrating Feeder



Model



GZ2F



GZ3F



GZ4F



GZ5F



Power(kw)



0.15



0.2



0.45



0.65

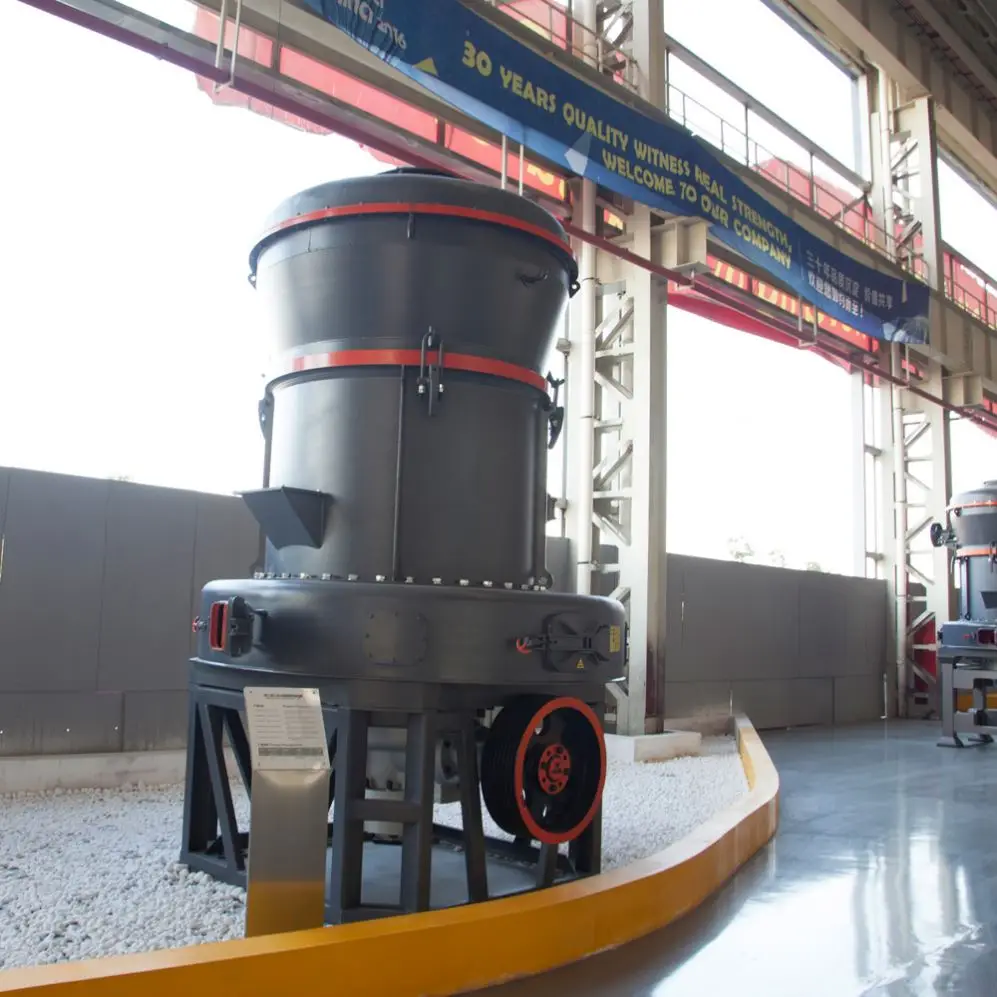

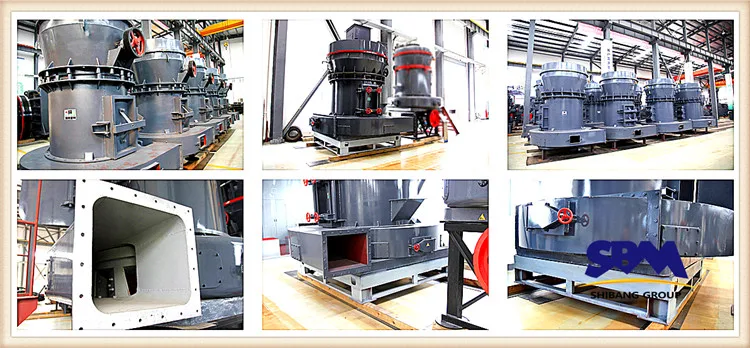

Mini Raymond Mill Raymond Grinding Mill Raymond Grinding Mill  pictures











Customer feedback


See what other customers say



  • We haven’t replaced any spare part after continuous running for 16 months. Everything is still in perfect condition so far !”--  Mrs. Camille Camille,concrete crushing plant



  • "Our local stones market is good, so I value the stability of the equipment operation. The quality of the equipment is good, and maintenance operation is convenient, basically do not need the company here to send technicians, we follow the manual can complete. The output is also fully achieved, the profit is good, a few of my colleagues visited here after I also ordered the world state equipment. "  --  Mr. Chen, the sand production line



  • " I am pleased with the company's design process and the wiring, many of the nearby counterparts to watch the production line. Equipment quality is also satisfactory, the company's service is good, we can not meet the problem, will soon be able to send engineers over guidance. Within the original plan to recover the cost within two years, it seems that about a year now is enough. " --  Mr.Fernanda Luisa, the mobile stone production line



  • " SBM help me build the crushing production line, equipment selection is more advanced, scientific and reasonable, high intelligent control, more peace of mind. So far, the daily profit of nearly 100000 yuan, I am very satisfied. " --  Mr. Susan James , the limestone grinding plant





Visiting customers







Packaging & Shipping


Shipping


1."small parts are wooden box package"


2."the major machine nude packing, container, or upon customers' requirement"


3."export standard"


4. Delivery Time: 30 days for batch goods.



Payment Terms


1. Payment: T/T, L/C


2. MOQ: 1set


3. Warranty : 1 years





Our Services


WHY CHOOSE US


1 SBM as a good adviser and assistant of clients, we can enable them to get rich and generous returns on their investments.
2 We will continuously create more qualified products and more perfect technological service, bring more benefits to our clients.
3 We respect clients and always devote ourselves to improving the total value of clients





Parts and consumables support



SBM Machinery has developed a well earned reputation in the design and manufacture of equipment for the crushing and grinding equipment in mining, quarrying, recycling and waste management industries.
SBM Machinery will provide each customer with a world class service through every stage of every project and beyond, to ensure the delivery of projects which will consistently out-perform our customers expectations, and we maintain a highly efficient, worldwide service to make sure all essential parts and consumables are available to our customer.










Training service



Well trained people are fundamental to safety, high productivity and successful results in mining and construction. To help achieve optimum equipment performance, SBM Machinery offers intensive training courses tailored to the needs of individual customers.


Technical support



SBM Machinery has a wealth of experience and teams of experts spanning the globe to help you solve your equipment-related mining or construction challenges. Our aim is to support you in every conceivable way, with the right advice, the right actions and the right results, wherever and whenever you need them.



Warranty



SBM Machinery warrants its new equipment to be free of defects in material or workmanship for a specified period from the date the equipment is first placed into service.
