CS 31 Ground Anchor Brackets Solar Power Mounting System U Shaped Steel Bracket
- Category: >>>
- Supplier: Sunlink (xiamen) New Energy Technology Co. Ltd.
Share on (1601182089151):
Product Overview
Description

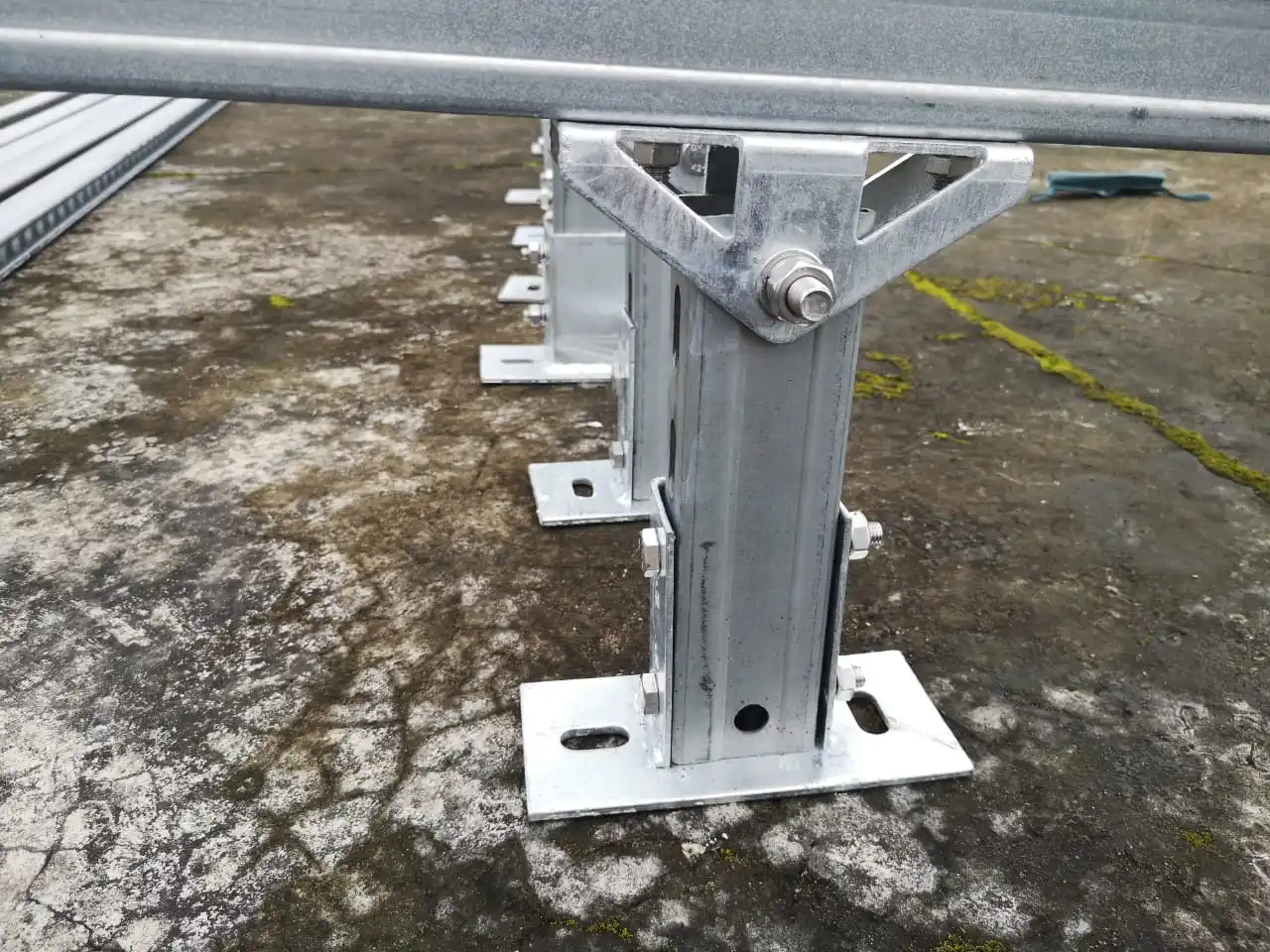

CS-31 Ground Anchor Brackets Solar Power Mounting System U Shaped Steel Bracket
Product Introduction
CS-31 Ground Anchor Brackets Solar Power Mounting System U Shaped Steel Bracket

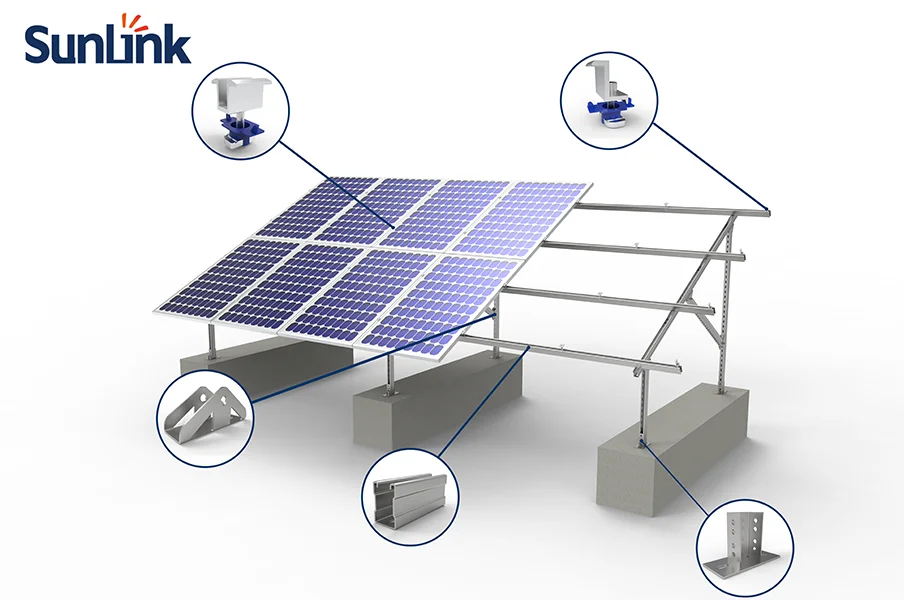

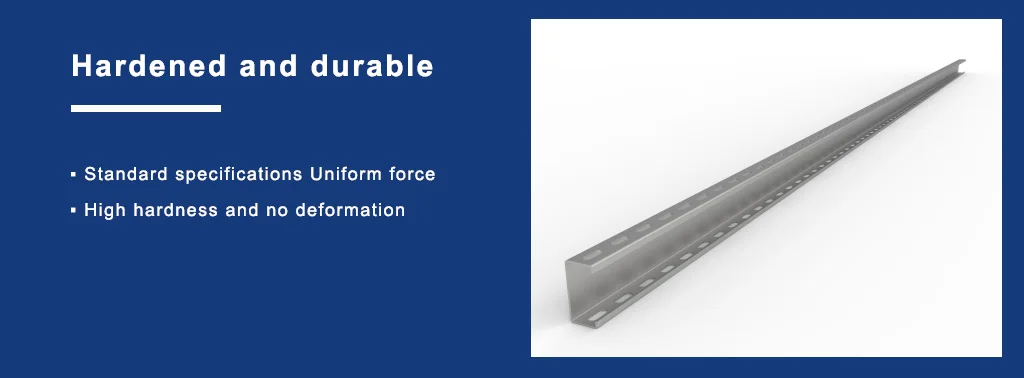

SUNLINK ground mounting brackets are made from high quality C-steel and are built to withstand the harshest environmental conditions, including strong winds, heavy snow loads and extreme temperatures.The rugged design and corrosion-resistant coating make it ideal for residential and commercial solar projects, providing reliable support for solar panels for years to come.
Module specification | Based on customer requirement |
Module arrangement | Landscape/ Portrait |
Installation tilt | 5~60 ° |
Foundation | Ground screw/ Concrete |
Maximum Wind speed | 60m/s |
Maximum Snow load | 1.4kn/㎡ |
Material | Steel |
Warranty | 10 Years |
Customized services
SUNLINK C-steel floor mounting brackets are designed with safety and reliability in mind. It meets industry standards and undergoes rigorous testing to ensure its structural integrity and performance. Customers can rest assured knowing their solar panels are securely backed by a trusted and proven installation solution.
Suitable Base : concrete or ground screw
Steel Ground Mounting with Ground Screw Base

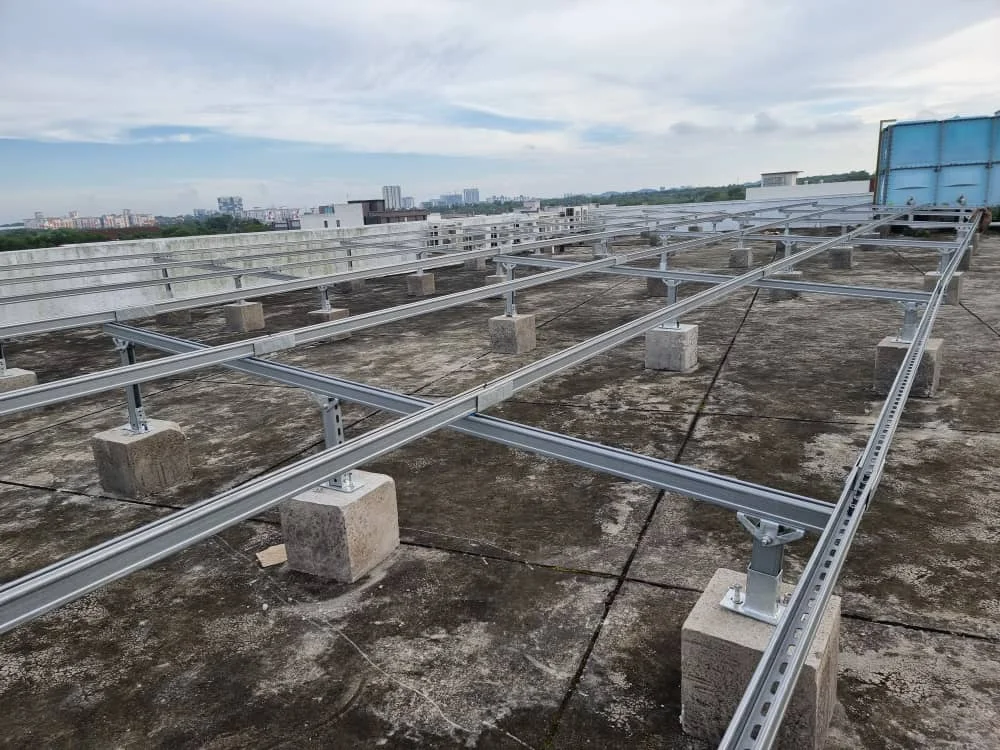

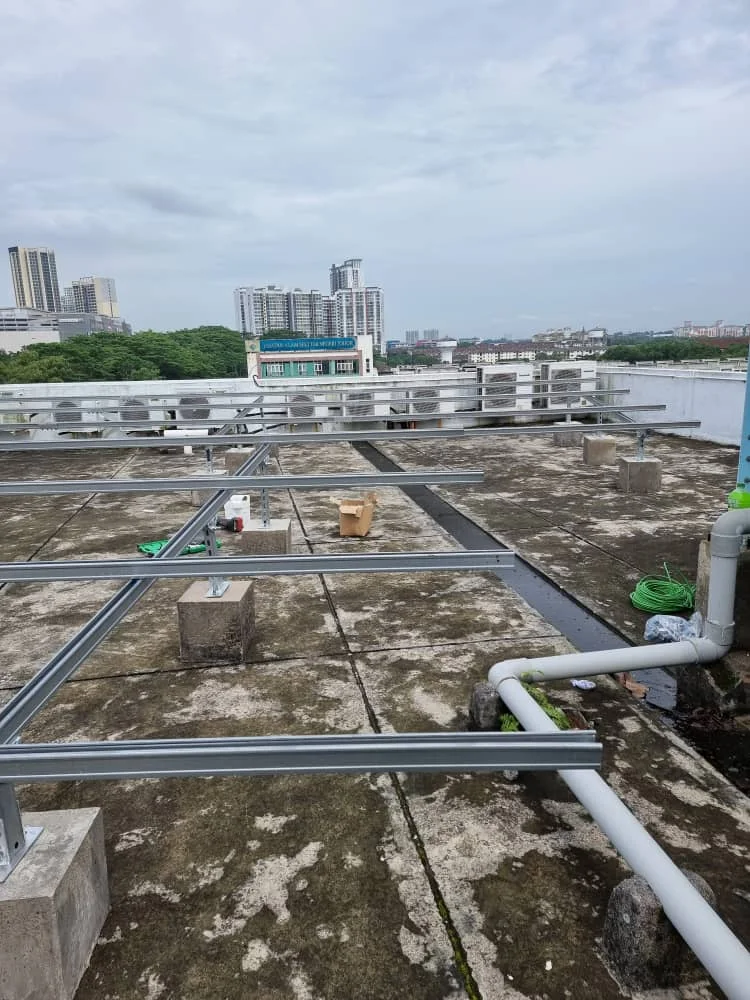

Steel Ground Mounting with Concrete Base
N Type Aluminum Ground Mounting with Ground Screw Base
N Type Aluminum Ground Mounting with Concrete Base
W Type Aluminum Ground Mounting with Ground Screw Base
W Type Aluminum Ground Mounting with Concrete Base

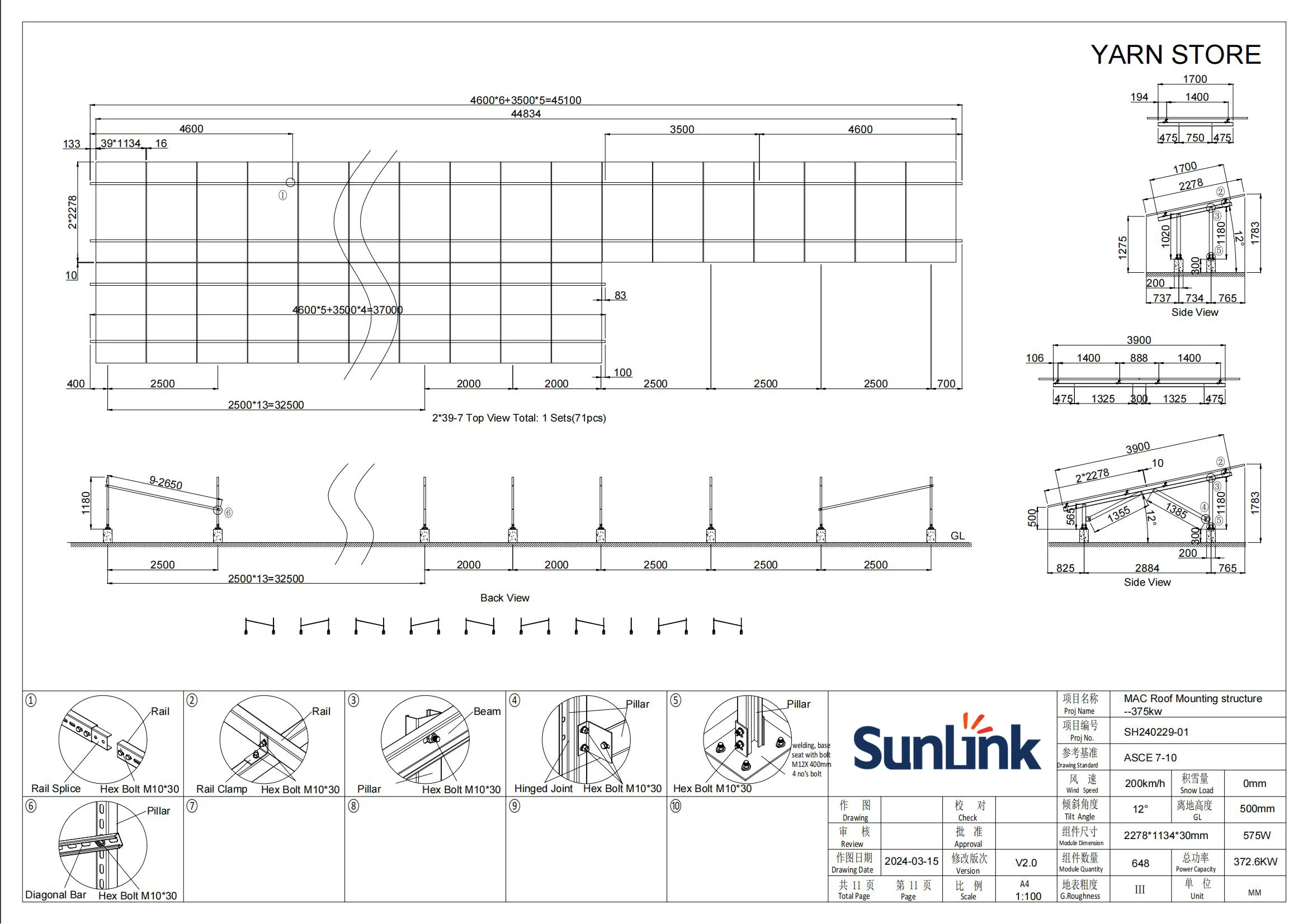

SUNLINK offers professional ODM solutions for solar system:
Please inform us of the following information in advance so that we can provide you with professional solutions.
Please inform us of the following information in advance so that we can provide you with professional solutions.
1. What is dimension of the solar panel? _____mm Length x_____mm Width x____mm Thickness | ||||||||
2. How many panels will be mounted for the project? _______PCS. | ||||||||
3.What is your planned panel layout? ________Nos. in a row × ________Nos. in a column | ||||||||
4. What's wind speed and snow load? ___m/s wind speed and____KN/m2 snow load | ||||||||
5. What installation orientation for solar panel? _______(Horizontal or Vertical) | ||||||||
6. Ground clearance or other requirements? ______________ : concrete or ground screw | ||||||||
