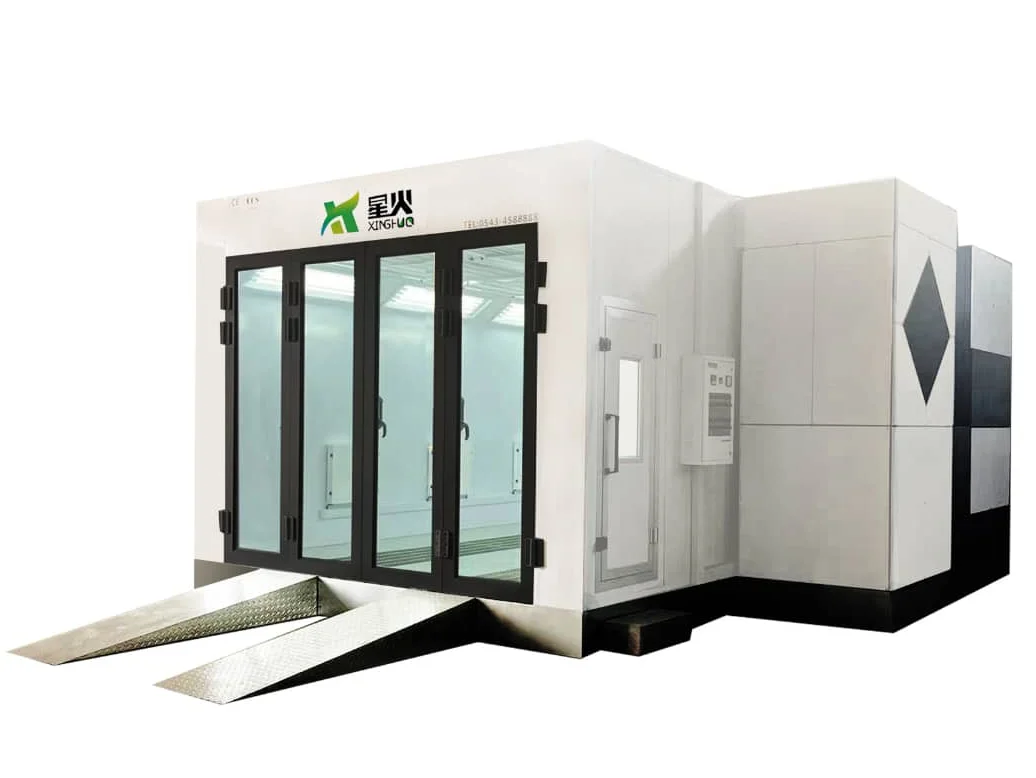

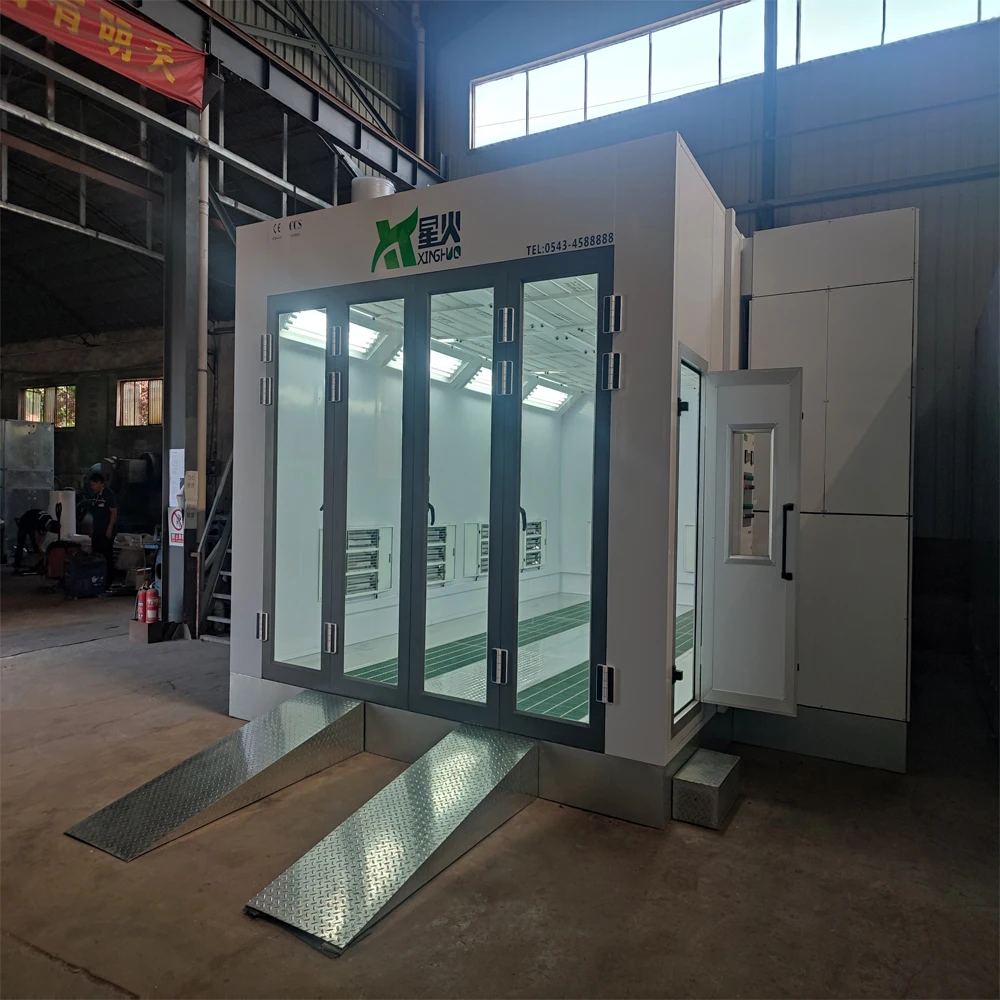

X 600 Car Body Paint Booth Car Spraying Oven Booth Paint Cars
- Category: >>>
- Supplier: Zouping Xinghuo Coating Equipment Co. Ltd.
Share on (1601183920855):
Product Overview
Description
Specification
Project | Specification |
Type | electrical heating,diesel heating,natural gas heating |
Internal size | 6900 mm×3900 mm×2800 mm |
External size | 7000 mm×4000 mm（+1300 mm）×3500 mm |
Entrance door | 3200 mm×2600 mm ( 4 folds; 800mm×2500mm) |
Emergency Door | 650mm×1800mm |
working noise | ≤85dB |
Indoor illumination | ≥1000Lux |
Average indoor wind speed | ≥0.3m/s |
Air supply filter | tertiary filtration |
aint mist treatment efficiency | ≥98％ |
Paint temperature | 60-80℃ |
Total enter air volume | 25000m³/h; 2 sets of 4kw intake fans |
Total exhaust air volume | 20000m³/h;1 set 7.5kw exhaust fan |
Products Detail
House System
1.wall panel:

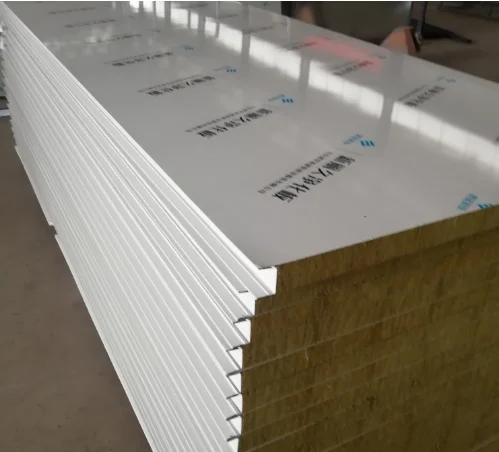

50 mm fireproof rock wool board ,120 kg/cubic;
insulation board: 50 mm;
single-layer color steel plate: δ0.5mm,;
2.The roof:
0.6 mm galvanized sheet,and the top skeleton is welded with 40*60 square tube.
3.The slot and wrap angle:
bent with δ0.8 mm galvanized sheet and sprayed with plastic..
50 mm fireproof rock wool board ,120 kg/cubic;
insulation board: 50 mm;
single-layer color steel plate: δ0.5mm,;
2.The roof:
0.6 mm galvanized sheet,and the top skeleton is welded with 40*60 square tube.
3.The slot and wrap angle:
bent with δ0.8 mm galvanized sheet and sprayed with plastic..

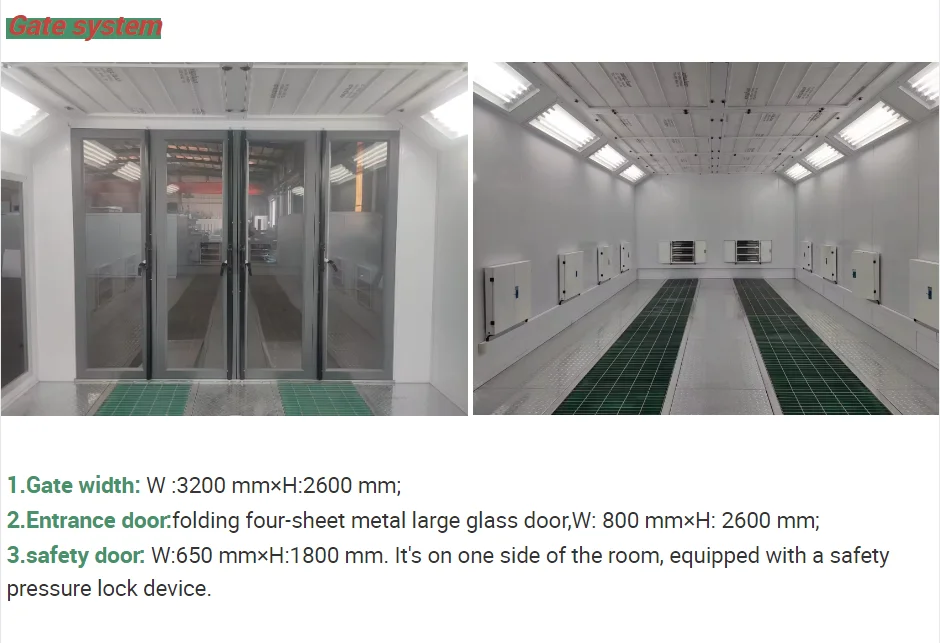

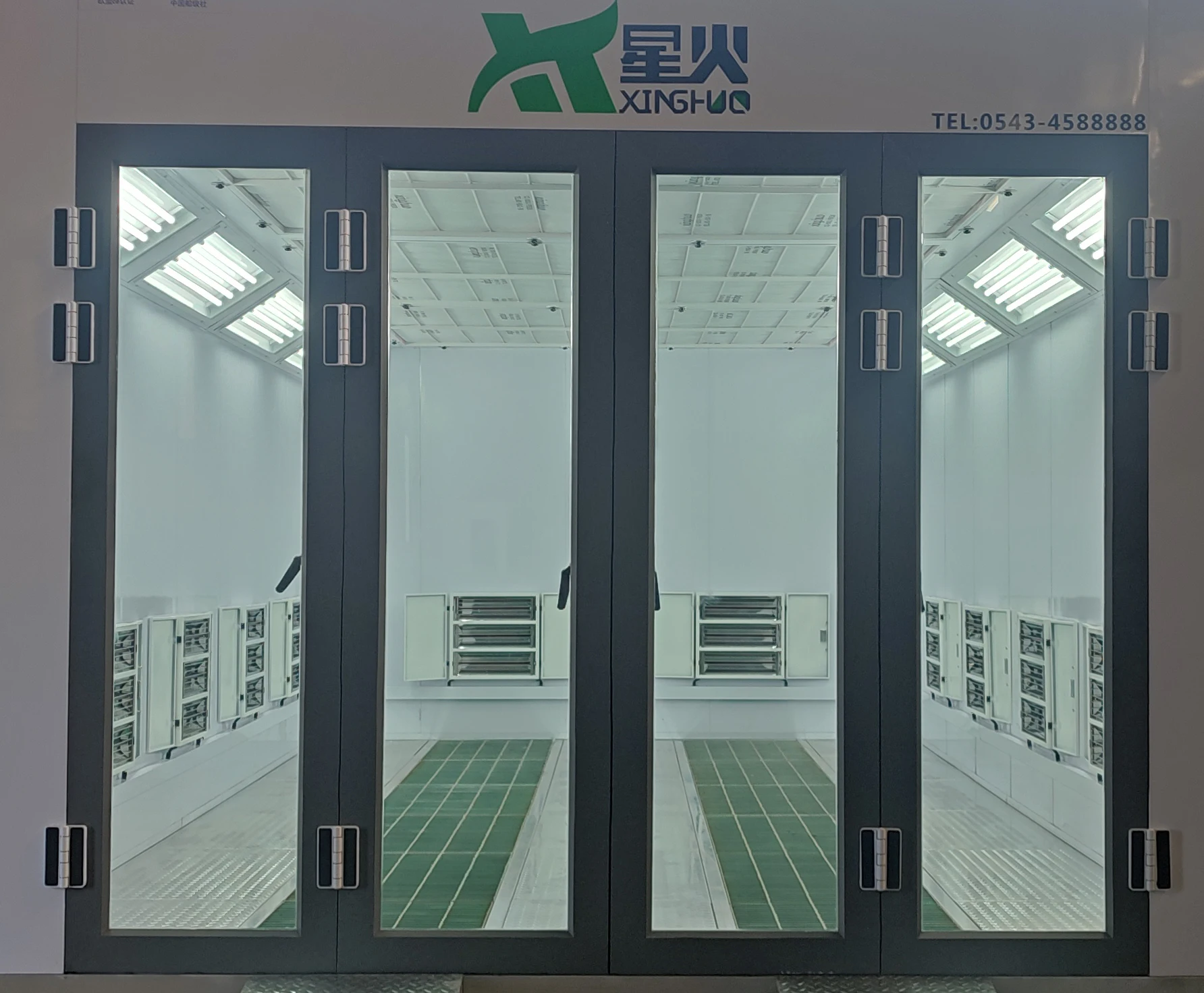

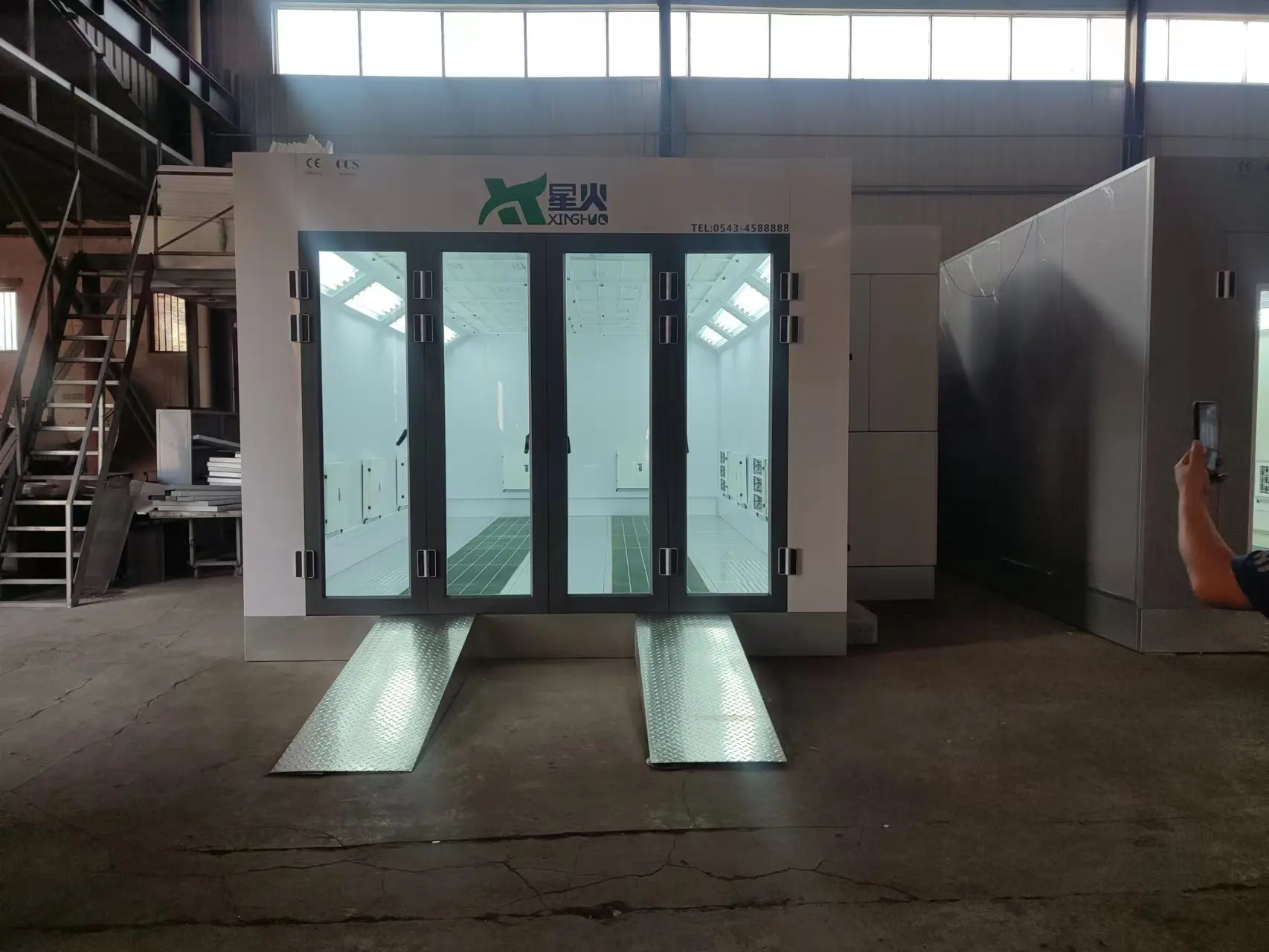

Gate system
1.Gate width: W :3200 mm×H:2600 mm;
2.Entrance door:folding four-sheet metal large glass door,W: 800 mm×H: 2600 mm;
3.safety door: W:650 mm×H:1800 mm. It's on one side of the room, equipped with a safety pressure lock device.
2.Entrance door:folding four-sheet metal large glass door,W: 800 mm×H: 2600 mm;
3.safety door: W:650 mm×H:1800 mm. It's on one side of the room, equipped with a safety pressure lock device.

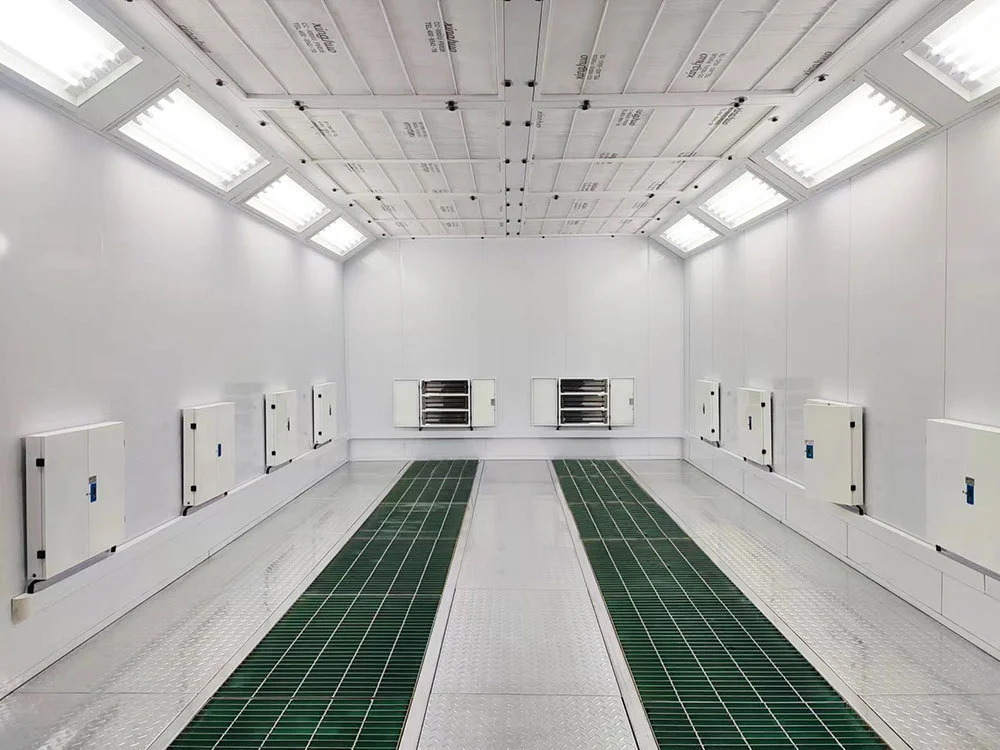

lighting device
1.The light box：δ1.2 mm galvanized steel sheet；
2.The ceiling light: 8 groups LED integrated tubes,each group has 4 lamps;
3.The waist light： 9 groups LED panel lights;
4.Lighting power: 2 KW.
2.The ceiling light: 8 groups LED integrated tubes,each group has 4 lamps;
3.The waist light： 9 groups LED panel lights;
4.Lighting power: 2 KW.

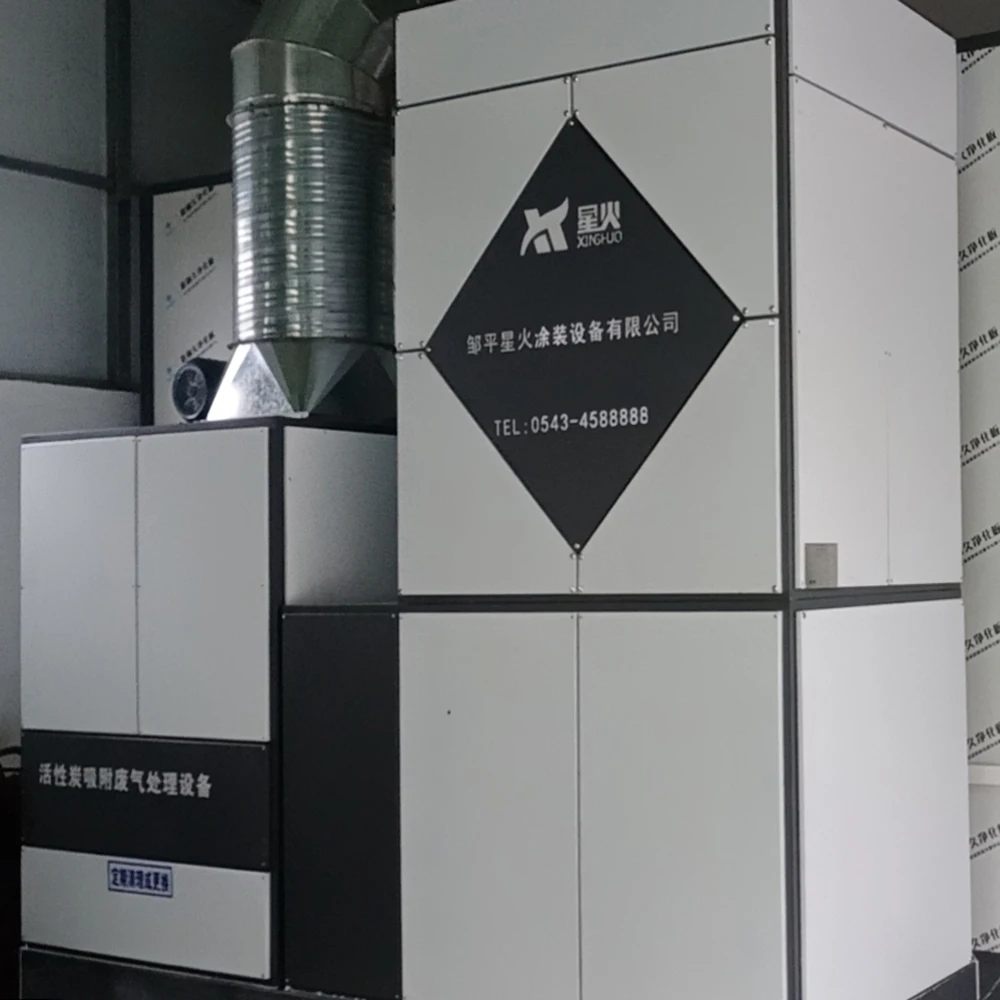

Air Filtration System
①The air inlet of the fan adopts the primary filter of the special air inlet cotton;
②The top of the static pressure chamber
adopts CC-800 XU advanced filter cotton for high-efficiency filtration;
adopts CC-800 XU advanced filter cotton for high-efficiency filtration;
③The bottom of the steel grille is equipped with bottom cotton paint mist filter felt for efficient filtration;
④The exhaust box body adopts 2 layers of paint mist filter cotton.

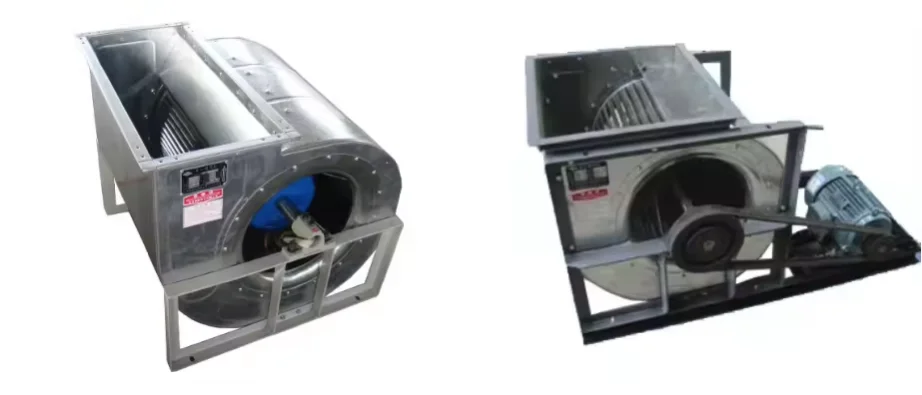

Fan system
①Intake fans:
2 sets of 4 kw Jiangsu YDW double-inlet fans，a total of 8 kw. The air supply volume of each fan is 12500 m ³/h, and the total air supply volume is 25000 m³/h.
②Outtake fans:
②Outtake fans:
1 set of 7.5 KW Jiangsu DKF type double air intake fan,and the exhaust air volume of each fan is 20000 m³/h, atotal of 7.5 KW.
Heating system
Diesel Heating system
Italian G20 diesel burner, heat exchanger made of SUS304 high-quality stainless steel.
Electrical Heating system
A total of 10 sets of side-by-side heating and baking lamps are configured, each set of 3kw, a total of 30kw.
Natural gas Heating system
Italian FS20 natural gas burner, heat exchanger made of SUS304 high-quality stainless steel.

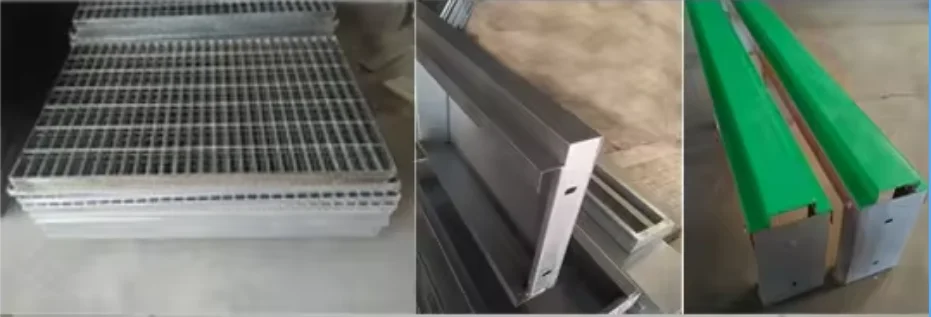

Base system
①The front and lower skirts of the house ：δ1.2 mm galvanized sheet;
the other skirts：δ0.8 mm galvanized sheet;
②The connecting legs ：δ1.8 mm galvanized sheet；
②The connecting legs ：δ1.8 mm galvanized sheet；
③The steel grating：30*5 mm flat iron and 8# thread welding;
④The checkered plate ：δ2.3 mm steel plate.
④The checkered plate ：δ2.3 mm steel plate.
Water-based paint system
①The water-based paint fan：
2 sets YDW type double-inlet fan, each fan is 0.55 KW, and the total is 1.1 KW;
②The water-based paint air duct ：
δ1.0mm bending; the air supply duct is fixed with 2 sets of flexible connections ;
δ1.0mm bending; the air supply duct is fixed with 2 sets of flexible connections ;
③The top light box： 32 sets of water-based paint blowing nozzles.
④The water-based paint bellows： welded by 20*20 mm galvanized square tube, with 0.8 mm galvanized sheet skin, and contains 1 air supply purifying cotton, which is sprayed as a whole.
