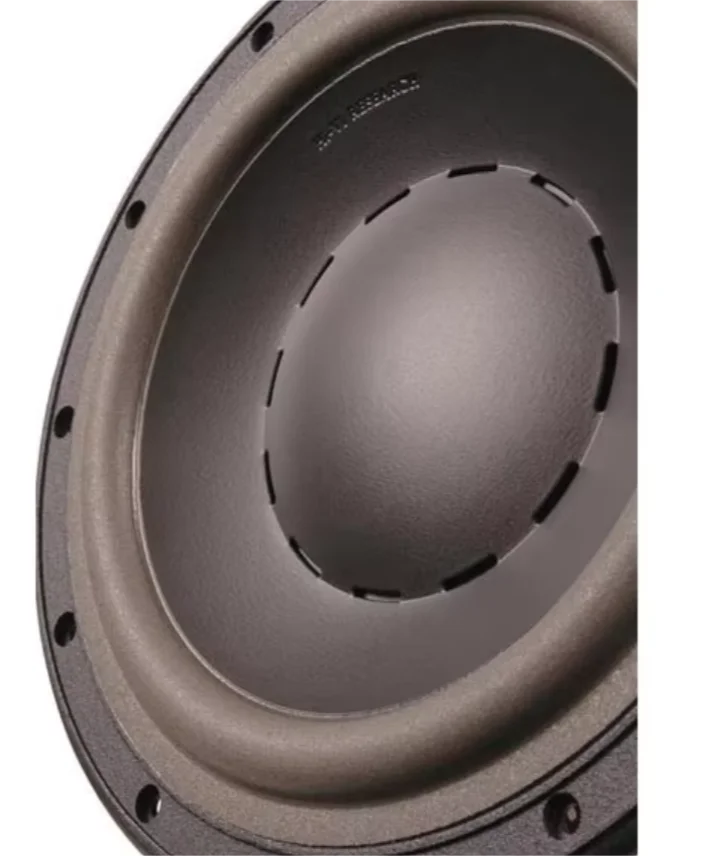

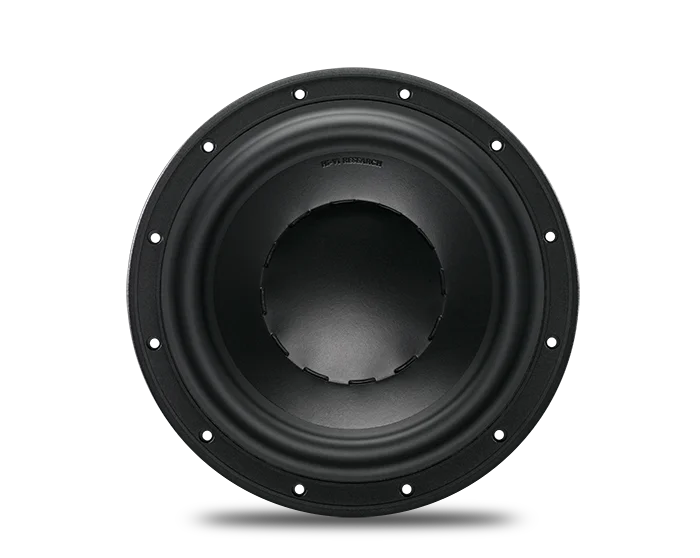

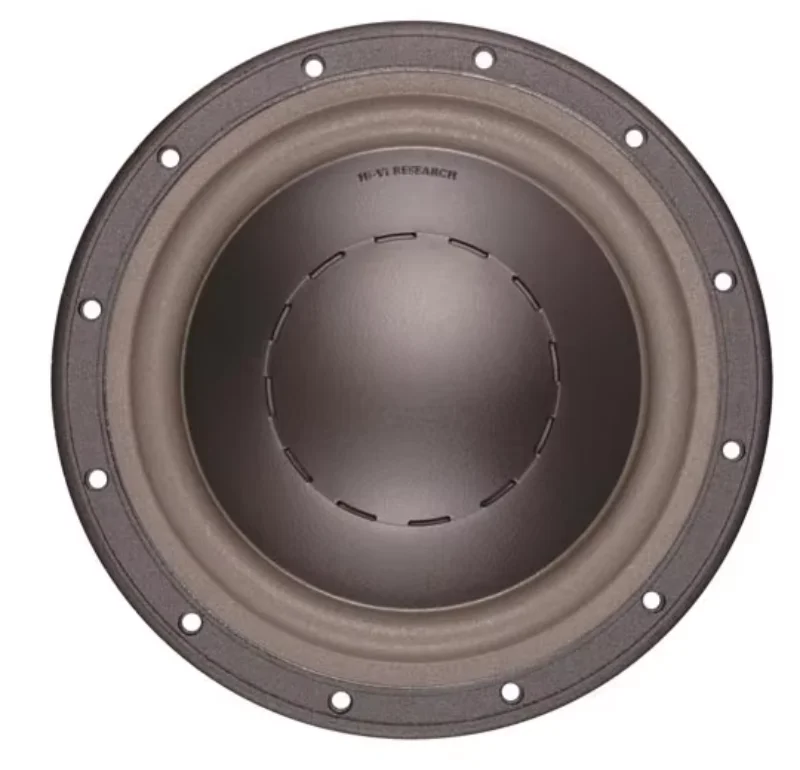

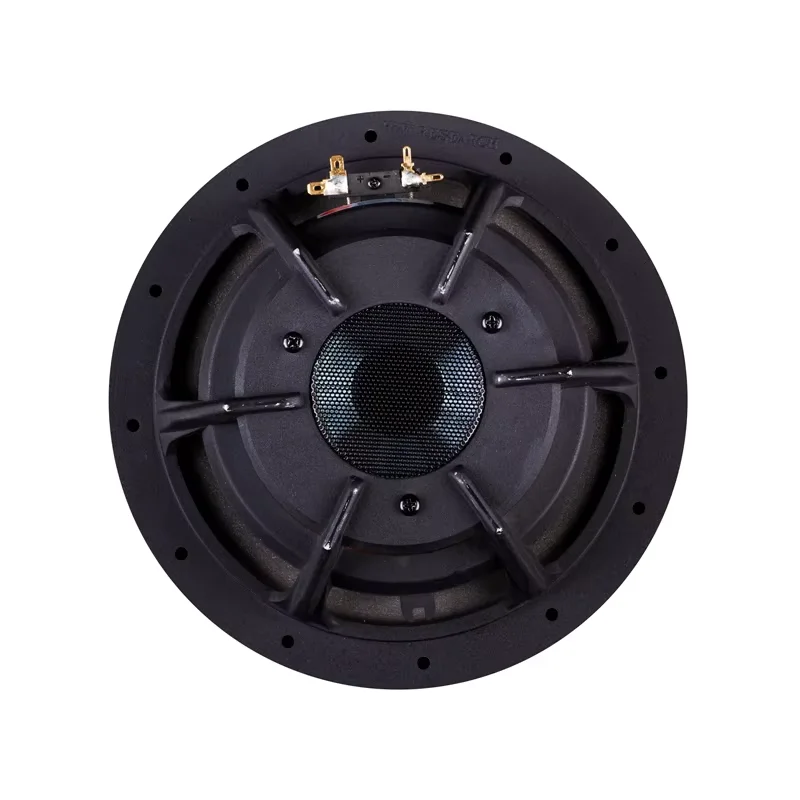

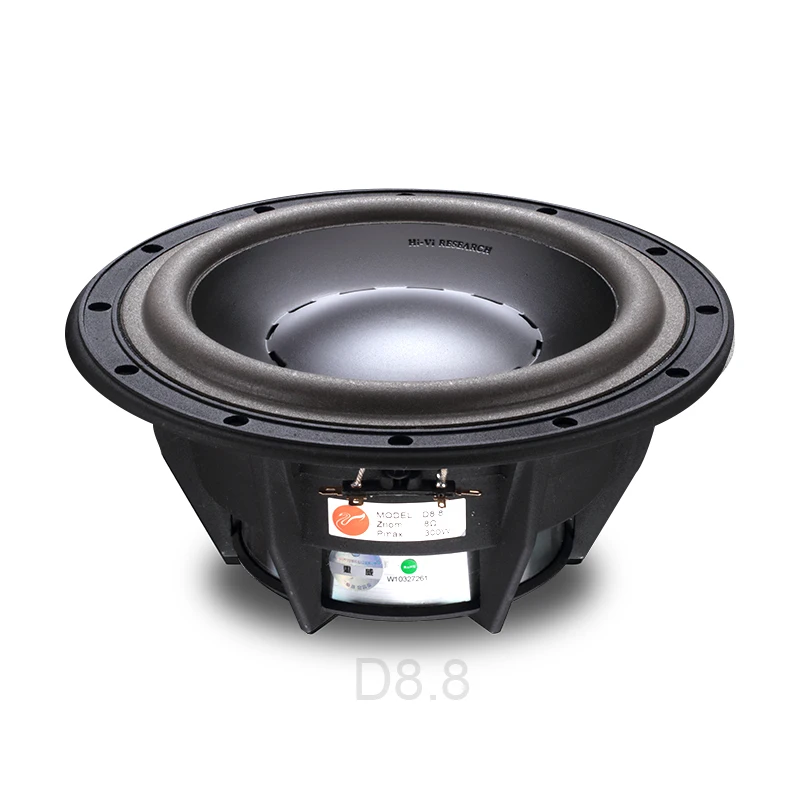

Hi Fi Midbass shielded 150W 8 Ohm 86dB 40Hz 2000Hz Hivi D8.8 Hi end Woofer speaker
- Category: >>>
- Supplier: Zhuhai Hivi Technology Company Limited
Share on (1601184083609):
Product Overview
Description
Product Description
HiVi's "D" loudspeaker range is a synthesis of all the technological advances made in recent years in the field of
electroacoustics.
It is also the expression of the extraordinary know-how of a team of engineers and music lovers resolutely in the forefront.
Injected polypropylene cone of mineral elements in order to densify the structure and improve rigidity.
Peripheral suspension in natural rubberloudspeaker to the loudspeaker, and participating in absorbing parasitic vibrations originating at the surface of the cone
Mobile Crew wound on Kapton support for betterpowerand greaterresistance to heat
Powerful magnetic motor, combination of 2 magnets, one in Neodymium, the other in ceramics, mounted in symmetrical and ventilated
D8.8 Woofer | ||||||
Rated Impedance | 8Ω | Force Factor (BL) | 12.9N/A | |||
Resonant Frequency | 32Hz | Gap Height (He) | 7.0mm | |||
Rated Power | 150W | Linear Excursion(Xmax) | 8.3mm | |||
Max Power | 300W | Suspension Compliance (Cms) | 457.8uM/N | |||
Sensitivity (2.83v/1m) | 86dB | Mechanical Q (Qms) | 4.36 - | |||
Net Weight | 3.5kg | Electrical Q (Qes) | 0.44 - | |||
VC Diameter | 100mm | Total Q (Qts) | 0.40 - | |||
Direct Current Resistance | 6.5Ω | Moving Mass (Mms) | 53.1g | |||
Width of Loudspeaker Voice Coil | 23.5mm | Equivalent Air Volume (Vas) | 37.8L | |||
VC Former | High-temperature Resistance CCAW | System Type | Vented | |||
VC Frame | High-temperature Resistance Kapton | Recommended Cabinet Net Volume | 30L | |||
Magnet System | Shielded Antimagnetic Magnetic Circuit | Resonance Frequency (Fs) | 35Hz | |||
Magnet Former | High-performance NdFeb | Frequency of cabinet in the free field - 3db | 35Hz | |||
Highlights
* Shallow mineral-filled polypropylene cone
* Fatigue resistant foam surround
* Shielded vented magnet system with a huge neodymium magnet
* Long-throw symmetrically driven motor structure
* Extreme power handling voice coil with a 100 mm black anodized aluminum former
* High density aluminum die-cast frame
* Progressive spider with decompressed rear volume
* Shallow mineral-filled polypropylene cone
* Fatigue resistant foam surround
* Shielded vented magnet system with a huge neodymium magnet
* Long-throw symmetrically driven motor structure
* Extreme power handling voice coil with a 100 mm black anodized aluminum former
* High density aluminum die-cast frame
* Progressive spider with decompressed rear volume
