China Ceyear 4024A/B/C/D/E/F/G/H/L 9kHz to 67GHz Spectrum Signal Analyzers laboratory equip
- Category: >>>
- Supplier: Nanjing Daoce Electronics Co. Ltd.
Share on (1601184096601):
Product Overview
Description
Product Description

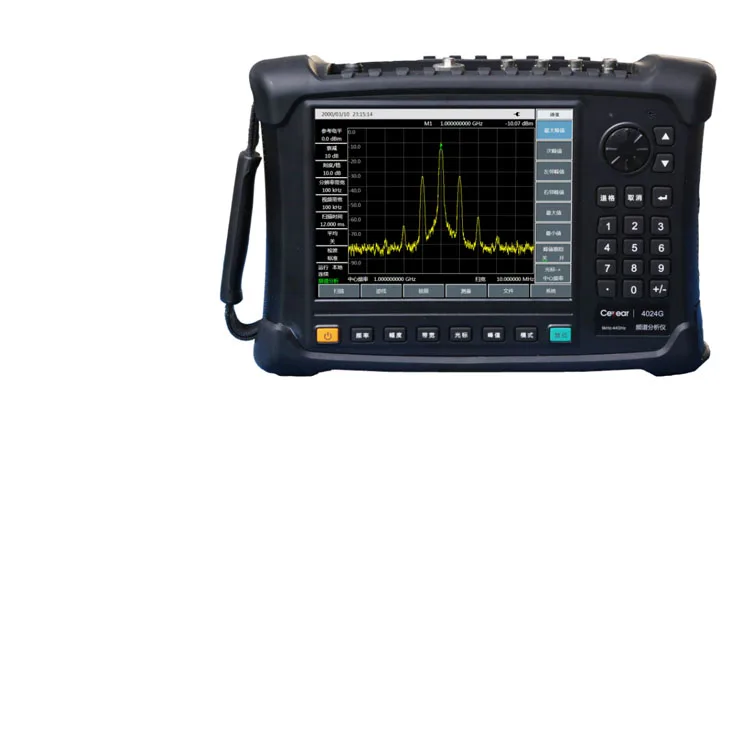

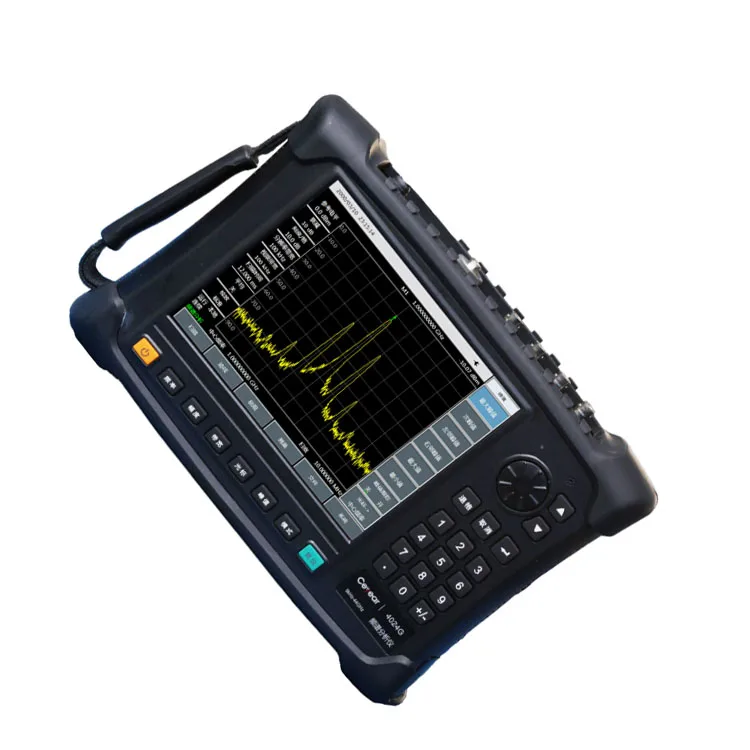

4024A/B/C/D/E/F/G/H/L Spectrum Analyzer (9kHz～4GHz/6.5GHz/9GHz//20GHz/26.5GHz/32GHz/44GHz/50GHz/67GHz)
4024A 4024B 4024C 4024D 4024E 4024F 4024G 4024H 4024L
4024 series spectrum analyzer possesses many advantages: wide frequency range, high performance, high sweep speed, various
functions, and easy operation. In terms of performance index, it has advantages of excellent displayed average noise level, low
phase noise, and high sweep speed. In terms of measurement functions, it has measurement functions of spectrum analyzer,
interference analyzer, AM/FM/PM analyzer, power meter, channel scanner etc., as well as intelligent measurement functions of
channel power, occupied bandwidth, adjacent-channel power, tune & listen, emission mask, and carrier-to-noise ratio etc. 4024
adopts the integrated design of 8.4 inch LCD and capacitive touch screen, which improves the display definition and operation
convenient. It is handheld, compact and light, with flexible power supply, which is very suitable for field work.
4024 can be used for signal and equipment test in the fields of aerospace, microwave & satellite communication, radio
communication, radar monitoring, electronic countermeasures & reconnaissance, and precision guidance.
Specification
Wide frequency range: from 9kHz to 67GHz, 9 models | Low displayed average noise level: -163dBm@1Hz RBW(typical) | Excellent phase noise performance: -112dBc/Hz@100kHz frequency offset@1GHz carrier (4024A/B/C) -106dBc/Hz@100kHz frequency offset@1GHz carrier (4024D/E/F/G/H/L) | High sweep speed: for 1GHz span, shortest sweep time |
Resolution bandwidth: 1Hz～10MHz | Full-band pre-amplifier: standard configuration | Various measurement functions: spectrum analyzer, interference analyzer (spectrogram, RSSI), AM/FM/PM analyzer, channel scanner, high accuracy power meter, signal analyzer etc. | Various intelligent measurement functions: field strength measurement, channel power, occupied bandwidth, adjacent-channel power ratio, tune&listen, carrier-to-noise ratio, emission mask |

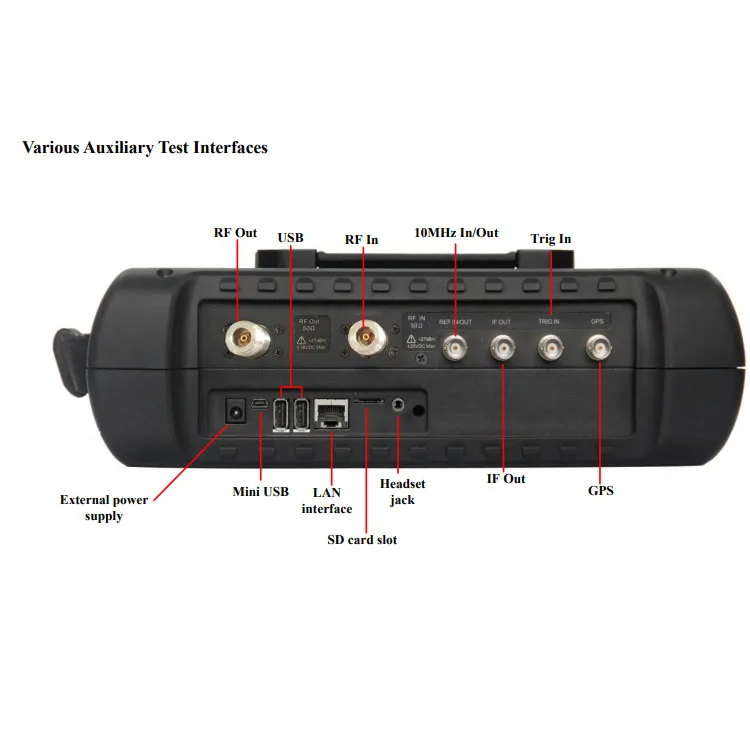

Various auxiliary test interface: 10MHz reference input/output interface, GPS antenna interface, zero span IF output interface, external triggering input interface etc. | Easy & convenient user operation: 8.4 inch high definition LCD and large font display, convenient capacitive touch screen operation, combination of LCD and touch screen, various display modes etc. | Working temperature range: -10℃～50℃, Power supplied by battery or adapter 2 Various Measurement Functions | 4024A/B/C/D/E/F/G/H/L Spectrum Analyzer (9kHz～4GHz/6.5GHz/9GHz//20GHz/26.5GHz/32GHz/44GHz/50GHz/67GHz) |
Product name | Spectrum/Signal Analyzer |
Product brand | ceyear |
series | 4024 |
model | 4024A 4024B 4024C 4024D 4024E 4024F 4024G 4024H 4024L |
