Medical Oil Free Rotary Vane Vacuum Plant vertical Triplex system for hospital
- Category: >>>
- Supplier: Amcaremed Technology Co. LimitedAmcaremed Limited
Share on (1601184201348):
Product Overview
Description
Product Description
Medical vacuum systems are designed to supply medical vacuum to medical gas pipeline systems in medical facilities.
AmcareMed medical Rotary vane vacuum pump is full meet with NFPA 99 with multiple vacuum pumps, receiver tank and control panel.
The medical vacuum system is equipped with 2 to 4 vacuum pumps. The vacuum pump is available in both oil-lubricated and oil-free type. Each pump includes oil level sight glass, anti-suck-back valve filter. System are manufactory in ISO9001 system to ensure high quality. System are available in two configuration types: Vertical tank and horizontal tank mount.

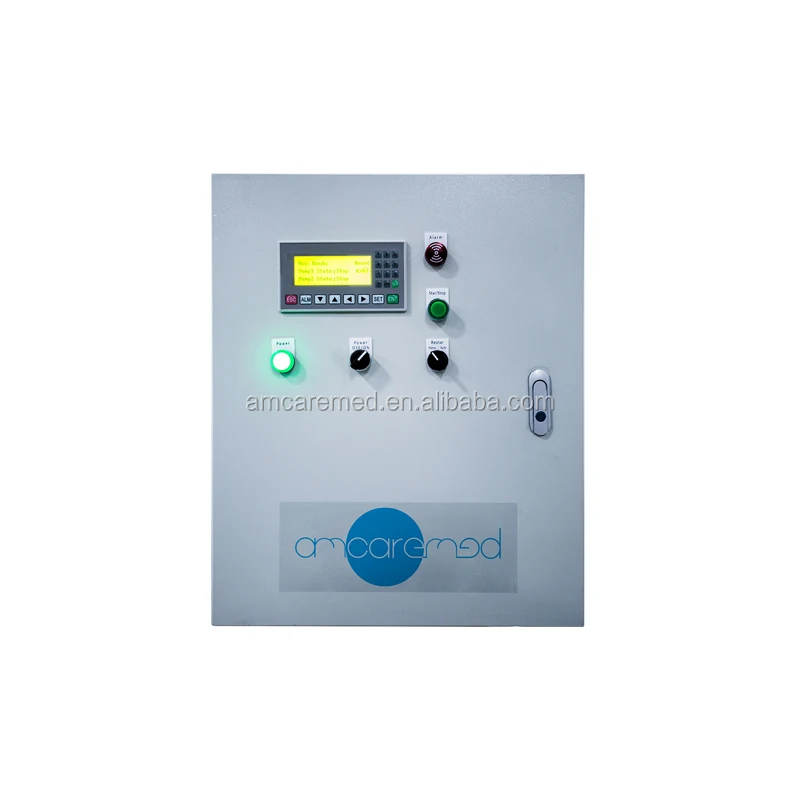

The medical vacuum system is equipped with an LCD control cabinet to control the vacuum pump.
The system is equipped with double bacteria filter to ensure the purity of the gas entering the vacuum tank. The Medical Vacuum system and its component parts undergo a complete electric and pneumatic test prior to shipment.
AmcareMed medical Rotary vane vacuum pump is full meet with NFPA 99 with multiple vacuum pumps, receiver tank and control panel.
The medical vacuum system is equipped with 2 to 4 vacuum pumps. The vacuum pump is available in both oil-lubricated and oil-free type. Each pump includes oil level sight glass, anti-suck-back valve filter. System are manufactory in ISO9001 system to ensure high quality. System are available in two configuration types: Vertical tank and horizontal tank mount.
The medical vacuum system is equipped with an LCD control cabinet to control the vacuum pump.
The system is equipped with double bacteria filter to ensure the purity of the gas entering the vacuum tank. The Medical Vacuum system and its component parts undergo a complete electric and pneumatic test prior to shipment.
The oil-lubricated rotary vane vacuum pump is a durable long-life pump that has been used for many years in hospital and laboratory applications. Lubricated by circulating oil provides a consistently high vacuum level in continuous operation. The use of oil facilitates higher efficiency of the pump, lower operating temperatures and lower sound levels. Oil-sealed rotary vane pumps are ideal for most hospital applications.
Pros:
• Lowest initial cost
• Highest ultimate vacuum levels
• Long vane life
• Lower noise levels compared to other types
Cons:
• Higher maintenance (oil & filter changes, vanes)
• Lowest initial cost
• Highest ultimate vacuum levels
• Long vane life
• Lower noise levels compared to other types
Cons:
• Higher maintenance (oil & filter changes, vanes)
Specifications
* NFPA 99 and HTM 2022 compliant

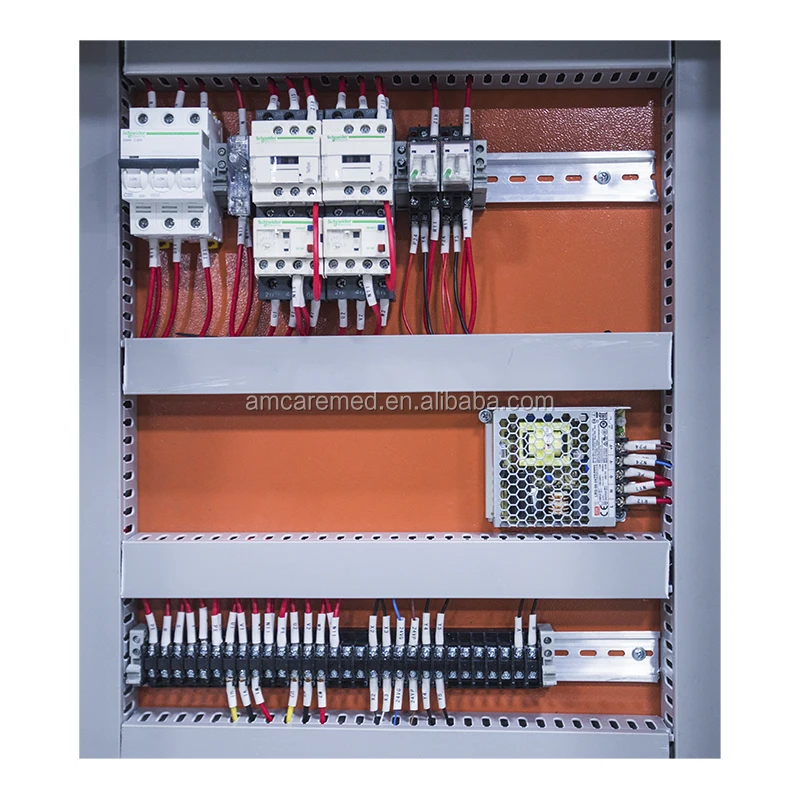

* Schneider brand control panel
* Application: Medical or Laboratory
* Technology: rotary vane
* Available in Simplex, Duplex, Triplex or Quad
* Different capacity receiver tank available
* Minimal maintenance, Maximum Durability
* Include LCD digital display to show vacuum information
* Completely tested before to shipment
* Schneider brand control panel
* Application: Medical or Laboratory
* Technology: rotary vane
* Available in Simplex, Duplex, Triplex or Quad
* Different capacity receiver tank available
* Minimal maintenance, Maximum Durability
* Include LCD digital display to show vacuum information
* Completely tested before to shipment

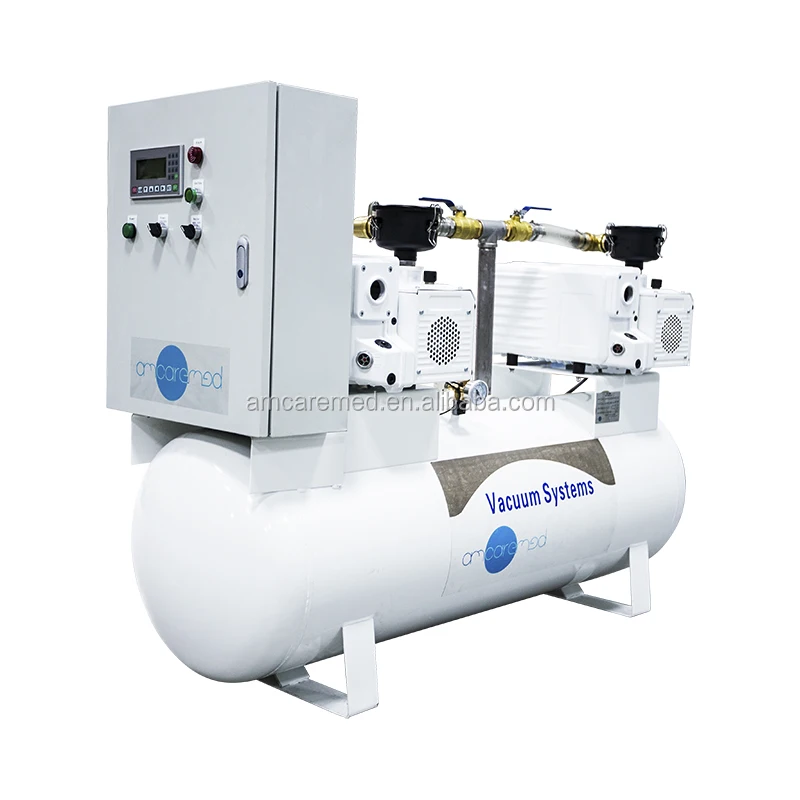

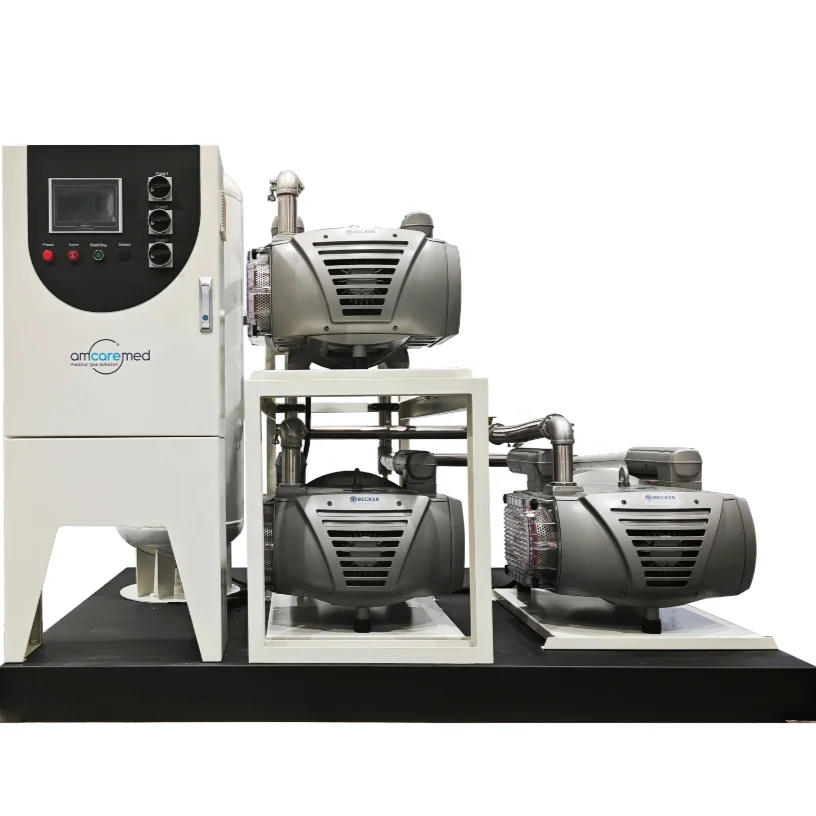

Detailed Images
Model
System | Model | HP(each pump) | System Capacity | Receiver Tank Capacity (L) | ||||||
Vertical Tank Mount | SCFM | L/min | ||||||||
50Hz | 60Hz | 50Hz | 60Hz | |||||||
Duplex | VOL01D-300V | 1.5 | 6 | 7 | 169 | 198 | 300 | |||
VOL02D-300V | 2 | 9 | 11 | 254 | 311 | 300 | ||||
VOL03D-300V | 3 | 14 | 17 | 396 | 481 | 300 | ||||
VOL05D-300V | 5 | 31 | 37 | 876 | 1050 | 300 | ||||
VOL07D-500V | 7.5 | 43 | 52 | 1218 | 1470 | 500 | ||||
VOL10D-500V | 10 | 63 | 77 | 1812 | 2187 | 500 | ||||
VOL15D-1000V | 15 | 92 | 111 | 2633 | 3156 | 1000 | ||||
VOL20D-1000V | 20 | 113 | 136 | 3227 | 3868 | 1000 | ||||
Triplex | VOL02T-300V | 2 | 18 | 22 | 508 | 622 | 300 | |||
VOL03T-300V | 3 | 28 | 34 | 792 | 962 | 300 | ||||
VOL05T-500V | 5 | 62 | 74 | 1752 | 2100 | 500 | ||||
VOL07T-1000V | 7.5 | 86 | 104 | 2436 | 2940 | 1000 | ||||
VOL10T-1000V | 10 | 126 | 154 | 3624 | 4374 | 1000 | ||||
VOL15T-1000V | 15 | 184 | 222 | 5266 | 6312 | 1000 | ||||
VOL20T-1000V | 20 | 226 | 272 | 6454 | 7736 | 1000 | ||||
Quadruplex | VOL02Q-300V | 2 | 27 | 33 | 762 | 933 | 300 | |||
VOL03Q-500V | 3 | 42 | 51 | 1188 | 1443 | 500 | ||||
VOL05Q-1000V | 5 | 93 | 111 | 2628 | 3150 | 1000 | ||||
VOL07Q-1000V | 7.5 | 129 | 156 | 3654 | 4410 | 1000 | ||||
VOL10Q-1000V | 10 | 189 | 231 | 5436 | 6561 | 1000 | ||||
VOL15Q-1000V | 15 | 276 | 333 | 7899 | 9468 | 1000 | ||||
VOL20Q-1000V | 20 | 339 | 408 | 9681 | 11604 | 1000 | ||||

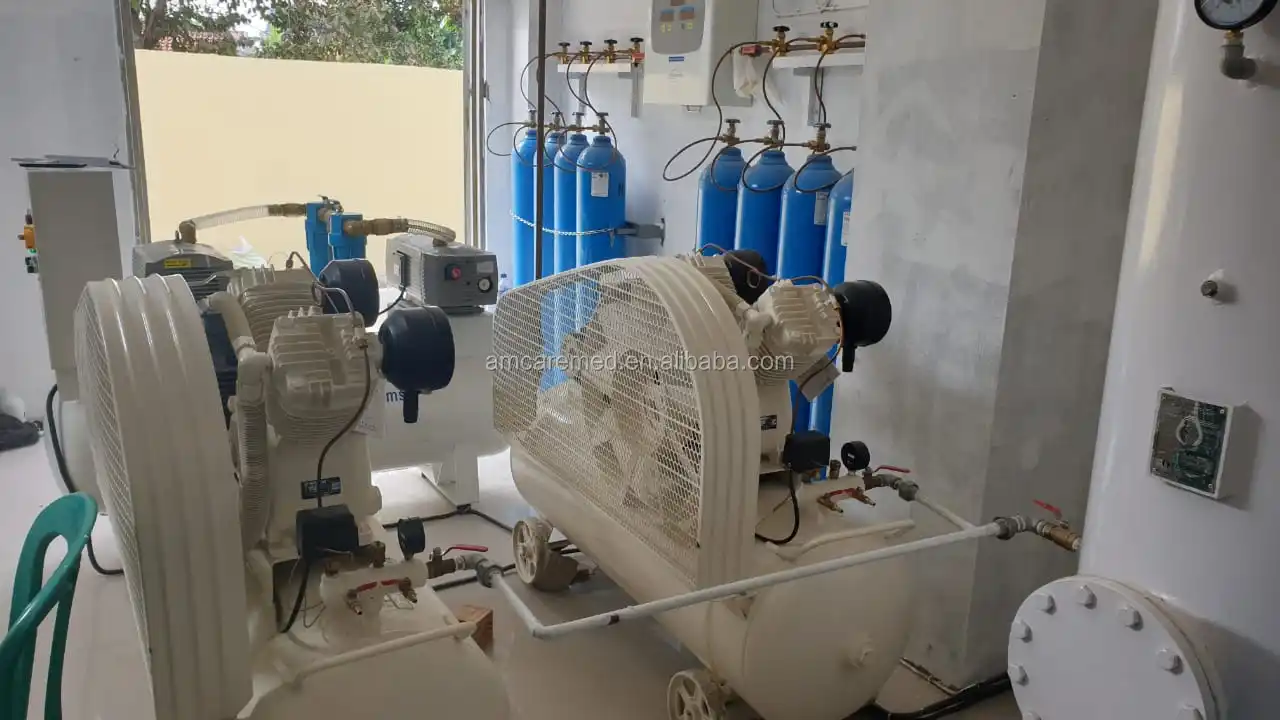

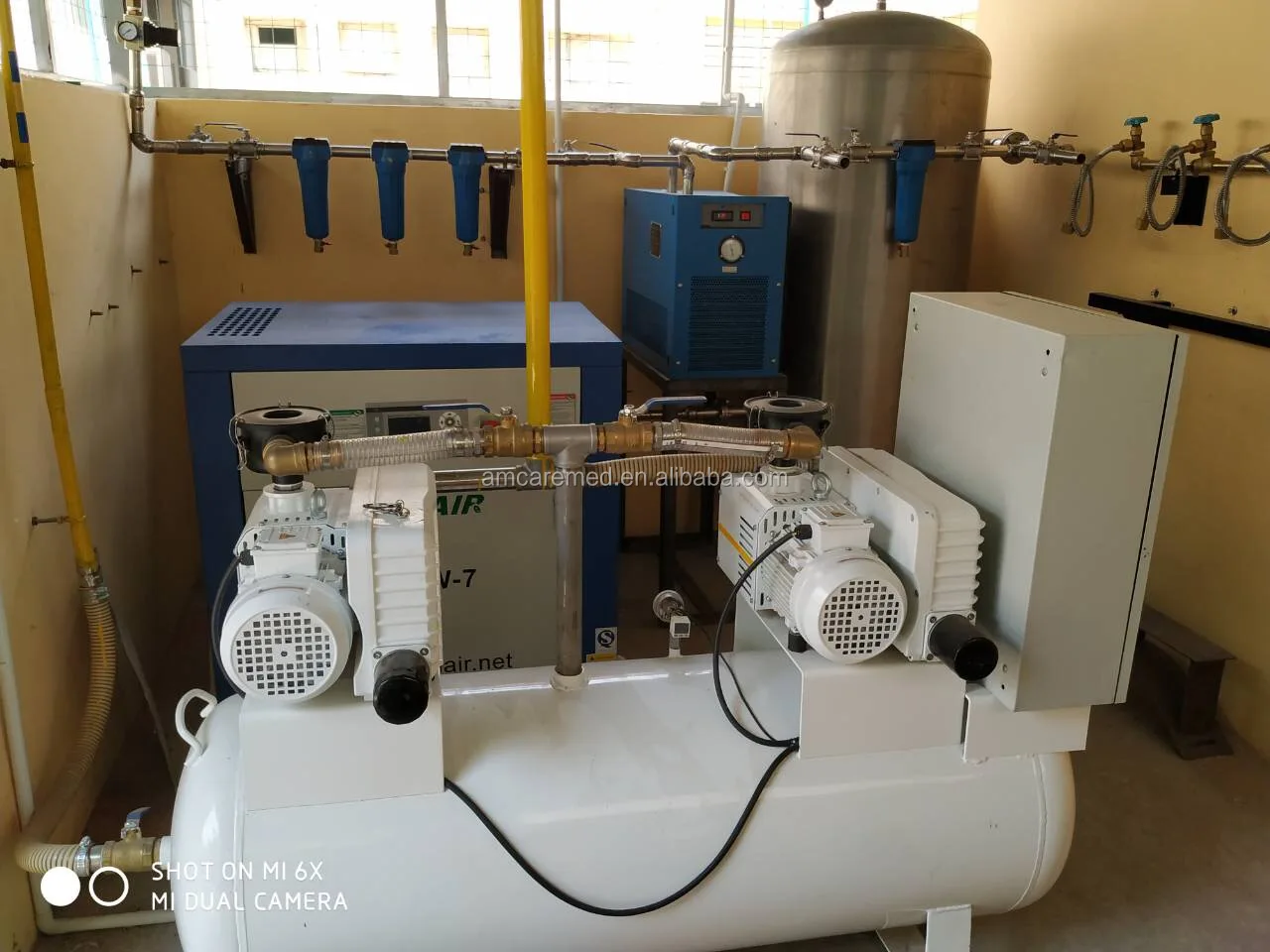

Customer Photos
Related Products
Company Introduction
AMCAREMED MEDICAL is a professional design and manufacturing company for medical gas products in China. We are committed to providing users with comprehensive and innovative medical gas solutions and other user-centric service offerings. Include gas pipeline engineering, ward care products, operating room equipment, supporting installation and after-sales service. These solutions and services will create an overall satisfying experience throughout the hospital's gas engineering.
Our plant area is over 2,500m2 and consists of production workshop, inspection workshop, R&D department, warehouse and sample room. All our products have passed strict test and inspection to control the qualified rate before they leave the factory. We believe that quality products and services will cultivate customers' loyalty to our brand.
Over the years, AMCAREMED has track record of continuous growth and a gained one of leadership in the china and oversea market. Our value is time savings, safety and reduced costs for each client.
Our plant area is over 2,500m2 and consists of production workshop, inspection workshop, R&D department, warehouse and sample room. All our products have passed strict test and inspection to control the qualified rate before they leave the factory. We believe that quality products and services will cultivate customers' loyalty to our brand.
Over the years, AMCAREMED has track record of continuous growth and a gained one of leadership in the china and oversea market. Our value is time savings, safety and reduced costs for each client.
Customer Photos
Product Categories
Why Choose Us
FAQ
Q1. Are you manufacturer or trade company?
A:We are professional manufacturer to produce medical gas pipeline equipment.
Q2. What about the lead time?
A: 4-5 weeks
Q3. How to buy the products?
A: Firstly let us know your detailed requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
A:We are professional manufacturer to produce medical gas pipeline equipment.
Q2. What about the lead time?
A: 4-5 weeks
Q3. How to buy the products?
A: Firstly let us know your detailed requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
