Gasoline Trowel Machine Driving Type Floor Large Area Concrete Smooth Finishing Machine Ride On Power Trowel
- Category: >>>
- Supplier: Shandong China Coal Construction Machinery Co. Ltd.Shandong Ltd.
Share on (1601184219147):
Product Overview
Description

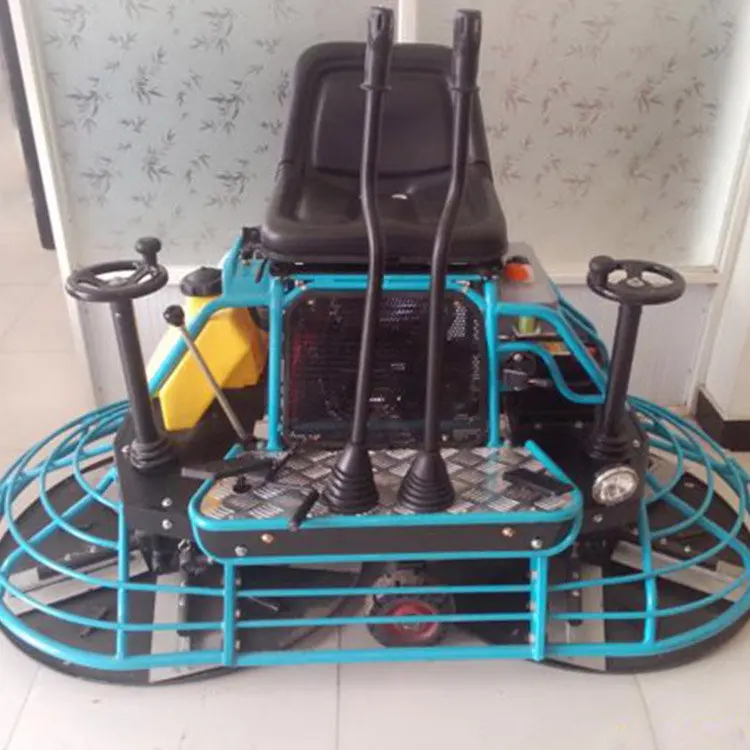

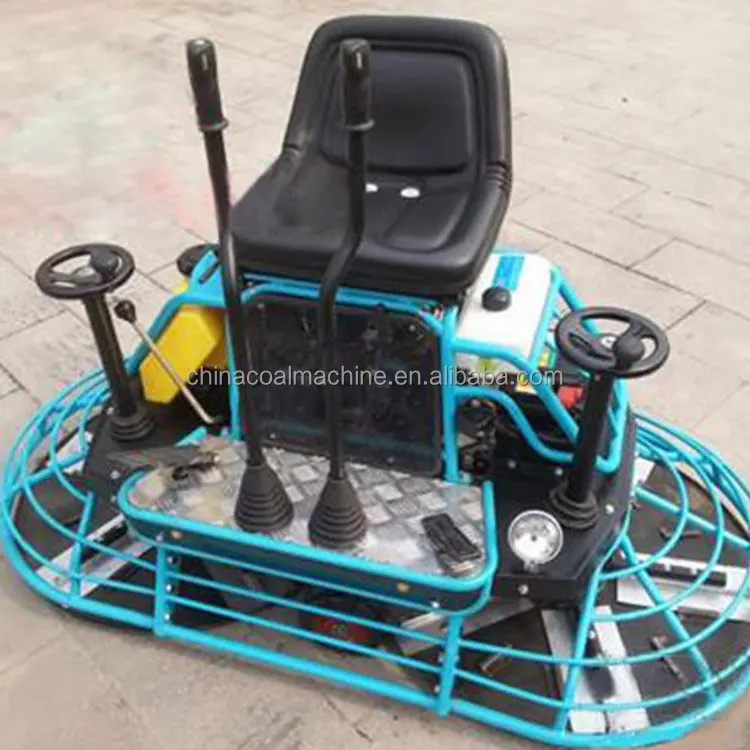

Concrete Power Trowel
1. Ride on type concrete power trowel, greatly reducing the labor intensity and improve work efficiency.
2. Installed two simultaneous disk wiping, quick to mention pulp.
3. The two-way ten lobes with the weight of 400kg could reach better compaction effect to the concrete ground.
4. Mechanical steering operating system, responsive, easy to operate, and comfortable.
5. With variable gear, high-grade smear speed of up to 160 rev / min to make light yield faster, better, low-grade pulp can wipe
disk mention more powerful.
2. Installed two simultaneous disk wiping, quick to mention pulp.
3. The two-way ten lobes with the weight of 400kg could reach better compaction effect to the concrete ground.
4. Mechanical steering operating system, responsive, easy to operate, and comfortable.
5. With variable gear, high-grade smear speed of up to 160 rev / min to make light yield faster, better, low-grade pulp can wipe
disk mention more powerful.
Products Description
Gasoline Finishing Float Machine
1. This Gasoline Finishing Float Machine have heavy-duty hydraulic motors and rotors,made in Italy,carry the load with more control and power.
2. This ride on power trowel is High-horsepower, dependable petrol for maximum power and performance.
3. 5-bladed spider for uniform blade and pan coverage.
4. Raised foot pedals for comfort.
5. Hydraulic fluid reservoir inside frame.
6. Temperature controlled advanced cooling system
7. Hour meter, voltage meter and hydraulic pressure gauge all in one location.
8. Super-duty cast iron spiders with super-duty steel trowel arms.

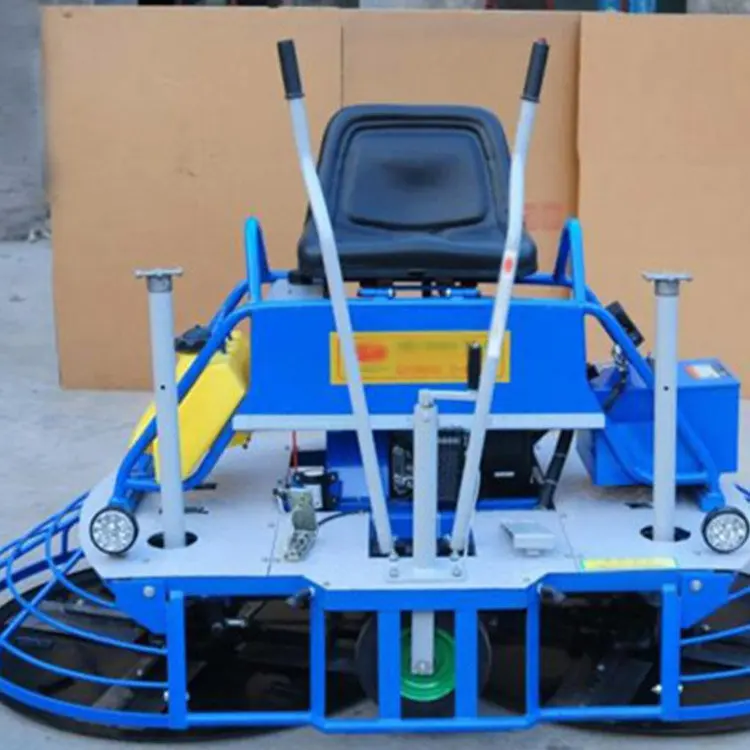

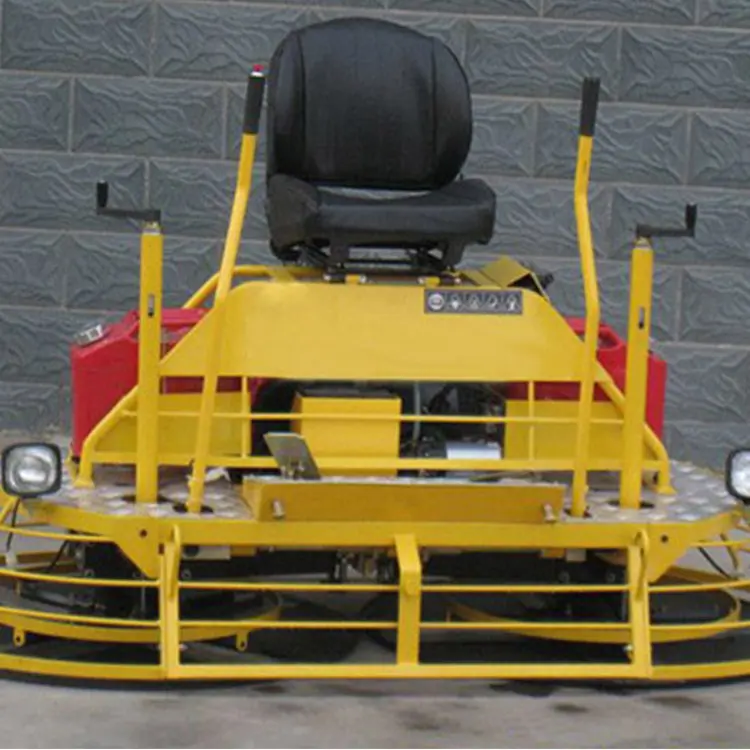

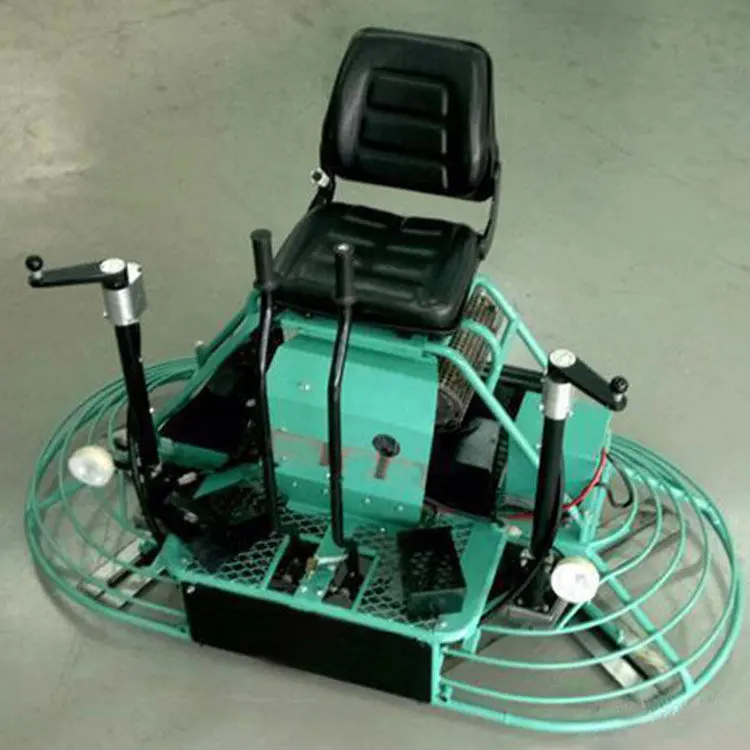

Details Images
Gasoline Finishing Float Machine
Product Paramenters
Model | ZM-100 |
Power | Honda GX690 24HP |
Blade size | 350*150*2mm |
Blade quantity | 10 |
Blade pitch | 65-120mm |
Disc diameter | 1000mm |
Dimension | 2080*1050*1180mm |
Total weight | 450kg |
Rotational speed | 140r/min-180r/min |
Operating mode | Driving type |
Starting system | Electric start |
Fuel Tank Capacity | 20L |
Lubricating oil volume | 1.5L |
Engine type | Two cylinder oil air-cooled |
Automatic water spray | Yes |
Construction lighting | Yes |
Walking wheels | Lift type |
