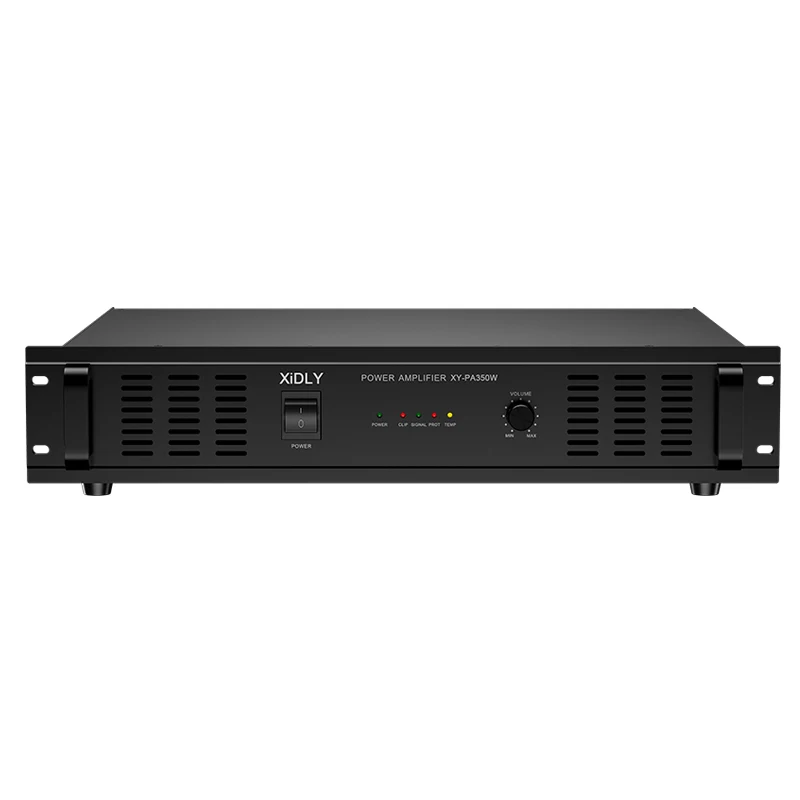

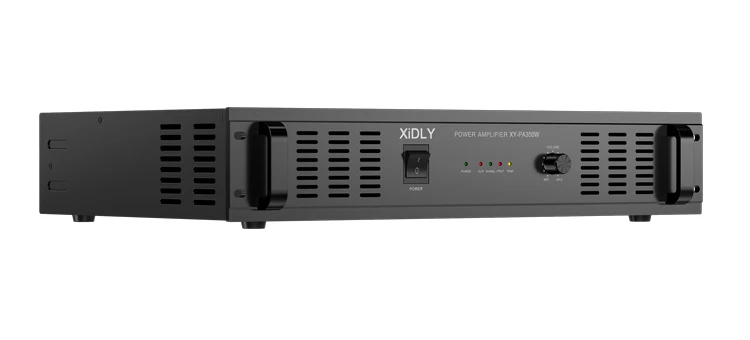

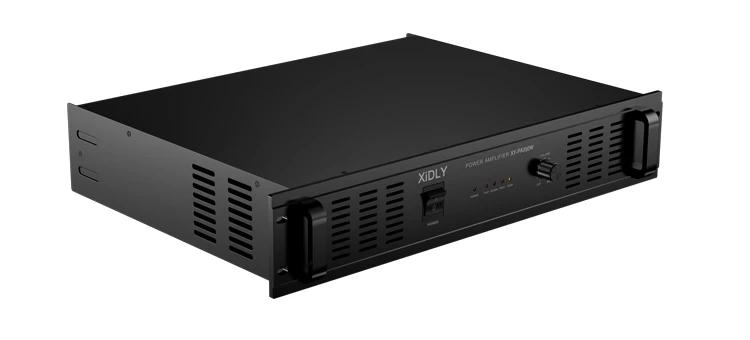

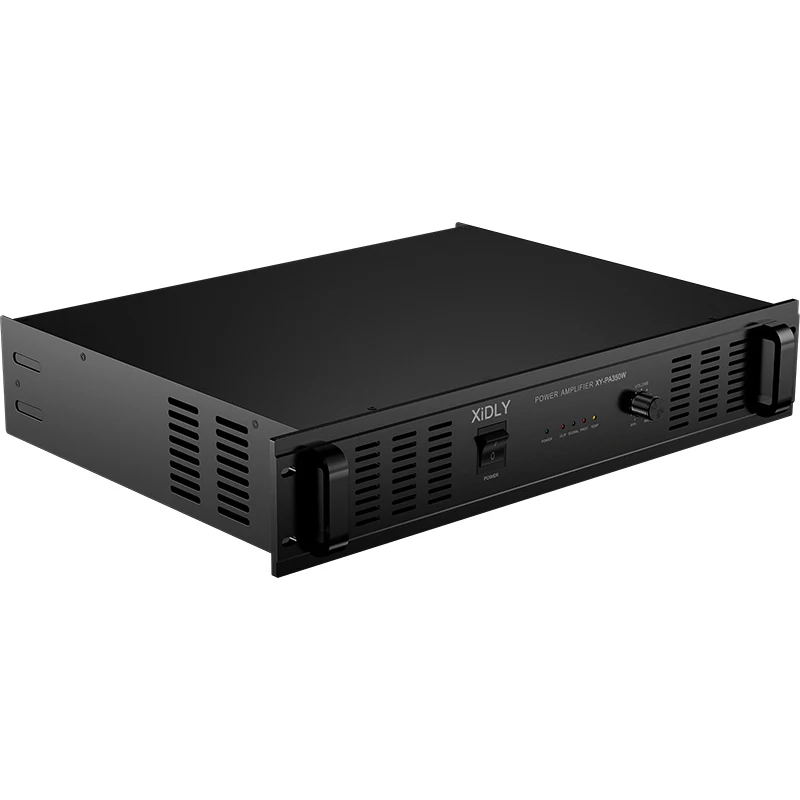

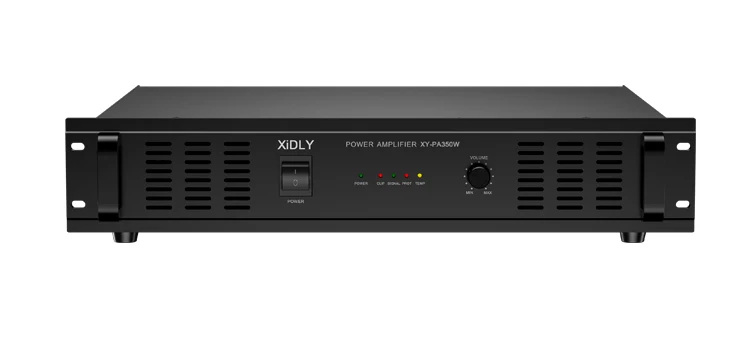

XIDLY Wholesale 350W 450W 650W Sound System Power Audio Amplifier for Background Music/Paging And public Address System

Product Overview

Description

XIDLY- Wholesale 350W 450W 650W Sound System Power Audio Amplifier  for Background Music/Paging And public Address System



The Rack Mount Power Amplifier 350W 450W 650W are designed for background music/paging and public address system installations,these units are exceptional values, loaded with features, and are easy to install in a variety of system designs.

The PA power amplifiers are designed to operate under a variety of conditions without fail, models with much higher power support the conditions where high power level of speakers or group of speakers are needed.

The power amplifiers features one line input or one line output,350/450/650 watts available with either 70/100-volt or 4 to 16 ohms(Ω) loads,And features many of the same comprehensive protection circuits typical, complete protection is provided for output short circuit,overload,high temperature, peak current limiters.



Features

Power rates: 350W/450W/650W available.

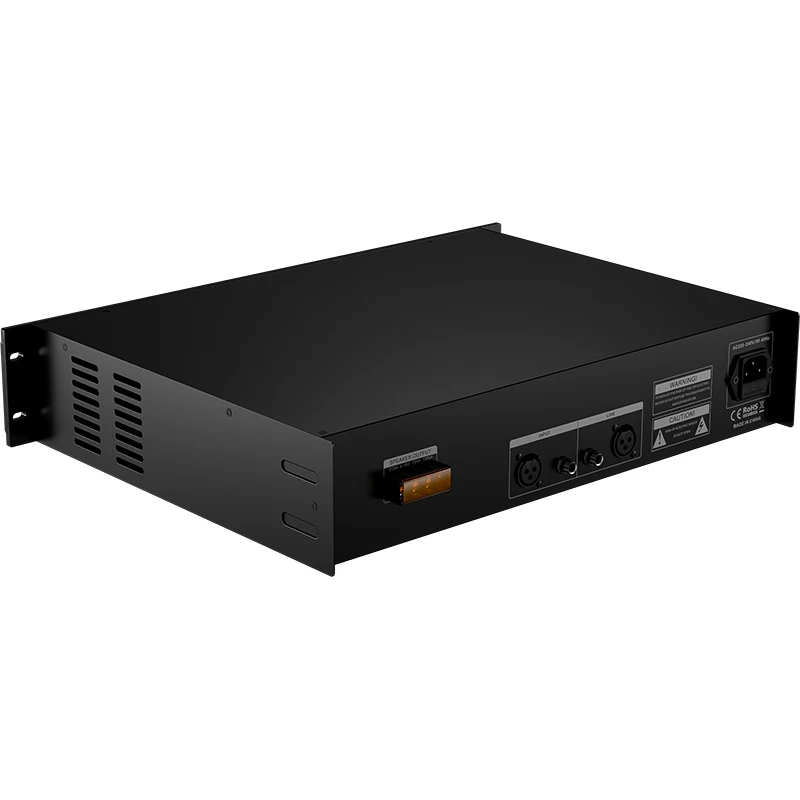

Aluminium alloy panel with standard 19" 2U height.

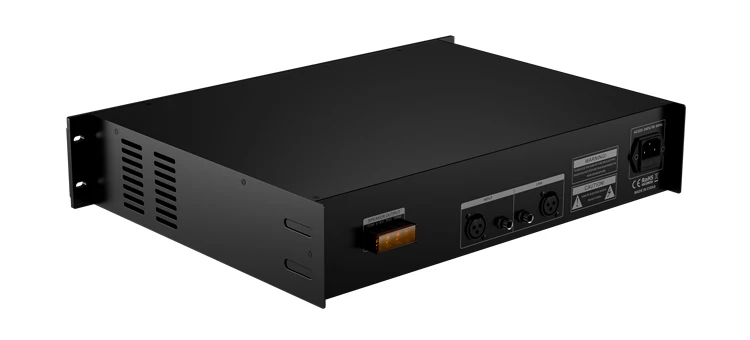

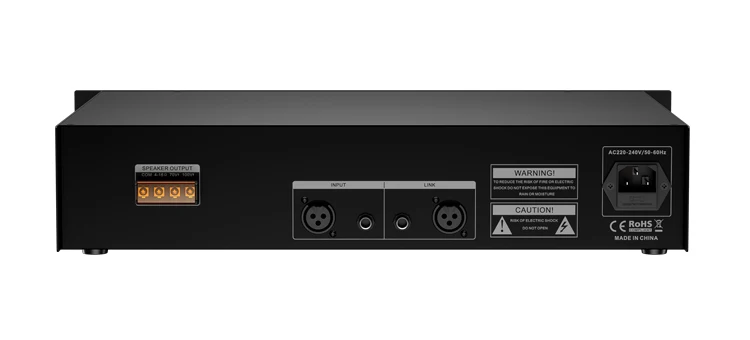

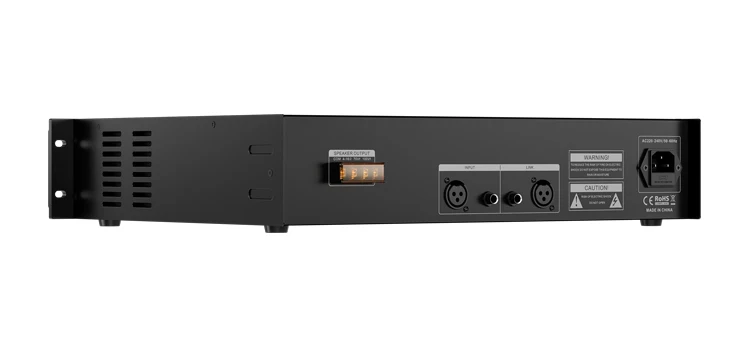

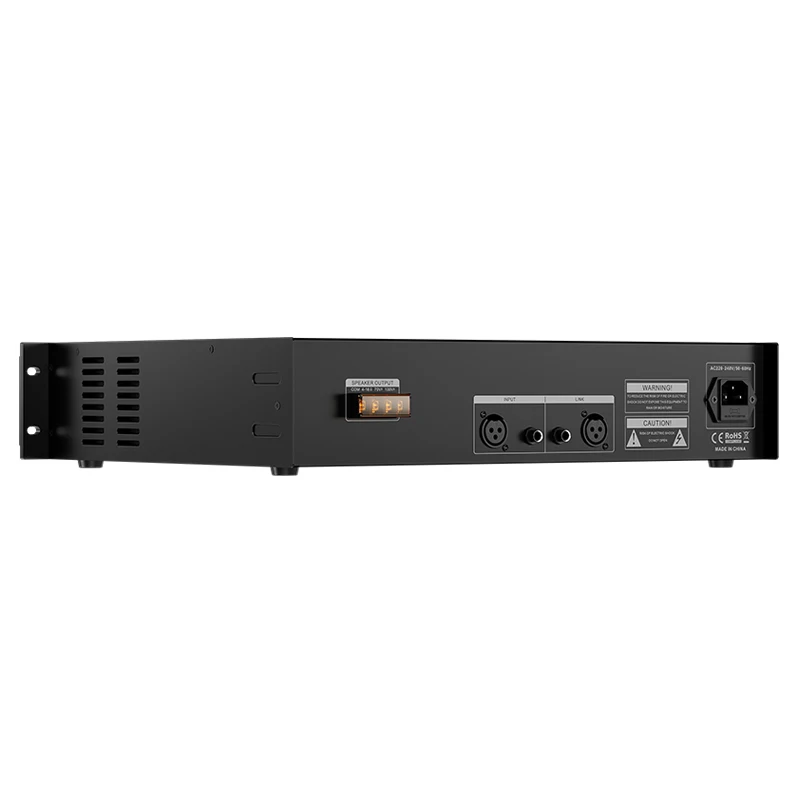

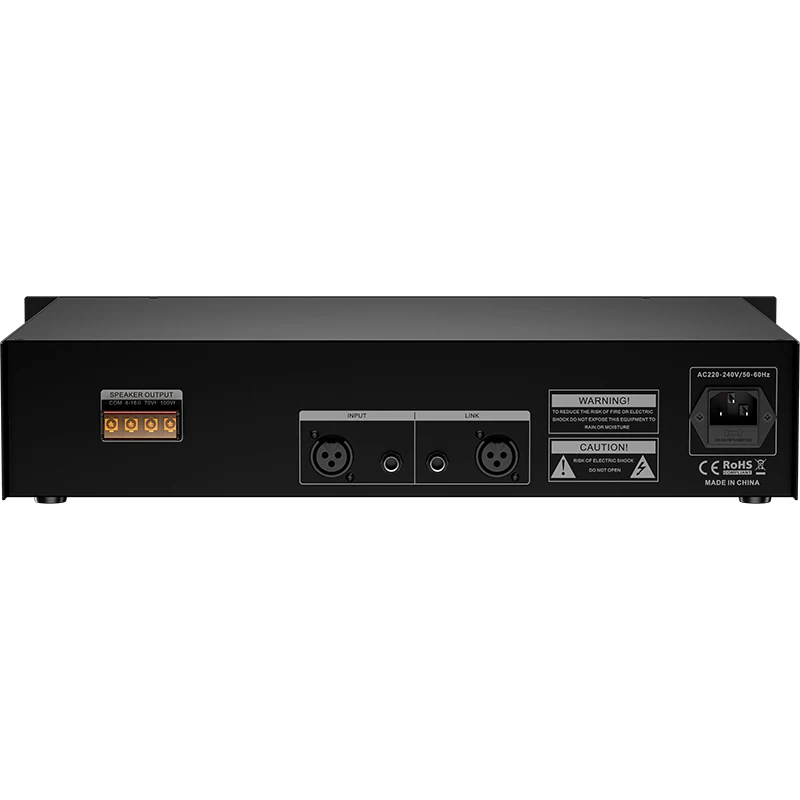

RCA and XLR socket for convenient link.

70V, 100V and 4~16Ω outputs.

Output short circuit,overload,high temperature protection and alarm.



Specification

Model	XY-PA350W		XY-PA450W	XY-PA650W
Rated Power	350W		450W	650W
Output Terminals	Low impedance:4-16 ohms(Ω)
	350W	Voltage line:70V(13.6 ohms(Ω)) 100V(27.8 ohms(Ω))
	450W	Voltage line:70V(10.7 ohms(Ω)) 100V(21.7 ohms(Ω))
	650W	Voltage line:70V(7.4  ohms(Ω)) 100V(15.1 ohms(Ω))
LINE Input	10k ohms(Ω) < 1V,unbalanced
AUX Output	10k ohms(Ω) 0.775V (0 dB),unbalanced
Frequency Response	60 Hz ~ 15k Hz (± 3 dB)
THD	<0.5% at 1kHz,1/3 of rated power
S/N	>70 dB
Damping Factor	200
Controls	Volume control,power switch
Cooling Fan	DC12V FAN
Indicator	AC:‘POWER’,‘CLIP’,‘SIGNAL’,‘PROT’,‘TEMP’
Protection	AC FUSE×10A		AC FUSE×12A	AC FUSE×15A
	AC FUSE×1,short circuit,overload,high temperature
Power Cord	(3×1.5 mm²)×1.5m  (Standard)
AC Power	AC110V~120V, AC220V~240V 50-60Hz optional
Consumption	485W		620W	880W
Dimension	89(H)×483(W)×366(D)mm
Packing Size	185(H)×520(W)×435(D)mm
Net Weight	15.12kg		17.66kg	19.74kg
Gross Weight	16.76kg		19.3kg	21.36kg
