LC High viscosity Asphalt pitch condensate oil Roots oil rotary lobe pump
LC High viscosity Asphalt pitch condensate oil Roots oil rotary lobe pump
LC High viscosity Asphalt pitch condensate oil Roots oil rotary lobe pump
LC High viscosity Asphalt pitch condensate oil Roots oil rotary lobe pump
LC High viscosity Asphalt pitch condensate oil Roots oil rotary lobe pump
LC High viscosity Asphalt pitch condensate oil Roots oil rotary lobe pump
LC High viscosity Asphalt pitch condensate oil Roots oil rotary lobe pump

LC High viscosity Asphalt pitch condensate oil Roots oil rotary lobe pump

Share on (1601184330238):


Price:$320.00 - $368.00

Quantity:


Product Overview

Description



Product Description

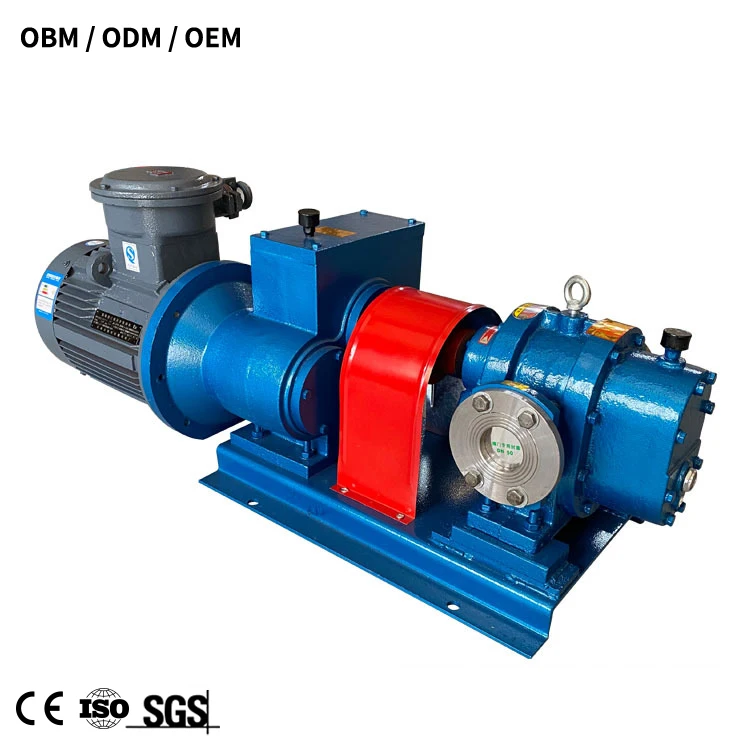

LC High Viscosity Roots Pump
●This pump has: low rotational speed, high efficiency, large flow rate, strong self-priming ability, no need for oil separation and so on.
●LCW high viscosity Roots pump, is to solve the transport of asphalt and condensate oil reformed, in the pump casing appearance and end cover with thermal insulation, the use of steam or to thermal cycle of the pump studio insulation, so that the pump's continuous work and intermittent work to provide good conditions
●The pump is precision machined by CNC, unique design, rotor and pump cavity to maintain a certain gap between the various components, complementary contact, not easy to wear and tear, low noise, good reliability, long service life.
●Applicable temperature: -50 °C -200 °C.

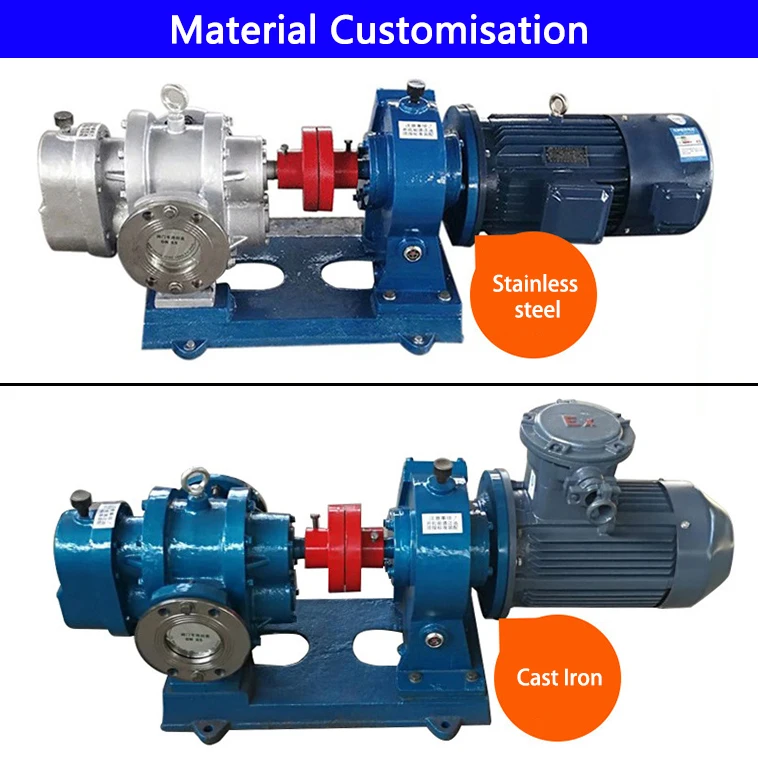

●Material：304/316 Stainless Steel；Cast Iron.

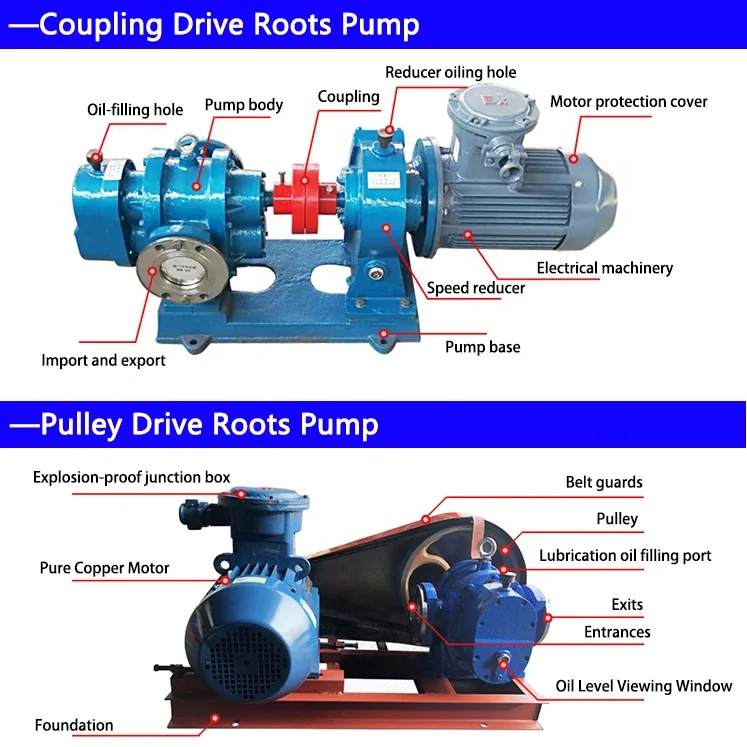

●Pump type：Pulley drive/Coupling drive


Model
Flow
Rated
Pressure
I.D/O.D
Headlift
Power
Speed
   Heat-Resistant
Applications
LC5/06
5m³/h
0.6Mpa
40mm
6m
2.2KW
400RPM



≤140℃
Diesel, motor oil, glycerine, crude oil, toothpaste, cooking oil, thick oil
LC10/06
10m³/h
0.6Mpa
50mm
6m
3KW
400RPM
LC18/06
18m³/h
0.6Mpa
65mm
6m
5.5KW
400RPM
LC38/06
38m³/h
0.6Mpa
80mm
6m
7.5KW
400RPM
LC50/06
50m³/h
0.6Mpa
100mm
6m
11KW
400RPM
LCW5/06
5m³/h
0.6Mpa
40mm
6m
2.2KW
400RPM



≤200℃

Pitch Condensate Thick oils Crude Oil
LCW10/06
10m³/h
0.6Mpa
50mm
6m
3KW
400RPM
LCW18/06
18m³/h
0.6Mpa
65mm
6m
5.5KW
400RPM
LCW38/06
38m³/h
0.6Mpa
80mm
6m
7.5KW
400RPM
LCW50/06
50m³/h
0.6Mpa
100mm
6m
11KW
400RPM
LCT5/06
5m³/h
0.6Mpa
40mm
6m
2.2KW
400RPM



≤140℃


Petrol
Solvent oil Paraffin
LCT10/06
10m³/h
0.6Mpa
50mm
6m
3KW
400RPM
LCT18/06
18m³/h
0.6Mpa
65mm
6m
5.5KW
400RPM
LCT38/06
38m³/h
0.6Mpa
80mm
6m
7.5KW
400RPM
LCT50/06
50m³/h
0.6Mpa
100mm
6m
11KW
400RPM

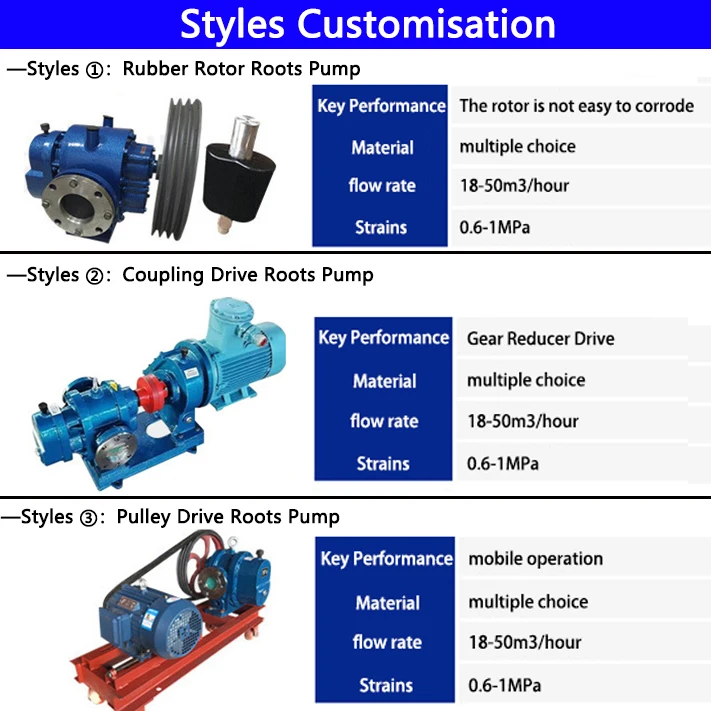

Customisation






Liquid conveying




Food Grade Liquid: Soya milk, yeast, sugar dilution, chocolate, honey, cream, etc.
Chemical Fluids:Crude oil, paint, lubricating oil, glass glue, grease acid, toothpaste, weak alkaline liquid

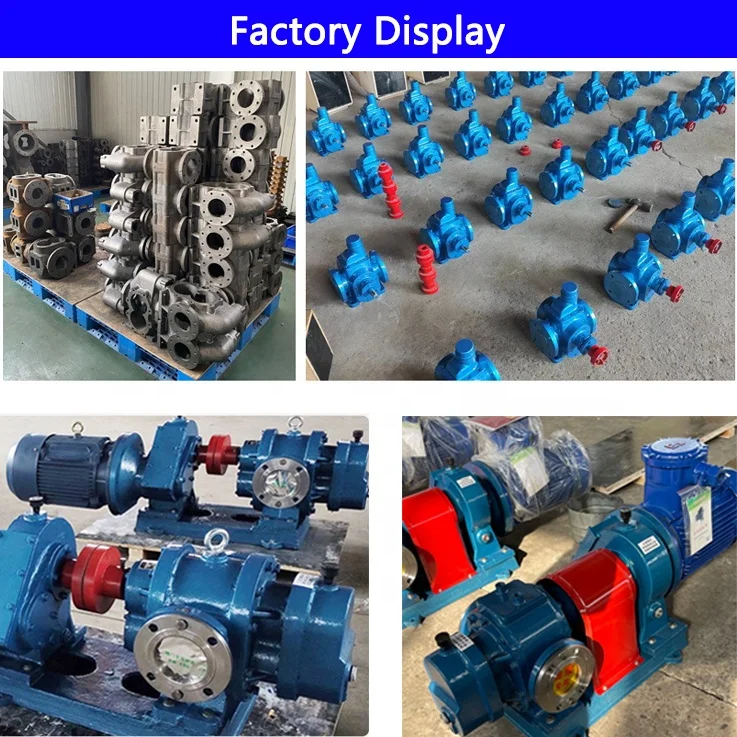

Our Factory






Advantages 1:
The Runto factory covers an area of 3,000 square metres, with 1 production line, 2 assembly lines, 2 test areas, 40 employees and a technical team of 10 people, useful and stable supply chain system.




Advantages 2:
Runto has a stable supply chain with many years of co-operation, and the products are manually tested at the factory to ensure the quality of each product.




Advantages 3:
Runto has a 500 square metre warehouse to store common lubrication system parts and supports fast same day despatch.
