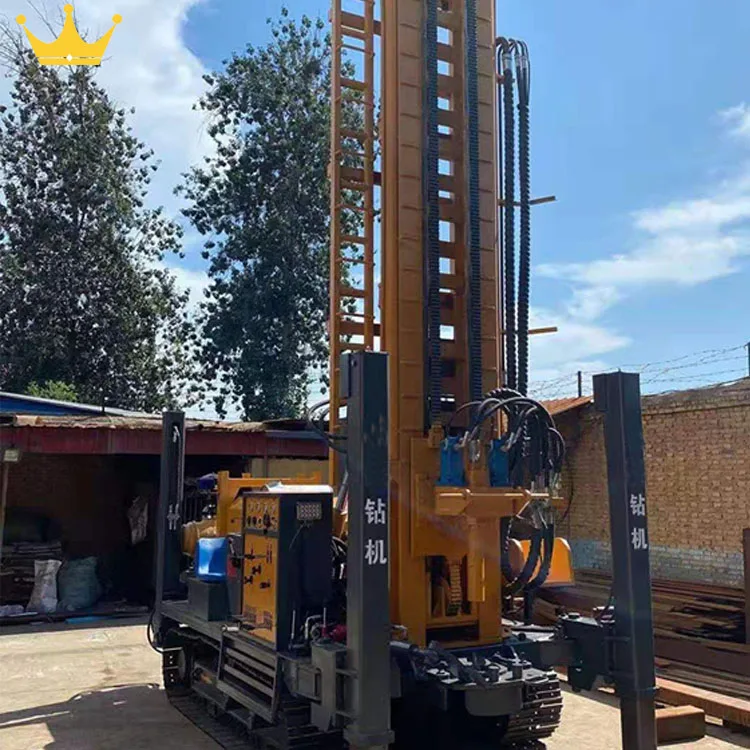

Down The Hole Tractor Mounted Well Drilling Rigs 200M Depth Water Digger Machine
Down-The-Hole Tractor Mounted Well Drilling Rigs 200M Depth Water Digger Machine
Down-The-Hole Tractor Mounted Well Drilling Rigs 200M Depth Water Digger Machine
Down-The-Hole Tractor Mounted Well Drilling Rigs 200M Depth Water Digger Machine
Down-The-Hole Tractor Mounted Well Drilling Rigs 200M Depth Water Digger Machine
Down-The-Hole Tractor Mounted Well Drilling Rigs 200M Depth Water Digger Machine
Down-The-Hole Tractor Mounted Well Drilling Rigs 200M Depth Water Digger Machine

Down The Hole Tractor Mounted Well Drilling Rigs 200M Depth Water Digger Machine

Share on (1601184483367):


Price:$9,800.00 - $11,000.00

Quantity:


Product Overview

Description



Product Description


Water Well Drilling Rig.
All drilling rigs are multifunctional, it can be used with air compressor, mud pump, even we can just use the dry hydraulic drilling method. The drilling rigs are not only designed for water drilling. They can be used in all conditions based on pore-forming purpose. They are widely used in industrial and agriculture water project, testing well and other exploration borehole. In particular, drilling hole for geothermal heating, it can also meet the engineering basis for reinforcement, loose gravel drilling rock formation connected with a variety of engineering.
Our drilling rigs are more efficiency and with low failure rate, more economic and durable, and with a high comprehensive cost performance..


Product Paramenters


Model
YG-180
YG-200
YG-300
YG-350
Weight(Ton)
4.5
5.5
9
7
Drilling Diameter(mm)
140~254
140~305
140~325
140~325
Drilling Depth(mm)
180
200
300
260
Walking Speed(Km/h)
2.5
2.5
2.5
2.5
Climbing Angles
30
30
30
30
Power(Kw)
55
65
84
75.8
Pressure(Mpa)
1.45~2.5
1.7~3.0
1.7~3.3
1.7~3.0
Air Consumption(m³/Min)
17~31
17~30
17~35
17~35
Drilling Pipe Diameter(mm)
76/89
76/89/102
89/102
76/89/102
Drilling Pipe Length(M)
1.5/2.0/3.0
1.5/2.0/3.0
1.5/2.0/3.0
1.5/2.0/3.0
Rig Lifting Force(T)
12
18
28
24
Swing Speed(Rpm)
45~65
50~70
55~115
40~70
Swing Torque(N.M)
3200~4600
5000~6500
7200~9500
7000~9000
Dimension
380*1500*2200
3800*1700*2350
5500*1950*2780
4100*1900*2600


Product Display




Product Packaging


Packaging Details
1. Out package: Standard marine export plwywood cases;
2. Innner package:Stretch film and plastic film for humidity;
3. Customized according to your requirement.
Delivery Time
Within one week
Shipping
Port: Tianjin, Qingdao, Shanghai or other ports according to your requirements.
Sea freight: FOB/CIF/DDU quotation are all available.
Transport method: By logistics; by automobile; by train; by shipping; by air etc.
