SRNE US Version SPI 8K UP SPI 10K UP Three phase 220V 8kw 10kw Solar Hybrid Inverter
- Category: >>>
- Supplier: Henan Livefun Solar Tech Co. Ltd.
Share on (1601184484104):
Product Overview
Description
Product Description
SRNE US Version SPI-8K-UP SPI-10K-UP Three phase 220V 8kw 10kw Solar Hybrid Inverter
Specification
Model | SPI-8K-U | SPI-10K-U | Can be set | ||
Inverter | |||||
Rated Output Power | 8000W | 10000W | |||
Max.Peak Power | 16000W | 20000W | |||
Rated Output Voltage | 120/240Vac（L1/L2/N/PE split phase） | Y | |||
Load Capacity of Motors | 5HP | 6HP | |||
Rated AC Frequency | 50/60Hz | Y | |||
Waveform | Pure Sine Wave | ||||
Switch Time | 10ms（typical） | ||||
Parallel number | 6 | ||||
Battery | |||||
Battery Type | Li-ion / Lead-Acid / User Defined | Y | |||
Rated Battery Voltage | 48Vdc | ||||
Voltage Range | 40～60Vdc | Y | |||
Max.MPPT Charging Current | 200A | Y | |||
Max.Mains/Generator Charging | 100A | 120A | Y | ||
Max.Hybrid Charging Current | 180A | 200A | Y | ||
PV input | |||||
Num. of MPPT Trackers | 2 | ||||
Max.PV Array Power | 11000W | ||||
Max.Input Current | 22/22A | ||||
Max.Voltage of Open Circuit | 500Vdc | ||||
MPPT Voltage Range | 125~425Vdc | ||||
Utility/Generator Input | |||||
Input Voltage Range | 90～140Vac | ||||
Frequency Range | 50/60Hz | ||||
Bypass Overload Current | 63A | ||||
Efficiency | |||||
MPPT Tracking Efficiency | 99.9% | ||||
Max. Battery Inverter Efficiency | 92% | ||||
General | |||||
Dimensions | 620*435*130mm （2*1.4*0.4ft） | ||||
Weight | 20kg （44lb) | 21kg （46.3lb） | |||
Protection Degree | IP20，Indoor Only | ||||
Operating Temperature Range | -10~55℃,>45℃ derated | ||||
Humidity | -25°C ~ 60°C | ||||
Cooling Method | Internal Fan | ||||
Warranty | 2Years | ||||
Communication | |||||
Embedded Interfaces | RS485/CAN/USB/ Dry contact | Y | |||
External Modules（Optional） | Wi-Fi / GPRS | Y | |||
Certification | |||||
Safety | IEC62109-1, IEC62109-2,UL1741 | ||||
RoHs | Yes | ||||
EMC | EN61000-6-1, EN61000-6-3, FCC 15 class B | ||||

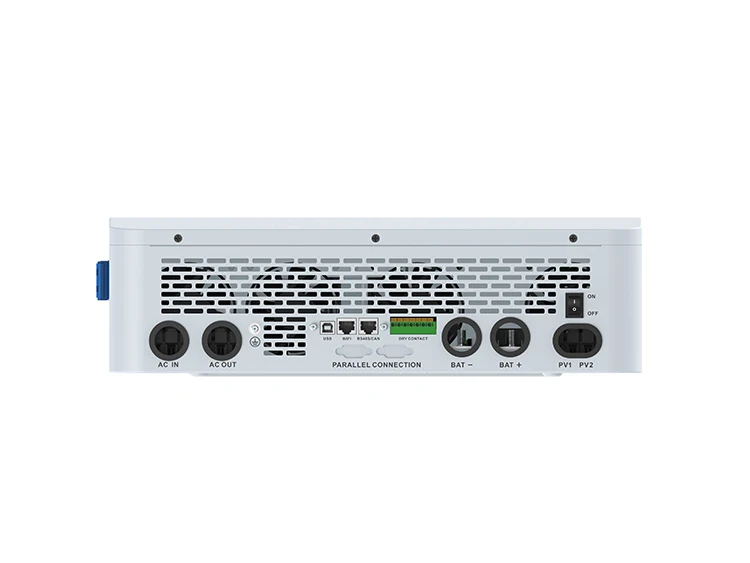

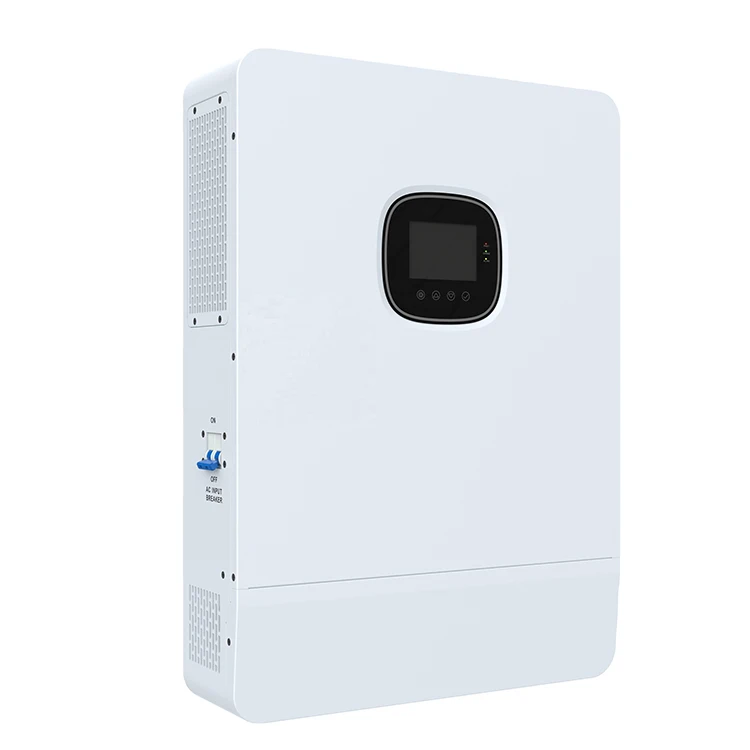

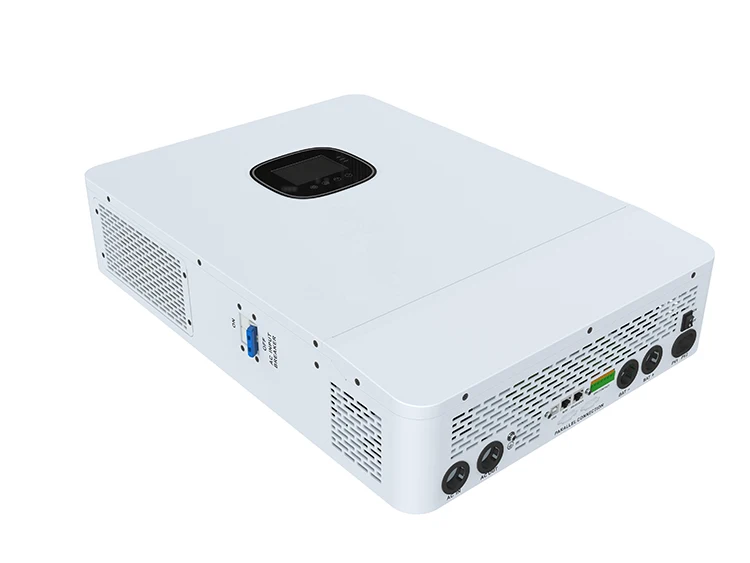

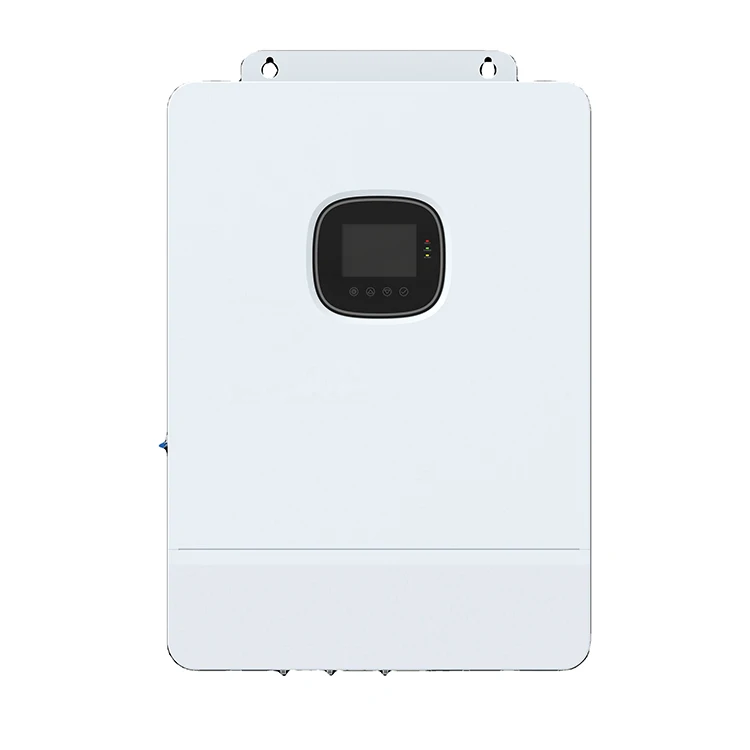

Products Details
System Architechture
