Support size customization bending sealing glass aluminum spacer for Insulating Glass windows packed in Carton Box
- Category: >>>
- Supplier: Shijiazhuang Ouyun Machinery Equipment Co. Ltd.
Share on (1601184546786):
Product Overview
Description
Product Name | Aluminum Double Spacer |
Model | 6A/9A/11A/12A/14A/15A/16A/18A/19A/正19A/20A/22A/24A/27A,etc. |
Brand Name | Ouyun |
Material | Aluminum Bar |
Shape | Strip (Bendable or Unbendable all can be provided) |
Hight | 23.5mm |
Width | 0.25mm |
Length | 5m |
Welder | High Frequency Induction Welding |
Packing | Standard Carton |
Character | sound insulation, heat insulation, energy saving,etc. |
Feature | 1.Nor Burr and no deformation after cutting, better for connected. 2.Smooth welding line and shine surface. |
Application | Door & Window, insulating glass sealing |
Color | Silver |
Service | Service Online |
Grade Standard | Industrial Grade |
Sample | Freely,The specific details of the sample can be communicated. |

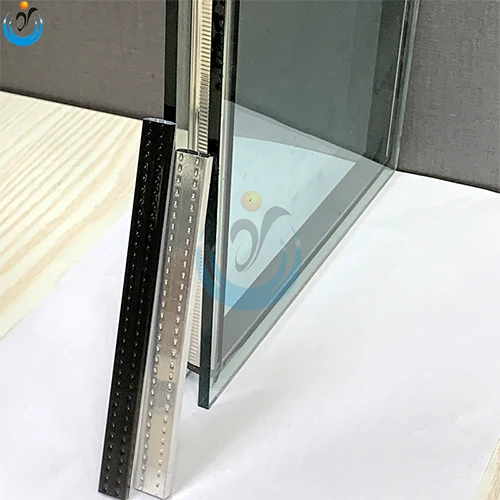

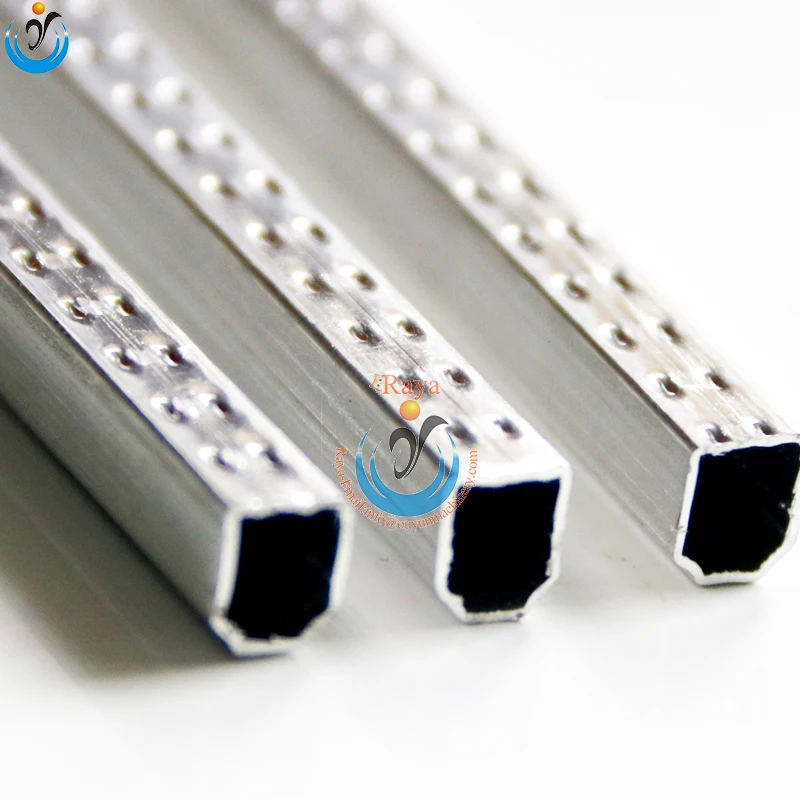

The Ouyun Aluminum Spacer Bar
The Ouyun Aluminum Spacer Bar is the new craft, after painting the spacer bar, will send them to the high temperature oven to bake about 6-8 hours, which color will be more wear and dark, no shedding or fading of color after year of use.
Ouyun Aluminium spacer bar is made of high quality alloy aluminum(grade 1060 or 3003) , coated with black color, specially conforms to the standard requirement of Insulating Glass,with the property of high frequently welding and bending.
The Characteristics of the Ouyun Aluminum Spacer Bar
Strong Adhesion Coating
Ouyun Black Aluminum Spacer Bars have several benefits, including: increased laser-welding speeds, better adhesion of the sealant to the metal, and a clean surface for material handling during the manufacturing process.
Increase of Service Life
High frequency welding aluminum spacer with right angle connecting hollow glass production, the production of hollow glass four corners without connecting piece, sealing effect is good, not easy to leak, permeable, prolong the service life of hollow glass.
Surface is Bright & Beautiful
Ouyun Black Aluminum Spacer Bars has the international standard height with perfect section, and the surface is bright, beautiful and generous single double hole, ensure desiccant activity.

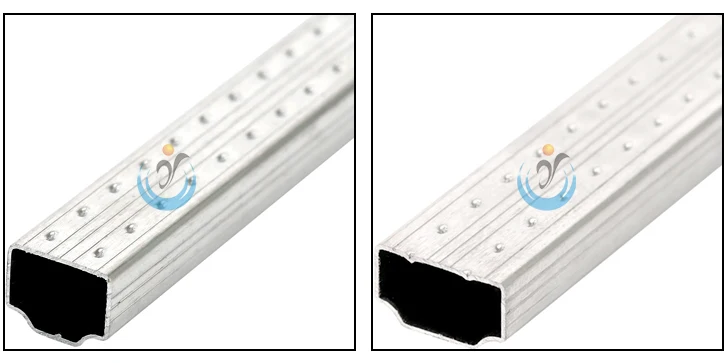

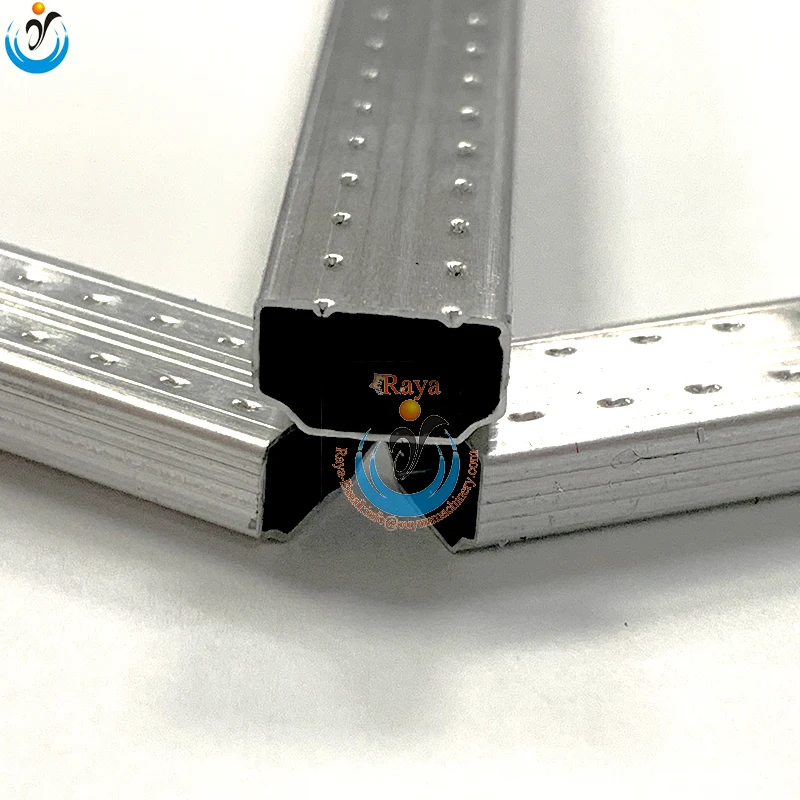

Aluminum Window Spacer Bar---Bendable
Bendable Aluminum window spacer bar is back welded and automated manufactured with its mechanical features. Alloy material and special temper ensure the corner are smooth and well formed.
Aluminum Window Spacer Bar---Unbendable
Standard Aluminum window spacer bar owns thin wall thickness and made by high-frequency welding technology. As it is unnecessary to be bent, special aluminum alloy is applied for better hardness and strength.
The Feature of the the Ouyun Aluminum Spacer Bar
1,Thickness of painting above 10 µm;
2,Strong adhesion coating, no breakage or shedding of paint when bending with 90 degree angel.
3,Smooth surface and uniform color.
4,Size are same with mill finish aluminum spacer bar.
2,Strong adhesion coating, no breakage or shedding of paint when bending with 90 degree angel.
3,Smooth surface and uniform color.
4,Size are same with mill finish aluminum spacer bar.
The Application of the Ouyun Aluminum Spacer Bar
Ouyun Insulating glass Black Aluminum Spacer bar, it has characters with sound insulation, heat insulation, energy saving, safety, anti-fog and other functions applicable to building curtain wall, Windows and doors glass, trains, ships, aircraft, refrigerators.
The Storage of the Ouyun Aluminum Spacer Bar
★ Put the Ouyun Aluminum Spacer Bar at dry ventilated place,away from the ground 15cm;
★ No direct exposure to the sun.
★ No direct exposure to the sun.
The Related Insulating Glass Warm Edge Spacer Plug-in
The Process Flow if producing insulating glass used the OuYun Warm Edge Spacer

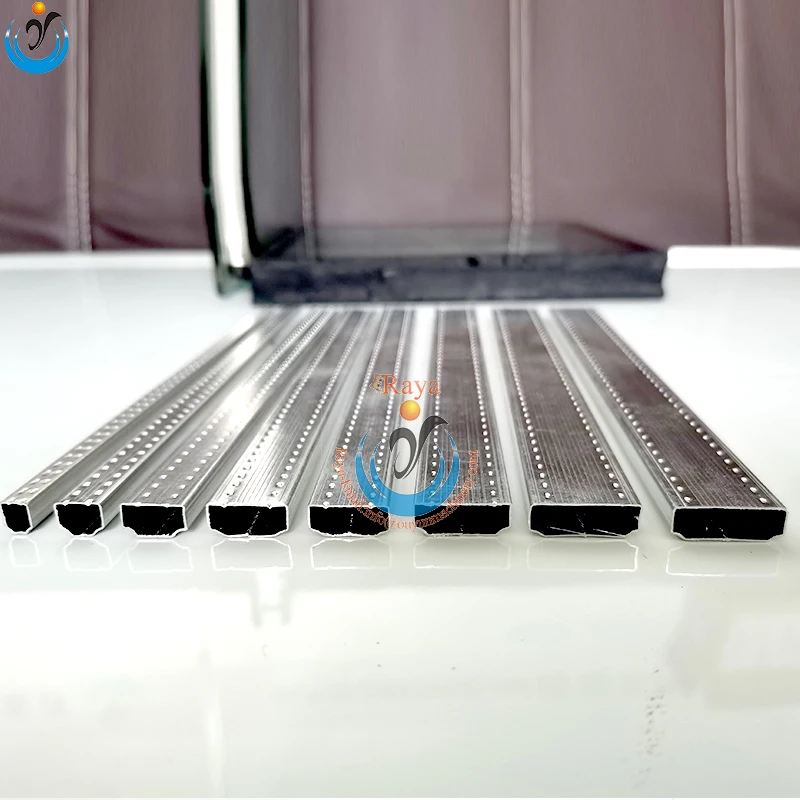

The Specification of the Ouyun Black Aluminum Spacer Bar
Type | Width | Height | Length (Meter) | Packing (Meter/Carton) |
6A | 5.5 mm | 6.5mm | 5m | 900M |
9A | 8.5mm | 6.5mm | 5m | 1100M |
11A | 10.5 mm | 6.5mm | 5m | 900M |
12A | 11.5mm | 6.5mm | 5m | 880M |
14A | 13.5mm | 6.5mm | 5m | 770M |
15A | 14.5 mm | 6.5mm | 5m | 660M |
16A | 15.5mm | 6.5mm | 5m | 660M |
18A | 17.5 mm | 6.5mm | 5m | 550M |
19A | 18.5mm | 6.5mm | 5m | 550M |
20A | 19.5mm | 6.5mm | 5m | 500M |
22A | 21.5 mm | 6.5mm | 5m | 440M |
24A | 23.5mm | 6.5mm | 5m | 440M |
27A | 26.5 mm | 6.5mm | 5m | 330M |
Ouyun Main Products

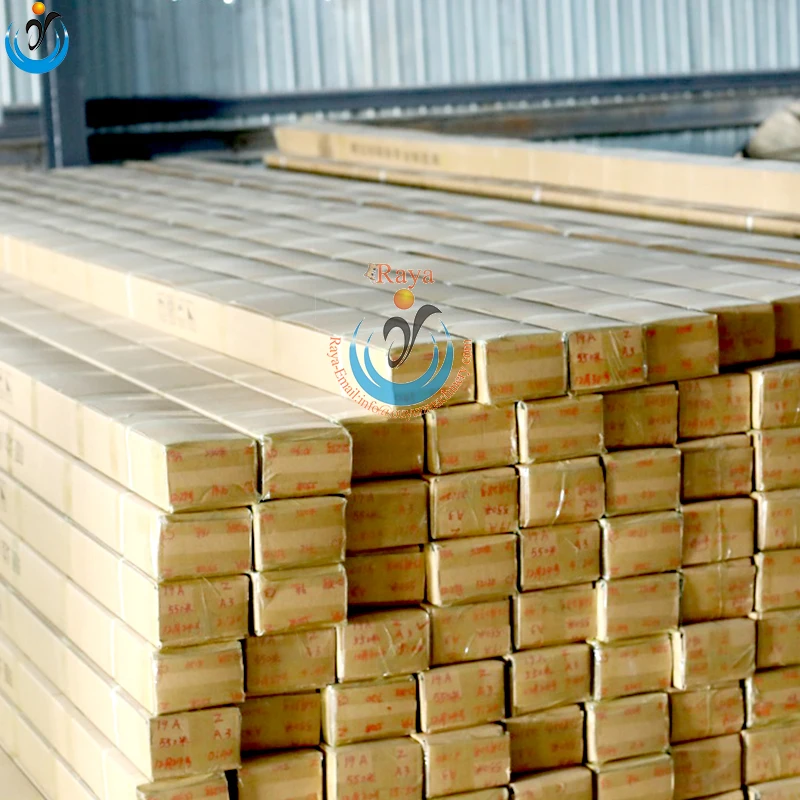

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q:Are you a factory or trading company?
A:We are a professional factory.
Q:Could we send a free sample for reference?
A:We can supply the sample if we have ready parts in stock, the samples are free of charge, but the customers have to pay the courier cost.
Q:What about the price?
A:We promise the price we offer is the lowest if same application,only to enlarge the market share.
Q:Is it OK to print my logo on carton?
A:Yes,Please inform us formally before our production and confirm the design.
Q:Do you accept credit card payment?
A:According alibaba regulation,we accept TT/Western Union/Money Gram.Different payment would have different require of customer.
Q:How do you make our business long-term and good relationship?
A:We will always keep the best quality product and the most competitive price to ensure our clients the best interests. Also we will regard you as our good friend in life and a reliable partner in business cooperation.
Q:How strong is your company?
A:We are a professional manufacturer and the earliest manufacture of the warm edge spacer in china.We have pre-sales and after-sales department to offer you the best solution and technical support.
A:We are a professional factory.
Q:Could we send a free sample for reference?
A:We can supply the sample if we have ready parts in stock, the samples are free of charge, but the customers have to pay the courier cost.
Q:What about the price?
A:We promise the price we offer is the lowest if same application,only to enlarge the market share.
Q:Is it OK to print my logo on carton?
A:Yes,Please inform us formally before our production and confirm the design.
Q:Do you accept credit card payment?
A:According alibaba regulation,we accept TT/Western Union/Money Gram.Different payment would have different require of customer.
Q:How do you make our business long-term and good relationship?
A:We will always keep the best quality product and the most competitive price to ensure our clients the best interests. Also we will regard you as our good friend in life and a reliable partner in business cooperation.
Q:How strong is your company?
A:We are a professional manufacturer and the earliest manufacture of the warm edge spacer in china.We have pre-sales and after-sales department to offer you the best solution and technical support.
